Torque Transducer

We are offering best quality Torque Transducers, which are the devices made for measuring as well as recording the torque on the rotating system, such as crankshaft, gearbox, engine, transmission, rotor etc. These generally need transfer of some effect and convert the twisting into the electrical signal. These strain gauges can converts torque into an alteration in electrical resistance. The strain gauge is bonded to a beam or structural member that deforms when a torque or force is applied. These highly functional transducers can change a torsional mechanical input into an electrical output signal. These are precision-machined and employ the proprietary force sensors torque capacities.

(TTD-SS-NON CONTACT)

Torque Sensor dynamic wireless non contact type

Price: ON REQUEST INR/Set

This is Shaft type rotating Torque Sensor with inbuilt wireless transmitter for rotating applications. It can be used up to 5000RPM.

Send Inquiry

Request To Call Back

(TORQUE SENSOR)

TORQUE TRANSDUCER DYNAMIC TYPE-SHAFT TYPE-MALE-FEMALE COUPLING

Price: ON REQUEST INR/Set

Accuracy:0.1 %
Operating Temperature:0-50 Celsius (oC)
Type:STRAIN GAGE BASED TORQUE TRANSDUCER
Output Voltage:2mv Volt (V)
Storage Temperature:0-60 Celsius (oC)
Operating Voltage:5-10 Volt (V)
Product Type:TORQUE TRANSDUCER
Compensated Temperature:10-50 Celsius (oC)
Supply Ability:10 Per Week
Delivery Time:1 Week

Send Inquiry

Request To Call Back

(Static Torque Sensor)

Torque Sensor

Price: ON REQUEST INR/Set

This is static reaction torque transducer, flange mount with female SQ Drive at loading end. It is designed for industrial and research applications. It is constructed from Electroless Ni plated tool steel for harsh industrial applications. TTS-F-SQ-F is strain gage based sensor with full temperature compensation over 10 to 50C. It is compensated for axial and side loads for very good linearity and low hysteresis. It is very compact and easy to install into the applications. It is available from 0 - 100 NM to 0 10KNM capacities to cover vide industrial applications. It is suitable for clock wise and anti-clock wise directions. This sensor can be supplied with factory calibrated instrument with display, computer interface etc.

Send Inquiry

Request To Call Back

(TTS-SS-THRUST)

Torque Sensor with Thrust Measurement

Price: ON REQUEST INR/Set

Supply Ability:10 Per Week
Delivery Time:1 Week

Send Inquiry

Request To Call Back

(TTD-SS-RPM)

Torque Transducer with RPM measurement

Price: ON REQUEST INR/Set

Supply Ability:10 Per Week
Delivery Time:1 Week

Send Inquiry

Request To Call Back

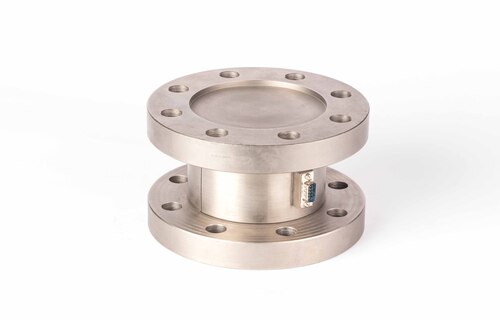

(TTS-FF-THRUST)

Static Torque sensor with Thrust measurements

Price: ON REQUEST INR/Set

Supply Ability:10 Per Week
Delivery Time:1 Week

Send Inquiry

Request To Call Back

(TTS-F-SQ)

Static Torque Transducer Flange and Squre Drive Type

Price: ON REQUEST INR/Set

Delivery Time:1 Week
Supply Ability:10 Per Week

Send Inquiry

Request To Call Back

(TTD-FF)

Dynamic type Rotary Torque Transduser Flange Type

Price: ON REQUEST INR/Set

Supply Ability:10 Per Week
Delivery Time:1 Week

Send Inquiry

Request To Call Back

(TTS-SS-MINI)

Static Torque Transducer Miniature Type

Price: ON REQUEST INR/Set

Supply Ability:10 Per Week
Delivery Time:1 Week

Send Inquiry

Request To Call Back

(TTS-FF)

Static Torque Transducer Flange Type

Price: ON REQUEST INR/Set

Supply Ability:10 Per Week
Delivery Time:1 Week

Send Inquiry

Request To Call Back

(TTD)

Dynamic type Rotary Torque Transduser

Price: ON REQUEST INR/Set

ADI ARTECHS Torque transducer TTD-SS is general purpose dynamic rotary type torque sensor for accurate measurement of Torque in rotating shaft or equipment. It is constructed from SS 17-4 PH material. This is strain gage based sensor with full temperature compensation over 1050C. It is very accurate, reliable and sturdy for industrial applications. It is compensated for axial and bending forces for accurate torque measurements. It is available from 0 to 50NM to 0 to 50KNM ranges. Torque sensing shaft is installed in ball journals and electrical signals are transferred through high quality, low noise slip ring and brush mechanism. TTD is available in wide variety of options: both ends shaft, both ends flange and combination of shaft & flange versions for dynamic torque measurements. It is available for speed up to 300 RPM max. High RPM Speed version is also offered optionally.

Send Inquiry

Request To Call Back

(TTS)

Reaction Shaft Torque Transducer

Price: ON REQUEST INR/Set

Delivery Time:1 Week
Supply Ability:10 Per Week
