Crane Scale Load Cell

ROPE TENSION SHEAR BEAM LOAD CELL

LOAD CELL MODEL 30510 IS TENSION TYPE LOAD MEASURING SENSOR. IT IS DESIGNED TO MEASURE THE WIRE ROPE OF CRANES, CARGO HANDLING PORTS, ELEVATORS. IT IS CLAMP ON TYPE SENSOR SUPPLIED WITH SUITABLE BRACKET, BOLTS AND SPACERS. IT CAN BE FITTED TO THE EXISTING ROPE SET UP WITH THOSE HARDWARES.

ROPE TENSION LOAD CELL with current transmitter

ROPE TENSION LOAD CELL MODEL 30510 IS SPECIALLY DESIGNED TO MEASURE THE LOAD EXERTED BY THE ROPE FIXED IN THE CRANE, HOIST, ELEVATOR OR ANY MATERIAL HANDLING SYSTEM. IT IS EASY TO FIT WITHOUT DISTURBING THE EXISTING SYSTEM OR NO CUTTING OF THE ROPE IS REQUIRED. IT IS CLAMP ON TYPE LOAD CELL. IT IS EMBEDED WITH 4-20mA CURRENT TRANSMITTER.

Crane Scale Weighing Load Cell

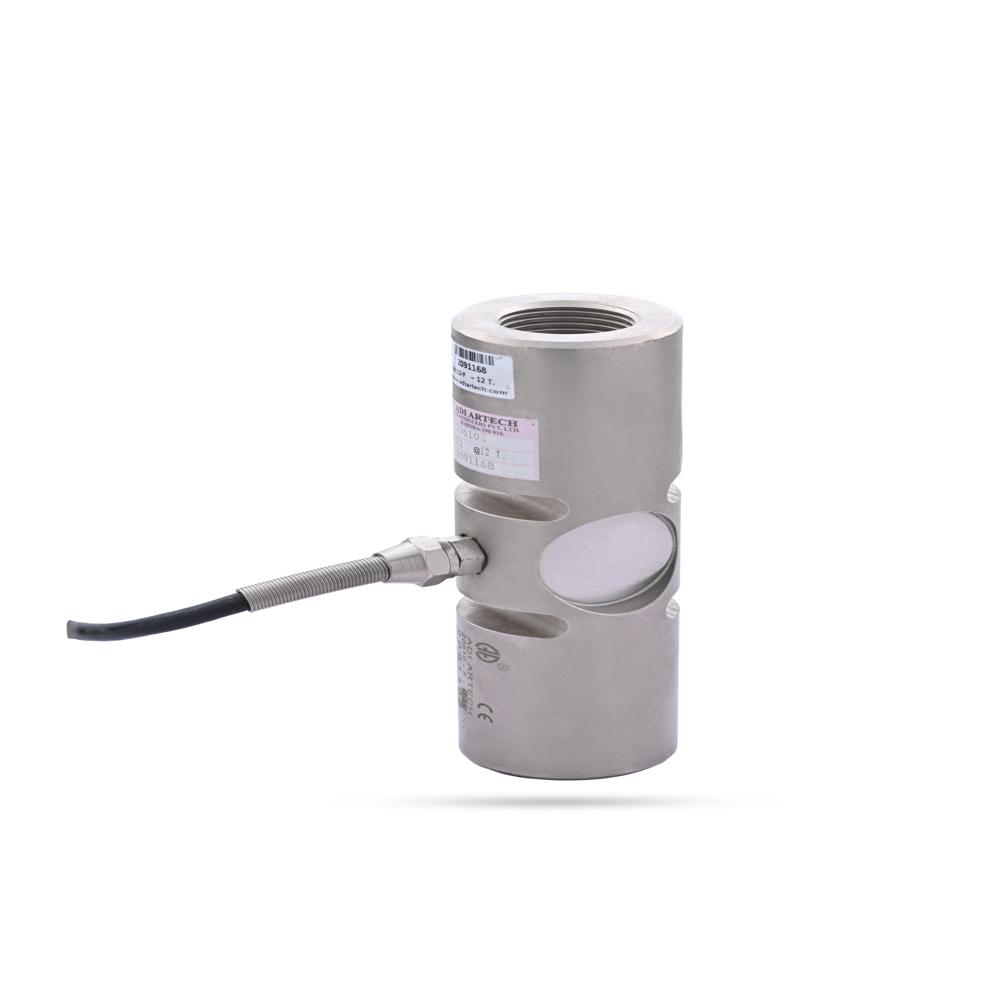

Tension Link with Female threadings

Flat type Tensoin Link

Tension Link with Male threadings

Rope Tension Scale Load Cell

Crane Scale Load Cell
