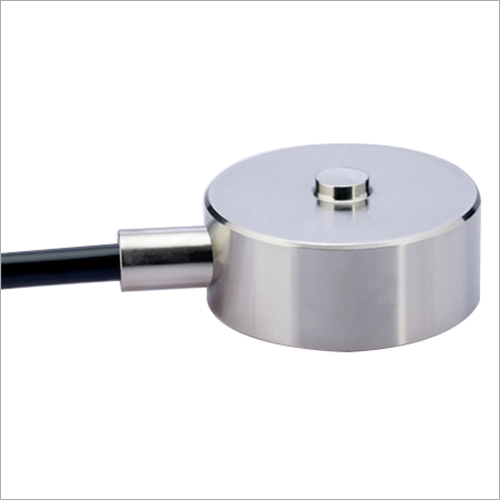

Miniature Pancake Load Cell

Get a Price/Quote

Product Details:

Resistance 350 (Input/Output)
Output Analog Voltage
Theory Resistance Strain Gauge
Type Miniature Pancake Load Cell
Accuracy 0.1% F.S.
Operating Voltage 5V DC (Excitation)
Output Voltage 1.0 - 2.0 mV/V
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Miniature Pancake Load Cell Price And Quantity

Minimum Order Quantity 1 Set

Miniature Pancake Load Cell Product Specifications

Storage Temperature -30C to +100C
Output Analog Voltage
Operating Temperature -20C to +80C
Accuracy 0.1% F.S.
Compensated Temperature -10C to +60C
Resistance 350 (Input/Output)
Output Voltage 1.0 - 2.0 mV/V
Operating Voltage 5V DC (Excitation)
Theory Resistance Strain Gauge
Type Miniature Pancake Load Cell

Miniature Pancake Load Cell Trade Information

Supply Ability 10 Set Per Week
Delivery Time 1 Week
Main Export Market(s) Western Europe, Eastern Europe, Middle East, Asia, Africa
Main Domestic Market All India

Product Description

Product details

Cable Length (4 Core Screened)	1 Meter
Material	Stainless Steel
Insulation Resistance	1000 Mega Ohms
Excitation Voltage	10 VDC -15 VDC
Output Resistance	350 +- 3 Ohms
Input Resistance	390 +- 10 Ohms
Load Capacity	Up to 1TF
Brand	ADI ARTECH TRANSDUCERS PVT LTD
Shape	Round
Nominal Sensitivity	2 mv/v
Type	Pan Cake mini

Miniature Pancake Load Cell

Model	:	90610-MT
Capacity	:	0 - 50 Kgf to 0 - 1000 Kgf
Load Direction	:	Compression only
Type	:	Pancake Load Cell

Industries

Robotics
Medical & Health Care
Material Testing
Machine Building
Automotive
Automation Machinery's
Aerospace

Application

Accelerator Pedal Force Measurement
Actuator Force Measurement
Automotive Research
Brake Force Measurement
Clutch Pedal Force Measurement
Materials Testing
Medical Instrumentation
Pedal Force Monitor
Pharmaceutical Machines
Tablet Manufacturing Machine

Description

90610-MT is miniature pancake type load cell.
It is strain gage based sensor with temperature compensation over 10 - 60 deg.C.

Features

This is very Small size and finds applications where space is constrain.
It is provided with threads for rigidly fixing at mounting surface.
It can be customized to customer's specification.

Electronic Instrumentation / Software

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MOD BUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
For more information ,please contact us.

Compact, Reliable Design

Engineered with a 60mm diameter and just 12mm height, this pancake load cell is perfect for applications where space is at a premium. Its robust stainless steel construction ensures long-lasting performance even in harsh industrial settings.

Wide Capacity Range and Precision

The load cell accommodates a vast capacity range from 10kg to 10T, maintaining high accuracy (0.1% F.S.) due to precision resistance strain gauge technology. Non-linearity, hysteresis, and creep are minimized, making it suitable for high-precision measurement tasks.

Versatile and Safeguarded for Tough Environments

With IP65 protection, shielded cabling, and ability to withstand 50% F.S. safe side load and up to 150% overload, this device is tailored to withstand challenging environments. It can operate reliably between -20C to +80C, ensuring stable performance over broad temperature variations.

FAQs of Miniature Pancake Load Cell:

Q: How is the miniature pancake load cell installed and connected?

A: To install, the load cell should be securely mounted on a flat, stable surface using appropriate fasteners. It features a standard four-wire connection with a 2-meter shielded cable that connects easily to your data acquisition system or readout instrument for analog voltage output.

Q: What applications benefit most from this load cell?

A: This miniature pancake load cell excels in industrial automation, material testing, laboratory force measurement, process control, and OEM equipment where compact size, high accuracy, and durability are essential.

Q: When should I consider replacing or recalibrating my load cell?

A: Routine recalibration is recommended annually or after exposure to overloads, harsh environments, or significant drift in zero balance. Replacement is advisable if mechanical damage, persistent accuracy issues, or compromised cable integrity are observed.

Q: Where can I purchase this load cell in India?

A: You can acquire this load cell through authorized dealers, distributors, exporters, manufacturers, and suppliers across India who specialize in force measurement solutions and instrumentation.

Q: What is the process for connecting the load cell to my instrumentation?

A: Connect the four-wire shielded cable to your measurement device, ensuring correct matching of excitation, signal, and ground terminals. The load cell operates with a 5V DC excitation and provides a 1.02.0 mV/V analog voltage output for precise force readings.

Q: How does using this load cell enhance measurement accuracy in my system?

A: With a non-linearity and hysteresis of 0.1% F.S., and creep limited to 0.05% F.S. over 30 minutes, the load cell ensures reliable and precise force measurements even under variable loading and temperature conditions. This leads to more consistent process control and data integrity.
