Product Code : LC - 3500
Brand Name : ADI
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price
  • 17500 INR

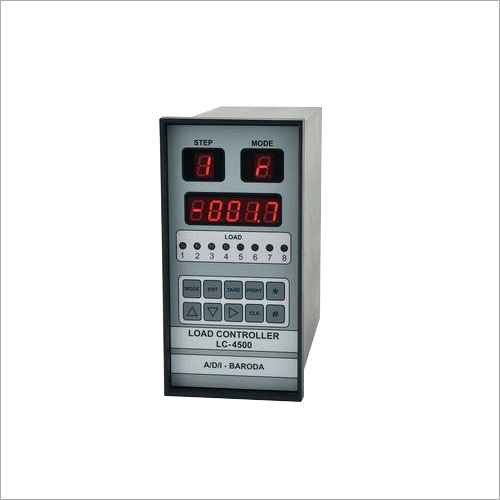

Product Description

We are a prominent manufacturer and supplier of the finest quality Load Controller. This controller is based on microprocessor with 4 digit load controller unit that consists of long term stored programmed retention, external batch cycle actuation and so on. Our offered controller is manufactured by making use of the finest quality components and advanced technology. This Load Controller is widely used in various commercial complexes and other related places in order to control the load of electricity.

Features:

  • Range: 0 - 5000 counts

  • Resolution: 1 in 5000 counts

  • Indication Accuracy: 0.05% of full scale

  • Tare: Full range push button tare

  • No of set point: Max. 6 relay

  • Control Setting: Individually settable over full range by keyboard

OPTIONAL FEATURE

OUTPUT: LINEAR O TO 10 VDC OR 4 - 20mA DC OUTPUT CORRESPONDING TO INPUT BY 12 BIT D TO A

RS - 232C PORT:  9 PIN D CONNECTOR FOR 3 WIRE SERIAL TRANSMISSION FOR HOOK UP WITH COMPUTER

RTC WITH PRINTER PORT: 25 PIN D CONNECTOR FOR CENTRONIX COMPATIBLE PARALLEL PRINTER PORT WITH REAL TIME CLOCK

BATCH OR CUMMULATIVE TOTALISATION: UP TO 6 PROGRAMMABLE TIME DELAYS FOR FILLING OPERATIONS.
