Send InquiryDigital Load Indicator for Load Cells
Price 24000.0 INR/ Number
Digital Load Indicator for Load Cells Specification
- Display
- 16x4 Character LCD Clear readability even in outdoor/sunlight conditions
- Power
- Low power device (for field applications; mains power not required) Watt (w)
- Voltage
- 5 VDC excitation for load cell Volt (v)
- Usage
- Industrial weighing Remote measurement systems Crane weighing Force measurement Process monitoring
- Power Rating
- Not Applicable
- Product Type
- ELECTRONIC DISPLAY FOR LOAD CELLS
- Design
- MICROPORCESSR BASED INSTRUMENT WITH DELTA SIGMA ADC WITH 24 BIT.
- Power Source
- Designed for field applications where mains power is not available
- Accuracy
- Usable resolution up to 10,000 intervals Internal count: 100,000 %
- Illuminant
- LCD backlit display (sunlight readable)
- Detector
- Not Applicable
- Usage & Applications
- Field weighing applications where mains power is not available
- Rated Voltage
- -19.5 mV to +19.5 mV (load cell input range) Volt (V)
- Weight
- 1 kg Kilograms (kg)
- Operating Temperature
- Not Applicable Celsius (oC)
- Cable Type
- Not Applicable
- Warranty
- ONE YEAR WARANTEE AGAINST MANUFACTURING DEFECTS ONLY.
- Display Type
- 16 x 4 Character LCD
- Phase
- Not Applicable (DC operated electronic device)
- Features
- Made to EU type approval up to 10,000 usable intervals Serial RS-485 (MODBUS RTU) interface 16x4 Character LCD display (sunlight readable) Field programmable Internal count 100,000 24-bit Delta Sigma A/D converter Tare / Zero / Net / Gross functions Supports 4-wire load cell Multiple baud rate support
- Rated Current
- Not Applicable Milliampere (mA)
- Frequency
- Not Applicable Hertz (HZ)
- Conductor
- Not Applicable
Digital Load Indicator for Load Cells Trade Information
- Minimum Order Quantity
- 1 Number
- FOB Port
- VADODARA
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque
- Supply Ability
- 100 Per Month
- Delivery Time
- 1 Week
- Sample Available
- No
- Main Export Market(s)
- Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
About Digital Load Indicator for Load Cells
The HH-06 Digital Load Indicator is a versatile, portable weighing indicator designed for field and remote measuring applications where mains power is not available. It supports industry-standard communication protocols and field-programmable scale functions, making it suitable for a wide range of industrial weighing systems.
The unit features a 16x4 character LCD display for clear visibility even in sunlight and includes a 24-bit Delta-Sigma A/D converter for high-resolution measurement. With RS-485 (MODBUS RTU) communication, programmable calibration functions, and support for 4-wire load cell connection, the HH-06 ensures reliable and accurate performance in demanding environments.
It is ideal for mobile weighing, crane systems, force measurement, and industrial process monitoring.
Key Highlights
-
16x4 Character LCD Display
-
24-bit Delta Sigma A/D Converter
-
Internal Resolution: 100,000 counts
-
Usable Resolution: 10,000 intervals
-
RS-485 (MODBUS RTU) Communication
-
5 VDC Load Cell Excitation
-
Supports 350 to 770 single load cell
-
Field Programmable Functions
-
Tare / Zero / Net / Gross Functions
FAQs HH-06 Digital Load Indicator
1 What is the HH-06 used for?
It is used for remote and portable weighing applications, especially where mains power is not available.
2 What type of display does it have?
It features a 16x4 character LCD display, suitable for outdoor visibility including sunlight conditions.
3 What type of load cell does it support?
It supports 4-wire load cells with resistance between 350 and 770 (single load cell).
4 What is the excitation voltage?
The excitation voltage is 5 VDC (max 20 mA).
5 What communication protocol does it use?
It supports RS-485 communication using MODBUS RTU protocol.
6 What is the resolution of the indicator?
-
Internal Resolution: 100,000 counts
-
Usable Resolution: 10,000 intervals
7 What weighing functions are available?
-
Tare / Zero
-
External Tare / Zero
-
Net / Gross weighing
8 How is calibration performed?
Calibration is performed by applying standard weights. It supports 10-step calibration (optional) and factory calibration recall.
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
More Products in Electronic Instrumentation and Software Category

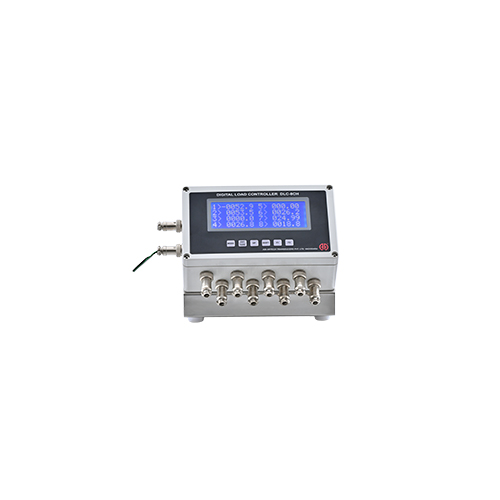

Digital Load Indicator
