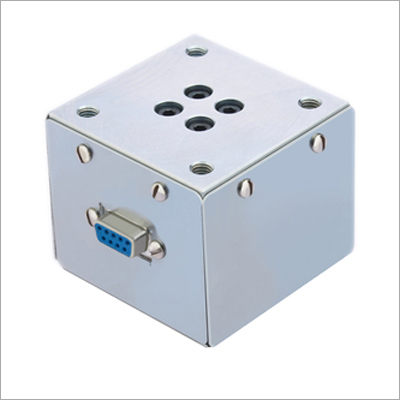

Multi Axis Force/Torque Sensor

Get a Price/Quote

Product Details:

Resistance 350
Output Analog Voltage
Theory Strain Gauge Sensor
Type Multi Axis Force/Torque Sensor
Accuracy 0.1% F.S.
Operating Voltage 5V DC
Output Voltage 0.5V - 4.5V
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Multi Axis Force/Torque Sensor Price And Quantity

Minimum Order Quantity 1 Set

Multi Axis Force/Torque Sensor Product Specifications

Resistance 350
Accuracy 0.1% F.S.
Output Voltage 0.5V - 4.5V
Operating Temperature -10C to +60C
Output Analog Voltage
Storage Temperature -20C to +80C
Compensated Temperature 0C to +50C
Theory Strain Gauge Sensor
Type Multi Axis Force/Torque Sensor
Operating Voltage 5V DC

Multi Axis Force/Torque Sensor Trade Information

Supply Ability 10 Set Per Week
Delivery Time 1 Week
Main Export Market(s) Eastern Europe, Middle East, Africa, Asia
Main Domestic Market All India

Product Description

Product details

Bridge Resistance	350 / 700 +- 20 Ohms
Cable Length (8 Core)	5 Meters
Insulation Resistance (50 VDC)	> 2000 Mega Ohms
Non-Repeatability	< +-0.2% FSO
Temp. Compensated Range	Up to 60 Degree C
Country of Origin	Made in India
Part Number	MAT-200
Material	Steel
Brand	ADI ARTECH TRANSDUCERS PVT LTD
Product Type	Multi Axis Load cell

Multi Axis Force/Torque Sensor

Model	:	TAS-200-1
Capacity	:	0-10Kgf to 0-1500Kgf
Load Direction	:	Tension & Compression - Universal
Type	:	Multi Axis Load / Force Sensor

Industries

R & D Establishments
Material Testing
Automotive
Aerospace

Application

Automotive Research
Cutting Force Dynamometer
Frictional Force Dynamometer
Grinding and Abrasive Wheel Research
Materials Testing
Multi Axial Forces in Lathe Operation
Tribology Laboratory
For further Details , contact us.

Robust Design for Industrial Reliability

Engineered from high-strength stainless steel and featuring an IP64 protection level, this sensor endures harsh industrial and laboratory settings. Its flange-type mounting and 650-gram weight offer both stability and ease of installation. The circular 8-pin connector and ample cable length enhance its adaptability across diverse mechanical setups.

Six Degrees of Precise Measurement

Capable of simultaneously measuring forces and torques in all six axes, the sensor delivers comprehensive data for complex automation, robotics, and test environments. Its 0.1% F.S. accuracy ensures repeatable, precise readings, while the analog voltage output (compatible with standard DAQ systems) ensures easy signal processing.

Versatile Application Across Environments

Designed to operate reliably between -10C to +60C and store safely from -20C to +80C, this sensor adapts to a variety of challenging settings. A compensated temperature range of 0C to +50C further stabilizes measurement accuracy, making it highly suitable for exporters, manufacturers, and industries across India.

FAQs of Multi Axis Force/Torque Sensor:

Q: How does this multi-axis force/torque sensor function?

A: The sensor utilizes strain gauge technology to convert mechanical loads (forces and torques) applied along six axes into analog voltage signals. These signals can be interpreted by data acquisition systems for precise measurement and analysis.

Q: What is the benefit of measuring all six axes simultaneously?

A: Simultaneous measurement of Fx, Fy, Fz, Tx, Ty, and Tz allows for complete force and torque characterization, which is essential for advanced robotics, ergonomic testing, and industrial automation applications requiring high precision and control.

Q: Where can this sensor be integrated in an industrial setup?

A: Its robust design and flange mounting make it ideal for integration into robotic end effectors, test rigs, assembly lines, or quality control stations. Its widely used in research institutes, manufacturing facilities, and automation labs across India.

Q: When is this sensor most effective for use?

A: This sensor performs optimally when precise, multi-dimensional force and torque measurements are necessary, especially in environments needing high accuracy and durability, such as robotic assembly or component fatigue testing.

Q: What is the process for installing this sensor?

A: Installation involves securing the sensor using its flange mount, connecting the circular 8-pin connector, and integrating the 2-meter cable into your data acquisition hardware. The analog voltage output can be calibrated with your systems specifications.

Q: How does the IP64 rating contribute to its usage?

A: The IP64 protection ensures the sensor is dust-tight and resistant to water splashes, making it suitable for use in demanding industrial conditions and enhancing its longevity and reliability.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Multi Axis Load Cell and Sensors' category

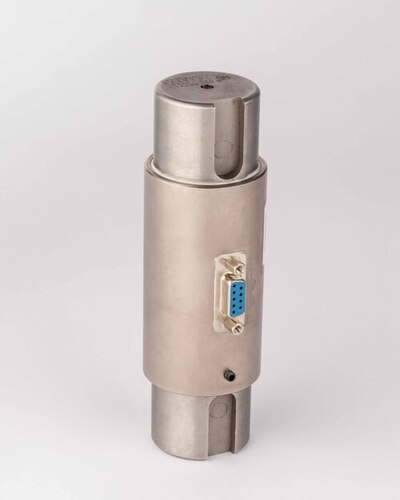

TORQUE CUM FORCE SENSOR Minimum Order Quantity : 1 Operating Temperature : 10C to +60C Output Voltage : 2 mV/V nominal Accuracy : 0.1% F.S. Resistance : 350 nominal Theory : Other, Strain Gauge Based Type : Torque cum Force Sensor Operating Voltage : 512 V DC Output : Other, Analog, 2 mV/V Storage Temperature : 20C to +70C Compensated Temperature : 0C to +50C
