Single Ended Shear Beam Load Cell

Product Description

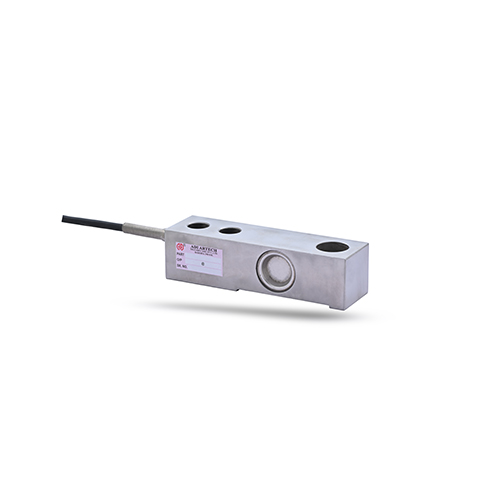

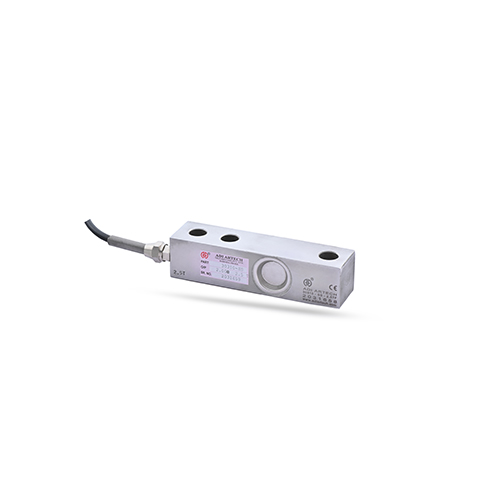

Single Ended Shear Beam Load Cell

Model: 30310 Shear Beam Load Cell

Capacity: 0-50Kgf to 0-10,000Kgf

Load Direction: Tension & Compression:  Universal

Type: Low Profile Shear Beam Load Cell , Shear Beam Load Cell

Description:
This is strain gage based load cell in bending beam/shear beam configuration.
It is designed for multiple cell configuration applications.
It is constructed from high alloy tool steel for excellent resistance to shocks and over loads.
This cell is sealed for moisture proofing for use in wash-down areas.

Features:
Capacities are available from 0 - 50 Kg to 0 - 10,000 Kg  for wide applications.
Also available in standardised output 3.00+/-0.25% upon request, for multiple cell applications like floor scale , tank and hopper weighing.

Useful in Industries:
Process Industries ,Weighing,Tensile Testing ,Robotics ,Batch Weigh,Bagging  Machineries, Automation Machineries,Agriculture,Aerospace,

Useful for Applications:
Bag Weighing Machine,Bench Scale,Calibration load cell,Conveyor Belt Weighing ,Elevator Load Monitoring ,
Floor Scale,Food Packaging,Force Measurement Tension & or Compression Dynamometer,Hopper , Tank , Silo Weighing,Materials Testing,On board Weighing ,Platform Scale,Tensile Testing,Tension Force Measurement

Optional Electronic Instrumentation / Software:
Compatible Electronic Systems are available optionally.
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.

Optional Mounting Hardware:
Compatible Mounting Assembly WM-I is offered optionally.

Product details

Allowable Side Load	50%
Deflection	< 0.4 mm at FSO
Environmental Protection Class	Meets IP 67/68
Finish & Construction	Electro less Nickle plated Tool Steel
Insulation Resistance (50 VDC)	> 1000 Mega Ohms
Material	Stainless Steel / Tool Steel
Nominal Output	3.0 m V/ V +/- 0.5%
Safe Overload of Rated Capacity	150%
Temp. Compensated Range	0-60 Degree C
Temperature Effect on Output	< 0.0015% FSO/ 0C
Temperature Effect on Zero	< 0.0020% FSO/ 0C
Ultimate Overload of Rated Capacity	250%
Insulation Resistance	>1000 Mega Ohms
Excitation Voltage	10 VDC -15 VDC
Shape	Round
Type	Single Ended Share Beam

Precise Force Measurement

This highly accurate load cell provides reliable readings for both tensile testing and weighing scales. Its robust design ensures consistency in machine automation and online tension measurement applications, supporting seamless integration into industrial processes.


Efficient Operation and Integration

With a flexible operating voltage range (5-10V) and a 2mv output, the load cell can be easily incorporated into electronic systems. Its compensated temperature feature enables stable performance across varied environments, from production floors to laboratory settings.


Quality and Versatility in India

Available through various channels including dealers, distributors, and manufacturers, this load cell meets stringent standards for quality and performance. Suppliers and exporters across India deliver support and expertise to facilitate smooth procurement and application.
