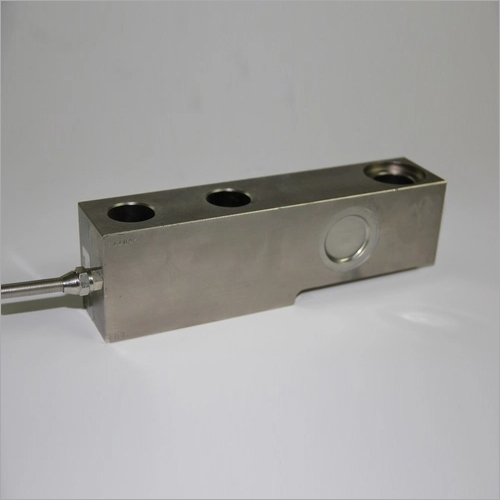

SINGLE ENDED SHEAR BEAM LOAD CELL

Get a Price/Quote

Product Details:

Product Type LOAD CELL
Application WEIGHING SCALE, TENSILE TESTING, MACHINE AUTOMATION, ON LINE TENSION MEASUREMENTS
Output Analog Sensor
Type STRAIN GAGE BASED SHEAR BEAM LOAD CELL
Accuracy 0.1 %
Operating Voltage 5-10
Output Voltage 2mv
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

SINGLE ENDED SHEAR BEAM LOAD CELL Price And Quantity

Minimum Order Quantity 1 Piece

SINGLE ENDED SHEAR BEAM LOAD CELL Product Specifications

Storage Temperature 0-60
Output Voltage 2mv
Operating Voltage 5-10
Product Type LOAD CELL
Application WEIGHING SCALE, TENSILE TESTING, MACHINE AUTOMATION, ON LINE TENSION MEASUREMENTS
Output Analog Sensor
Operating Temperature 0-50
Type STRAIN GAGE BASED SHEAR BEAM LOAD CELL
Accuracy 0.1 %
Compensated Temperature 10-50

SINGLE ENDED SHEAR BEAM LOAD CELL Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Eastern Europe Middle East Africa Asia
Main Domestic Market All India

Product Description

This is strain gage based load cell in bending beam/shear beam configuration
It is designed for multiple cell configuration applications
It is constructed from high alloy tool steel for excellent resitance to shocks and over loads
This cell is sealed for moisture prooffing for use in wash-down areas

Capacities are available from 0 - 50 Kgf. to 0 - 10,000 Kgf. for vide applications.
Also available in standardised output 3.00+/-0.25% upon request for multiple cell applications like floor scale , tank and hopper weighing.

Compatible Electronic Systems are available optionally
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.

Compatible Mounting Assembly WM-I is offered optionally.

Product details

Creep (30 minutes)	<+-0.03% FSO
Environmental Protection Class	IP 68
Hysteresis	<+-0.02% FSO
Nominal Output	2.0 m V/ V
Temp. Compensated Range	0 - 60 Degree C
Ultimate Overload	200% of Rated Capacity
Zero Balance	+- 1% FSO
Excitation Voltage	10 VDC -15 VDC
Output Resistance	700 +- 2 Ohms
Input Resistance	770 +- 20.0 Ohms
