Weighing Module for 70210 Load Cell

Name: Weighing Module for 70210 Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.

10000.0 INR/Number

Get a Price/Quote

Product Details:

Weight 12 KG Kilograms (kg)
Voltage Not Applicable Volt (v)
Operate Method Mechanical Load Transfer via Collar Assembly
Classification Weigh Module for Double Ended Shear Beam Load Cell (Model 70210)
Material Mild Steel
Capacity 2.5 - 30 Ton
Power Not Applicable Volt (v)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Weighing Module for 70210 Load Cell Price And Quantity

Minimum Order Quantity 1 Number
Price 10000.0 INR/Number

Weighing Module for 70210 Load Cell Product Specifications

Weight 12 KG Kilograms (kg)
Operating Temperature Not Applicable Celsius (oC)
Voltage Not Applicable Volt (v)
Classification Weigh Module for Double Ended Shear Beam Load Cell (Model 70210)
Operating Voltage Not Applicable Volt (V)
Operate Method Mechanical Load Transfer via Collar Assembly
Compensated Temperature Not Applicable Celsius (oC)
Material Mild Steel
Storage Temperature Not Applicable Celsius (oC)
Power Not Applicable Volt (v)
Capacity 2.5 - 30 Ton
Output Voltage Not Applicable Volt (V)
Usage Industrial Weighing Support Structure, Static Load Weighing
Resistance Not Applicable
Product Type Weigh Module
Type Tank / Hopper Mounting Weigh Module
Theory Other
Accuracy Not Applicable %
Application Tank Weighing, Hopper Weighing, Truck Weighing

Weighing Module for 70210 Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 50 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Eastern Europe, Middle East, Africa
Main Domestic Market All India

Product Description

Product details

Creep (30 minutes)	<+-0.03% FSO
Environmental Protection Class	IP 68
Hysteresis	<+-0.02% FSO
Nominal Output	2.0 m V/ V
Temp. Compensated Range	0 - 60 Degree C
Ultimate Overload	200% of Rated Capacity
Zero Balance	+- 1% FSO
Excitation Voltage	10 VDC -15 VDC
Output Resistance	700 +- 2 Ohms
Input Resistance	770 +- 20.0 Ohms

Weighing Module for 70210 Load Cell

Model

WM-II

Description

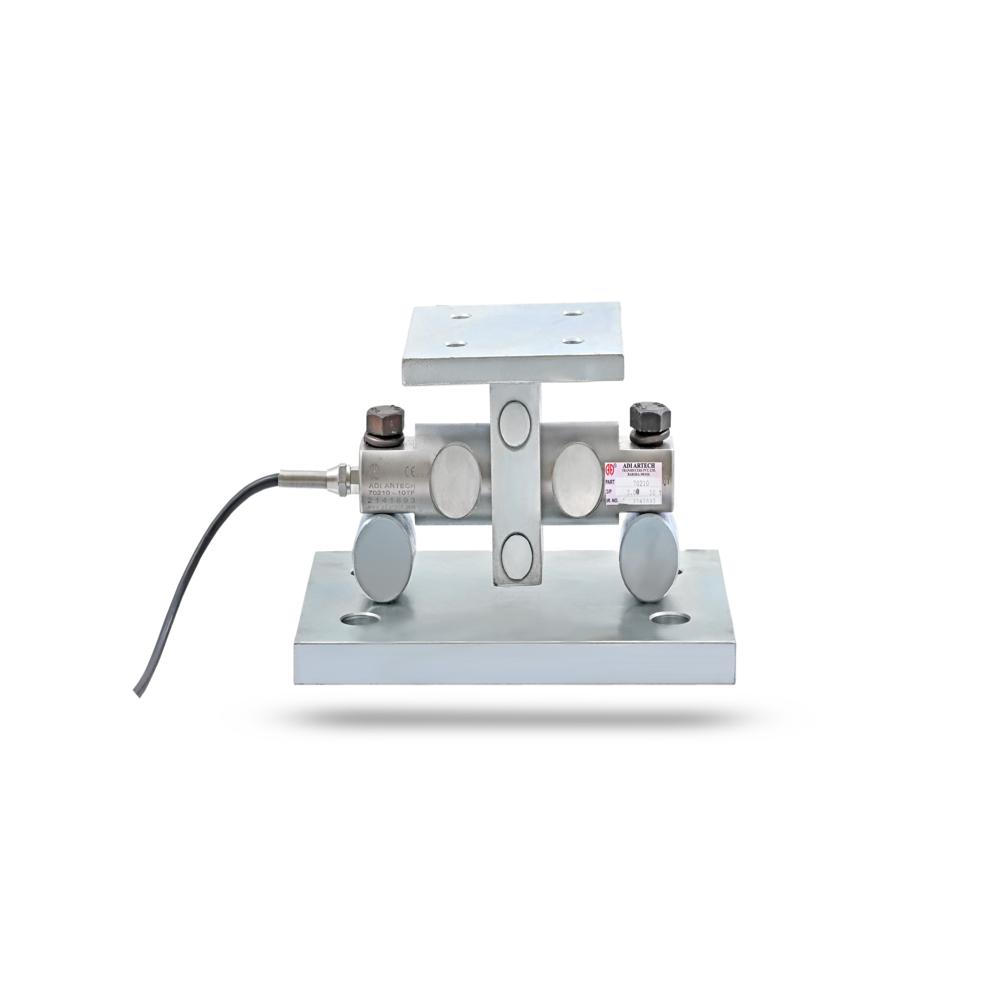

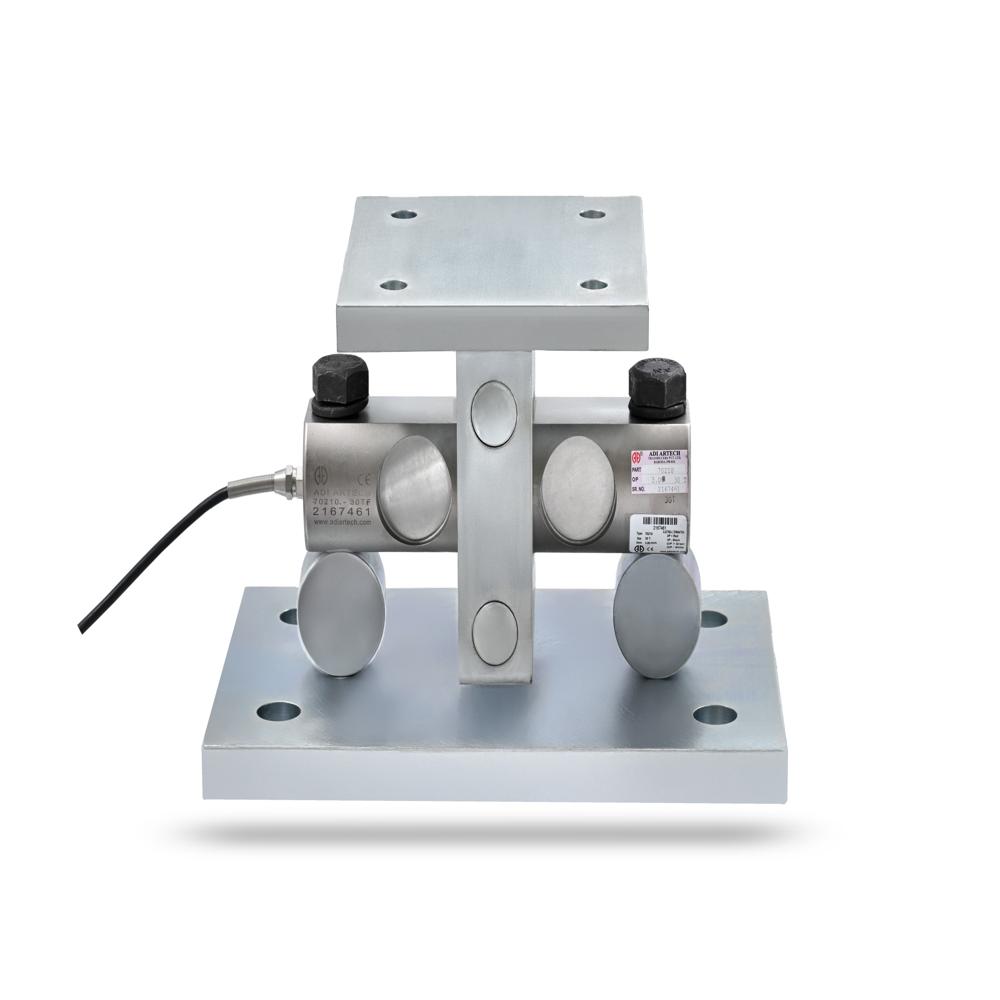

WM-II is weigh module for load cell model 70210.
It is constructed from chrome plated mild steel.
At present,this is offered for upto 30Tf capacity.

Features

Loading of the load cell is through collar assembly that protects cell from side load induced errors caused by tank or hopper expansion.
It is self-checking and low profile module assembly , suitable for tank , hopper , floor scale weighing.
