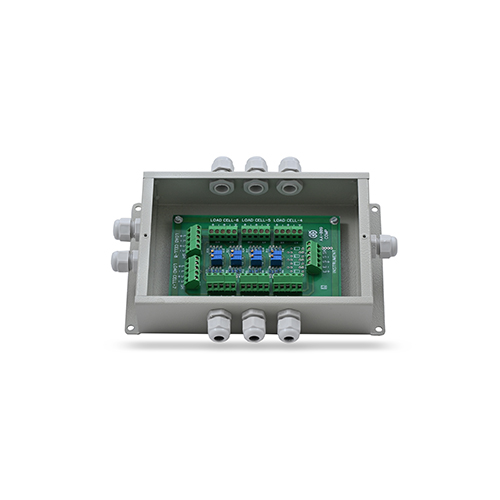

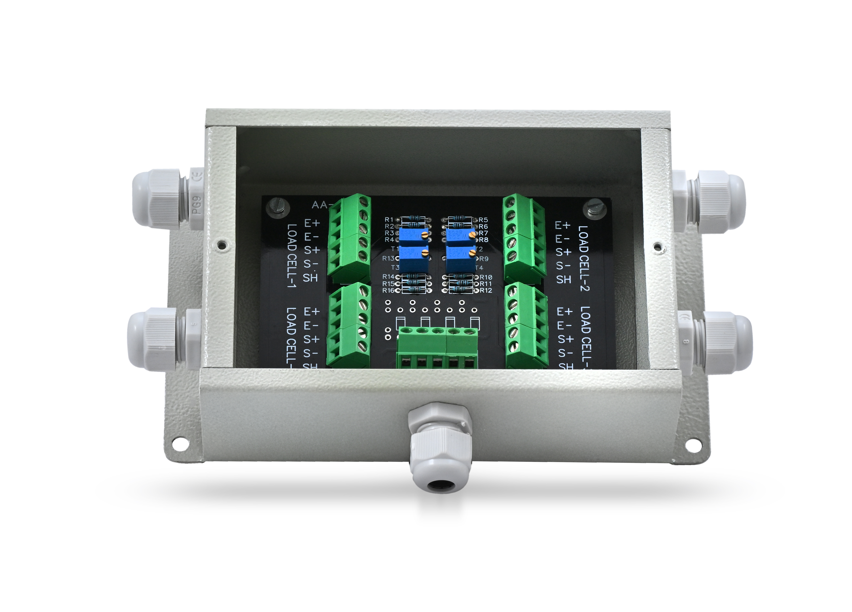

Load cell summing Box

Product Description

The Junction Box (ABS) for 6/8 Load Cells is designed to connect and balance multiple load cells in industrial weighing systems. It allows precise trimming and calibration of up to 6 or 8 load cells, ensuring uniform load distribution and accurate weight measurement.

The junction box receives +5V, 0V, and -5V DC excitation from the load indicator and distributes it to connected load cells. Each load cell can be individually calibrated using standard weights for enhanced system accuracy.

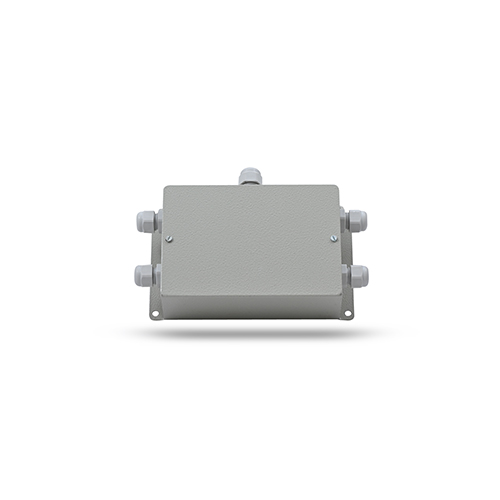

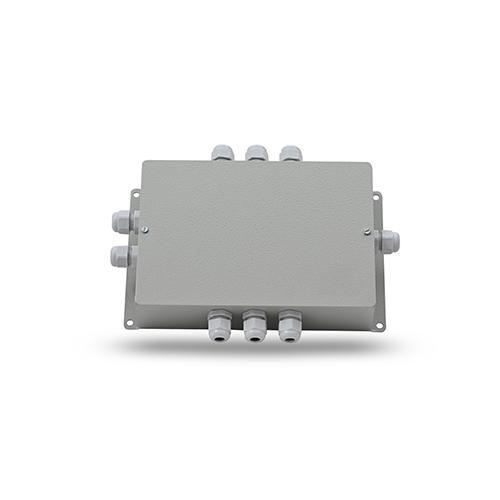

Housed in a wall-mounted MS (Mild Steel) box with powder-coated finish, the enclosure provides durability and protection in industrial environments. It includes screw-type terminals and cable glands for secure wiring and easy installation.

Key Highlights

• Supports 6 or 8 Load Cells

• Individual load cell calibration

• +5V, 0V, -5V DC excitation from load indicator

• Screw-type terminal connectors

• Cable glands for input & output wiring

• Wall-mounted MS powder-coated enclosure

• Size: 220 mm (W) x 155 mm (H) x 50 mm (D)

•


FAQs Junction Box for 6/8 Load Cells

1 What is the purpose of the junction box?

It connects multiple load cells (6 or 8) to a single load indicator and allows individual calibration for accurate weighing.

2 How many load cells can be connected?

It supports either 6 or 8 load cells, depending on configuration.

3 What type of excitation voltage is used?

The load cells receive +5V, 0V, and -5V DC from the load indicator.

4 Can each load cell be calibrated separately?

Yes. Each load cell can be calibrated individually using standard weights to ensure uniform output.

5 What type of enclosure is used?

It comes in a wall-mounted MS (Mild Steel) box with powder-coated finish.

6 What are the dimensions of the junction box?

7 Where is this junction box commonly used?

• Platform scales

• Tank & silo weighing systems

• Weighbridges

• Hopper & batching systems

• Multi-load cell industrial weighing setups

•
