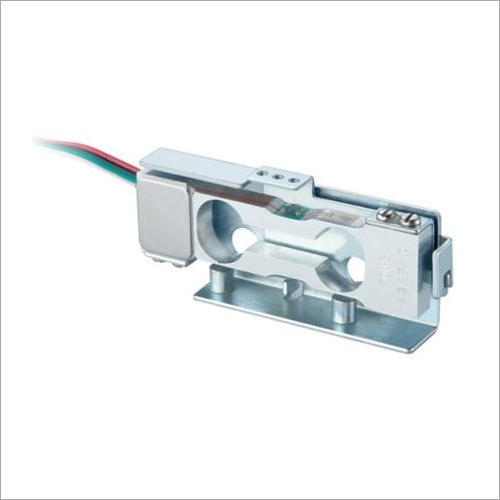

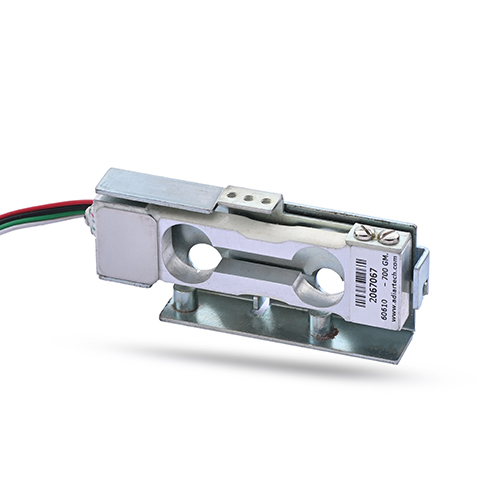

The 60610 Single Point Miniature Load Cell is a compact strain-gauge based sensor designed for precision low-capacity weighing applications. It features a low-profile aluminum alloy construction with moisture protection and built-in mechanical overload protection for reliable performance. The load cell provides high accuracy with minimal off-center error, making it suitable for jewelry scales, tabletop weighing systems, and small bagging machines. It operates with an excitation voltage of 10 VDC (maximum 15 VDC) and delivers a nominal output of 1.6 mV/V. The device supports a temperature compensated range of 0C to 60C and meets IP65 environmental protection, ensuring durability in industrial environments. Capacities range from 100 gmf to 2000 gmf, making it ideal for precise small-weight measurement applications.

FAQs

1. What is the 60610 load cell used for?

The 60610 load cell is mainly used for precision small-weight measurement, such as jewelry scales, tabletop weighing systems, and thread tension measurement.

2. What is the capacity range of the 60610 load cell?

The load cell supports capacities from 100 gmf to 2000 gmf, suitable for lightweight measurement applications.

3. What technology does the load cell use?

It uses strain gauge technology, which converts mechanical force into an electrical signal.

4. What is the operating voltage of the load cell?

The recommended excitation voltage is 10 VDC, with a maximum of 15 VDC.

5. What is the output signal of the load cell?

The load cell provides a nominal output of 1.6 mV/V.

6. What material is used to construct the load cell?

The load cell is made from aluminum alloy, providing durability while maintaining a lightweight structure.

7. What environmental protection rating does it have?

The load cell meets IP65 environmental protection, meaning it is protected against dust and low-pressure water jets.

8. What temperature range is supported?

The temperature compensated range is 0C to 60C, ensuring accurate measurement within this range.
