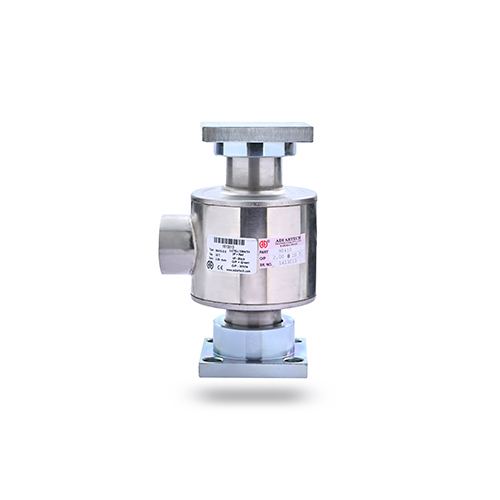

Single Column Rocker Type Compression Load cell

The 90410 Single Column Rocker Type Compression Load Cell is a high-accuracy, CE-certified compression load sensor designed for heavy-duty industrial weighing and force measurement applications. It features a rocker column design that ensures uniform load transfer and minimizes the effect of misalignment, making it highly reliable for dynamic and static loading conditions.

The load cell is manufactured from Stainless Steel 17-4 PH, providing excellent mechanical strength, corrosion resistance, and long-term stability in harsh industrial environments. It is hermetically sealed and laser welded, offering IP68 environmental protection, which makes it suitable for outdoor and wet applications.

The sensor operates on strain gauge technology with full temperature compensation from 10C to 60C, ensuring stable and accurate performance across varying environmental conditions. With a standard output of 2.0 mV/V and very low non-linearity, hysteresis, and repeatability errors, it delivers precise and repeatable measurements even under high load capacities.

This load cell is widely used in weigh bridges, tank and silo weighing systems, hydraulic presses, industrial automation, and civil & construction testing, and is available with compatible mounting modules and digital or analog output options.

Technical Data

• Product Type: Single Column Rocker Type Compression Load Cell

• Classification: CE Certified, Heavy-Duty Industrial Sensor

• Measurement Principle: Strain Gauge Based

• Rated Capacity: 10 TF to 100 TF

• Excitation Voltage: 10 VDC (Maximum 15 VDC)

• Rated Output: 2.0 mV/V

Accuracy Characteristics

• Non-linearity: < 0.025% FSO

• Hysteresis: < 0.05% FSO

• Non-repeatability: < 0.02% FSO

• Creep (30 minutes): < 0.03% FSO

Electrical Characteristics

• Input Resistance: 770 5

• Output Resistance: 700 3

• Insulation Resistance: > 1000 M @ 50 VDC

Environmental Characteristics

• Operating & Compensated Temperature Range: 10C to 60C

• Temperature Effect on Output: < 0.0015% FSO / C

• Temperature Effect on Zero: < 0.0020% FSO / C

• Environmental Protection: IP68 (Hermetically sealed, laser welded)

Mechanical Characteristics

• Safe Overload: 150% of rated capacity

• Ultimate Overload: 300% of rated capacity

• Deflection at FSO: < 0.4 mm

• Material of Construction: Stainless Steel 17-4 PH

Applications

• Weigh bridges

• Tank and silo weighing systems

• Hydraulic presses

• Compression force testing

• Civil and construction material testing

• Pile and structural testing

• Industrial automation systems
