Stainless Steel Shear Beam Load Cell

Product Description

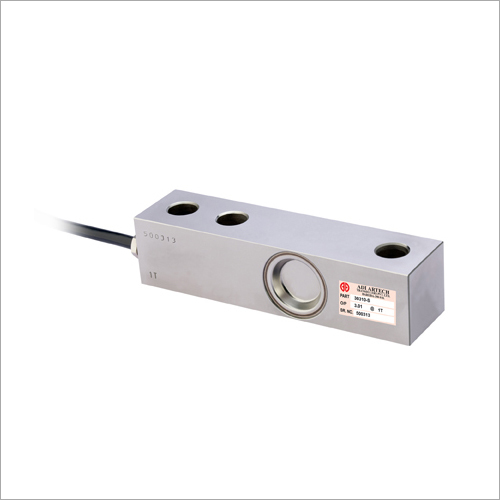

Stainless Steel Shear Beam Load Cell

Model: 30310 Shear Beal Load Cell - Stainless steel Construction

Capacity: 0-50Kgf to 0-10,000Kgf

Load Direction: Tension & Compression:  Universal

Type: Low Profile Stainless Steel Shear Beam Load Cell , Stainless Steel Shear Beam Load Cell
Description:
This is strain gage based load cell in bending beam/shear beam configuration.
It is designed for multiple cell configuration applications.
It is constructed from high alloy Stain less Steel for excellent resistance to shocks ,over loads and corossoin.
This cell is sealed with Laser welded SS Cap for moisture proofing for use in wash-down areas.

Features:
Capacities are available from 0 - 50 Kgf to 0 - 10,000 Kgf for vide applications.
Also available in standardized output 3.00+/-0.25% upon request, for multiple cell applications like floor scale , tank and hopper weighing.

Useful in Industries:
Process Industries ,Weighing,Tensile Testing ,Robotics ,Batch Weigh,Bagging  Machinery's, Automation Machinery's,Agriculture,Aerospace,
Pharma Industries , Food Industries , Chemical Industries.

Useful for Applications:
Bag Weighing Machine,Bench Scale,Calibration load cell,Conveyor Belt Weighing ,Elevator Load Monitoring ,
Floor Scale,Food Packaging,Force Measurement Tension & or Compression Dynamo meter,Hopper , Tank , Silo Weighing,Materials Testing,On board Weighing ,Platform Scale,Tensile Testing,Tension Force Measurement.

Electronic Instrumentation / Software:
Compatible Electronic Systems are available optionally.
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MOD BUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.

Mounting Hardware:
Compatible Mounting Assembly WM-I is offered optionally.

For more information , please contact us.

Product details

Deflection	< 0.5 mm at FSO
Environmental Protection Class	IP 68
Material	Stainless Steel
Material of Construction	Electroless Nickel Plated Tool Steel
Nominal Output	3.0 m V/ V
Temp. Compensated Range	0-60 C
Temperature Effect on Output	< 0.0015% FSO
Insulation Resistance	>1000 Mega Ohms
Excitation Voltage	10 VDC -15 VDC
Output Resistance	700 +- 2 Ohms
Input Resistance	770 +- 20.0 Ohms

Exceptional Precision for Industrial Weighing

Our stainless steel shear beam load cell offers accuracy levels between 0.03% and 0.05% F.S., ensuring highly reliable measurements for critical weighing applications. This models robust design is ideal for demanding environments that require precise force or weight detection, such as manufacturing plants, logistics centers, and batching systems.


Advanced Resistance Strain Gauge Technology

Employing resistance strain gauge theory, the load cell translates mechanical deformation into electrical signals. This allows for stable performance and accurate output, even under fluctuating operational conditions. The electronics ensure consistent readings and maintain high standards in industrial and laboratory settings.


Versatile Deployment in Indian Markets

Distributed through a wide networkdealers, exporters, suppliers, and morethe stainless steel shear beam load cell is readily available across India. Whether you are purchasing for commercial, production, or wholesale requirements, multiple channels simplify access and after-sales support for various sectors.
