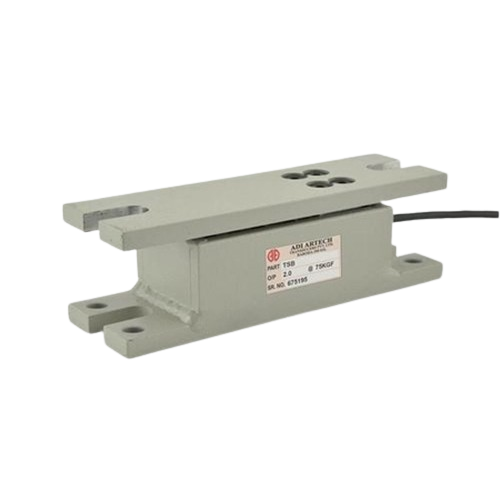

Tension Sensing Block

Name: Tension Sensing Block
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.

9500.0 INR/Number

Get a Price/Quote

Product Details:

Weight 2.5 KG(APPROX) Kilograms (kg)
Operate Method Strain gauge based force measurement (installed under plummer/pillow bearing blocks)
Usage Measurement of material tension over rotating rollers
Product Type Tension Sensing Block
Capacity 75,100,200,300,500,750,1000,1500 Kg
Application Web processing and converting industries such as: Paper, Foil, Magnetic Tape, Plastic Tape , Yarn & Filaments, Printing, Coating, Laminating
Voltage 10 VDC (Max. 15 VDC) Volt (v)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Tension Sensing Block Price And Quantity

Price 9500.0 INR/Number
Minimum Order Quantity 1 Number

Tension Sensing Block Product Specifications

Material Load sensing element: Tool Steel, Outer body: Powder coated Mild Steel (MS)
Classification Load cell / Tension sensor for web processing
Accuracy 0.1% %
Dimension (L*W*H) 165*50*50 Millimeter (mm)
Operate Method Strain gauge based force measurement (installed under plummer/pillow bearing blocks)
Usage Measurement of material tension over rotating rollers
Weight 2.5 KG(APPROX) Kilograms (kg)
Capacity 75,100,200,300,500,750,1000,1500 Kg
Application Web processing and converting industries such as: Paper, Foil, Magnetic Tape, Plastic Tape , Yarn & Filaments, Printing, Coating, Laminating
Voltage 10 VDC (Max. 15 VDC) Volt (v)
Power 10 VDC Volt (v)
Function Tension Sensing Block
Product Type Tension Sensing Block

Tension Sensing Block Trade Information

FOB Port VADODARA
Payment Terms Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 100 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OIML TEST REPORT

Product Description

Product details

Load Capacity	75KGF to 2000KGF
Brand	ADI ARTECH TRANSDUCERS PVT LTD
Nominal Sensitivity	2 mv/v
Type	Tension Sensing Block
Usage/Application	Industria

Tension Sensing Block

Model	:	TSB
Capacity	:	0 -10 Kgf to 0 - 1500 Kgf
Load Direction	:	Tension & Compression - Universal
Type	:	Bending Beam Load Cell

Industries

Yarn & Filament Industries
Laminating Industries
Printing Industries
Paper Industries
Process Industries
Textile

Application

Conveyor Belt Weighing
Force Measurement Tension & or Compression Dynamo meter
Process Control & Automation
Tension Force Measurement
Tension Monitoring of Rotating Roller in Laminating,Coating & Printing
Tension Monitoring of Rotating Roller in Yarn,Tapes,Foils & Paper
Web Tension Measurement

Description

Tension Sensing Block is strain gage based load cell with full temperature compensation over 0-50 Deg.C.
This is provided with over load protection for high impact loads in industrial applications.
It is designed for fitting plummer bearing block and is used in pair fitted on each side of the rotating roller.

Features

Range from 0-10Kgf to 0-200Kgf is offered.
Standard output of 1.5 m/ V is offered for easy replacement.
Gage area is protected for IP-65 degree of protection.

Electronic Instrumentation / Software

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MOD BUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
Please us for further details.

Advanced Tension Sensing Technology

The Tension Sensing Block uses sophisticated electronic components to deliver precise measurements, making it ideal for monitoring web tension in demanding textile and plastic industry environments. Its accuracy enhances operational consistency and product quality.

Trusted by Industry Professionals Across India

As reputable dealers, distributors, and manufacturers, providers in India ensure the availability of high-quality Tension Sensing Blocks. They cater to diverse industrial requirements, offering reliable solutions for web tension measurement and improved operational outcomes.

FAQs of Tension Sensing Block:

Q: How does the Tension Sensing Block measure web tension in textiles and plastics?

A: The Tension Sensing Block utilizes electronic load sensors to accurately measure the tension on webs of material during the production process. This ensures that the tension remains within optimal parameters, preventing defects and material wastage.

Q: What benefits does a 0.1% accuracy load sensor provide for industrial applications?

A: A load sensor with 0.1% accuracy delivers exceptionally precise tension readings, which enhances product consistency, reduces operational errors, and helps minimize material waste in both textile and plastic manufacturing.

Q: When should I consider installing a Tension Sensing Block in my production line?

A: It is recommended to install a Tension Sensing Block whenever you need precise control of web tension to improve product quality, reduce defects, or when transitioning to automated or high-speed production processes.

Q: Where can I source Tension Sensing Blocks in India?

A: You can procure Tension Sensing Blocks from reputable dealers, distributors, manufacturers, suppliers, exporters, and wholesalers throughout India, ensuring both easy availability and professional support.

Q: What is the process to integrate a Tension Sensing Block into my existing system?

A: Integration typically involves mounting the load sensor at key points of the web path, connecting it to your control system, and calibrating the device to meet your specific operational requirements. Most suppliers offer technical guidance during setup.

Q: How is the Tension Sensing Block useful for consistent production quality?

A: By continuously monitoring and controlling web tension, the sensing block helps prevent common issues like stretching, slack, or breakage, thus ensuring consistent output quality and reducing downtime.
