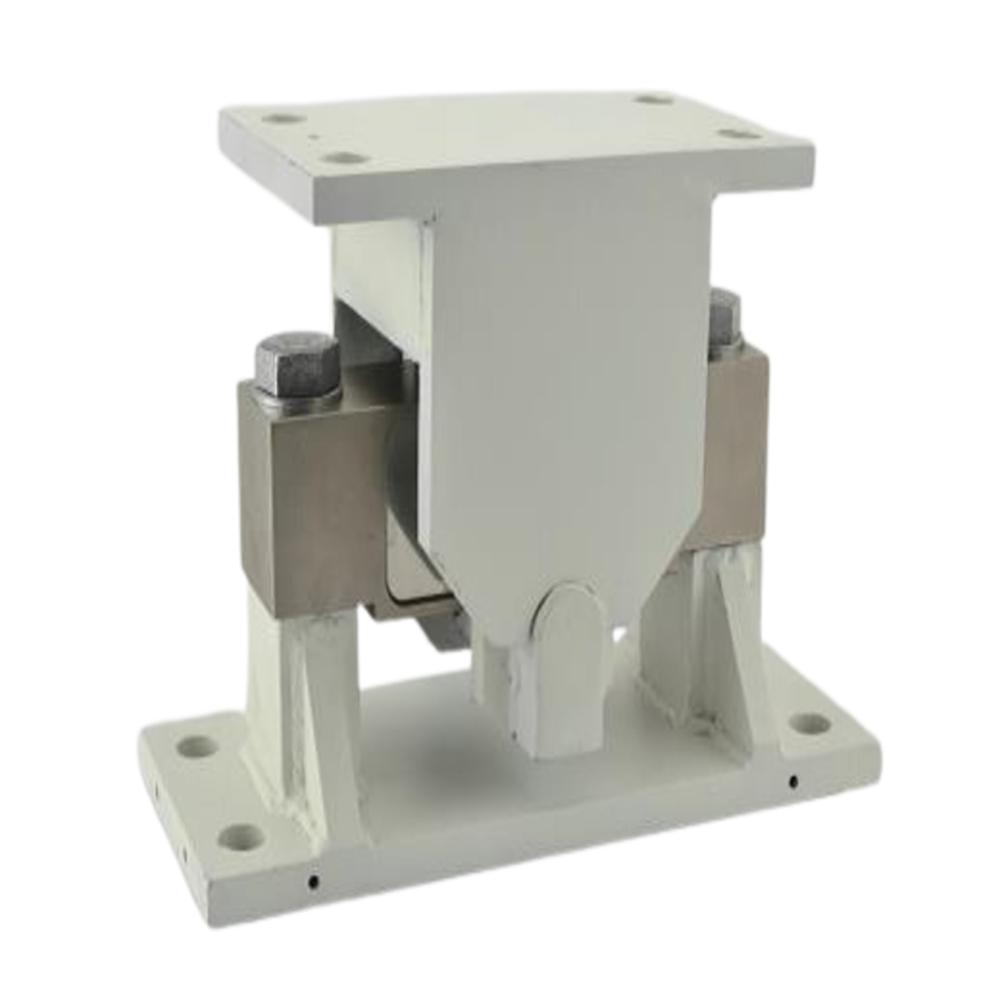

Weighing Module for 70310 Load Cell

Name: Weighing Module for 70310 Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 13800.0 INR
Availability: InStock

Price 13800.0 INR/ Number

Get a Price/Quote

Weighing Module for 70310 Load Cell Specification

Usage
Proper mounting and protection of load cells in weighing systems to ensure stable and accurate measurements

Application
Truck Scales Tank Weighing Hopper & Bin Weighing Railroad Track Scales

Capacity
5 TF, 10 TF, 15 TF, 20 TF, 23 TF, 30 TF Ton

Resistance
Not applicable

Voltage
Not applicable Volt (v)

Operate Method
Mechanical load transfer using shackle-type link assembly to minimize non-axial loads on load cell

Product Type
LOAD CELL MOUNTING ACCESSORIES

Color
Not applicable

Power
Not applicable Volt (v)

Classification
Industrial Weighing Accessory for Weigh Bridge Applications

Material
Mild Steel with Zinc Plating (for corrosion resistance)

Weight
7 KG(APPROX) Kilograms (kg)

Output
Other

Theory
Other

Type
Shackle Type Weigh Module

Accuracy
Not applicable %

Operating Voltage
Not applicable Volt (V)

Output Voltage
Not applicable Volt (V)

Compensated Temperature
Not applicable Celsius (oC)

Storage Temperature
Not applicable Celsius (oC)

Operating Temperature
Not applicable Celsius (oC)

Weighing Module for 70310 Load Cell Trade Information

Minimum Order Quantity
100 Number

FOB Port
VADODARA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
50 Per Week

Delivery Time
1 Week

Sample Available
No

Main Export Market(s)
Asia, Australia, Eastern Europe, Middle East, Africa

Main Domestic Market
All India

Weighing Module for 70310 Load Cell About

Product details

Deflection	< 0.5 mm at FSO
Environmental Protection Class	IP 68
Material	Stainless Steel
Material of Construction	Electroless Nickel Plated Tool Steel
Nominal Output	3.0 m V/ V
Temp. Compensated Range	0-60 C
Temperature Effect on Output	< 0.0015% FSO
Insulation Resistance	>1000 Mega Ohms
Excitation Voltage	10 VDC -15 VDC
Output Resistance	700 +- 2 Ohms
Input Resistance	770 +- 20.0 Ohms

Weighing Module for 70310 Load Cell

Model

WM-V

Description

WM-V is weigh module for load cell model 70310.
It is constructed from chrome plated mild steel.
At present,this is offered for upto 30Tf capacity.

Features

Loading of the load cell is through collar assembly that protects cell from side load induced errors caused by tank or hopper expansion or weigh bridge movements.
It is self-checking and low profile module assembly , suitable for tank , hopper and weight bridge scale weighting.

Precision in Industrial Weighing

The 70310 Load Cell Weighing Module delivers exceptional accuracy for demanding industrial applications, including crane weighing and tensile testing. Its cutting-edge electronic classification ensures precise and reliable results, supporting operational safety and productivity in various settings.

Versatile Application Areas

From weighing scales in laboratories to automation in production lines, this module adapts seamlessly to different setups. It supports online tension measurements and integrates effortlessly into machinery, catering to the complex requirements of distributors, exporters, and manufacturers in India.

FAQs of Weighing Module for 70310 Load Cell:

Q: How is the Weighing Module for 70310 Load Cell commonly used in industrial settings?

A: This weighing module is integrated into equipment like weighing scales, tensile testing machines, and automated systems to provide accurate force measurements, such as for crane weighing or online tension monitoring in manufacturing processes.

Q: What benefits does the 70310 Load Cell Weighing Module offer for machine automation?

A: The module enhances process reliability in machine automation by delivering precise and real-time weight and force data, facilitating better control, efficiency, and safety in automated production lines.

Q: When should I choose the 70310 Load Cell Weighing Module for my application?

A: Select the 70310 module whenever you require high-precision electronic weighing, especially for tasks like tensile testing, crane weighing, or online tension measurement, where accuracy and durability are critical.

Q: Where can I obtain the Weighing Module for the 70310 Load Cell in India?

A: You can source this module from authorized dealers, distributors, exporters, manufacturers, suppliers, traders, and wholesalers throughout India, supporting both small-scale and large industrial needs.

Q: What is the process of integrating the 70310 Load Cell Weighing Module into an existing system?

A: Integration typically involves mounting the load cell at the measurement point, connecting it to the module, and interfacing with control or display units. Support and guidance are usually available from suppliers or manufacturers for seamless installation.

Q: How does using this weighing module improve weighing scale performance?

A: The modules electronic design ensures fast and accurate readings, reducing errors and enhancing the reliability of laboratory, industrial, or production floor weighing operations.

Q: What industries in India benefit most from this weighing module?

A: Industries involved in automation, materials handling, crane operations, manufacturing, and laboratory testing gain significant value from the 70310 Load Cell Weighing Module due to its adaptability and precision.
