Bending Beam Hermatically Sealed Load Cell
Product Details:
- Resistance Input: 40020, Output: 3502
- Theory Resistance Sensor
- Type Bending Beam Hermetically Sealed Load Cell
- Accuracy 0.03% F.S.
- Operating Voltage 10V DC (recommended), max 15V
- Output Voltage 2.0 0.002 mV/V
- Click to view more
Bending Beam Hermatically Sealed Load Cell Price And Quantity
- 1 Piece
Bending Beam Hermatically Sealed Load Cell Product Specifications
- 0.03% F.S.
- Bending Beam Hermetically Sealed Load Cell
- Input: 40020, Output: 3502
- 10V DC (recommended), max 15V
- Resistance Sensor
- 2.0 0.002 mV/V
Bending Beam Hermatically Sealed Load Cell Trade Information
- 100 Piece Per Week
- 1 Week
- Eastern Europe, Middle East, Africa, Asia
- All India
Product Description

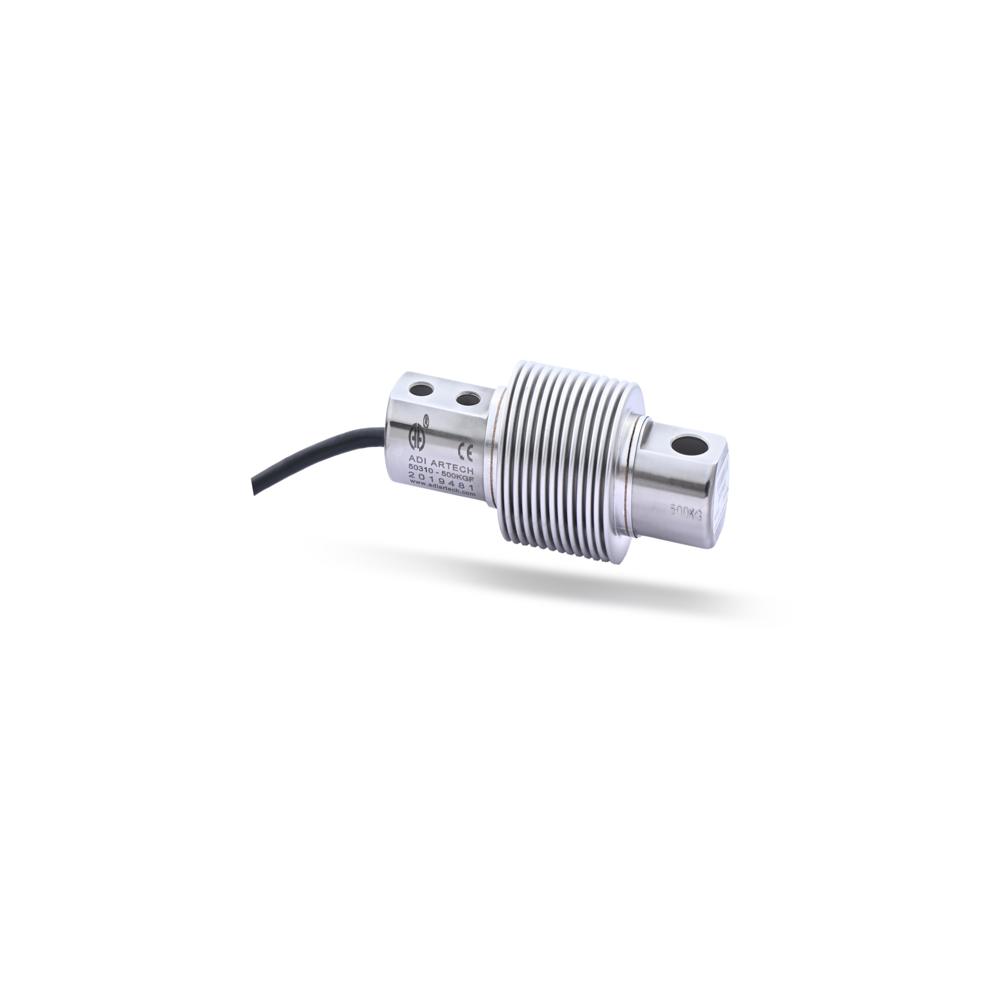

Bending Beam Hermatically Sealed Load Cell
Model: 50310
Capacity: 0-10Kgf to 0-500Kgf
Load Direction: Tension & Compression - Universal
Type: Low Profile Bellow type Bending Beam Load Cell
Description:50310 is miniature round beam load cell.
This is available in two different sizes to meet vide industrial applications.
It is hermetically sealed by SS bellow for IP 68 degree of protection class.
Features:Stainless steel 17-4 PH material of construction for harsh industrial corrosion.
It is low profile to fit into small and restricted machine space.
Finds applications into various industries.
Useful in Industries:Cable and Wire Industries, Process Industries ,Weighing ,Robotics ,Bagging Machineries, Automation Machineries, Assembly Lines
Finds Applications in:Bag Weighing Machine ,Conveyor Belt Weighing ,Hopper , Tank , Silo Weighing, Platform Scale, Tensile Testing ,Web Tension Measurement ,Wire Tension Measurement
Optional Electronic Instrumentation / Software:Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
Product details
| Excitation Voltage | 10 VDC- Maximum 15 VDC |
| Input Resistance | 351 +- 5 Ohms |
| Nominal Output | 2.0 m V/ V |
| Output Resistance | 351 +- 2 Ohms |
| Temperature Range | 0 - 60 Degree C |
| Output | 2mv/v |
| Temperature | 0 - 60 Degree C |
| Pressure Ranges | 50BAR to 1000BAR |
| Material | Stainless Steel |
| Brand | ADI ARTECH TRANSDUCERS PVT LTD |
| Cable Length | 2 Meters |
| Sensor Type | Pressure sensor |
Superior Precision and Reliability
This bending beam hermetically sealed load cell ensures outstanding measurement accuracy, making it suitable for high-precision weighing systems. Its resistance sensor technology and rugged sealing provide consistent performance in industrial settings, even in harsh environments.
Comprehensive Dealer and Export Network
As a reputable dealer, distributor, and exporter in India, we offer reliable supply and support for this load cell. Our extensive network ensures seamless procurement for manufacturers, wholesalers, and end-users across diverse sectors.
FAQs of Bending Beam Hermatically Sealed Load Cell:
Q: How does the bending beam hermetically sealed load cell maintain its accuracy in challenging environments?
A: The load cell features a hermetically sealed construction, which prevents moisture, dust, and contaminants from affecting internal components. This robust sealing ensures stable performance and maintains its high accuracy of 0.03% F.S., even in rigorous industrial environments.Q: What benefits does the resistance sensor theory provide in this load cells operation?
A: The resistance sensor theory enables the load cell to convert mechanical force into an electrical signal accurately and reliably. This method provides excellent measurement stability and repeatability, ideal for applications demanding consistent load readings.Q: When should a hermetically sealed bending beam load cell be used over other types?
A: This load cell is best used when accuracy, durability, and environmental protection are required. It is ideal for installations in locations exposed to moisture, contaminants, or extreme conditions, as its sealed design ensures longevity and performance.Q: Where can this load cell be sourced in India?
A: The load cell is available through a broad network of dealers, suppliers, manufacturers, distributors, and exporters across India. Interested buyers can access it directly from producers, as well as authorized traders and wholesalers.Q: What is the recommended operating voltage and why does it matter?
A: The recommended operating voltage is 10V DC, with a maximum of 15V. Operating within this range ensures optimal sensor performance, minimizes drift, and prolongs the lifespan of the load cell components.Q: How is the output voltage of 2.0 0.002 mV/V utilized in measurement systems?
A: The output voltage provides a precise analog signal proportional to the applied load. This signal is processed by controllers or indicators in weighing and force measurement systems, delivering accurate and real-time data.
