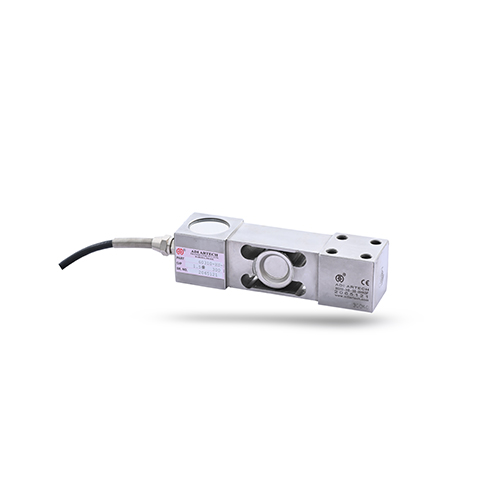

Hermetically Sealed Load Cell

• Accuracy
• 0.05% FSO %

• Application
• Table top scales , Fisheries scales Check weighers Bagging machines Dairy, Chemical & Pharmaceutical weighing

• Capacity
• 150, 200, 300, 400, 500, 600 Kg

• Classification
• IP-68 Protection Class, CE Certified

• Color
• Silver

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Dimension (L*W*H)
• 150*40*40 Millimeter (mm)

• Material
• Tool Steel EN24 (Electroless Nickel Plated) , Stainless Steel

• Operate Method
• Strain Gauge Based

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 5V to 15V DC (Excitation Voltage) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 1.5 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Hermetically Sealed Single Point Load Cell

• Resistance
• Input Resistance: 390 20 Ohms , Output Resistance: 350 10 Ohms

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Platform Load Cell

• Usage
• Industrial weighing

• Voltage
• 10 VDC (Max 15 VDC) Volt (v)

• Weight
• 1 KG(APPROX) Kilograms (kg)

• Accuracy
• 0.05% FSO %

• Application
• Check Weighers, Tank & Hopper Weighing, Batching & Packaging Machines, Bag Weighers, Bench Scale, Floor Scale

• Capacity
• 10,20,50,100,200,500 Kg

• Classification
• Strain gauge based load cell

• Color
• Silver

• Compensated Temperature
• 0 to 50 C Celsius (oC)

• Dimension (L*W*H)
• 123*29 Millimeter (mm)

• Material
• Stainless Steel 17-4 PH

• Operate Method
• Strain gauge based bending beam principle with full temperature compensation

• Operating Temperature
• 0 to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Recommended), up to 15 VDC maximum Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Bending Beam Load Cell

• Resistance
• Input Resistance: 370 15 , Output Resistance: 350 2

• Storage Temperature
• 0 to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Bending Beam Welded Load Cell

• Usage
• Weight measurement in industrial weighing systems such as bag weighing, batching, and check weighing

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 500 Grams (g)

• Accuracy
• 0.05% FSO %

• Application
• Check Weighers, Tank & Hopper Weighing , Batching & Packaging Machines, Bag Weighers , Bench Scale, Floor Scale

• Capacity
• 10, 20, 50, 100, 200, 500 Kg

• Classification
• Low profile round bending beam load cell

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Material
• Stainless Steel 17-4 PH

• Operate Method
• Strain gauge based, bending beam principle

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 10V DC (recommended), max 15V Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Bending Beam Bellow Type Hermetically Sealed Load Cell

• Resistance
• Input Resistance: 370 15 Ohms, Output Resistance: 350 2 Ohms

• Storage Temperature
• 0 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Hermetically sealed, laser welded with stainless steel bellow

• Usage
• Bag weighing, check weighing

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.05% FSO %

• Application
• Table top scales, Fisheries scales, Check weighers , Bagging machines ,Dairy, chemical and pharmaceutical weighing systems

• Classification
• ndustrial Weighing Sensor / Single Point Load Cell

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Material
• Tool Steel EN24 with Electroless Nickel Plating or Stainless Steel

• Operate Method
• Strain gauge based load measurement

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Max 15 VDC excitation) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 1.5 mV/V nominal output Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Hermetically Sealed Single Point Load Cell

• Resistance
• Input Resistance: 390 20 , Output Resistance: 350 10

• Storage Temperature
• 0 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Single Point Bending Beam Load Cell

• Usage
• Small platform weighing systems

• Voltage
• Excitation Voltage: 10 VDC (Maximum 15 VDC) Volt (v)
