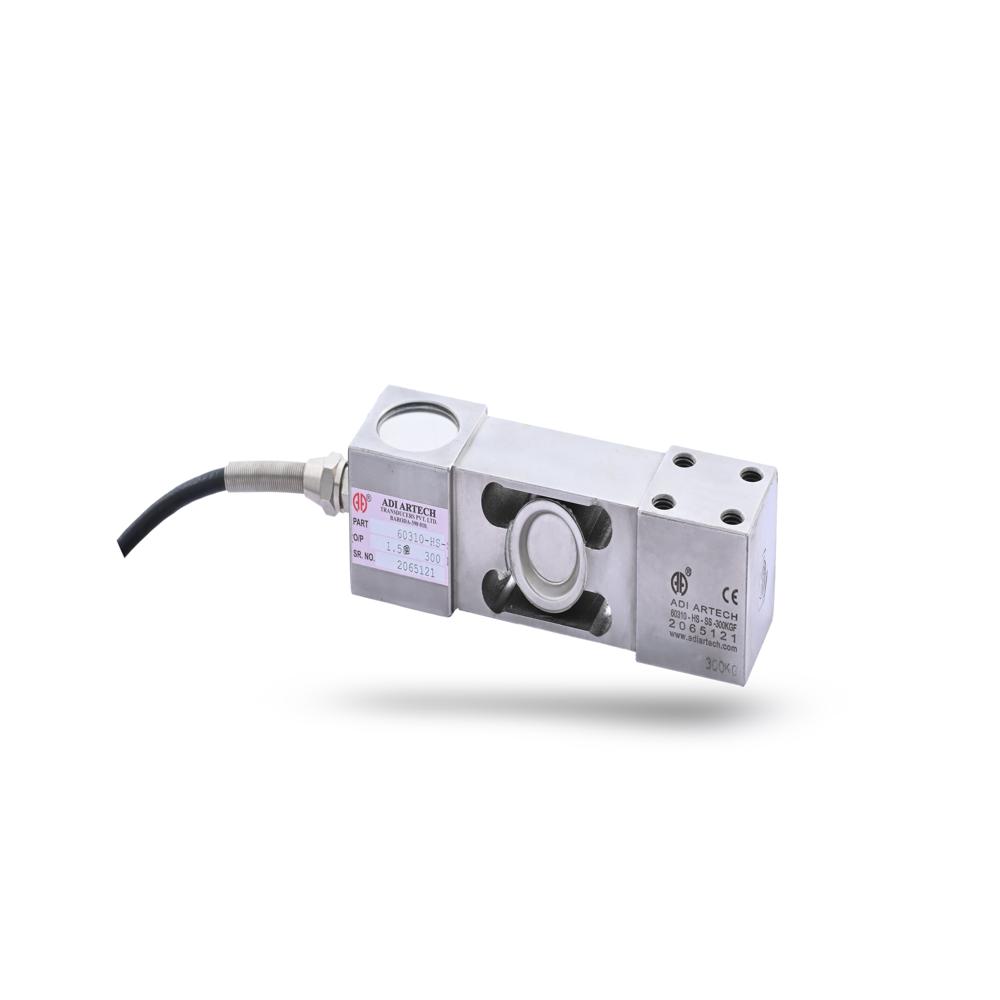

Hermatically Sealed Platform Load Cell

Name: Hermatically Sealed Platform Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Hermatically Sealed Platform Load Cell Specification

Operate Method
Strain Gauge Based

Power
10 VDC Volt (v)

Resistance
Input Resistance: 390 20 Ohms , Output Resistance: 350 10 Ohms

Classification
IP-68 Protection Class, CE Certified

Capacity
150, 200, 300, 400, 500, 600 Kg

Material
Tool Steel EN24 (Electroless Nickel Plated) , Stainless Steel

Application
Table top scales , Fisheries scales Check weighers Bagging machines Dairy, Chemical & Pharmaceutical weighing

Usage
Industrial weighing

Product Type
Hermetically Sealed Single Point Load Cell

Color
Silver

Weight
1 KG(APPROX) Kilograms (kg)

Voltage
10 VDC (Max 15 VDC) Volt (v)

Dimension (L*W*H)
150*40*40 Millimeter (mm)

Output
Analog Sensor

Theory
Resistance Sensor

Type
Platform Load Cell

Accuracy
0.05% FSO %

Operating Voltage
5V to 15V DC (Excitation Voltage) Volt (V)

Output Voltage
1.5 mV/V Volt (V)

Compensated Temperature
0 C to 50 C Celsius (oC)

Storage Temperature
10 C to 50 C Celsius (oC)

Operating Temperature
0 C to 50 C Celsius (oC)

Application
Platform Scales, Industrial Weighing, Check Weighers

Protection Class
IP68

Maximum Capacity
10 kg to 200 kg (varies by model)

Material
Hermetically Sealed Stainless Steel

Ultimate Overload
200% of Rated Capacity

Safe Overload
150% of Rated Capacity

Zero Balance
1% of Rated Output

Creep (30 minutes)
0.02% of Rated Output

Cable Length
2 meters (customizable)

Hermatically Sealed Platform Load Cell Trade Information

Minimum Order Quantity
1 Number

FOB Port
VADODARA

Payment Terms
Cheque, Cash Advance (CA), Cash in Advance (CID)

Supply Ability
100 Per Week

Delivery Time
1 Week

Sample Available
No

Main Export Market(s)
Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
OEM TEST CERTIFICATE

About Hermatically Sealed Platform Load Cell

Stain Less Steel Hermatically sealed Platform Load Cell

Model	:	60310-SS-HS
Capacity	:	0-150Kgf to 0-500Kgf
Load Direction	:	Tension & Compression - Universal
Type	:	Single Point Platform Load Cell ,Off Center Platform Load Cell ,Bending Beam Platform Load Cell

Industries

Weighing
Fertilizer , Cement , Chemical , Steel industries
Pharmaceutical
Food & Dairy Industries
Batch Weigh
Bagging Machineries

Application

Bag Weighing Machine
Bench Scale
Check Weighing
Food Packaging
Low Profile Floor Scale
Marine Scale
Platform Scale

Description

Strain Gage based low profile single point load cell is made out of SS materail and is sealed by Laser Welded Gaging area.
Off center load compensated for 550x550 mm platter.
It is rugged and low profile.

Features

Stainless Steel 17-4 ph construction for harsh,corrossive industrial applications.
It is compact,light weight and economical.
Meets to IP 68 degree of protection class for environmental protection..

Superior Protection and Durability

With hermetically sealed stainless steel construction and an IP68 protection rating, this platform load cell is designed to withstand challenging industrial environments. Its resistant build protects against dust, water, and extreme temperatures, ensuring consistent operation and minimal maintenance requirements.

Reliable Accuracy and Performance

Featuring C3 Class accuracy (0.02% of full scale) and advanced strain gauge theory, this load cell delivers precise results for platform scales and industrial applications. The low creep and stable zero balance guarantee consistent measurements, even during extended use cycles.

Flexible Capacity and Easy Integration

This model supports capacities from 10 kg to 200 kg, making it suitable for a variety of weighing needs. Its analog output and adaptable cable length (standard 2 meters, customizable) allow for seamless integration with new or existing weighing systems, providing versatile solutions for manufacturers and suppliers.

FAQs of Stain Less Steel Hermatically sealed Platform Load Cell:

Q: How does the hermetic sealing contribute to the longevity of the platform load cell?

A: Hermetic sealing prevents the ingress of moisture, dust, and contaminants, which significantly extends the operational lifespan of the load cell, especially in harsh industrial environments.

Q: What applications is this stainless steel platform load cell best suited for?

A: It is ideal for platform scales, industrial weighing systems, and check weighers where reliable and precise measurements are essential.

Q: When is it necessary to customize the cable length for installation?

A: Cable length customization is necessary when the standard 2-meter cable does not meet the specific installation requirements of your facility or connecting equipment.

Q: Where is the optimal place to install this load cell for maximum accuracy?

A: The load cell should be installed on a stable, vibration-free platform with secure mounting hardware to ensure accurate and consistent readings.

Q: What process is involved in ensuring safe overload protection for the load cell?

A: The load cell is designed to safely withstand loads up to 150% of its rated capacity and up to 200% for ultimate overload, preventing damage and ensuring reliability during accidental overloading events.

Q: How can users benefit from the load cells C3 Class accuracy?

A: Users enjoy enhanced measurement precision, regulatory compliance, and reduced error rates in industrial weighing tasks, leading to more efficient operational processes and better quality control.
