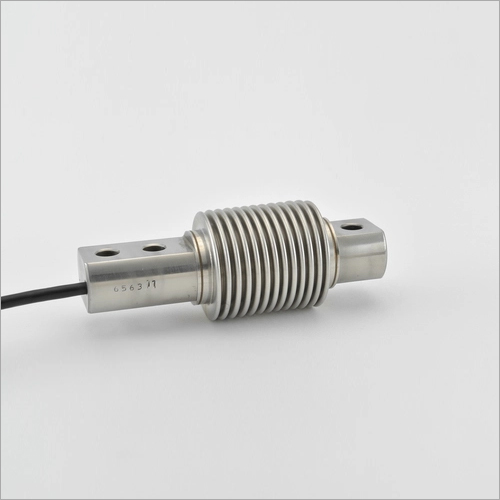

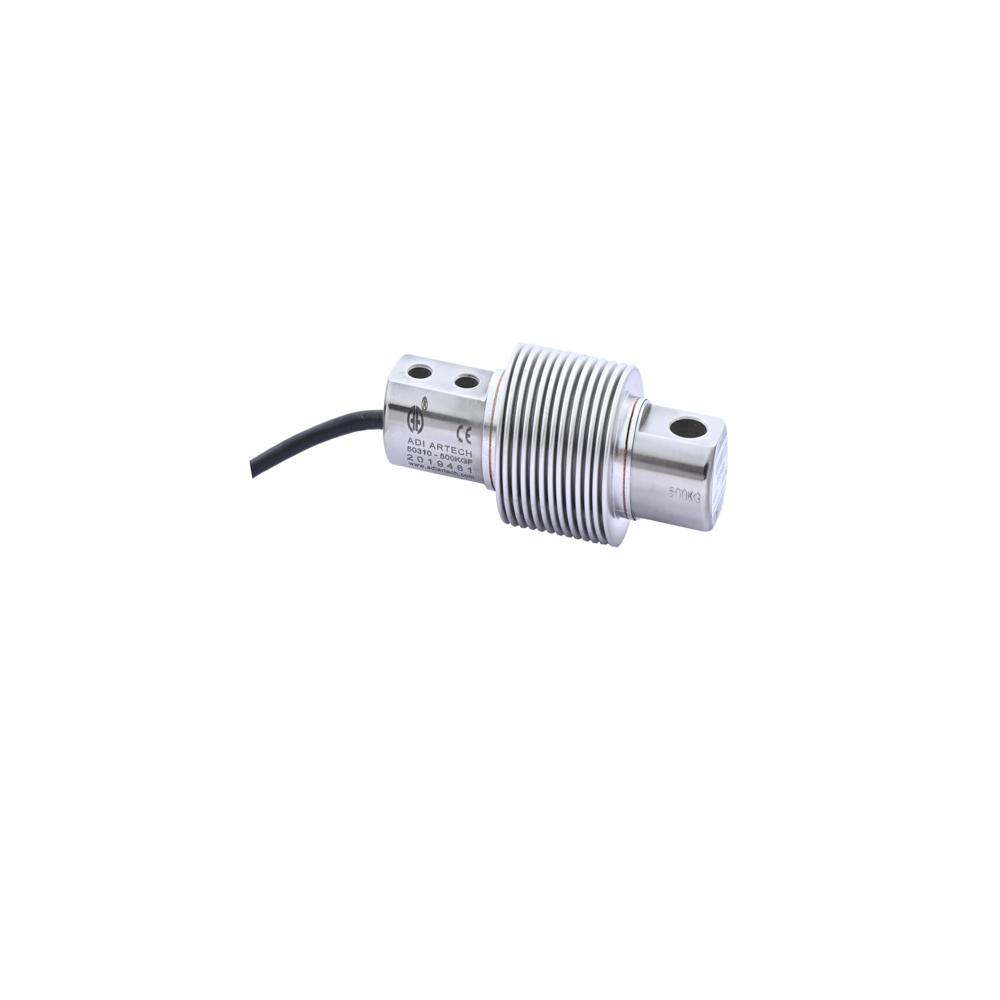

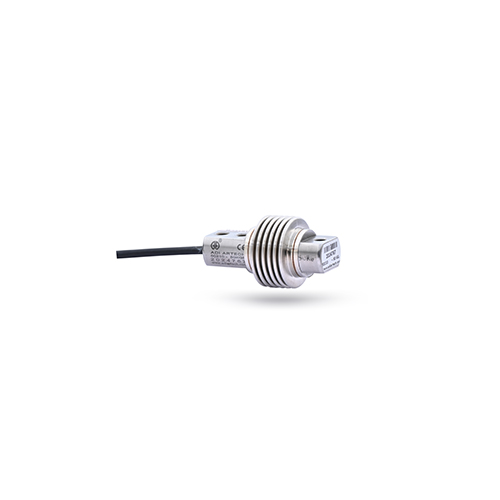

BENDING BEAM WELDED LOAD CELL

Get a Price/Quote

Product Details:

Resistance Input: 385 , Output: 350
Output Analog
Theory Strain Gauge
Type Bending Beam Welded Load Cell
Accuracy 0.03% of Full Scale
Operating Voltage 10 VDC (Recommended), up to 15 VDC maximum
Output Voltage 2.0 mV/V
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

BENDING BEAM WELDED LOAD CELL Price And Quantity

Minimum Order Quantity 1 Piece

BENDING BEAM WELDED LOAD CELL Product Specifications

Storage Temperature -30C to +80C
Operating Temperature -20C to +70C
Theory Strain Gauge
Resistance Input: 385 , Output: 350
Compensated Temperature -10C to +40C
Output Voltage 2.0 mV/V
Type Bending Beam Welded Load Cell
Accuracy 0.03% of Full Scale
Output Analog
Operating Voltage 10 VDC (Recommended), up to 15 VDC maximum

BENDING BEAM WELDED LOAD CELL Trade Information

Supply Ability 100 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Eastern Europe, Western Europe, Middle East, Africa, Asia
Main Domestic Market All India

Product Description

50210 IS STAINLESS STEEL BENDING BEAM LOAD CELL. IT IS LASER WELDED WITH SS BELLOW TO MAKE IT COMPLETLY HERMETICALLY SEALED. IT IS USEFUL IN CONVEYOR BELT WEIGHER, CHECK WEIGHER, BAG WEIGHER AND TANK WEIGHER.

Superior Protection and Robust Design

Built with stainless steel and welded sealing, this bending beam load cell is designed to operate in tough settings, backed by an IP68 rating. It reliably withstands harsh industrial environments, minimizing downtime and maintenance concerns. The construction ensures maximum protection from dust and moisture, making it an excellent choice for outdoor and washdown applications.

Precision Performance for Weighing Tasks

Incorporating high-quality strain gauge technology, this load cell achieves outstanding accuracy, with nonlinearity, hysteresis, and creep all limited to 0.02% of full scale. Suitable for precision-focused industrial and laboratory applications, it guarantees reliable and repeatable weight measurement across a broad temperature range. The analog output ensures compatibility with most weighing systems.

FAQ's of BENDING BEAM WELDED LOAD CELL:

Q: How does the Bending Beam Welded Load Cell ensure accuracy in measurement?

A: This load cell uses strain gauge technology, which offers high precision by minimizing errors due to creep, nonlinearity, and hysteresis-all maintained within 0.02% of full scale. The stainless steel design and welded sealing also protect internal components from environmental influences, further supporting accuracy.

Q: What environments is this load cell suitable for?

A: Thanks to its stainless steel construction and IP68 protection, the load cell can be used in harsh industrial, outdoor, and moisture-prone settings. It is highly resistant to dust and water, making it ideal for food processing, chemical plants, outdoor batching systems, and similar applications.

Q: When should overload protection be considered for this load cell?

A: The load cell offers a safe overload limit of 150% and an ultimate overload of 200% of its rated capacity. Overload protection should be considered during installation and usage to prevent exceeding these limits, thereby ensuring operational safety and extending the load cell's lifespan.

Q: Where can the Bending Beam Welded Load Cell be integrated?

A: It can be fitted into various weighing and force measurement systems, such as platform scales, conveyor belt scales, hopper scales, and industrial automation setups. Its 3-meter PVC shielded cable offers convenient electrical integration in a wide range of locations.

Q: What is the process for installing this load cell?

A: Installation involves securely mounting the load cell to the weighing structure using appropriate bolts and ensuring correct orientation for load application. Electrical connection is made via the provided shielded cable to compatible weighing electronics, typically using the recommended 5-12 VDC excitation voltage.

Q: How does the IP68 rating benefit usage in industrial settings?

A: The IP68 rating confirms complete protection against dust and even submersion in water, allowing the load cell to operate reliably in environments subjected to frequent washdowns or high humidity, thereby reducing risk of failure and maintenance needs.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Hermetically Sealed Load Cell ' category

Stain Less Steel Hermatically sealed Platform Load Cell Minimum Order Quantity : 1 Resistance : Input: 40515, Output: 3505 Output Voltage : 2.0 mV/V 0.1% Theory : Other, Strain Gauge Operating Voltage : 5V to 15V DC (Excitation Voltage) Type : Platform Load Cell Accuracy : C3 Class (0.02% of full scale) Output : Other, Analog

Send Inquiry

Stainless Steel Shear Beam Load Cell Minimum Order Quantity : 1 Resistance : Input: 40010 , Output: 3522 Output Voltage : 2.0 mV/V 0.1% Theory : Other, Resistance Strain Gauge Operating Voltage : 515 V DC Type : Shear Beam Accuracy : 0.03% to 0.05% F.S. Output : Other, 2.0 mV/V

Send Inquiry

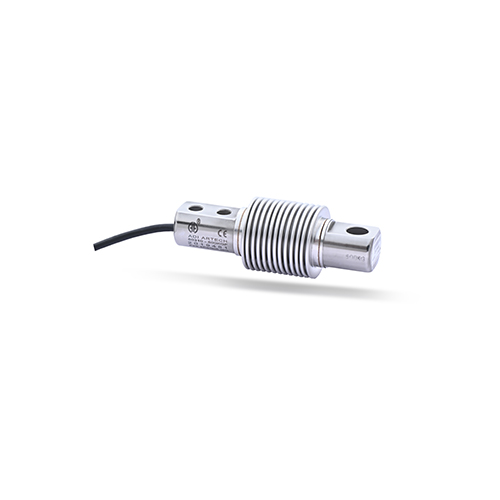

Bending Beam Hermatically Sealed Load Cell Minimum Order Quantity : 1 Resistance : Input: 40020, Output: 3502 Output Voltage : 2.0 0.002 mV/V Theory : Resistance Sensor Operating Voltage : 10V DC (recommended), max 15V Type : Bending Beam Hermetically Sealed Load Cell Accuracy : 0.03% F.S.
