Shear beam Load Cell for Weigh Bridge

Get a Price/Quote

Product Details:

Application WEIGHING SCALE, TENSILE TESTING, MACHINE AUTOMATION, ON LINE TENSION MEASUREMENTS
Product Type LOAD CELL
Classification ELECTRONIC
Usage WEIGHING MACHINES
Output Analog Sensor
Type LOAD CELL
Accuracy 0.025
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Shear beam Load Cell for Weigh Bridge Price And Quantity

Minimum Order Quantity 1 Piece

Shear beam Load Cell for Weigh Bridge Product Specifications

Product Type LOAD CELL
Output Voltage 2mv
Application WEIGHING SCALE, TENSILE TESTING, MACHINE AUTOMATION, ON LINE TENSION MEASUREMENTS
Type LOAD CELL
Operating Temperature 0-50
Usage WEIGHING MACHINES
Operating Voltage 5-10
Classification ELECTRONIC
Output Analog Sensor
Storage Temperature 0-60
Accuracy 0.025
Compensated Temperature 10-50

Shear beam Load Cell for Weigh Bridge Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Eastern Europe, Middle East, Africa, Asia
Main Domestic Market All India

Product Description

Product details

Deflection	< 0.5 mm at FSO
Environmental Protection Class	IP 68
Material	Stainless Steel
Material of Construction	Electroless Nickel Plated Tool Steel
Nominal Output	3.0 m V/ V
Temp. Compensated Range	0-60 C
Temperature Effect on Output	< 0.0015% FSO
Insulation Resistance	>1000 Mega Ohms
Excitation Voltage	10 VDC -15 VDC
Output Resistance	700 +- 2 Ohms
Input Resistance	770 +- 20.0 Ohms
Deflection	< 0.5 mm at FSO

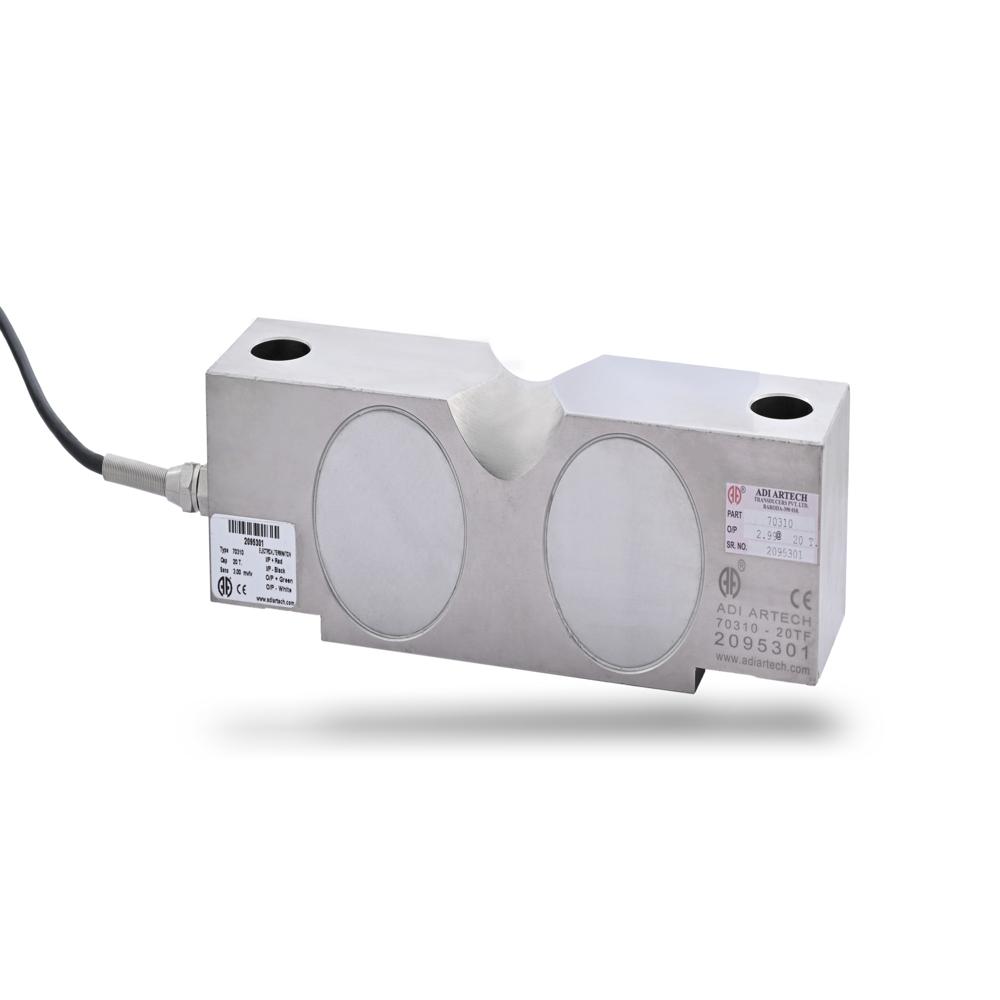

Double ended Shear beam Load Cell for Weigh Bridge

Model	:	70310
Capacity	:	0-5Tf to 0-100Tf
Load Direction	:	Compression only
Type	:	Double Ended Shear Beam Load Cell , Truck Scale Load Cell , Weigh Bridge Load Cell

Industries

Weighing
Transport and High Way Authority

Application

Hopper , Tank , Silo Weighing
Truck Weighing
Wagon Triple
Weigh Bridge Scale

Description

70310 is double ended shear beam load cell.
This suits to truck,track,tank and hopper weighing.
This cell is designed to withstand rigorous shock loads prevailing in heavy duty weighments.

Features

It is fully sealed for water proofing for IP-68 degree of protection class.
This load cell can be supplied with suitable mounting module WM-V,upon request.
Apart from weighing,this also finds applications in tensile testing.

This load cell can be supplied with suitable weighing module for weigh bridge installations.
For details , please contact us.

High Accuracy for Reliable Weighing

This shear beam load cell guarantees accuracy up to 0.025, making it a trusted choice for weigh bridges and critical weighing operations in industrial environments. It ensures that your measurements are both consistent and precise, reducing errors and increasing operational efficiency.

Versatile Applications in Industry

Engineered to deliver stellar performance, the load cell finds use in weighing machines, tensile testing equipment, machine automation, as well as continuous online tension measurement. Its versatility supports industries looking to automate and refine their quality control and logistical processes.

FAQs of Shear beam Load Cell for Weigh Bridge:

Q: How is the shear beam load cell installed in a weigh bridge system?

A: The load cell is typically mounted beneath the weigh bridge platform, connecting structurally to the bridge support and the platform. Wiring is done to an indicator or controller to process the analog signal for weight measurement.

Q: What are the benefits of using this electronic shear beam load cell?

A: This load cell offers remarkable accuracy (up to 0.025), reliable analog output, and wide compatibility with weighing systems. Its strong design enhances durability, and its temperature compensation ensures stable performance under varying environmental conditions.

Q: Where can this load cell be used beyond weigh bridges?

A: Apart from weigh bridges, its suited for weighing scales, tensile testing machines, machinery automation, and real-time online tension measurement applications in manufacturing and industrial settings.

Q: When should I consider using a shear beam load cell for my industrial processes?

A: You should opt for a shear beam load cell when high accuracy and stability are required for dynamic weighing, especially in automated or harsh industrial environments where reliability and robust performance are critical.

Q: What is the operating and storage temperature range for this load cell?

A: The load cell operates efficiently between 0C and 50C and can be safely stored within 0C to 60C, making it adaptable to various climatic conditions prevalent in industrial environments.

Q: How do I maintain optimal accuracy of the load cell over time?

A: Regular calibration, keeping the cell free from debris and overloading, and following manufacturer guidelines for installation and maintenance will help sustain optimal accuracy and longevity of the load cell.
