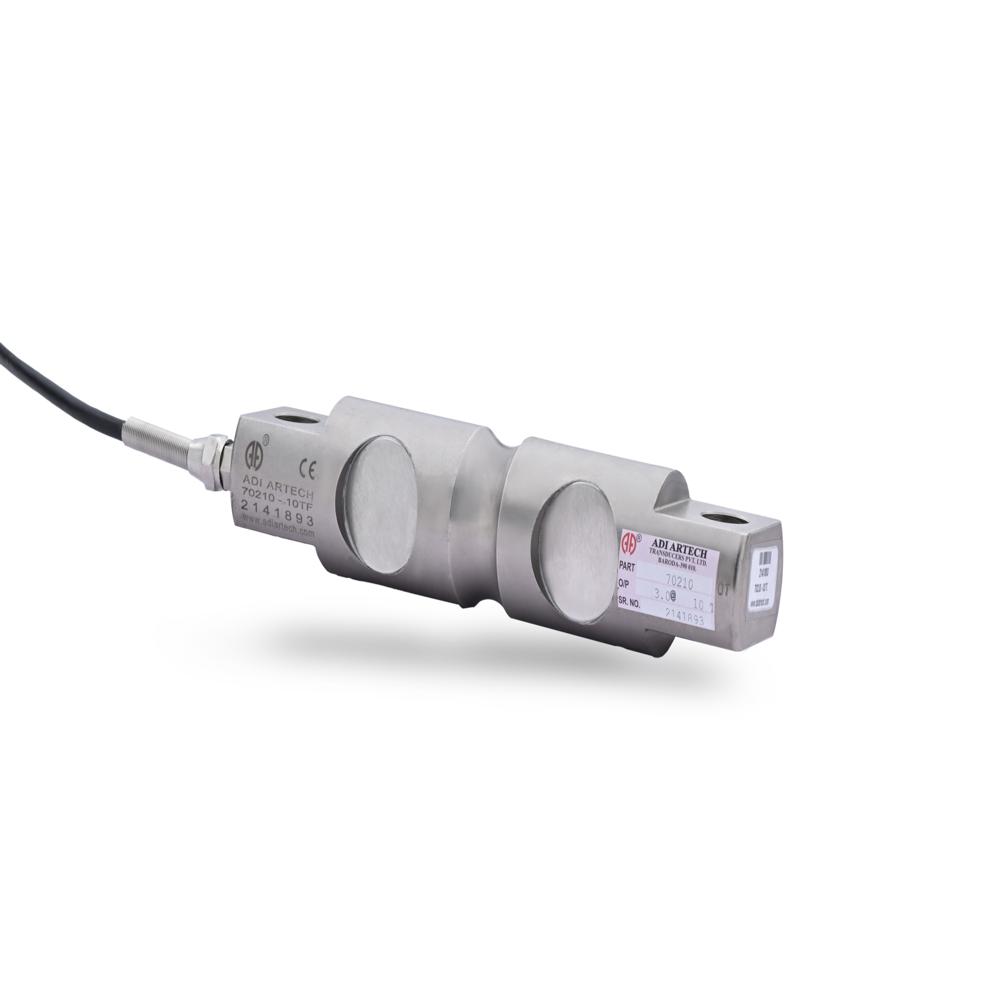

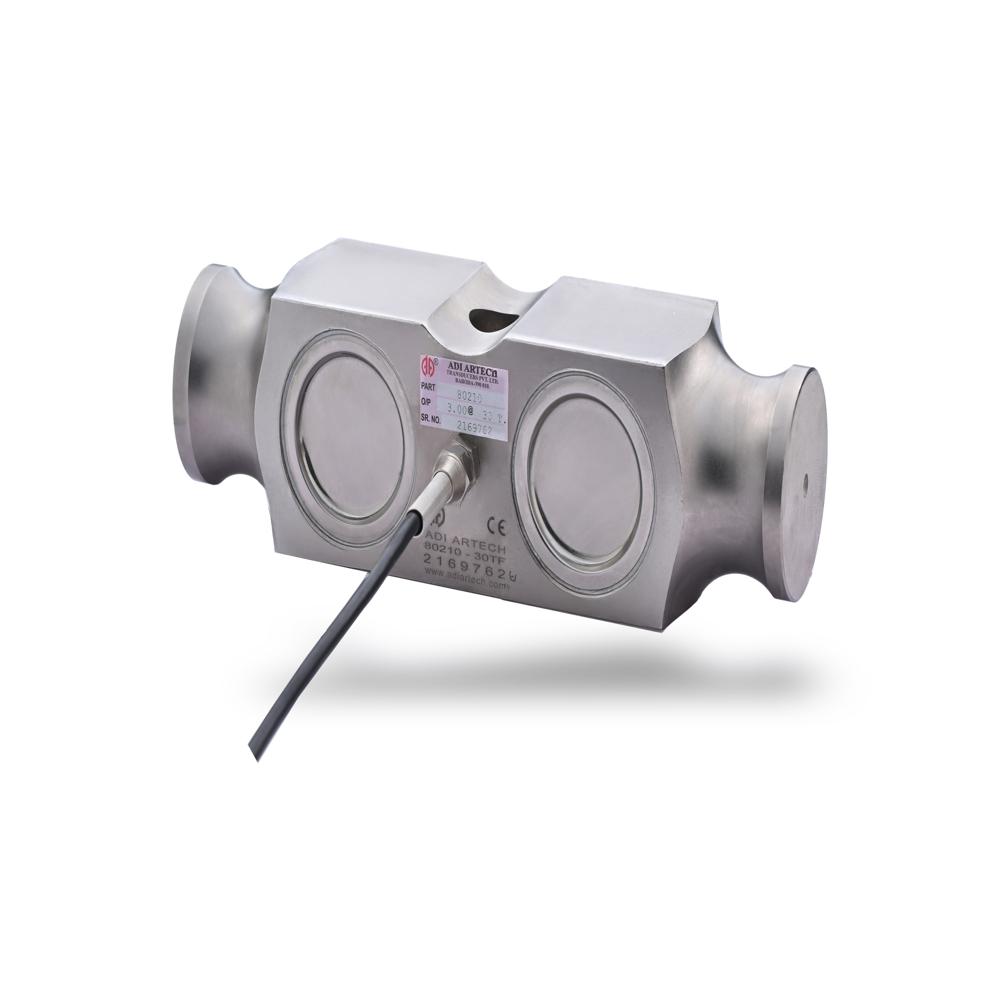

Double Ended Shear Beam Load Cell

• Accuracy
• 0.1% FSO %

• Application
• Truck scale, onboard weighing, portable truck weigh pads, track scale, crane weighing

• Capacity
• 2,5,10 Ton

• Classification
• Double Ended Shear Beam Load Cell

• Color
• Silver

• Compensated Temperature
• 10-50 Celsius (oC)

• Dimension (L*W*H)
• 305*32 Millimeter (mm)

• Material
• High Alloy Tool Steel

• Operate Method
• Strain gauge based shear beam operation

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• 5-10 Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mv Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Double Ended Shear Beam Load Cell

• Resistance
• Input Resistance: 770 15 , Output Resistance: 700 5

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• STRAIN GAGE BASED SHEAR BEAM LOAD CELL

• Usage
• Weight and force measurement

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 5 KG(APPROX.) Kilograms (kg)

• Accuracy
• 0.025 % %

• Application
• Truck weighing , Tank & hopper weighing, Weighbridge, Tensile testing

• Capacity
• 5, 10, 15, 20, 23, 30, 40, 50, 75, 100 Ton

• Classification
• Weighing Load Cell / Shear Beam Type

• Color
• Silver

• Compensated Temperature
• 10-50 Celsius (oC)

• Material
• Electroless Nickel Plated Tool Steel

• Operate Method
• Strain gauge based load measurement using double ended shear beam principle

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• 5-10 Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mv Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Double Ended Shear Beam Load Cell

• Resistance
• Input Resistance: 770 20 Ohms, Output Resistance: 700 2 Ohms

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Double Ended Shear Beam Load Cell

• Usage
• Heavy-duty load measurement in industrial weighing systems

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 7 KG(APPROX) Kilograms (kg)

• Accuracy
• 0.05% FSO %

• Application

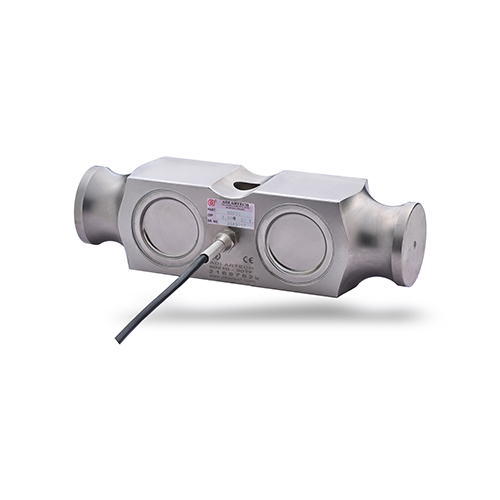

• Truck weighing , Tank & hopper weighing, Large platform scales , Weighbridges

• Capacity
• 2.5, 3, 5, 10, 15, 20, 30, 40, 50, 75, 100 Ton

• Classification
• Weighing Load Cell / Shear Beam Type

• Color
• Silver

• Compensated Temperature
• 10-50 Celsius (oC)

• Material
• Tool Steel (Electroless Nickel Plated)

• Operate Method
• Strain gauge based load measurement (shear beam principle)

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• 5-10 Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mv Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Double Ended Shear Beam Load Cell

• Resistance
• Input Resistance: 770 20 Ohms ,Output Resistance: 700 2 Ohms

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type

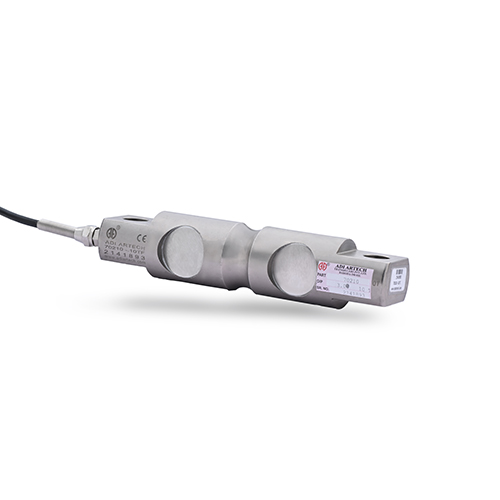

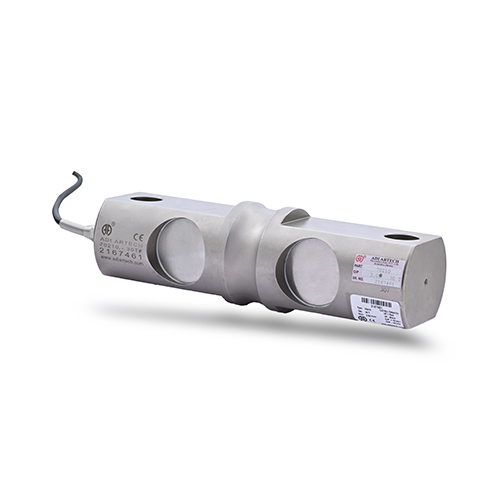

• TANK WEIGHING LOAD CELL

• Usage
• Measurement of heavy loads in industrial weighing systems

• Voltage
• 10 VDC to 15 VDC (Maximum) Volt (v)

• Accuracy
• 0.025% %

• Application
• Truck weighbridge ,Tank and hopper weighing ,Tensile testing

• Capacity
• 5, 10, 15, 20, 30, 40 Ton

• Classification
• Weighing Load Cell / Shear Beam Type

• Compensated Temperature
• 10-50 Celsius (oC)

• Material
• Electroless Nickel Plated Heat-Treated Tool Steel

• Operate Method

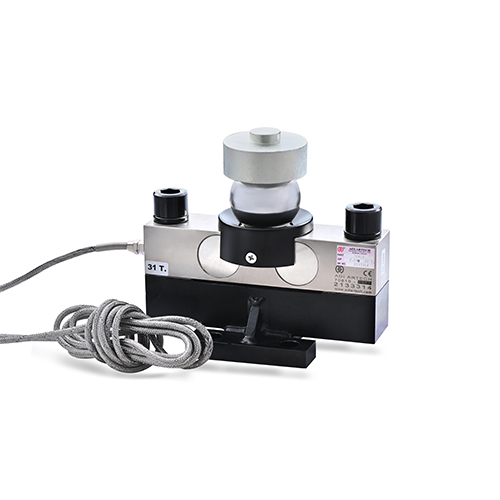

• Strain gauge based load measurement using double ended shear beam principle with self-restoring, self-centering cup & steel ball mounting

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• 5-10 Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mv Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Double Ended Shear Beam Load Cell

• Resistance
• Input Resistance: 770 20 Ohms, Output Resistance: 700 2 Ohms

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• STRAIN GAGE BASED DOUBLE ENDED SHEAR BEAM LOAD CELL

• Usage
• Heavy-duty industrial load measurement in harsh environments

• Voltage
• 10 VDC to 15 VDC (Maximum) Volt (v)

• Weight
• 7 KG(APPROX) Kilograms (kg)

• Accuracy
• 0.1% FSO %

• Application
• Truck scale, Track scale, Onboard weighing systems

• Capacity
• 10, 15, 20, 22.5, 25, 30 Ton

• Classification
• Industrial Weighing Sensor / Load Cell

• Color
• Metallic (nickel plated finish)

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• High alloy tool steel with electroless nickel plating

• Operate Method
• Strain gauge based load sensing (shear beam principle)

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (max 15 VDC excitation) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V nominal output Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Double Ended Shear Beam Load Cell

• Resistance
• Input Resistance: 770 15 Output Resistance: 700 5

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Double Ended Shear Beam Load Cell

• Usage
• Industrial weighing systems

• Voltage
• Excitation Voltage: 10 VDC (Maximum 15 VDC) Volt (v)

• Accuracy
• 0.03% of Full Scale

• Compensated Temperature
• -10C to +40C

• Operating Temperature
• -20C to +60C

• Operating Voltage
• 10 V DC

• Output
• Other, Digital/Analog

• Output Voltage
• 2.0 mV/V

• Resistance
• Input: 770 , Output: 700

• Storage Temperature
• -40C to +70C

• Theory
• Other

• Type
• Double Ended Shear Beam Load Cell

• Accuracy
• 0.1% FSO %

• Application

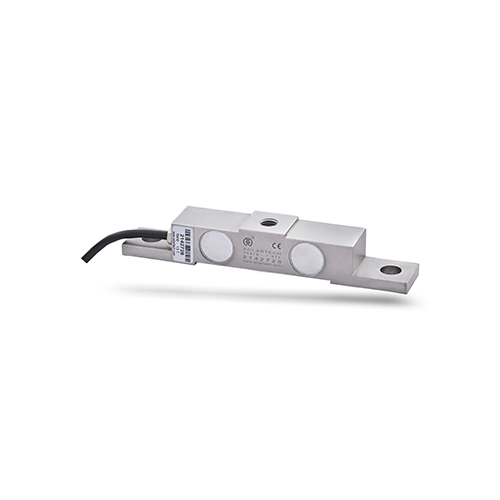

• Passenger lifts, cargo lifts, onboard weighing, small crane weighing

• Capacity
• 500,1000,1500 Kg

• Classification
• Shear beam load cell

• Color
• Silver

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Dimension (L*W*H)
• 190*30*30 Millimeter (mm)

• Material
• Electroless nickel plated tool steel

• Operate Method
• Strain gauge based sensing

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 5-15 V DC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Double Ended Shear Beam Load Cell

• Resistance
• Input resistance: 770 15 ; Output resistance: 700 5

• Storage Temperature
• 0 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Strain Gauge Load Cell

• Usage
• Load monitoring in elevators and lifting systems

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 1.5 KG(APPROX.) Kilograms (kg)
