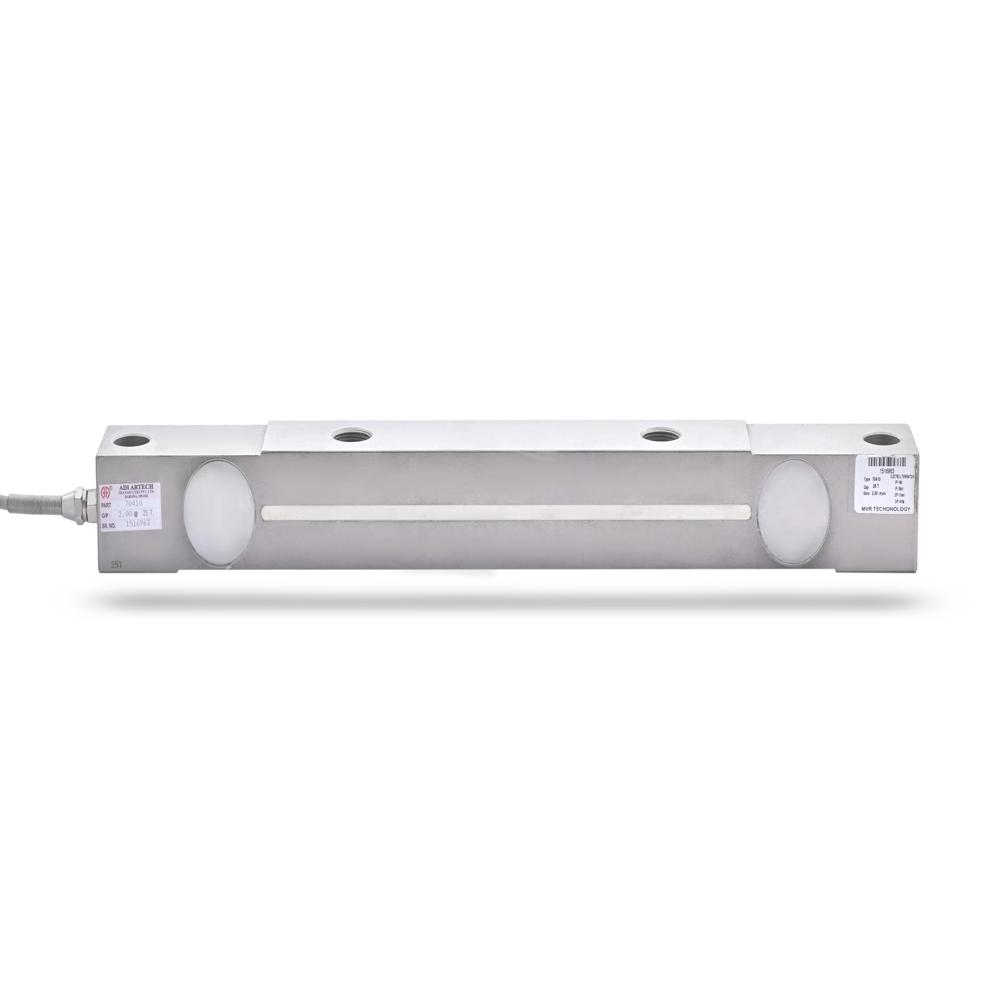

Double Ended Shear Beam Load Cell

Name: Double Ended Shear Beam Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 10000.0 INR
Availability: InStock

10000.0 INR/Number

Get a Price/Quote

Product Details:

Color Metallic (nickel plated finish)
Material High alloy tool steel with electroless nickel plating
Power 10 VDC Volt (v)
Product Type Double Ended Shear Beam Load Cell
Usage Industrial weighing systems
Voltage Excitation Voltage: 10 VDC (Maximum 15 VDC) Volt (v)
Application Truck scale, Track scale, Onboard weighing systems
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Double Ended Shear Beam Load Cell Price And Quantity

Price 10000.0 INR/Number
Minimum Order Quantity 1 Number

Double Ended Shear Beam Load Cell Product Specifications

Type Double Ended Shear Beam Load Cell
Accuracy 0.1% FSO %
Operating Temperature 10 C to 50 C Celsius (oC)
Output Analog Sensor
Application Truck scale, Track scale, Onboard weighing systems
Theory Resistance Sensor
Product Type Double Ended Shear Beam Load Cell
Usage Industrial weighing systems
Storage Temperature 10 C to 50 C Celsius (oC)
Voltage Excitation Voltage: 10 VDC (Maximum 15 VDC) Volt (v)
Resistance Input Resistance: 770 15 Output Resistance: 700 5
Operate Method Strain gauge based load sensing (shear beam principle)
Color Metallic (nickel plated finish)
Capacity 10, 15, 20, 22.5, 25, 30 Ton
Operating Voltage 10 VDC (max 15 VDC excitation) Volt (V)
Classification Industrial Weighing Sensor / Load Cell
Power 10 VDC Volt (v)
Material High alloy tool steel with electroless nickel plating
Compensated Temperature 10 C to 50 C Celsius (oC)
Output Voltage 2.0 mV/V nominal output Volt (V)

Double Ended Shear Beam Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available No
Main Export Market(s) Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

The 70420 Double Ended Shear Beam Load Cell is a high-precision industrial weighing sensor designed for heavy-duty weighing applications such as truck scales, track scales, and onboard weighing systems.

Manufactured from high-alloy tool steel with electroless nickel plating, it offers excellent strength, corrosion resistance, and durability in harsh environments.

The load cell uses strain gauge technology to deliver reliable and accurate measurements with a standard output of 2.0 mV/V. With IP67 environmental protection, CE certification, and capacities ranging from 10 to 30 Tf, this load cell ensures stable performance under impact loading and adverse operating conditions.

FAQs

1. What type of load cell is the 70420 model?

The 70420 is a Double Ended Shear Beam Load Cell designed for high-capacity industrial weighing systems.

2. What are the available capacities for this load cell?

It is available in 10, 15, 20, 22.5, 25, and 30 Ton-force (Tf) capacities.

3. What applications is this load cell suitable for?

It is commonly used in truck scales, railway/track scales, and onboard weighing systems.

4. What is the output signal of the load cell?

The load cell provides a standard output of 2.0 mV/V.

5. What is the recommended excitation voltage?

The recommended excitation voltage is 10 VDC, with a maximum limit of 15 VDC.

6. What material is used in the construction of the load cell?

The load cell is manufactured from high alloy tool steel with electroless nickel plating for strength and corrosion resistance.

7. What environmental protection does the load cell offer?

It is IP67 rated, meaning it is protected against dust and water ingress.

8. What temperature range is compensated for accurate performance?

The load cell is temperature compensated from 10C to 50C.

9. Is the load cell resistant to overload conditions?

Yes, it can handle 150% safe overload and up to 250% ultimate overload of the rated capacity.

10. What cable length is provided with the load cell?

It is supplied with a 10-meter, 4-core screened cable for reliable signal transmission.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Double Ended Shear Beam Load Cell' category

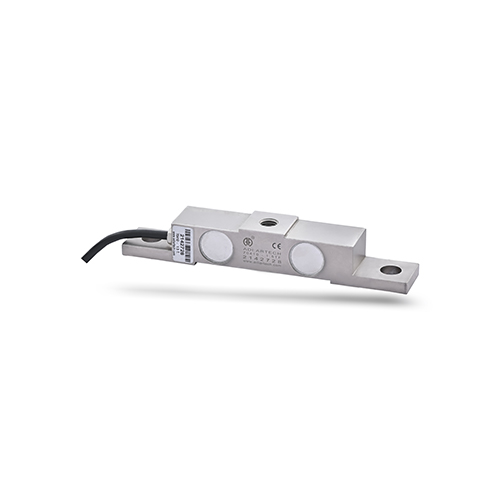

Lift Load Measuring Load Cell Price : 5200.0 INR/Number Minimum Order Quantity : 100 Operating Temperature : 0 C to 50 C Celsius (oC) Accuracy : 0.1% FSO % Type : Strain Gauge Load Cell Storage Temperature : 0 C to 50 C Celsius (oC) Theory : Resistance Sensor Output : Analog Sensor Operating Voltage : 515 V DC Volt (V) Resistance : Input resistance: 770 15 ; Output resistance: 700 5 Output Voltage : 2 mV/V Volt (V) Compensated Temperature : 10 C to 50 C Celsius (oC) Product Type : Double Ended Shear Beam Load Cell Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Usage : Load monitoring in elevators and lifting systems Application : Passenger lifts, cargo lifts, onboard weighing, small crane weighing Capacity : 500,1000,1500 Kg Classification : Shear beam load cell Operate Method : Strain gauge based sensing Material : Electroless nickel plated tool steel Power : 10 VDC Volt (v) Weight : 1.5 KG(APPROX.) Kilograms (kg) Color : Silver Dimension (L*W*H) : 190*30*30 Millimeter (mm)

Send Inquiry

Weigh Pad Load Cell Price : 17500.0 INR/Number Minimum Order Quantity : 1 Operating Temperature : 050 Celsius (oC) Accuracy : 0.1% FSO % Type : STRAIN GAGE BASED SHEAR BEAM LOAD CELL Storage Temperature : 060 Celsius (oC) Theory : Resistance Sensor Output : Analog Sensor Operating Voltage : 510 Volt (V) Resistance : Input Resistance: 770 15 , Output Resistance: 700 5 Output Voltage : 2mv Volt (V) Compensated Temperature : 1050 Celsius (oC) Product Type : Double Ended Shear Beam Load Cell Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Usage : Weight and force measurement Application : Truck scale, onboard weighing, portable truck weigh pads, track scale, crane weighing Capacity : 2,5,10 Ton Classification : Double Ended Shear Beam Load Cell Operate Method : Strain gauge based shear beam operation Material : High Alloy Tool Steel Power : 10 VDC Volt (v) Weight : 5 KG(APPROX.) Kilograms (kg) Color : Silver Dimension (L*W*H) : 305*32 Millimeter (mm)

Send Inquiry

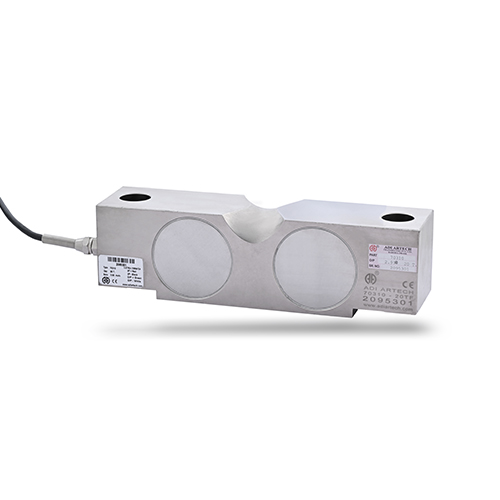

Double Ended Shear Beam Load Cell for Weigh Bridge Price : 13500.0 INR/Number Minimum Order Quantity : 1 Operating Temperature : 050 Celsius (oC) Accuracy : 0.025 % % Type : Double Ended Shear Beam Load Cell Storage Temperature : 060 Celsius (oC) Theory : Resistance Sensor Output : Analog Sensor Operating Voltage : 510 Volt (V) Resistance : Input Resistance: 770 20 Ohms, Output Resistance: 700 2 Ohms Output Voltage : 2mv Volt (V) Compensated Temperature : 1050 Celsius (oC) Product Type : Double Ended Shear Beam Load Cell Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Usage : Heavyduty load measurement in industrial weighing systems Application : Truck weighing , Tank & hopper weighing, Weighbridge, Tensile testing Capacity : 5, 10, 15, 20, 23, 30, 40, 50, 75, 100 Ton Classification : Weighing Load Cell / Shear Beam Type Operate Method : Strain gauge based load measurement using double ended shear beam principle Material : Electroless Nickel Plated Tool Steel Power : 10 VDC Volt (v) Weight : 7 KG(APPROX) Kilograms (kg) Color : Silver

Send Inquiry

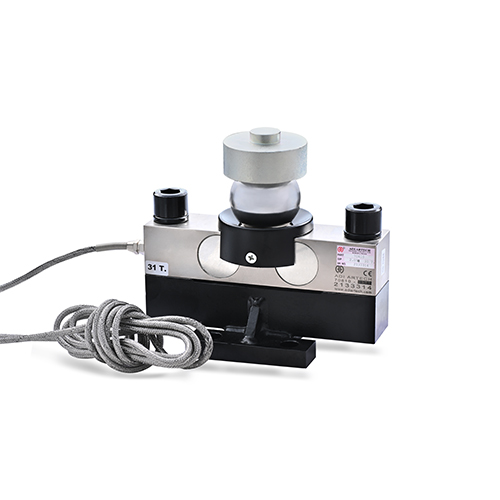

Ball Cup Type Double Ended Shear Beam Load Cell Price : 10500.0 INR/Number Minimum Order Quantity : 1 Operating Temperature : 050 Celsius (oC) Accuracy : 0.025% % Type : STRAIN GAGE BASED DOUBLE ENDED SHEAR BEAM LOAD CELL Storage Temperature : 060 Celsius (oC) Theory : Resistance Sensor Output : Analog Sensor Operating Voltage : 510 Volt (V) Resistance : Input Resistance: 770 20 Ohms, Output Resistance: 700 2 Ohms Output Voltage : 2mv Volt (V) Compensated Temperature : 1050 Celsius (oC) Product Type : Double Ended Shear Beam Load Cell Voltage : 10 VDC to 15 VDC (Maximum) Volt (v) Usage : Heavyduty industrial load measurement in harsh environments Application : Truck weighbridge ,Tank and hopper weighing ,Tensile testing Capacity : 5, 10, 15, 20, 30, 40 Ton Classification : Weighing Load Cell / Shear Beam Type Operate Method : Strain gauge based load measurement using double ended shear beam principle with selfrestoring, selfcentering cup & steel ball mounting Material : Electroless Nickel Plated HeatTreated Tool Steel Power : 10 VDC Volt (v) Weight : 7 KG(APPROX) Kilograms (kg)

Send Inquiry

SEND INQUIRY CALL ME FREE
