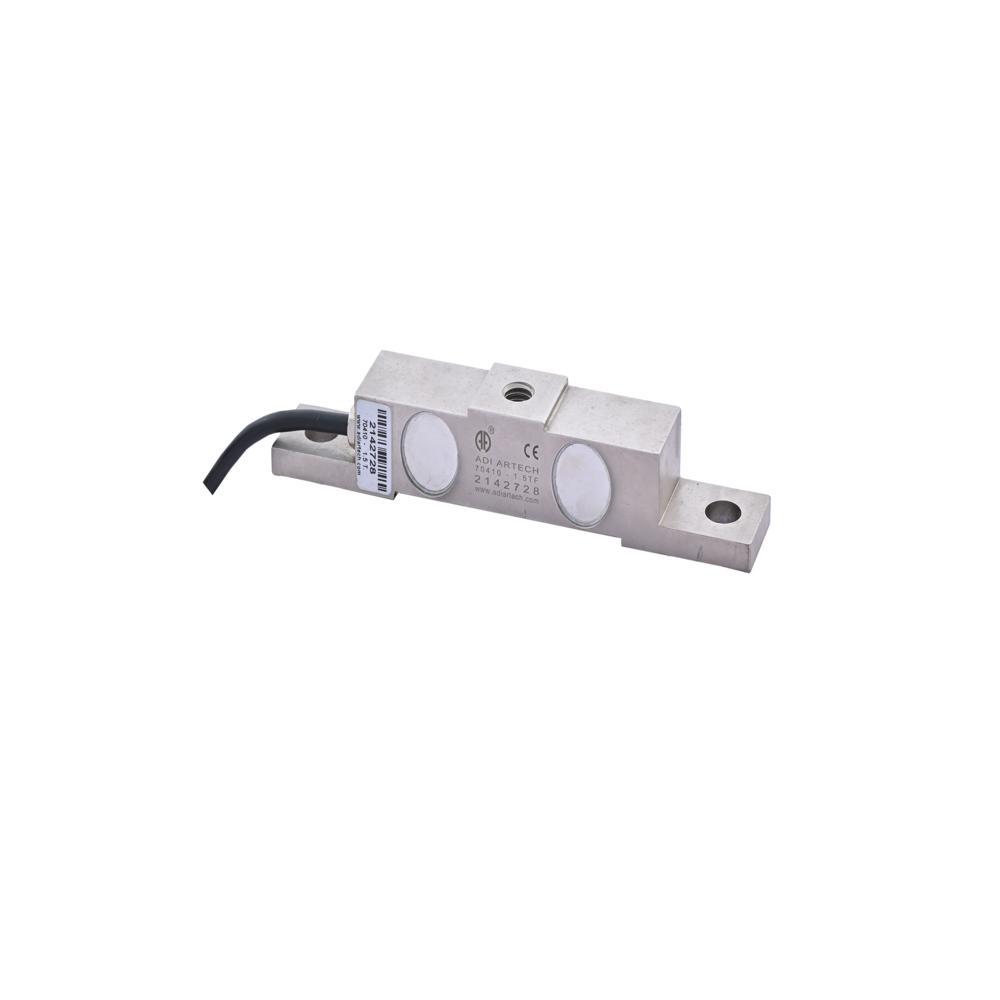

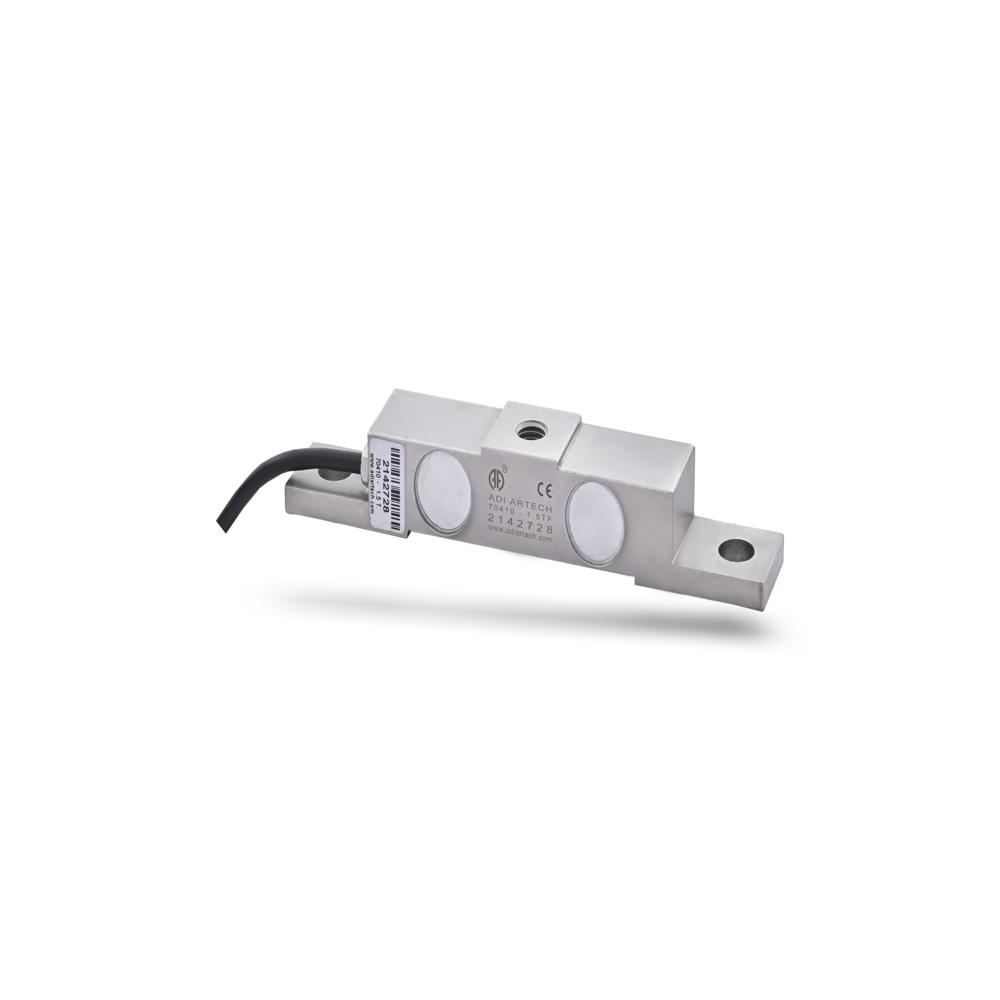

LIFT LOAD MEASURING LOAD CELL
5200.0 INR/Number
Product Details:
- Capacity 500,1000,1500 Kg
- Usage Load monitoring in elevators and lifting systems
- Application Passenger lifts, cargo lifts, onboard weighing, small crane weighing
- Operate Method Strain gauge based sensing
- Color Silver
- Weight 1.5 KG(APPROX.) Kilograms (kg)
- Power 10 VDC Volt (v)
- Click to view more
X
LIFT LOAD MEASURING LOAD CELL Price And Quantity
- 5200.0 INR/Number
- 1 Number
- 2.0±0.005 mV/V
- ±1% FS
- 4-wire system
- Easy bolt-on design
- 150% of rated capacity
- Elevator and Lift Load Measurement
- IP65
- 0 - 5 Ton (varies by model)
- 200% of rated capacity
- Alloy Steel/ Stainless Steel
- 3 meters (standard)
- ±0.03% FS
LIFT LOAD MEASURING LOAD CELL Product Specifications
- 10 VDC Volt (v)
- 0 C to 50 C Celsius (oC)
- 1.5 KG(APPROX.) Kilograms (kg)
- Silver
- Strain gauge based sensing
- Passenger lifts, cargo lifts, onboard weighing, small crane weighing
- 2 mV/V Volt (V)
- Load monitoring in elevators and lifting systems
- 0.1% FSO %
- 500,1000,1500 Kg
- 0 C to 50 C Celsius (oC)
- Input resistance: 770 15 ; Output resistance: 700 5
- Resistance Sensor
- 5-15 V DC Volt (V)
- 10 C to 50 C Celsius (oC)
- Shear beam load cell
- Electroless nickel plated tool steel
- Double Ended Shear Beam Load Cell
- 10 VDC (Maximum 15 VDC) Volt (v)
- Analog Sensor
- Strain Gauge Load Cell
- 190*30*30 Millimeter (mm)
- 2.0±0.005 mV/V
- ±1% FS
- 4-wire system
- Easy bolt-on design
- 150% of rated capacity
- Elevator and Lift Load Measurement
- IP65
- 0 - 5 Ton (varies by model)
- 200% of rated capacity
- Alloy Steel/ Stainless Steel
- 3 meters (standard)
- ±0.03% FS
LIFT LOAD MEASURING LOAD CELL Trade Information
- VADODARA
- Cheque, Cash Advance (CA), Cash in Advance (CID)
- 150 Number Per Week
- 1 Week
- Yes
- Asia, Australia, Africa, Western Europe, Middle East, Eastern Europe
- All India
- OEM TEST CERTIFICATE, NON TREACEABLE FACTOR CALIBRATION REPORT
Product Description
This is Double ended shear beam load cell.It is used in lift - fixed at each corner of the lift structure.
4 pcs. per lift are required.
It is available in 500, 1000, 1500Kg. load capacities.
It is supplied with 4 point load summing junction box and load indicator.
Reliable Weight Measurement for Lifts
Ensure passenger and load safety in elevators with high-accuracy load cells engineered for lift applications. Their robust build and superior overload resistance provide lasting performance even under challenging conditions.
Easy Installation and Compatibility
Featuring a user-friendly bolt-on design and a 3-meter standard cable, these load cells are straightforward to install and integrate with existing elevator control systems using the analog sensor's 4-wire output.
Engineered for Indian Conditions
With an operating temperature range from -20C to +70C and IP65 ingress protection, this load cell performs reliably even in harsh operating and storage environments, making it suitable for diverse locations across India.
FAQ's of LIFT LOAD MEASURING LOAD CELL:
Q: How do I install the Lift Load Measuring Load Cell in an elevator system?
A: The load cell features a convenient bolt-on mounting design, making it simple to affix directly to your lift's load bearing structure. Just connect the included 3-meter cable to your control system using the standard 4-wire configuration.Q: What benefits does this load cell offer for elevator safety and performance?
A: This load cell improves safety by providing accurate real-time load measurements, helping to prevent overloads and optimize elevator performance. Its 0.03% full-scale accuracy ensures dependable results, even in high-demand settings.Q: When should the load cell be calibrated or checked for accuracy?
A: It's advisable to calibrate the lift load cell during installation and periodically as part of routine elevator maintenance, typically every six months or as recommended by the manufacturer and local safety standards.Q: Where can I source this load cell in India?
A: You can obtain this load cell through a variety of channels in India, including dealers, distributors, manufacturers, exporters, producers, suppliers, traders, and wholesalers. Many suppliers offer both local support and nationwide shipping.Q: What is the operating temperature range for this load cell?
A: The recommended operating temperature is from -20C to +70C, and it can be safely stored between -25C and +80C. This wide range ensures reliable functioning across different installation sites.Q: How does the ingress protection (IP65) rating benefit my elevator setup?
A: With an IP65 rating, the load cell is protected against dust and low-pressure water jets, making it suitable for installation in areas where moisture or dust may be present, such as elevator shafts.Q: What type of signal output does the load cell provide for integration with control systems?
A: The load cell outputs an analog signal with 2.00.005 mV/V sensitivity, making it compatible with most elevator control and monitoring systems that utilize resistance sensor inputs.Tell us about your requirement
