Weigh Pad Load Cell

Name: Weigh Pad Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 17500.0 INR
Availability: InStock

Price 17500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Weigh Pad Load Cell Specification

Operate Method
Strain gauge based shear beam operation

Resistance
Input Resistance: 770 15 , Output Resistance: 700 5

Material
High Alloy Tool Steel

Usage
Weight and force measurement

Color
Silver

Capacity
2,5,10 Ton

Classification
Double Ended Shear Beam Load Cell

Power
10 VDC Volt (v)

Application
Truck scale, onboard weighing, portable truck weigh pads, track scale, crane weighing

Voltage
10 VDC (Maximum 15 VDC) Volt (v)

Product Type
Double Ended Shear Beam Load Cell

Dimension (L*W*H)
305*32 Millimeter (mm)

Weight
5 KG(APPROX.) Kilograms (kg)

Output
Analog Sensor

Theory
Resistance Sensor

Type
STRAIN GAGE BASED SHEAR BEAM LOAD CELL

Accuracy
0.1% FSO %

Operating Voltage
5-10 Volt (V)

Output Voltage
2mv Volt (V)

Compensated Temperature
10-50 Celsius (oC)

Storage Temperature
0-60 Celsius (oC)

Operating Temperature
0-50 Celsius (oC)

Weigh Pad Load Cell Trade Information

Minimum Order Quantity
1 Number

FOB Port
VADODARA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Week

Delivery Time
1 Week

Sample Available
No

Main Export Market(s)
Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia

Main Domestic Market
All India

Certifications
FACTORY OEM TEST REPORT

About Weigh Pad Load Cell

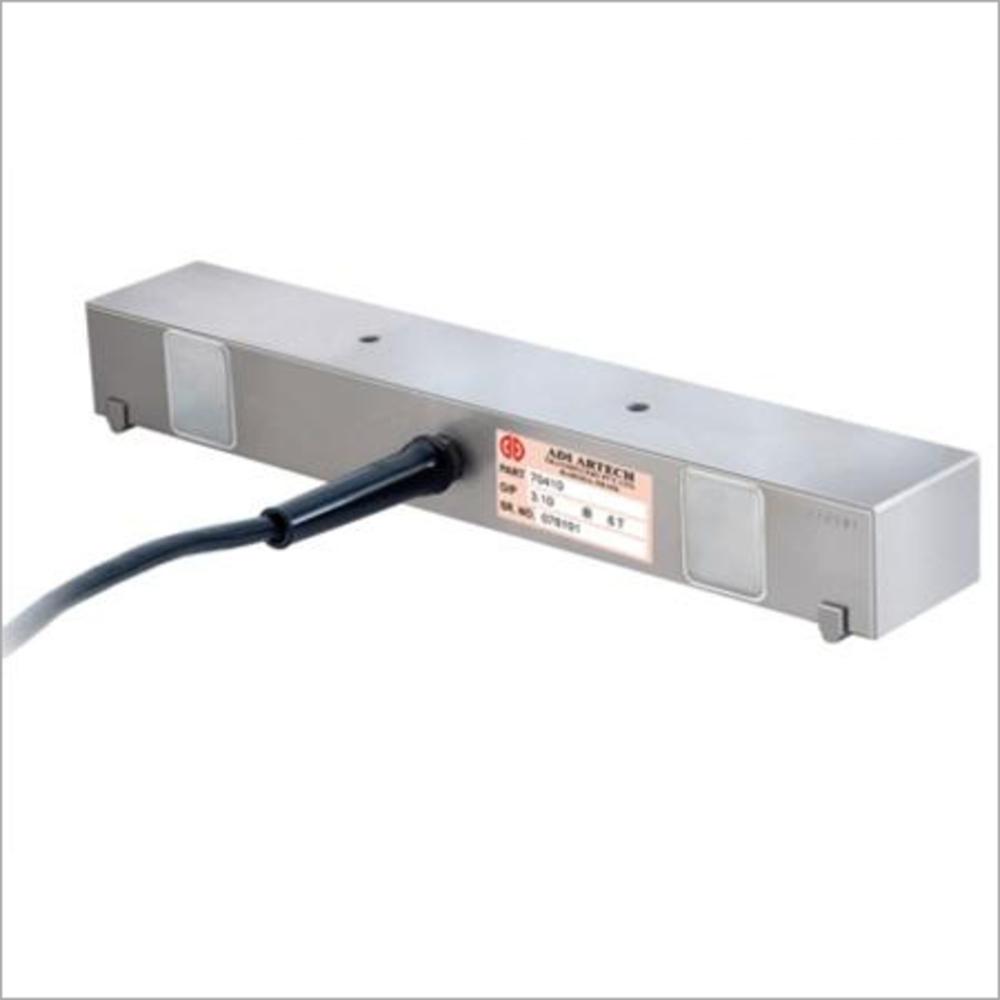

Weigh Pad Load Cell

Model: 70410-1

Capacity:0-2 Tf to 0-10 Tf

Load Direction : Compression only

Type: Double Ended Shear Beam Load Cell , On Board Weigh Load Cell , Portable Weigh Pad Load Cell , Rail Axle Weigh Load Cell , Truck Axle Weigh Load Cell , Truck Scale Load Cell , Weigh Bridge Load Cell

Description:
This is strain gage based double ended shear beam load cell with temperature compensation over 0-60 Deg.C.
It is constructed from electro less nickel plated high alloy tool steel for high shock loads associated in axle weighing.

Features:
70410-1 load cell is low profile and light weight suitable portable axle weigh pads.
It is protected for IP67 class for environmental protection from dust and moisture.

Useful in Industries:
Check Post and Tax Authority
High Way Transportation Safety Authority
Transport and High Way Authority

Useful for Applications:
On-board Weighing
Small Vehicle Weighing
Vehicle Axle Weigh Pad

Electronic Instrumentation / Software
Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.

High-Accuracy Performance

Featuring a remarkable accuracy of 0.025, the Weigh Pad Load Cell delivers consistent and dependable measurements. Its advanced strain gage technology ensures it meets the rigorous demands of weighing scales, tensile testing, and machine automation with precision.

Robust Steel Construction

Engineered from top-grade steel, this load cell offers enhanced strength and durability. Its robust build enables reliable operation in both static and dynamic industrial conditions, providing longevity and minimal maintenance requirements.

Wide Range of Applications

Suited for varied uses such as weighing scales, tensile testing machines, automation equipment, and on-line tension monitoring, the load cell adapts seamlessly to different processesmaking it a versatile choice for manufacturers and industrial operators.

FAQs of Weigh Pad Load Cell:

Q: How is the Weigh Pad Load Cell installed in machine automation systems?

A: The Weigh Pad Load Cell can be mounted using standard fixtures compatible with shear beam load cells. Connect the device according to your automation interface, ensuring correct wiring within the operating voltage of 5-10V. Always follow the manufacturers installation guidelines for optimal integration.

Q: What are the benefits of using a strain gage based shear beam load cell for weighing applications?

A: Strain gage based shear beam load cells offer high accuracy and reliability, particularly suited for industrial weighing tasks. Their design minimizes measurement errors and ensures durability in challenging environments, resulting in precise and repeatable results.

Q: When is it best to use this load cell for online tension measurements?

A: This load cell is ideal for real-time, on-line tension measurements where continuous monitoring is essential. Its rapid response and accuracy make it suitable for processes that require instant feedback, such as conveyor systems or automated production lines.

Q: Where can I purchase the Weigh Pad Load Cell in India?

A: You can acquire the Weigh Pad Load Cell from an extensive network of dealers, distributors, suppliers, manufacturers, exporters, and wholesalers throughout India. Check with your preferred industrial equipment provider for availability.

Q: What is the operating temperature range for this load cell?

A: The load cell is designed to operate efficiently between 0 to 50C, ensuring consistent performance within this temperature window. It can also be safely stored at temperatures ranging from 0 to 60C.

Q: What processes are supported by the Weigh Pad Load Cell?

A: The load cell supports various industrial processes including weighing, tension measurement, tensile strength testing, and machine automation. Its electronic signal output facilitates easy integration with control and monitoring systems.
