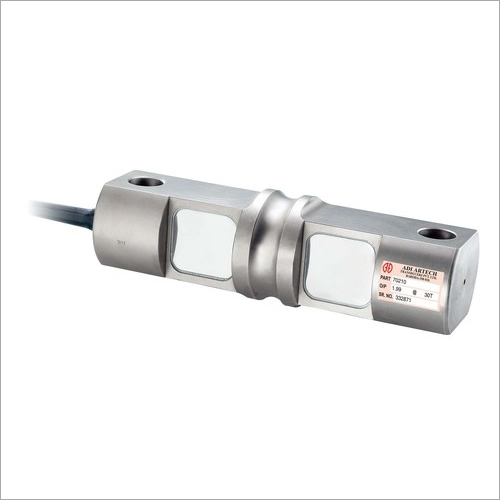

Tank Weighing Load Cell

Name: Tank Weighing Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 10500.0 INR
Availability: InStock

Price 10500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Tank Weighing Load Cell Specification

Capacity
2.5, 3, 5, 10, 15, 20, 30, 40, 50, 75, 100 Ton

Voltage
10 VDC to 15 VDC (Maximum) Volt (v)

Color
Silver

Power
10 VDC Volt (v)

Product Type
Double Ended Shear Beam Load Cell

Operate Method
Strain gauge based load measurement (shear beam principle)

Resistance
Input Resistance: 770 20 Ohms ,Output Resistance: 700 2 Ohms

Application
Truck weighing , Tank & hopper weighing, Large platform scales , Weighbridges

Material
Tool Steel (Electroless Nickel Plated)

Classification
Weighing Load Cell / Shear Beam Type

Usage
Measurement of heavy loads in industrial weighing systems

Output
Analog Sensor

Theory
Resistance Sensor

Type
TANK WEIGHING LOAD CELL

Accuracy
0.05% FSO %

Operating Voltage
5-10 Volt (V)

Output Voltage
2mv Volt (V)

Compensated Temperature
10-50 Celsius (oC)

Storage Temperature
0-60 Celsius (oC)

Operating Temperature
0-50 Celsius (oC)

Tank Weighing Load Cell Trade Information

Minimum Order Quantity
1 Number

FOB Port
VADODARA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Per Week

Delivery Time
1 Week

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
OEM TEST REPORT

Tank Weighing Load Cell About

Product details

Creep (30 minutes)	<+-0.03% FSO
Environmental Protection Class	IP 68
Hysteresis	<+-0.02% FSO
Nominal Output	2.0 m V/ V
Temp. Compensated Range	0 - 60 Degree C
Ultimate Overload	200% of Rated Capacity
Zero Balance	+- 1% FSO
Excitation Voltage	10 VDC -15 VDC
Output Resistance	700 +- 2 Ohms
Input Resistance	770 +- 20.0 Ohms

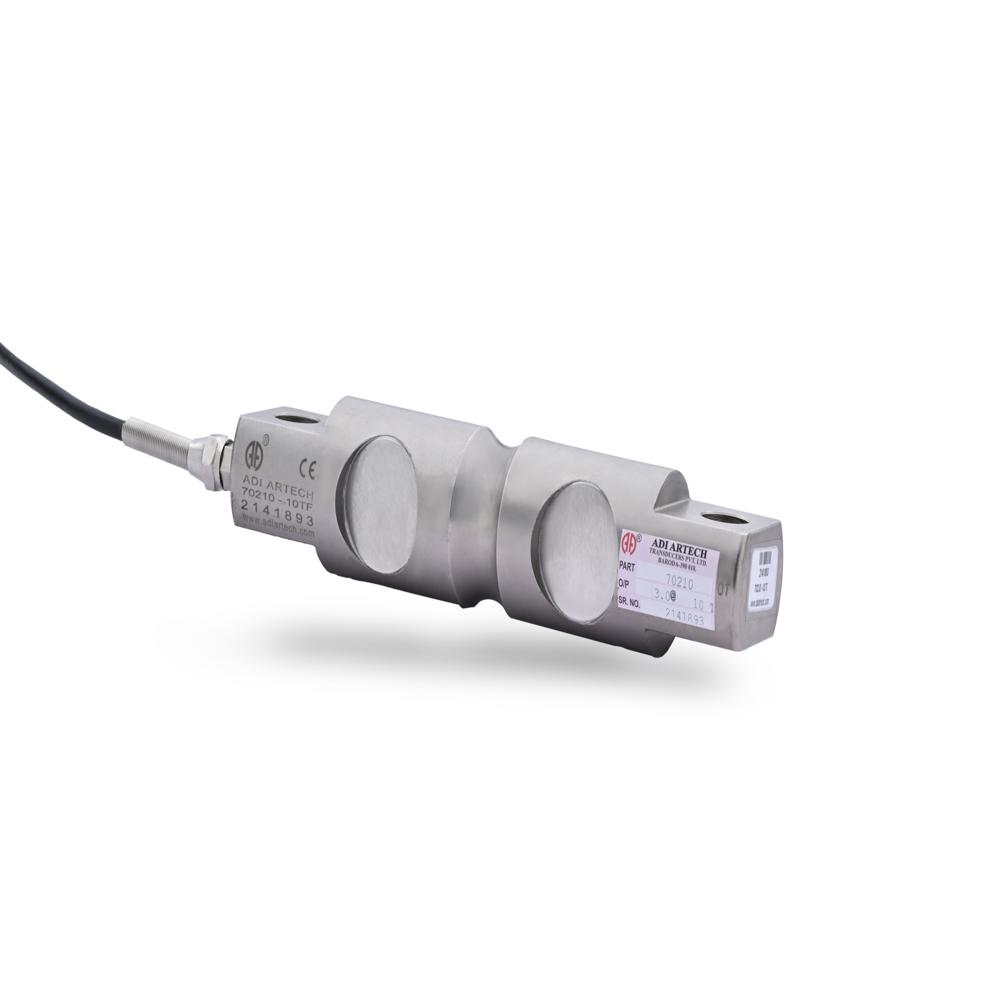

Tank weighing Load Cell

Model	:	70210
Capacity	:	0-2.5Tf to 0-100Tf
Load Direction	:	Tension & Compression - Universal
Type	:	Double Ended Shear Beam Load Cell

Industries

Weighing

Application

Hopper , Tank , Silo Weighing
On board Weighing
Steel Weigher
Tensile Testing
Truck Weighing

Description

70210 double ended shear beam load cell is low profile and is strain gage based for Tank,Silo,Hopper weighing.
It is made from high alloy tool steel for heavy over load and impacts.
Gage area is fully protected for IP 68 protection class.

Features

End mounted and center loaded design provides better stability and accuracy.
It is temperature compensated for 0 - 60 Deg.C.

Mounting Hardware

This Load Cell can be provided with optional mounting module WM - II.

For further information , please contact us.

Precision Engineering for Industrial Tank Weighing

Our Tank Weighing Load Cell sets the standard for accurate tank measurement with its high-precision analog output and robust steel construction. Operating within an optimal voltage range and temperature window, it is built to deliver stable results for diverse tank weighing requirements. Its adaptability and reliability make it a preferred choice in factories and process industries across India.

Versatile Product Sourcing Across India

This load cell is widely distributed throughout India. Whether you are seeking a reliable dealer, trusted exporter, reputable manufacturer, or an established wholesaler, you can easily source this high-quality tank weighing solution. Our strong network guarantees timely availability and thorough support for installation and after-sales service.

FAQs of Tank weighing Load Cell:

Q: How is the tank weighing load cell installed for optimal performance?

A: The tank weighing load cell should be installed directly under the tanks support points to accurately capture weight changes. It is important to ensure proper alignment and secure mounting on a flat, stable surface to achieve maximum accuracy and to minimize measurement errors.

Q: What are the main benefits of using a steel tank weighing load cell?

A: A steel tank weighing load cell offers superior strength, durability, and resistance to harsh industrial environments. Its robust construction ensures longevity, minimal maintenance, and highly reliable weight measurements, which are critical for industrial applications.

Q: When should the load cell be calibrated?

A: The load cell should be calibrated upon initial installation, after any major relocation, and periodically as recommended by the manufacturer to maintain accuracy. Regular calibration helps in compensating for environmental and mechanical changes over time.

Q: Where can I purchase or source tank weighing load cells in India?

A: You can obtain these load cells through various channels in India, including authorized dealers, distributors, exporters, manufacturers, producers, suppliers, traders, and wholesalers. Many of them provide comprehensive after-sales support and technical guidance.

Q: What is the process for integrating the load cell with existing tank systems?

A: Integration involves securely installing the load cell under the tank, connecting the analog output to your weighing instrumentation, and configuring the operating voltage (510V). It is recommended to follow the manufacturers instructions or consult with a technical expert for seamless integration.

Q: How does the compensated temperature range affect load cell performance?

A: The compensated temperature range of 1050C ensures that the load cell maintains high measurement accuracy despite ambient temperature fluctuations, providing stable and consistent readings vital for process control and inventory management.
