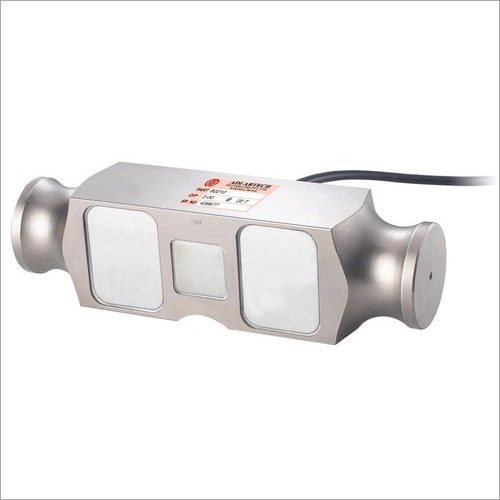

Double ended Shear beam Load Cell for Weigh Bridge

Get a Price/Quote

Product Details:

Resistance Input: 770 , Output: 700
Output Digital/Analog
Theory Strain Gauge
Type Double Ended Shear Beam Load Cell
Accuracy 0.03% of Full Scale
Operating Voltage 10 V DC
Output Voltage 2.0 mV/V
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Double ended Shear beam Load Cell for Weigh Bridge Price And Quantity

Minimum Order Quantity 1 Piece

Double ended Shear beam Load Cell for Weigh Bridge Product Specifications

Operating Voltage 10 V DC
Output Digital/Analog
Storage Temperature -40C to +70C
Type Double Ended Shear Beam Load Cell
Resistance Input: 770 , Output: 700
Accuracy 0.03% of Full Scale
Theory Strain Gauge
Compensated Temperature -10C to +40C
Output Voltage 2.0 mV/V
Operating Temperature -20C to +60C

Double ended Shear beam Load Cell for Weigh Bridge Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Eastern Europe, Western Europe, Middle East, Africa, Asia
Main Domestic Market All India

Product Description

Product details

Creep (30 minutes)	<+-0.03% FSO
Environmental Protection Class	IP 68
Hysteresis	<+-0.02% FSO
Nominal Output	2.0 m V/ V
Temp. Compensated Range	0 - 60 Degree C
Ultimate Overload	200% of Rated Capacity
Zero Balance	+- 1% FSO
Excitation Voltage	10 VDC -15 VDC
Output Resistance	700 +- 2 Ohms
Input Resistance	770 +- 20.0 Ohms

Double ended Shear beam Load Cell for Weigh Bridge

Model	:	80210
Capacity	:	0-10Tf to 0-100Tf
Type	:	Double Ended Shear Beam Load Cell , Truck Scale Load Cell , Weigh Bridge Load Cell

Industries

Weighing
Transport and High Way Authority

Application

Truck Weighing
Weigh Bridge Scale

Description

80210 is double ended shear beam load cell.
It is constructed from high grade tool steel for resistance to heavy shock loads associated with truck weighing.
It is electro less Nickel plated for corosion resistance.

Features

This cell is designed to load from ends through ring and bar mechanism which helps for self restoring and self centering for improvement in accuracy.
It is offered with full mounting assembly for easy installation optionally.
It is fitted with gass discharge tubes for transit voltage protection caused due to lightning or line voltage faults.

High Precision for Weighbridge Applications

Engineered with strain gauge technology, this double ended shear beam load cell ensures exceptional measurement accuracy, crucial for truck weighbridges, rail weighing systems, and various industrial platforms. Its non-linearity and creep are limited to just 0.03% of full scale, delivering consistent, repeatable results, even under prolonged load and challenging weather conditions.

Rugged & Reliable Construction

Manufactured from alloy steel or high nickel stainless steel, this load cell offers outstanding resistance to corrosion and environmental stress. The IP68 protection class guarantees reliable operation even when exposed to dust, water, or extreme temperatures, making it highly suitable for outdoor installations throughout India.

FAQs of Double ended Shear beam Load Cell for Weigh Bridge:

Q: How is the Double Ended Shear Beam Load Cell installed on a weighbridge platform?

A: The load cell is mounted as part of the structure beneath the weighbridge or other heavy-duty platform. Its double ended design ensures balanced load transfer, which enhances accuracy and stability for capturing weight data in both digital and analog formats.

Q: What are the advantages of using a load cell with a high safe overload capacity?

A: With a safe overload rated at 150% and ultimate overload at 250% of the rated capacity, this load cell provides a significant margin of safety. This protects the equipment from accidental overloading, minimizing maintenance and downtime in industrial environments.

Q: When should I choose a high nickel stainless steel load cell over alloy steel?

A: High nickel stainless steel is the preferred choice for environments prone to high humidity, corrosive chemicals, or coastal conditions, as its surface resists corrosion better than alloy steel, ensuring longer operational life and stability in harsh settings.

Q: What benefit does the IP68 protection class offer for weighbridge applications?

A: IP68-rated load cells are fully protected against dust ingress and long-term water submersion. This ensures reliable performance for outdoor weighbridges or industrial settings exposed to rain, flooding, or dust, safeguarding measurement integrity throughout its service life.

Q: Where can this load cell be used besides truck weighbridges?

A: Apart from truck weighbridges, the double ended shear beam load cell is ideal for rail weighing systems and tank or hopper scales. Its robust construction and measurement accuracy make it suitable for a wide range of weighing needs in production, logistics, and agricultural industries.

Q: How can users ensure consistent measurement accuracy over time?

A: Routine calibration and visual inspection, combined with the load cells low creep and non-linearity specifications, will help maintain its high accuracy. The high insulation resistance and durable materials contribute to a long-lasting performance with minimal drift.
