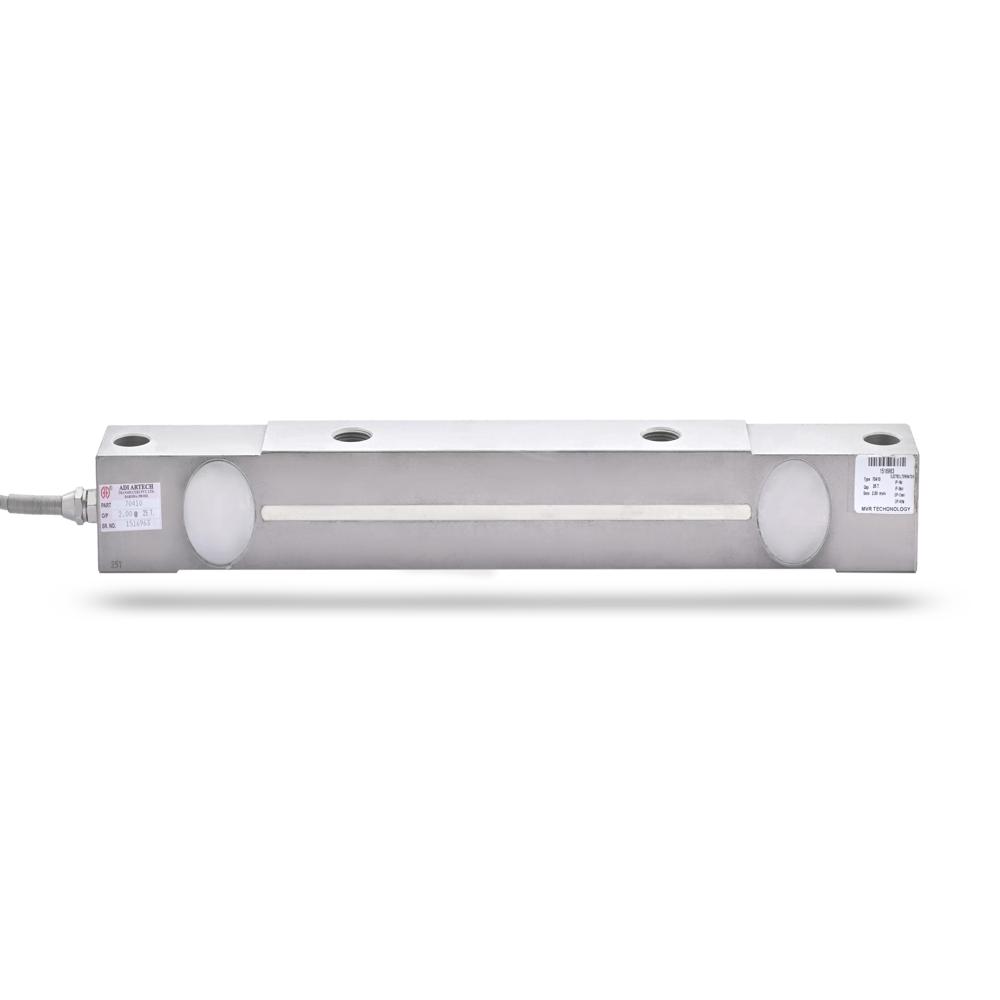

Ball Cup Type Double ended Shear beam Load Cell

Get a Price/Quote

Product Details:

Product Type LOAD CELL
Application WEIGHING SCALE, TENSILE TESTING, MACHINE AUTOMATION, ON LINE TENSION MEASUREMENTS
Usage WEIGHING MACHINES
Classification ELECTRONIC
Output Analog Sensor
Type STRAIN GAGE BASED DOUBLE ENDED SHEAR BEAM LOAD CELL
Accuracy 0.025%
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Ball Cup Type Double ended Shear beam Load Cell Price And Quantity

Minimum Order Quantity 1 Piece

Ball Cup Type Double ended Shear beam Load Cell Product Specifications

Classification ELECTRONIC
Output Analog Sensor
Type STRAIN GAGE BASED DOUBLE ENDED SHEAR BEAM LOAD CELL
Compensated Temperature 10-50
Operating Temperature 0-50
Storage Temperature 0-60
Operating Voltage 5-10
Accuracy 0.025%
Usage WEIGHING MACHINES
Output Voltage 2mv
Application WEIGHING SCALE, TENSILE TESTING, MACHINE AUTOMATION, ON LINE TENSION MEASUREMENTS
Product Type LOAD CELL

Ball Cup Type Double ended Shear beam Load Cell Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Eastern Europe, Western Europe, Middle East, Africa, Asia
Main Domestic Market All India

Product Description

Product details

Allowable Side Load	50%
Deflection	< 0.5 mm at FSO
Environmental Protection Class	IP 68
Finish & Construction	Electro less Nickel Plated Tool Steel
Insulation Resistance (50V)	>1000 Mega Ohms
Nominal Output	2.0 m V/V
Temp. Compensated Range	0-60 Degree C
Ultimate Overload	300% of Rated Capacity
Insulation Resistance	>1000 Mega Ohms
Excitation Voltage	10 VDC -15 VDC
Output Resistance	700 +- 2 Ohms
Input Resistance	770 +- 20.0 Ohms

Ball Cup Type Double ended Shear beam Load Cell

Model	:	70610
Capacity	:	0-10Tf to 0-40Tf
Load Direction	:	Compression only
Type	:	Double Ended Shear Beam Load Cell , Truck Scale Load Cell , Weigh Bridge Load Cell

Industries

Weighing

Application

Truck Weighing
Weigh Bridge Scale

Description

70610 is double ended shear beam load cell.
It is constructed from high grade tool steel for resistance to heavy shock loads associated with truck weighing.
It is electrolysis Nickel plated for corrosion resistance.

Features

This cell is designed to load from center through ball cup mechanism which helps for self restoring and self centering for improvement in accuracy.
It is offered with full mounting assembly for easy installation.
It is fitted with gass discharge tubes for transit voltage protection caused due to lightning or line voltage faults.

Versatile Applications

Suitable for weighing machines, tensile testing devices, machine automation systems, and online tension measurement setups, this load cell is engineered for precision and adaptability in various settings.

Reliable Output and Accuracy

The analog sensor provides a stable 2mV output and achieves an impressive accuracy of 0.025%, ensuring dependable readings for critical industrial and laboratory processes.

FAQs of Ball Cup Type Double ended Shear beam Load Cell:

Q: How does the Ball Cup Type Double Ended Shear Beam Load Cell function in weighing scales?

A: This load cell detects applied force using strain gage technology and converts it into a proportional analog output, enabling highly accurate weight measurements in industrial and commercial weighing scales.

Q: What are the operating and compensated temperature ranges for this load cell?

A: The operating temperature range for the load cell is 050C, while the compensated temperature range is 1050C, ensuring consistent performance within these environments.

Q: Where can I purchase or source this load cell in India?

A: You can obtain this load cell through dealers, distributors, exporters, manufacturers, producers, suppliers, traders, and wholesalers across India specialized in electronic industrial components.

Q: When is this load cell most beneficial to use in machine automation?

A: This load cell is particularly effective in machine automation requiring precise force or tension measurement, especially when deploying systems that demand reliable analog output and high accuracy.

Q: What is the process for integrating this load cell into a weighing machine?

A: Integration involves mounting the load cell onto the weighing platform, connecting the analog output to a signal conditioning circuit, and calibrating the system to ensure accurate readings based on the cells specifications.

Q: What advantages does the double ended shear beam design provide?

A: The double ended shear beam construction improves load distribution, enhances accuracy, and increases resistance to side loads, making the sensor ideal for harsh industrial applications.

Q: How can the output voltage and operating voltage affect performance?

A: The output voltage (2mV) indicates the signal level produced under maximum load, while the operating voltage (510V) powers the strain gage. Proper voltage ensures optimal sensitivity and minimizes signal noise for accurate measurements.
