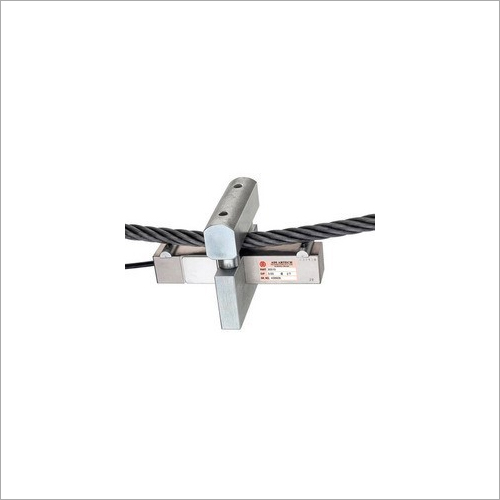

Rope Tension Load Cell

Name: Rope Tension Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.

15500.0 INR/Number

Get a Price/Quote

Product Details:

Color Silver
Power Electrically excited sensor Volt (v)
Application CRANE, BRIDGE ROPE TENSION
Resistance Input resistance: 390 20 Output resistance: 350 10
Product Type BENDING BEAM LOAD CELL SIDE MOUNTED
Usage ROPE TENSION MEASUREMENT
Capacity 1 to 30 TF Ton
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Rope Tension Load Cell Price And Quantity

Minimum Order Quantity 1 Number
Price 15500.0 INR/Number

Rope Tension Load Cell Product Specifications

Color Silver
Storage Temperature 0-60 Celsius (oC)
Operate Method Measures tension in wire rope by converting mechanical strain into an electrical signal using strain gauges
Compensated Temperature 10-50 Celsius (oC)
Power Electrically excited sensor Volt (v)
Usage ROPE TENSION MEASUREMENT
Output Analog Sensor
Operating Voltage 5-10 Volt (V)
Classification Strain-gauge based, clamp-on rope tension load cell
Capacity 1 to 30 TF Ton
Type STRAIN GAGE BASED BENDING BEAM LOAD CELL
Weight 5kg(Approx) Kilograms (kg)
Theory Resistance Sensor
Product Type BENDING BEAM LOAD CELL SIDE MOUNTED
Accuracy 1.0 %
Material Electroless nickel plated tool steel
Operating Temperature 10 to 50 Celsius (oC)
Voltage Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v)
Output Voltage 2mv Volt (V)
Application CRANE, BRIDGE ROPE TENSION
Resistance Input resistance: 390 20 Output resistance: 350 10

Rope Tension Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

THIS 30510 IS BASED ON BEAM LOAD CELL DESIGN. IT IS OFFERED WITH SUITABLE MOUNTING BRACKET, FIXING BOLTS AND SPACERS TO SUIT THE ROPE DIAMETER. THIS LOAD CELL IS VERY EASY TO INSTAL. IT IS INSTALLED WITHOUT DISTURBING THE ROPE SETUP OR NO NEED TO CUT THE ROPE. IT IS CLAMP ON TYPE TO FIX IN THE SYSTEM.

Accurate Rope Tension Measurement

Engineered for dependable rope tension monitoring, this load cell ensures operational safety and efficiency in critical infrastructure such as cranes and bridges. Its strain gage-based bending beam construction and steel body enhance measurement reliability for demanding environments.

Versatile Analog Output

Providing a clear analog output proportional to applied force, the load cell interfaces easily with standard industrial controllers and monitoring systems. This simplifies integration and ensures accurate data for real-time tension assessment in practical applications.

Wide Operating and Storage Range

Designed to perform within 10C to 50C and withstand storage conditions from 0C to 60C, the load cell adapts to varied climates. Its robust structure maintains accuracy and durability in fluctuating operational and non-operational scenarios.

FAQs of Rope Tension Load Cell:

Q: How does the Rope Tension Load Cell function in industrial settings?

A: The load cell uses strain gage technology to measure the tension in ropes. When force is applied, the steel beam deforms, causing a change in electrical resistance, which the sensor converts into a proportional analog voltage output suitable for monitoring and control.

Q: What types of applications can benefit from this load cell?

A: This load cell is ideal for measuring rope tension in cranes, bridge cables, and similar heavy-duty industrial operations, enhancing safety, operational control, and predictive maintenance.

Q: When should this rope tension load cell be used over other types?

A: It is recommended for scenarios requiring accurate tension measurement under moderate temperatures, especially where analog output and steel durability are essentialsuch as in construction, logistics, and infrastructure monitoring.

Q: Where can the load cell be purchased or sourced in India?

A: Dealers, distributors, exporters, manufacturers, producers, suppliers, traders, and wholesalers throughout India provide this load cell, making it accessible for local and national industrial projects.

Q: What is the process for integrating the load cell into an existing system?

A: Integration involves mounting the cell to measure rope tension, connecting the analog output to a compatible monitoring device, calibrating for accuracy, and ensuring the operating voltage is between 510V.

Q: What are the main benefits of using this strain gage-based load cell in rope tension measurement?

A: The primary advantages include high accuracy (1.0%), robust steel construction for durability, compatibility with standard industrial outputs, and operational reliability in varying temperature conditions.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'FORCE AND TENSION LOAD CELL' category

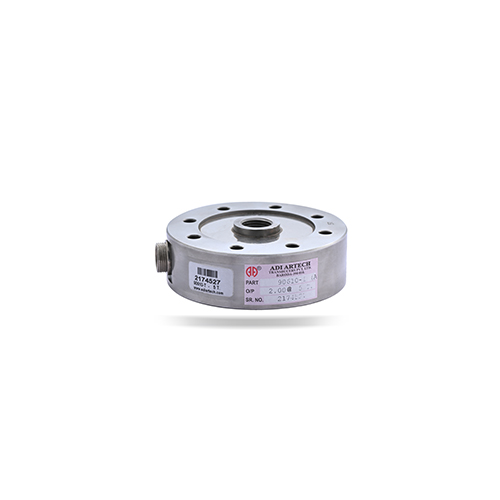

90610-T Universal Pan Cake Load Cell Price : 11500.0 INR/Number Minimum Order Quantity : 1 Operate Method : Converts applied tensile or compressive force into an electrical signal using strain gauges Usage : precise measurement of tensile and compressive forces Output : Analog mV/V Classification : Straingauge based precision force/load sensor Capacity : 50 KGF 500 TF Ton Material : Stainless Steel 174 PH (lower capacities) / High tensile tool steel (higher capacities, electroless nickel plated) Voltage : Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v) Output Voltage : 2.0 mV/V (Nominal output) Volt (V) Compensated Temperature : 0 C to 60 C Celsius (oC) Storage Temperature : 0 C to 60 C Celsius (oC) Power : Electrically excited sensor Volt (v) Operating Voltage : 10 VDC nominal, up to 15 VDC maximum Volt (V) Theory : Resistance Sensor Type : Pancake type load cell (tension & compression) Accuracy : 0.05% FS Product Type : Universal Pancake Load Cell Operating Temperature : 20 C to +70 C Application : Material testing machines Fatigue testing Force calibration Industrial automation Robotics Research & development Static and dynamic force measurement systems Resistance : Up to 1T: Input 390 10ohm , Output 350 5 2T & above: Input 770 20 , Output 700 7 Signal Type : Other Mounting Type : Flanged Mount Power Consumption : Low Response Time : <1 ms Wireless : No Sensitivity : 2.0 mV/V Dimension (L*W*H) : 50*24 Millimeter (mm) Weight : 2.5 kg (Approx.) Kilograms (kg) Sensor Type : Strain Gauge Type Input : Rated Excitation: 10V DC Function : Measuring Compression and Tension Forces Color : Silver IP Rating : IP67 Resolution : High Interface : Wired Measurement Range : Various (1 Ton, 2 Ton, 5 Ton, 10 Ton options available) Cable Length : 5 Meters Standard Features : Low Profile, High Accuracy, Robust Construction

Send Inquiry

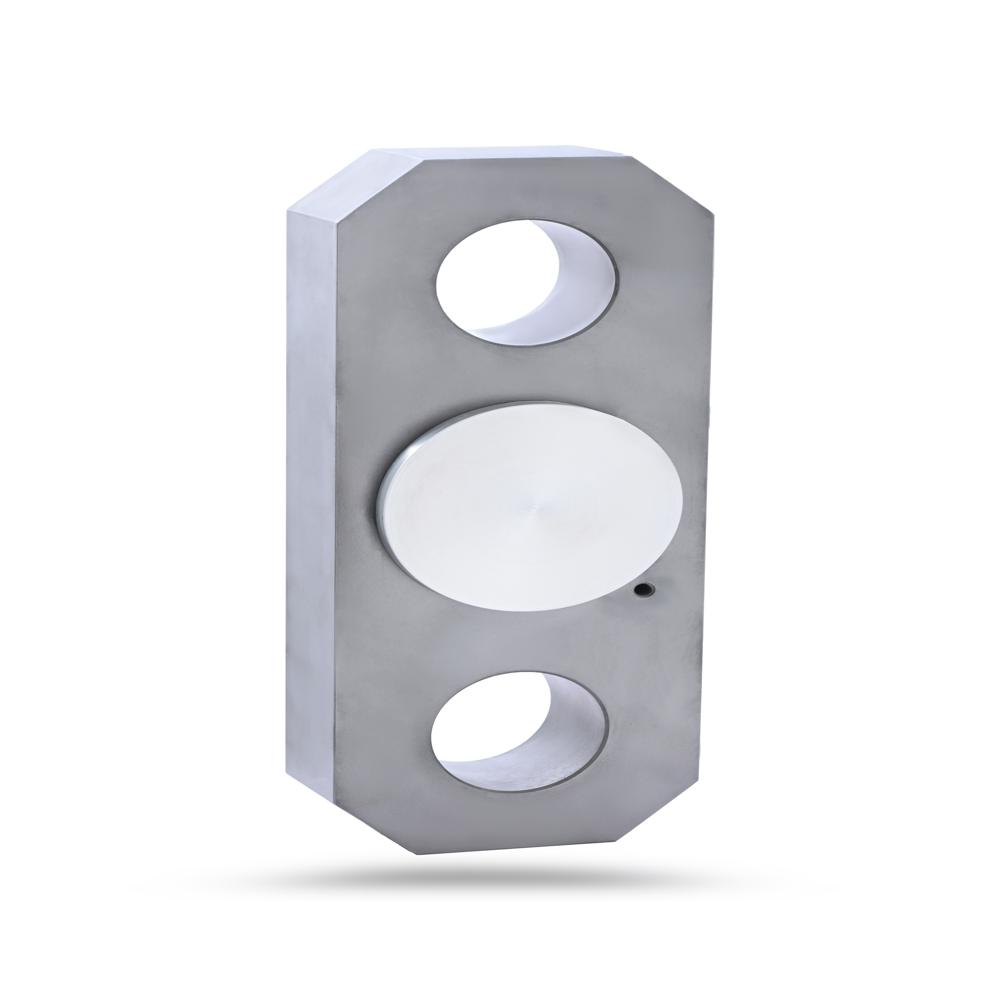

FLAT TENSION LINK LOAD CELL Price : 15500.0 INR/Number Minimum Order Quantity : 1 Operate Method : Tension loading through Dee / Bow Shackles Usage : Rope tension measurement, Towing force measurement, Crane weighing, Hanging scale applications, Material handling systems Output : Analog Sensor Classification : Tension Type Load Cell Capacity : 1 TF to 400 TF Ton Material : High Alloy Tool Steel Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Output Voltage : 1.0 mV/V Volt (V) Compensated Temperature : 10 C to 50 C Celsius (oC) Storage Temperature : 10 C to 50 C Celsius (oC) Power : 10 VDC Volt (v) Operating Voltage : 512 V DC (Excitation) Volt (V) Theory : Resistance Sensor Type : Strain Gauge Based Load Cell Accuracy : 0.15% FSO % Product Type : Flat Link Load Cell Operating Temperature : 10 C to 50 C Celsius (oC) Application : Crane systems, Cargo handling in shipyards , Force measurement dynamometers, Industrial material handling Resistance : Input Resistance: 370 / 775 15 Ohms, Output Resistance: 350 / 700 3 Ohms
