FORCE AND TENSION LOAD CELL

Discover the exceptional quality of our FORCE AND TENSION LOAD CELL, brought to you by a renowned exporter, manufacturer, and supplier with over 35 years of magnificent industry experience. Our superb collection, featuring the Dental Force Sensor, 90610-T Universal Pan Cake Load Cell, and Rope Tension Load Cell, sets new standards in force measurement and tension applications. The FORCE AND TENSION LOAD CELL outshines alternatives with its unparalleled accuracy, ensuring precise results in every deal and order. Its robust construction guarantees long-term durability and reliability under rigorous industrial conditions, making it a preferred choice for clients seeking both value and performance. With user-friendly installation, these load cells deliver effortless integration into diverse systems, simplifying operations for both experienced engineers and new users alike. High sensitivity enhances measurement efficiency, allowing for prompt and confident decision-making in dynamic environments. Wide compatibility across different load requirements reflects our commitment to versatile solutions, superior to traditional single-purpose sensors. Our supply capability spans all of India for domestic requirements and extends globally as a premier exporter in Asia, Eastern Europe, and the Middle East, reflecting our steadfast dedication to delivering only the most magnificent products and customer experiences.

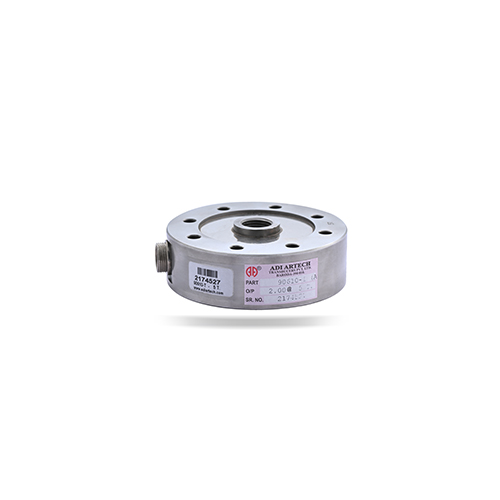

90610-T Universal Pan Cake Load Cell

Price 11500.0 INR/ Number

MOQ : 1 Number

  • Accuracy
  • 0.05% FS
  • Application
  • Material testing machines Fatigue testing Force calibration Industrial automation Robotics Research & development Static and dynamic force measurement systems
  • Cable Length
  • 5 Meters Standard
  • Capacity
  • 50 KGF - 500 TF Ton
  • Classification
  • Strain-gauge based precision force/load sensor
  • Color
  • Silver
  • Compensated Temperature
  • 0 C to 60 C Celsius (oC)
  • Dimension (L*W*H)
  • 50*24 Millimeter (mm)
  • Features
  • Low Profile, High Accuracy, Robust Construction
  • Function
  • Measuring Compression and Tension Forces
  • IP Rating
  • IP67
  • Input
  • Rated Excitation: 10V DC
  • Interface
  • Wired
  • Material
  • Stainless Steel 17-4 PH (lower capacities) / High tensile tool steel (higher capacities, electroless nickel plated)
  • Measurement Range
  • Various (1 Ton, 2 Ton, 5 Ton, 10 Ton options available)
  • Mounting Type
  • Flanged Mount
  • Operate Method
  • Converts applied tensile or compressive force into an electrical signal using strain gauges
  • Operating Temperature
  • -20 C to +70 C
  • Operating Voltage
  • 10 VDC nominal, up to 15 VDC maximum Volt (V)
  • Output
  • Analog mV/V
  • Output Voltage
  • 2.0 mV/V (Nominal output) Volt (V)
  • Power
  • Electrically excited sensor Volt (v)
  • Power Consumption
  • Low
  • Product Type
  • Universal Pancake Load Cell
  • Resistance
  • Up to 1T: Input 390 10ohm , Output 350 5 2T & above: Input 770 20 , Output 700 7
  • Resolution
  • High
  • Response Time
  • <1 ms
  • Sensitivity
  • 2.0 mV/V
  • Sensor Type
  • Strain Gauge Type
  • Signal Type
  • Other
  • Storage Temperature
  • 0 C to 60 C Celsius (oC)
  • Theory
  • Resistance Sensor
  • Type
  • Pancake type load cell (tension & compression)
  • Usage
  • precise measurement of tensile and compressive forces
  • Voltage
  • Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v)
  • Weight
  • 2.5 kg (Approx.) Kilograms (kg)
  • Wireless
  • No

Rope Tension Load Cell

Price 15500.0 INR/ Number

MOQ : 1 Number

  • Accuracy
  • 1.0 %
  • Application
  • CRANE, BRIDGE ROPE TENSION
  • Capacity
  • 1 to 30 TF Ton
  • Classification
  • Strain-gauge based, clamp-on rope tension load cell
  • Color
  • Silver
  • Compensated Temperature
  • 10-50 Celsius (oC)
  • Material
  • Electroless nickel plated tool steel
  • Operate Method
  • Measures tension in wire rope by converting mechanical strain into an electrical signal using strain gauges
  • Operating Temperature
  • 10 to 50 Celsius (oC)
  • Operating Voltage
  • 5-10 Volt (V)
  • Output
  • Analog Sensor
  • Output Voltage
  • 2mv Volt (V)
  • Power
  • Electrically excited sensor Volt (v)
  • Product Type
  • BENDING BEAM LOAD CELL SIDE MOUNTED
  • Resistance
  • Input resistance: 390 20 Output resistance: 350 10
  • Storage Temperature
  • 0-60 Celsius (oC)
  • Theory
  • Resistance Sensor
  • Type
  • STRAIN GAGE BASED BENDING BEAM LOAD CELL
  • Usage
  • ROPE TENSION MEASUREMENT
  • Voltage
  • Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v)
  • Weight
  • 5kg(Approx) Kilograms (kg)

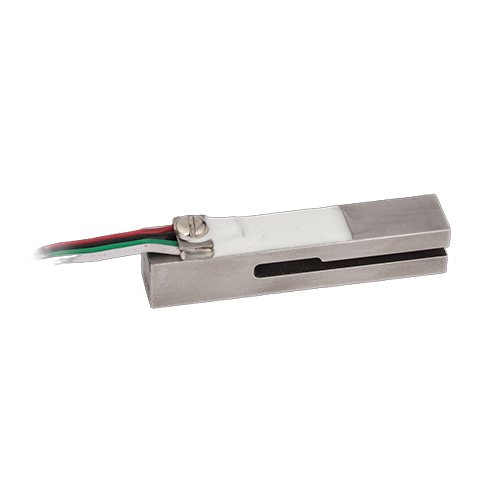

Dental Force Sensor

Price 17500.0 INR/ Piece

MOQ : 1 Piece

  • Accuracy
  • 0.1
  • Application
  • MEDICAL
  • Classification
  • ELECTRONIC
  • Compensated Temperature
  • 10-50
  • Material
  • STEEL
  • Operating Temperature
  • 0-50
  • Operating Voltage
  • 5-10
  • Output
  • Analog Sensor
  • Output Voltage
  • 2mv
  • Product Type
  • LOAD CELL
  • Storage Temperature
  • 0-60
  • Type
  • STRAIN GAGE BASED BENDING BEAM LOAD CELL
  • Usage
  • DENTAL FORCE
