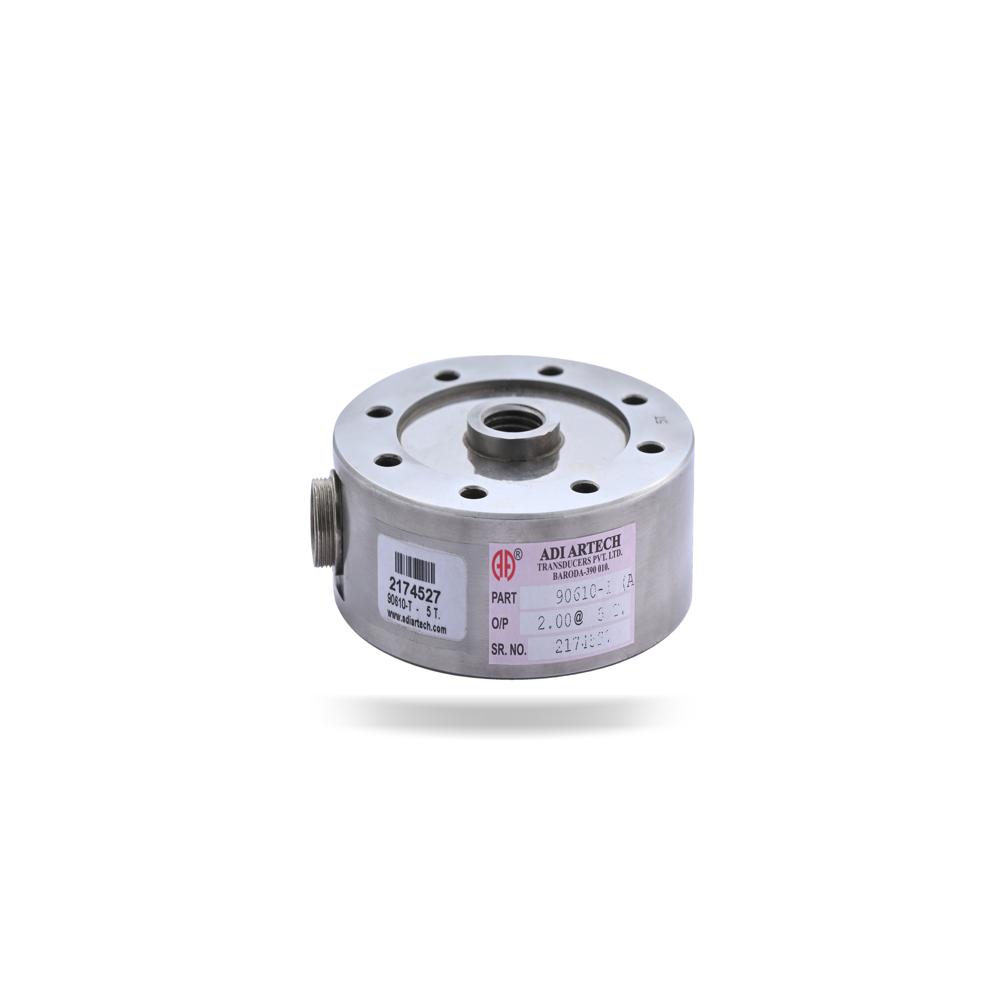

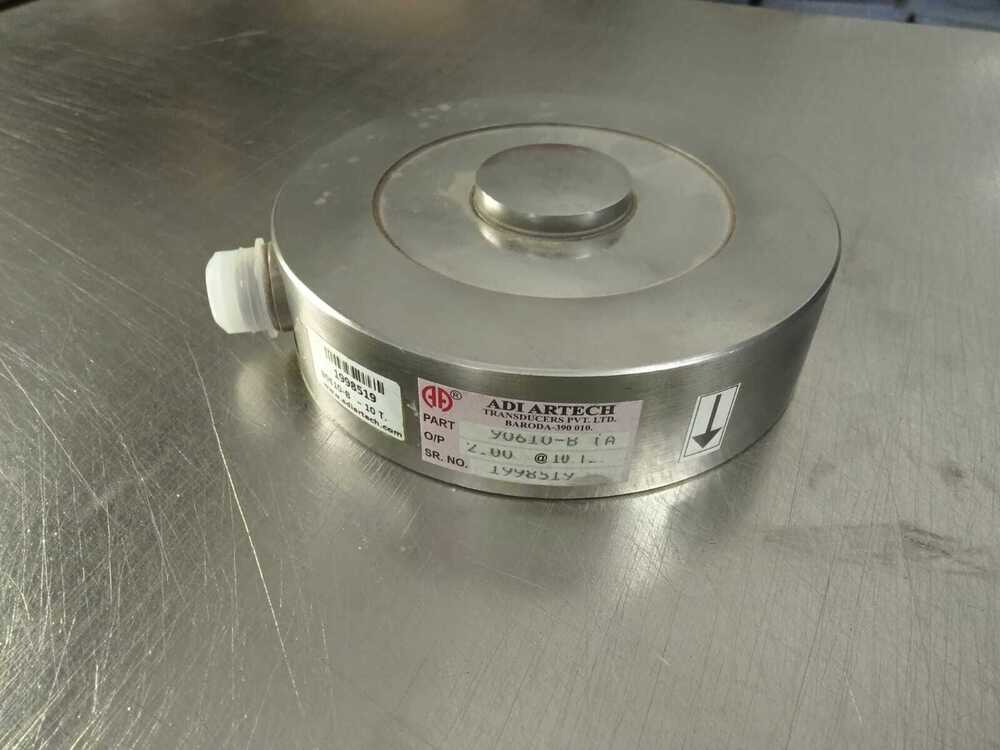

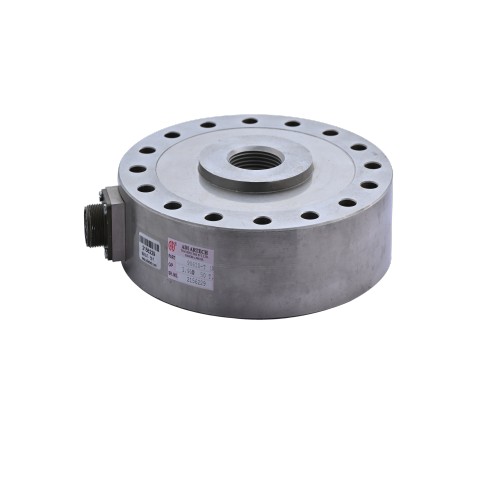

90610-T Universal Pan Cake Load Cell

Name: 90610-T Universal Pan Cake Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 11500.0 INR
Availability: InStock

Price 11500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

90610-T Universal Pan Cake Load Cell Specification

Power
Electrically excited sensor Volt (v)

Classification
Strain-gauge based precision force/load sensor

Application
Material testing machines Fatigue testing Force calibration Industrial automation Robotics Research & development Static and dynamic force measurement systems

Capacity
50 KGF - 500 TF Ton

Usage
precise measurement of tensile and compressive forces

Color
Silver

Product Type
Universal Pancake Load Cell

Weight
2.5 kg (Approx.) Kilograms (kg)

Resistance
Up to 1T: Input 390 10ohm , Output 350 5 2T & above: Input 770 20 , Output 700 7

Dimension (L*W*H)
50*24 Millimeter (mm)

Operate Method
Converts applied tensile or compressive force into an electrical signal using strain gauges

Voltage
Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v)

Material
Stainless Steel 17-4 PH (lower capacities) / High tensile tool steel (higher capacities, electroless nickel plated)

Output
Analog Sensor

Theory
Resistance Sensor

Type
Pancake type load cell (tension & compression)

Accuracy
0.1% FSO %

Operating Voltage
10 VDC nominal, up to 15 VDC maximum Volt (V)

Output Voltage
2.0 mV/V (Nominal output) Volt (V)

Compensated Temperature
0 C to 60 C Celsius (oC)

Storage Temperature
0 C to 60 C Celsius (oC)

Operating Temperature
10 C to 50 C Celsius (oC)

Cable Type
Shielded, 4-core

Housing Protection
Corrosion-Resistant Finish

Electrical Connection Type
Connector/Cable

Creep (30 minutes)
<0.03% F.S.

Ultimate Overload
200% of Rated Capacity

Compensated Temperature Range
-10C to +40C

Non-Linearity
0.05% of F.S.

Safe Overload
150% of Rated Capacity

Repeatability
0.03% of F.S.

Defend Against Moisture
Hermetically Sealed

Zero Balance
<1% F.S.

Hysteresis
0.05% of F.S.

90610-T Universal Pan Cake Load Cell Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Paypal, Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10000 Per Week

Delivery Time
1 Week

Sample Available
No

Main Export Market(s)
South America, Eastern Europe, Africa, Australia, North America, Western Europe, Middle East, Asia, Central America

Main Domestic Market
All India

About 90610-T Universal Pan Cake Load Cell

The ADI ARTECH Model 90610-T Universal Pancake Load Cell is a high-precision strain gauge-based force sensor designed for both tension and compression force measurement. Its low-profile pancake design makes it ideal for applications requiring accurate force monitoring in confined spaces. Constructed from SS 17-4 PH stainless steel or high-tensile tool steel, the load cell offers excellent strength, durability, and resistance to harsh industrial conditions. With temperature compensation from 0C to 60C and IP65 environmental protection, the Model 90610-T delivers reliable performance in research laboratories, material testing systems, industrial automation, robotics, calibration setups, and uniaxial testing machines. Available in capacities ranging from 50 kgf to 400 TF, it provides a versatile solution for precision force measurement applications.

FAQs

1. What is the Model 90610-T load cell used for?

The Model 90610-T is used for force measurement in material testing machines, calibration systems, industrial automation, robotics, research laboratories, fatigue testing, and static or dynamic force measurement applications.

2. What type of load cell is the Model 90610-T?

It is a universal pancake load cell designed to measure both tension and compression forces with high accuracy.

3. What capacities are available?

The load cell is available in capacities ranging from 50 kgf to 400 TF, covering a wide variety of testing and industrial applications.

4. Can the load cell measure both tension and compression forces?

Yes. The Model 90610-T is specifically designed for accurate tensile and compressive force measurement.

5. What materials are used in its construction?

Lower-capacity models are manufactured from SS 17-4 PH stainless steel, while higher-capacity versions utilize high-tensile tool steel for enhanced strength and durability.

6. Is the load cell suitable for harsh industrial environments?

Yes. Its rugged construction and IP65 environmental protection make it suitable for demanding industrial and outdoor applications.

7. What are the advantages of the pancake design?

The low-profile pancake design provides excellent stability, high accuracy, compact installation, and efficient force transmission, making it ideal for testing and automation systems.

8. What is the operating temperature range?

The load cell is temperature compensated from 0C to 60C, ensuring stable performance across varying environmental conditions.

9. Can the load cell be customized?

Yes. The Model 90610-T can be customized with dual-bridge construction, special dimensions, threaded loading accessories, and other application-specific requirements.

10. Are digital output options available?

Yes. The load cell can be supplied with RS-485 communication, USB output, Bluetooth telemetry, wireless telemetry, and analog outputs such as 4-20 mA or voltage signals.

11. Is it suitable for calibration and reference standard applications?

Yes. Due to its high accuracy and stable performance, it is widely used in force calibration systems and reference measurement applications.

12. What are the key benefits of the Model 90610-T?

The key benefits include high accuracy, low-profile construction, tension and compression capability, wide capacity range, robust stainless steel/tool steel construction, IP65 protection, and suitability for testing, automation, and research applications.
