S type Bending Beam Load Cell

3500.0 INR/Number

Get a Price/Quote

Product Details:

Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Weight 1.5 KG(Approx.) Kilograms (kg)
Capacity 20 Kgf to 30000 kgf Kg
Application Tank, Hopper & Bag Weighing, Crane & Hanging Scale ,Industrial Automation ,Process & Machine Automation , Robotics, Material Strain Testing, Shore Hardness Testing , Structural Testing in Automotive Systems
Resistance Input Resistance: 392 15 Ohms ,Output Resistance: 350 3 Ohms
Color Silver
Material Electro-less Nickel Plated High Tensile Tool Steel
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

S type Bending Beam Load Cell Price And Quantity

Minimum Order Quantity 1 Number
Price 3500.0 INR/Number

S type Bending Beam Load Cell Product Specifications

Weight 1.5 KG(Approx.) Kilograms (kg)
Accuracy 0.025% FSO %
Usage Force Measurement, Hanging Type Weighing, In-line Tension Measurement ,Mechanical to Electronic Scale Conversion
Storage Temperature 0-60 Celsius (oC)
Product Type S BEAM LOAD CELL
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Operating Temperature 0-50 Celsius (oC)
Operate Method Strain Gauge Based Measurement (Beam Type Design)
Compensated Temperature 10-50 Celsius (oC)
Material Electro-less Nickel Plated High Tensile Tool Steel
Output Analog Sensor
Type STRAIN GAGE BASED BENDING BEAM LOAD CELL
Theory Resistance Sensor
Color Silver
Power 10 VDC Volt (v)
Output Voltage 3.0 mV/V Volt (V)
Operating Voltage 5-10 Volt (V)
Classification Universal Beam Type Load Cell (Tension & Compression)
Resistance Input Resistance: 392 15 Ohms ,Output Resistance: 350 3 Ohms
Application Tank, Hopper & Bag Weighing, Crane & Hanging Scale ,Industrial Automation ,Process & Machine Automation , Robotics, Material Strain Testing, Shore Hardness Testing , Structural Testing in Automotive Systems
Capacity 20 Kgf to 30000 kgf Kg

S type Bending Beam Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash in Advance (CID), Cash Advance (CA), Cheque
Supply Ability 100 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

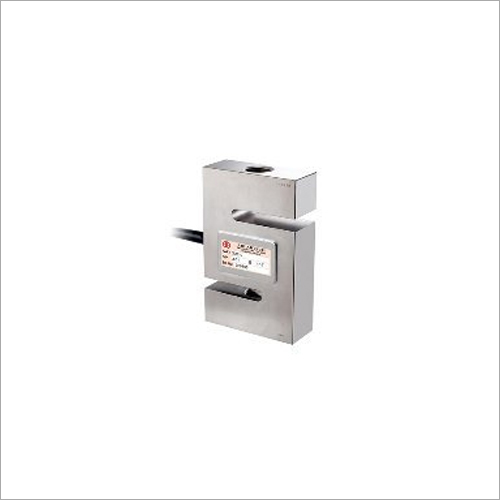

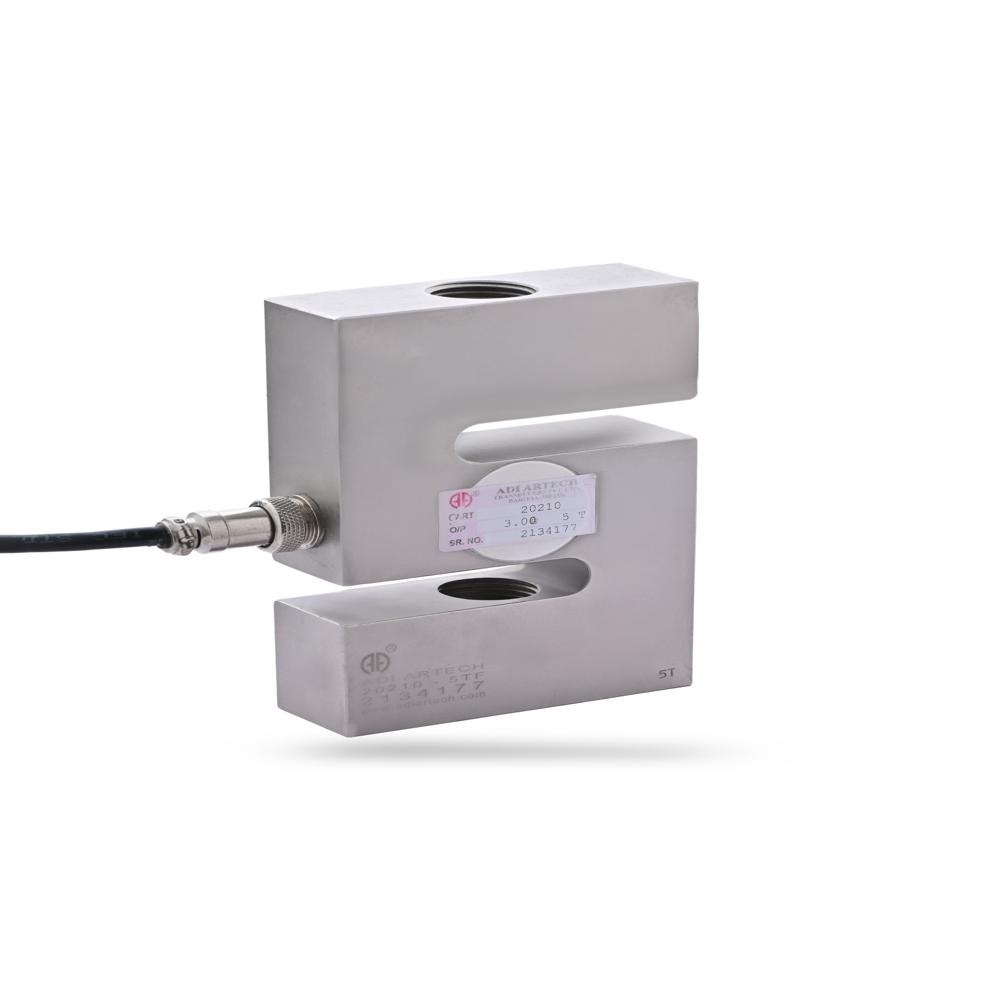

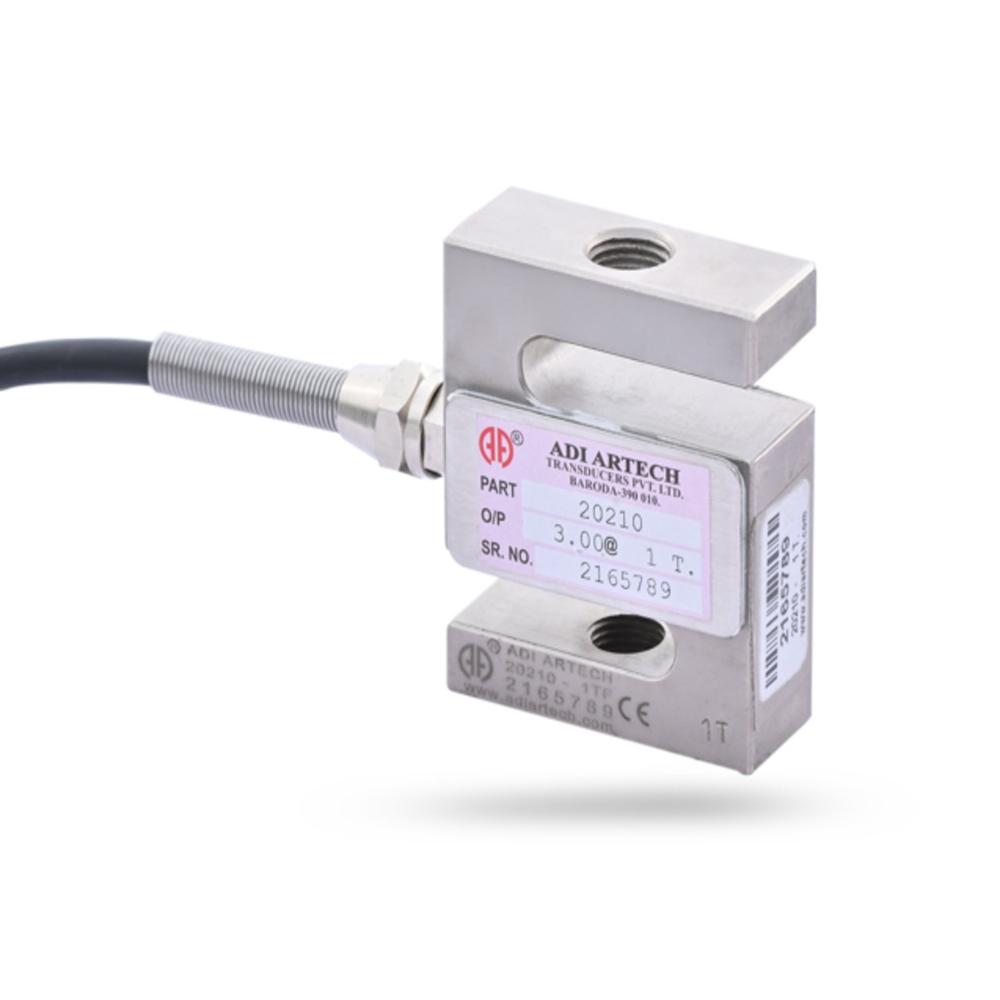

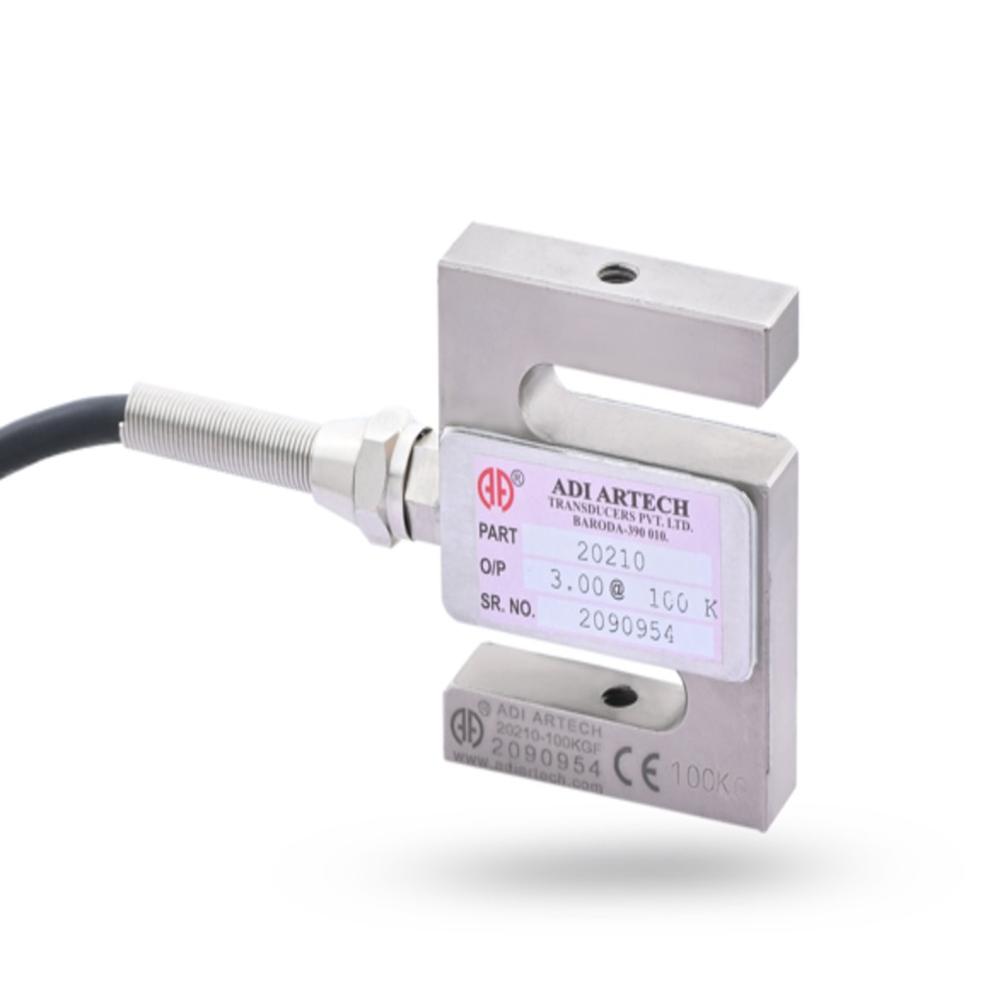

S type Bending Beam Load Cell

Model : 20210
Capacity : 0-20Kgf to 0-20,000Kgf
Load Direction :Tension & Compression - Universal
Type :S Beam Load Cell , S Type Load Cell

Description :
20210 is S Shaped Bending Beam strain gage based Load Cell which is temperature compensated over 0 - 60 deg.C.
It is constructed from electro less nickel plated high alloy tool steel for harsh industrial shock loads and corrosions.
It is universal type load cell for tension and compression load/force/tension measurements.

Features :
Available from 0 - 20Kgf to 0 - 20,000Kgf capacities for wide range of industrial applications.
It meets to IP67 Class for environmental protection.

Supports

Industries Weighing,Tensile Testing,Robotics,R & D Establishments,Process Industries,Material Testing,Material Handling Machine Building,Engineering & Technical Institutes,Crane Manufacturing,Force & Reference Standard Metrology Laboratory,Bagging Machineries,Automotive,Automation Machineries,Assembly Lines,Aerospace

Used in

Applications:

Bag Weighing Machine,Cargo Handling in Ship Yards,Compressive Force Measurement & Testing,Conversion of Mechanical Scale to Electronic,Conveyor Belt Weighing,Crane Test Dynamometer,Elevator Load Monitoring,Food Packaging,Force Gage,Force Measurement Tension & or Compression Dynamometer,hanging Scale,Hopper , Tank , Silo Weighing,In-Line Force Measurement,Machine automation,Material Handling,Medical Instrumentation,Pedal Force Monitor,Pharmaceutical Machines,Process Control & Automation,Push / Pull Force Test Dynamometer,Rope Tension Measurement,Tensile Testing

Electronic Instrumentation / Software:

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MODBUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.

Mounting Hardware:
Compatible Mounting Assembly WM-VII is offered optionally.

Product details

Allowable Side Load	50%
Material	Stainless Steel
Nominal Output	3.0 m V/ V
Temp. Compensated Range	0-60 0C
Temperature Effect on Output	< 0.0015% FSO/ 0C
Temperature Effect on Zero	< 0.0020% FSO/ 0C
Ultimate Overload of Rated Capacity	250%
Safe Overload	150%
Insulation Resistance	>1000 Mega Ohms
Excitation Voltage	10 VDC -15 VDC
Output Resistance	350 +- 3 Ohms
Input Resistance	392 +- 15 Ohms
Load Capacity	20 KG TO 20 T
Brand	ADI ARTECH TRANSDUCERS PVT. LTD.
Shape	S
Type	S TYPE LOAD CELL
Design	Robust
Usage/Application	Industrial

Reliable Performance for Industrial Applications

Engineered for durability and high accuracy, the S Type Bending Beam Load Cell supports weighing, tensile testing, and machine automation projects. Its dual capability in tension and compression measurement ensures flexibility for various testing and operational needs.

Advanced Strain Gage Technology

Utilizing a strain gage-based resistance sensor, this load cell offers reliable analog output, facilitating precise online tension measurements and robust integration with automation systems in manufacturing and research environments.

FAQs of S type Bending Beam Load Cell:

Q: How does the S Type Bending Beam Load Cell measure both tension and compression loads?

A: The load cell employs a strain gage resistance sensor that detects minute deformations caused by forces applied in both tension and compression, sending out an analog voltage signal proportional to the load applied.

Q: What is the process for integrating this load cell into weighing scales or machine automation systems?

A: Integration involves mounting the load cell at the measurement point, connecting its analog output to compatible signal processors or controllers that use the 2mV voltage output, and calibrating the system to ensure accurate readings within specified operating conditions.

Q: Where can I use this load cell for online tension measurements?

A: Its robust design makes it suitable for applications such as conveyor belt monitoring, wire and cable processing, and automated tension monitoring in industrial production lines. You can find it through dealers and suppliers across India.

Q: What are the benefits of using a strain gage-based bending beam load cell?

A: The main benefits are high accuracy (0.1%), dual-use in tension and compression measurement, reliable analog output for precise real-time monitoring, and a wide operating temperature range for varied environments.

Q: When should the load cell be used within its compensated temperature range?

A: For optimal accuracy and stable readings, use the load cell between 10C and 50C. This compensated range ensures consistent performance regardless of ambient temperature shifts during operation.

Q: What applications does this load cell support aside from weighing scales?

A: Beyond weighing scales, its analog output and dual measurement functionality make it ideal for tensile testing, machine automation, and real-time online tension monitoring in manufacturing and laboratory settings.
