S Beam S Type Load Cell

• Accuracy
• 0.02% FS

• Application
• Weighbridge, Platform Scale, Process Automation

• Cable Length
• 3 meters (customizable)

• Capacity
• 250-30000 Kg

• Classification
• Universal type load cell

• Color
• Silver

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Dimension (L*W*H)
• 70*25 Millimeter (mm)

• Features
• Hermetically Sealed, Temperature Compensated, Surge Protection

• Function
• Measures Force/Weight

• IP Rating
• IP68

• Input
• 5V DC

• Interface
• RS485/RS232

• Material
• Stainless Steel 17-4 PH

• Measurement Range
• 10 kg - 30 t (varies by model)

• Mounting Type
• Through holes/Compression

• Operate Method
• Strain gauge based sensing

• Operating Temperature
• -10 C to +50 C

• Operating Voltage
• 10 VDC (Max 15 VDC) Volt (V)

• Output
• Digital (RS485/RS232)

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• 10VDC Volt (v)

• Power Consumption
• <1W

• Product Type
• Round S Beam Load Cell

• Resistance
• Input resistance: 392 15 ; Output resistance: 350 3

• Resolution
• High (24-bit ADC)

• Response Time
• <2 ms

• Sensitivity
• 2.0 mV/V

• Sensor Type
• Strain Gauge

• Signal Type
• Digital

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• S-Beam (Round type)

• Usage
• USED IN TENSION AND COMPRESSION LOAD BOTH

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 2 KG(Approx.) Kilograms (kg)

• Wireless
• No

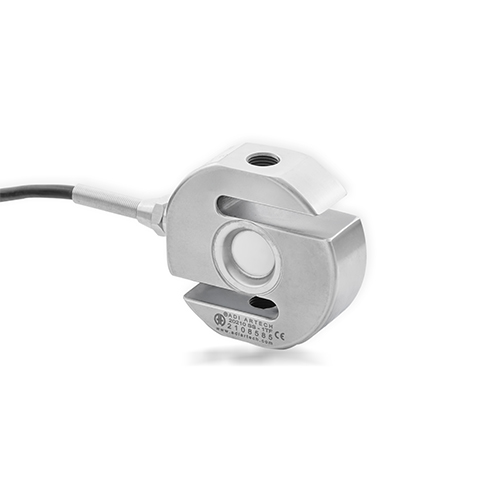

• Accuracy
• 0.2 % FSO %

• Application
• Hand-held force gauges , Medical instruments , Controlled feed systems, Test equipment Thread tension control in textile industry

• Capacity
• 1 to 10 Kg

• Classification
• Force sensor (tension & compression)

• Color
• Silver

• Compensated Temperature
• 10 C to 60 C Celsius (oC)

• Dimension (L*W*H)
• 40x40x10 Millimeter (mm)

• Material
• Aluminium Alloy

• Operate Method
• Tensile and compressive force applied to S-beam causes strain; strain gauges convert it into electrical signal

• Operating Temperature
• 0 C to 60 C Celsius (oC)

• Operating Voltage
• 5 10 VDC recommended, 15 VDC maximum Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 1.5 2.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• S-Beam Load Cell

• Resistance
• Input resistance: 375 , Output resistance: 350

• Storage Temperature
• 0 C to 60 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• STRAIN GAGE BASED BENDING BEAM S TYPE LOAD CELL

• Usage
• Low-capacity, precise force measurement in compact systems

• Voltage
• 5 VDC / 10 VDC (recommended), 15 VDC (maximum) Volt (v)

• Weight
• 500 Grams (g)

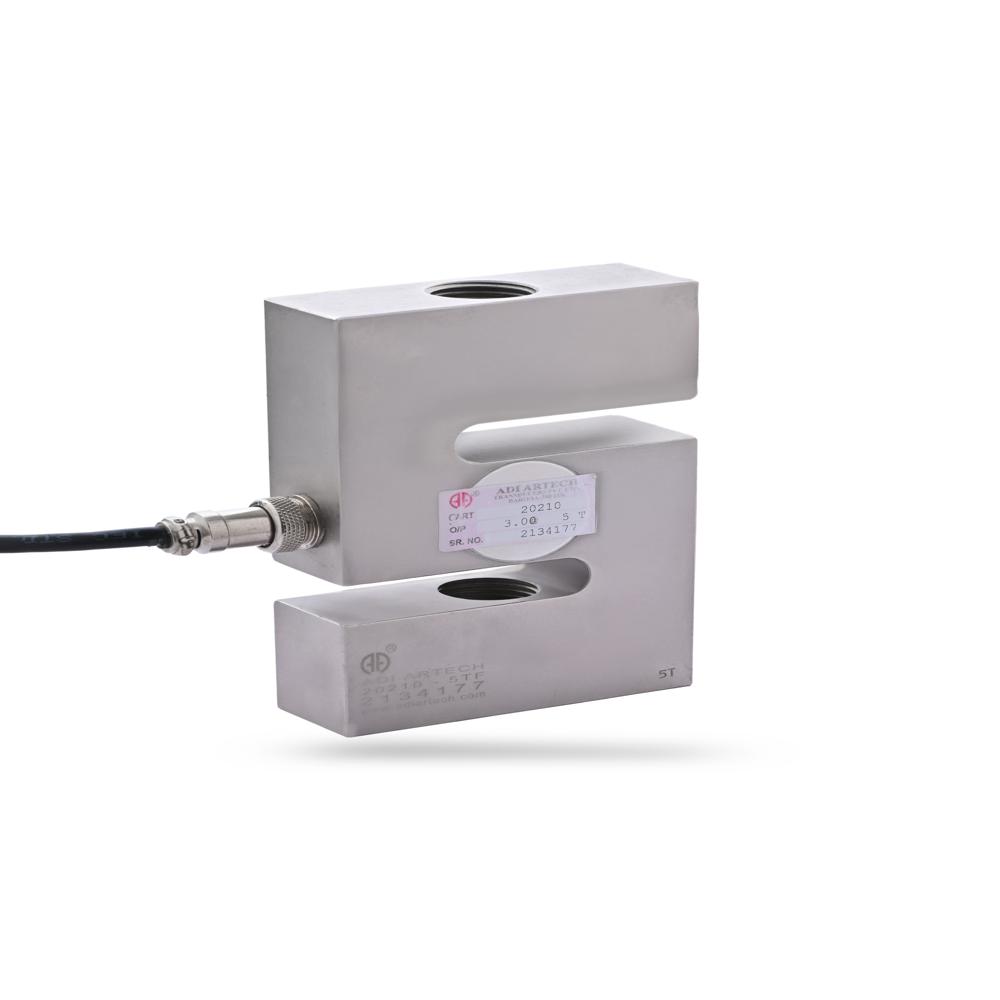

• Accuracy
• 0.025% FSO %

• Application
• Tank, Hopper & Bag Weighing, Crane & Hanging Scale ,Industrial Automation ,Process & Machine Automation , Robotics, Material Strain Testing, Shore Hardness Testing , Structural Testing in Automotive Systems

• Capacity
• 20 Kgf to 30000 kgf Kg

• Classification
• Universal Beam Type Load Cell (Tension & Compression)

• Color
• Silver

• Compensated Temperature
• 10-50 Celsius (oC)

• Material
• Electro-less Nickel Plated High Tensile Tool Steel

• Operate Method
• Strain Gauge Based Measurement (Beam Type Design)

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• 5-10 Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 3.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• S BEAM LOAD CELL

• Resistance
• Input Resistance: 392 15 Ohms ,Output Resistance: 350 3 Ohms

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• STRAIN GAGE BASED BENDING BEAM LOAD CELL

• Usage
• Force Measurement, Hanging Type Weighing, In-line Tension Measurement ,Mechanical to Electronic Scale Conversion

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 1.5 KG(Approx.) Kilograms (kg)

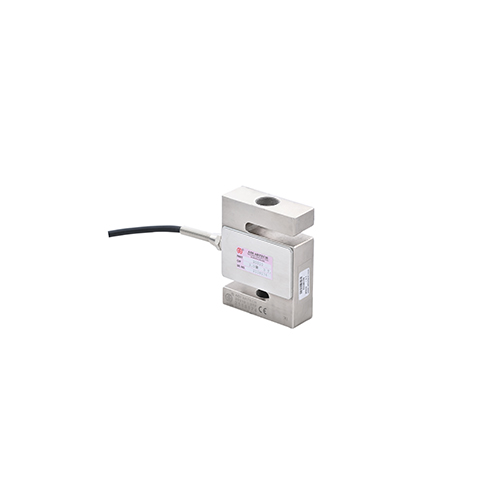

• Accuracy
• 0.05% FSO %

• Application
• Hanging & Crane Scales Tank, Hopper & Bag Weighing Force Measurement & Dynamometer Line Tension Measurement Process & Machine Automation Food & Pharmaceutical Industries

• Capacity
• 0.25, 0.5, 1, 2, 5, 10, 20, 50, 100, 200 Kg

• Classification
• CE Certified, IP65 Protection Class

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Dimension (L*W*H)
• 150*40*40 Millimeter (mm)

• Material
• 0.25 2 Kgf: Aluminum Alloy, Above 2 Kgf: Stainless Steel 17-4 PH

• Operate Method
• Strain gauge based sensing

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 10 V DC (max 15 V) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• 10VDC Volt (v)

• Product Type
• Miniature S Beam Load Cell

• Resistance
• Input resistance: 390 20 ; Output resistance: 350 10

• Storage Temperature
• 0 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Universal S-Type Load Cell

• Usage
• Force and weight measurement (tension & compression)

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 150 (APPROX.) Grams (g)

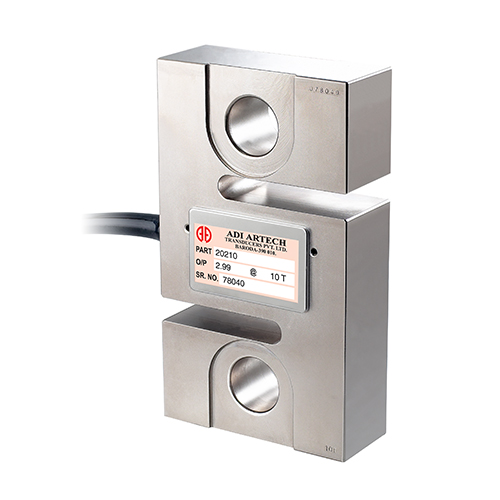

• Accuracy
• 0.025% FSO %

• Application
• Conversion of Mechanical Scale to Electronic, Tank, Hopper & Bag Weighing , Tension & Compression Dynamometer , Hanging & Crane Scale, Industrial Automation, Line Tension Measurement, Process & Machine Automation, Robotics

• Capacity
• 1.5 Tf to 20 Tf Ton

• Classification
• Precision Tension Type Beam Load Cell (Tension / Compression)

• Compensated Temperature
• 10-50 Celsius (oC)

• Material
• Electro-less Nickel Plated High Alloy Tool Steel

• Operate Method
• Strain Gauge Based Measurement (Beam Type Tension Loading)

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• 5-10 Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 3.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• S BEAM LOAD CELL

• Resistance
• Input Resistance: 392 15 Ohms, Output Resistance: 350 3 Ohms

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• STRAIN GAGE BASED S SHAPPED BENDING BEAM LOAD CELL

• Usage
• Tension Measurement, Force Measurement ,Hanging Type Weighing

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 2.5 KG(APPROX) Kilograms (kg)

• Accuracy
• 0.5% FSO %

• Application
• Hand-held force gauges, Medical instrumentation , Controlled feed systems , Test equipment, Thread tension control (textile industry) Hanging scales

• Capacity
• 100 Kg

• Classification
• Strain Gauge Based Load Cell (Tension & Compression)

• Color
• Silver

• Compensated Temperature
• -10 C to +40 C Celsius (oC)

• Material
• Electroless Nickel Plated Steel Alloy

• Operate Method
• Strain gauge based force measurement for tension and compression loads

• Operating Temperature
• -20 C to +70 C Celsius (oC)

• Operating Voltage
• 10 VDC (Excitation Voltage) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• S-Beam Load Cell / Force Sensor

• Resistance
• Input Resistance: 350 Ohms, Output Resistance: 350 Ohms

• Storage Temperature
• -30 C to +80 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Miniature S Beam Load Cell

• Usage
• Force measurement in light-duty and portable applications

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 500(APPROX) Grams (g)

• Accuracy
• 0.025% FSO %

• Application
• Hanging and crane scales, Tank, hopper & bag weighing , Mechanical scale conversion to electronic, Industrial automation Line tension measurement, Process and machine automation, Robotics

• Capacity
• 1.5 TF to 20 TF Ton

• Classification
• Environmental Protection Class IP67 (IP68 optional)

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Material
• Electroless Nickel Plated Alloy Tool Steel

• Operate Method
• Strain Gauge based sensing

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Max 15 VDC) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 3.0 mV/V Volt (V)

• Power
• 10 VDC nominal, Max 15 VDC Volt (v)

• Product Type
• Beam Load Cell

• Resistance
• Input resistance: 392 15 , Output resistance: 350 3

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Beam Load Cell

• Usage
• Industrial weighing,Force measurement, Tension and compression testing

• Voltage
• 10 VDC nominal, Max 15 VDC Volt (v)
