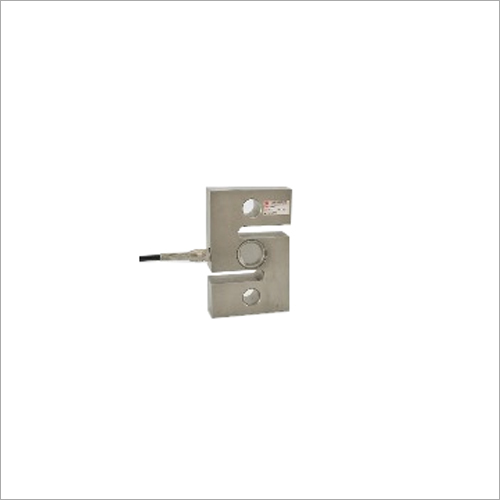

S type Bending Beam Load Cell with Shackle mounting

S type Bending Beam Load Cell with Shackle mounting

7500.0 INR/Number

Get a Price/Quote

Product Details:

Classification Precision Tension Type Beam Load Cell (Tension / Compression)
Application Conversion of Mechanical Scale to Electronic, Tank, Hopper & Bag Weighing , Tension & Compression Dynamometer , Hanging & Crane Scale, Industrial Automation, Line Tension Measurement, Process & Machine Automation, Robotics
Resistance Input Resistance: 392 15 Ohms, Output Resistance: 350 3 Ohms
Weight 2.5 KG(APPROX) Kilograms (kg)
Capacity 1.5 Tf to 20 Tf Ton
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Usage Tension Measurement, Force Measurement ,Hanging Type Weighing
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

S type Bending Beam Load Cell with Shackle mounting Price And Quantity

Price 7500.0 INR/Number
Minimum Order Quantity 1 Number

S type Bending Beam Load Cell with Shackle mounting Product Specifications

Weight 2.5 KG(APPROX) Kilograms (kg)
Capacity 1.5 Tf to 20 Tf Ton
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Compensated Temperature 10-50 Celsius (oC)
Resistance Input Resistance: 392 15 Ohms, Output Resistance: 350 3 Ohms
Operating Voltage 5-10 Volt (V)
Storage Temperature 0-60 Celsius (oC)
Product Type S BEAM LOAD CELL
Usage Tension Measurement, Force Measurement ,Hanging Type Weighing
Output Analog Sensor
Accuracy 0.025% FSO %
Application Conversion of Mechanical Scale to Electronic, Tank, Hopper & Bag Weighing , Tension & Compression Dynamometer , Hanging & Crane Scale, Industrial Automation, Line Tension Measurement, Process & Machine Automation, Robotics
Classification Precision Tension Type Beam Load Cell (Tension / Compression)
Type STRAIN GAGE BASED S SHAPPED BENDING BEAM LOAD CELL
Operating Temperature 0-50 Celsius (oC)
Output Voltage 3.0 mV/V Volt (V)
Operate Method Strain Gauge Based Measurement (Beam Type Tension Loading)
Material Electro-less Nickel Plated High Alloy Tool Steel
Power 10 VDC Volt (v)
Theory Resistance Sensor

S type Bending Beam Load Cell with Shackle mounting Trade Information

FOB Port VADODARA
Payment Terms Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 100 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Western Europe, Asia, Australia, Eastern Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

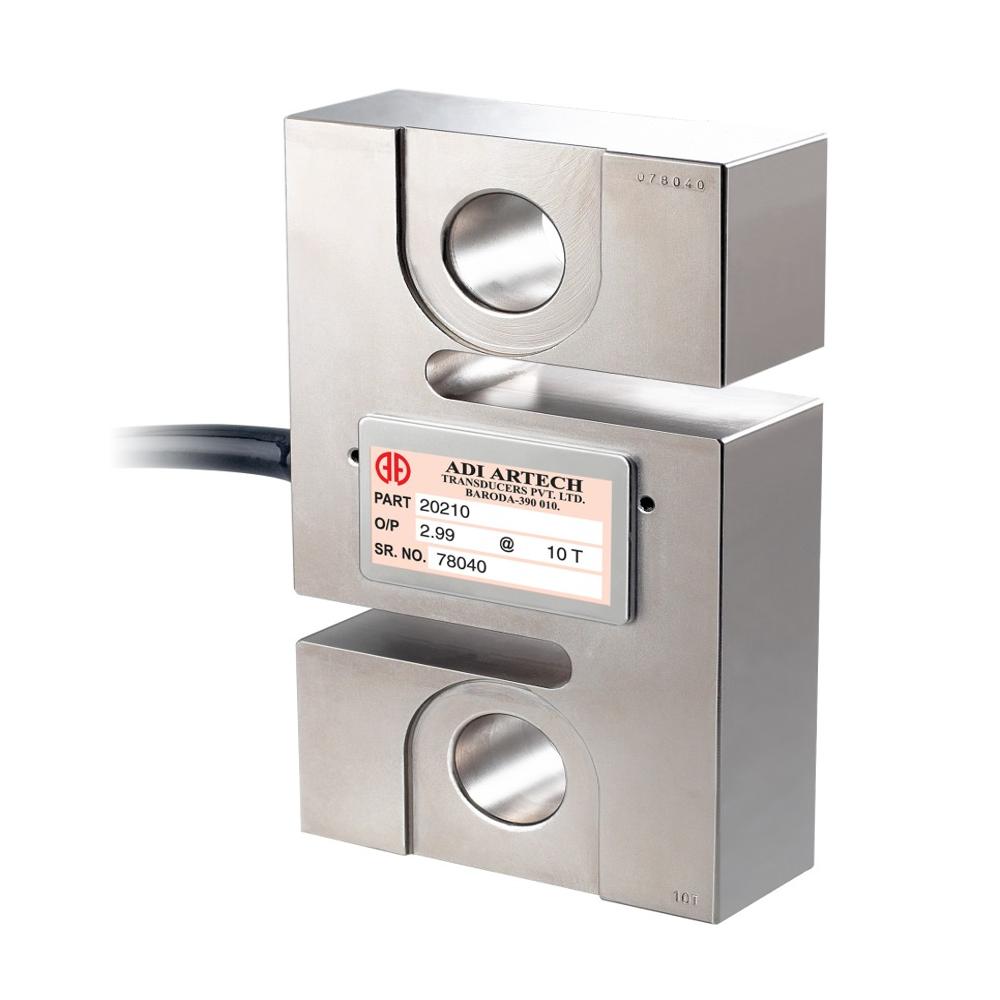

S type Bending Beam Load Cell with Shackle mounting

Model	:	20310
Capacity	:	0 - 1,500Kgf to 0 - 20,000Kgf
Load Direction	:	Tension & Compression - Universal
Type	:	S Beam Load Cell , S Type Load Cell

Industries

Weighing
Tensile Testing
Robotics
Crane Manufacturing
Construction Machinery's
Bagging Machinery's

Application

Bag Weighing Machine
Cargo Handling in Ship Yards
Construction machine
Conversion of Mechanical Scale to Electronic
Crane Test Dynamo meter
Elevator Load Monitoring
Force Measurement Tension & or Compression Dynamo meter
Hanging Scale
Hopper , Tank , Silo Weighing
In-Line Force Measurement
Lifting Equipment Load Measurement
Machine automation
Material Handling
Pharmaceutical Machines
Push / Pull Force Test Dynamo meter
Rope Tension Measurement
Tensile Testing

Description

Precession strain gage based S beam load cell 20310 is versatile,compact and rugged for industrial applications.
Tension loading is to be done through shackles which provides alignment through shackle pins.

Features

High Alloy Tool Steel construction provides resistance against shock and over loads.
Very versatile for various industrial applications.
It is available with mounting threads on body for electronic fitting.
It meets IP 67 degree of protection class for environment.

Electronic Instrumentation / Software

Compatible Electronic Systems are available optionally-
Stand alone digital display indicator.
Analog signal converter - 0 - 10 VDC or 4 - 20 mA for PLC interface.
Digital signal converter - RS-232 , RS-485 or MOD BUS RTU Protocol to interface with computer or other processing equipment.
Data acquisition system and software.
For details,please contact us.

Mounting Hardware

Compatible Mounting Assembly WM-IX is offered optionally.
Please contact us for more details.

Versatile Measurement for Tension and Compression

This S-shaped bending beam load cell is engineered to accurately measure both tension and compression forces. Its unique shackle mounting provides stability and adaptability across various industrial applications, ensuring reliable force measurement for enhanced operational safety and process efficiency.

Robust Performance Across Temperature Ranges

Designed with optimal temperature compensation (10-50C) and broad operating (0-50C) and storage (0-60C) capabilities, the load cell performs reliably in different environmental conditions. Its advanced resistance sensor and strain gage technology contribute to long-term stability and minimal drift.

FAQs of S type Bending Beam Load Cell with Shackle mounting:

Q: How is the S type Bending Beam Load Cell with shackle mounting installed?

A: This load cell is mounted using its integrated shackle, facilitating secure attachment in tension and compression setups. Ensure the load cell is aligned properly with the force direction for optimal accuracy.

Q: What process does the load cell use to measure force?

A: It employs strain gage technology mounted on a bending beam; when force is applied, the strain causes resistance changes, which are then converted into a corresponding analog voltage output.

Q: When should temperature compensation be considered for this load cell?

A: Temperature compensation is crucial when operating in environments where temperature varies between 10C and 50C, as this range ensures the load cell maintains its specified accuracy of 0.1%.

Q: Where is this load cell commonly used in India?

A: This S-shaped load cell is widely implemented in industrial weighing systems, materials testing machines, and process automation across manufacturing facilities, laboratories, and industrial plants throughout India.

Q: What are the primary benefits of using this S type load cell?

A: Key benefits include high measurement accuracy, the ability to detect both tension and compression, robust performance in diverse temperature ranges, and ease of installation with the shackle mounting.

Q: How should the load cell be powered for optimal performance?

A: The load cell operates efficiently with a voltage supply ranging from 5 to 10 Volts. Ensure regulated power for stable and precise analog output readings.

Q: Is this load cell suitable for both dealer and manufacturer supply chains?

A: Yes, it is distributed, exported, and supported by dealers, manufacturers, and wholesalers across India, ensuring accessibility and support for varied industrial needs.
