S Type Aluminum Low Capacity Load Cell

About S Type Aluminum Low Capacity Load Cell

Brief Description

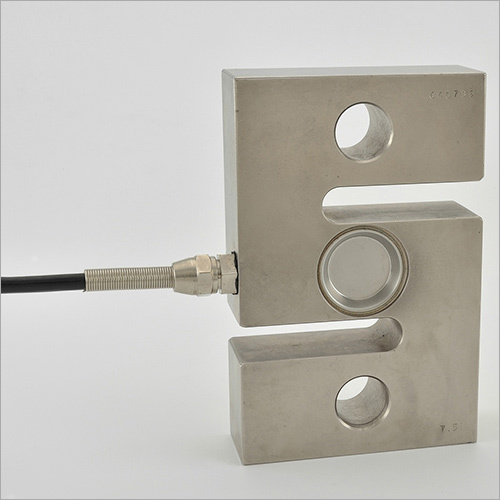

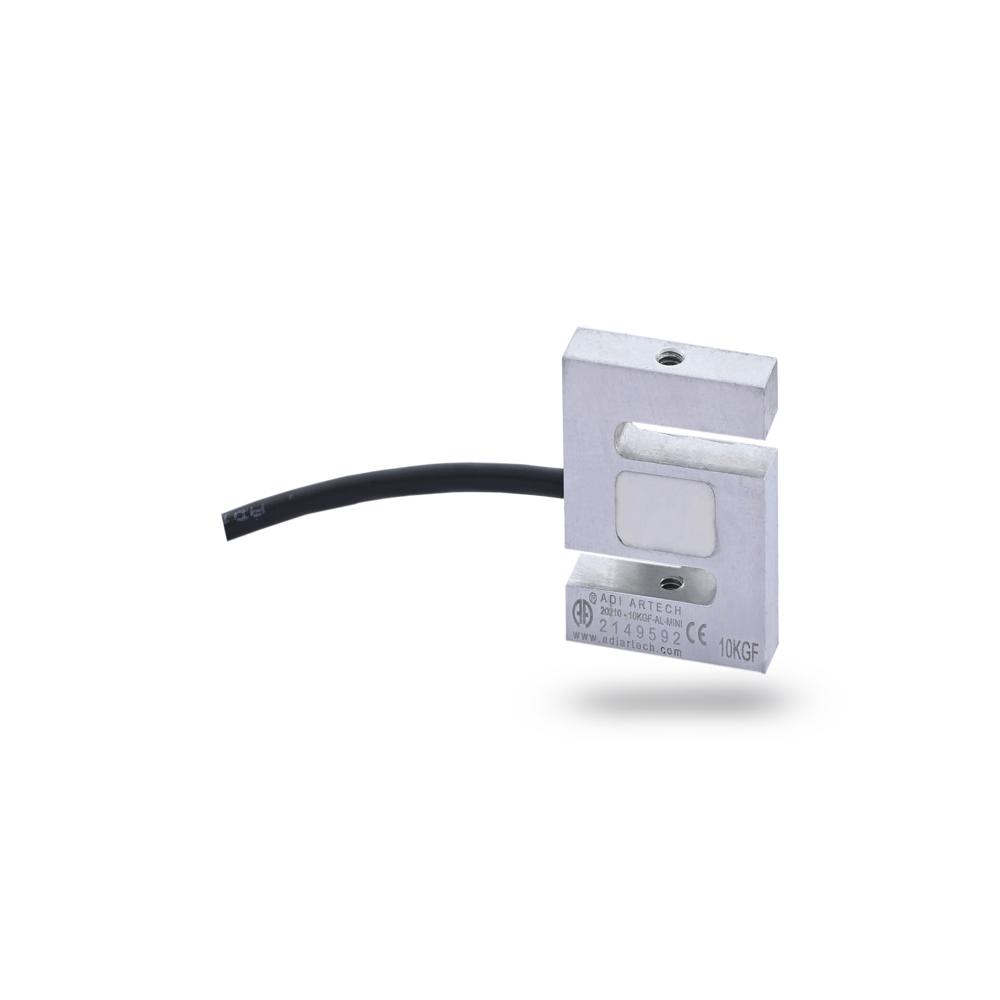

The 20210-AL is a compact and lightweight S-beam load cell manufactured from aluminum alloy and based on strain gauge technology. It is designed for accurate tension and compression force measurement with full temperature compensation from 10 C to 50 C. Easy to install and reliable, it is well suited for low-capacity force measurement applications.

Usage

• Measurement of low-range tensile and compressive forces

• Force monitoring in compact and portable systems

• Precise control of force in automation and testing equipment

Applications

• Hand-held force gauges

• Medical instrumentation

• Controlled feed systems

• Test and calibration equipment

• Thread tension control in textile industry

FAQs

What type of load cell is the 20210-AL?

It is an S-beam load cell used for both tension and compression force measurement.

What capacity range is available?

Standard capacities are 5, 10, 15, and 20 kgf.

What output signal does it provide?

It provides an analog output of 1.5 to 2.0 mV/V.

What excitation voltage is required?

Recommended 10 VDC, with a maximum of 15 VDC.

What material is the load cell made of?

It is constructed from aluminum alloy, making it lightweight and suitable for portable applications.

Is it environmentally protected?

Yes, it offers IP65 protection for the strain gauge area.

Where is this load cell commonly used

?
It is commonly used in medical devices, textile machinery, force gauges, and controlled feed systems.
