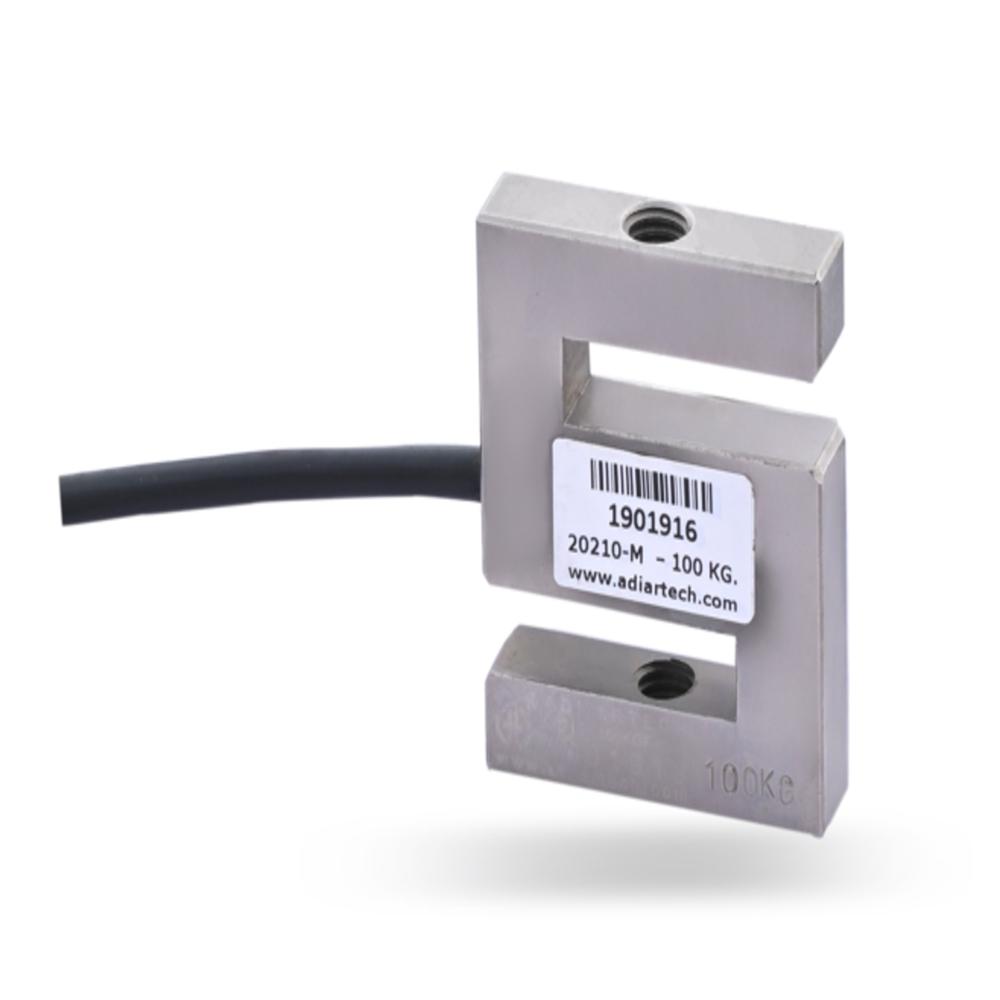

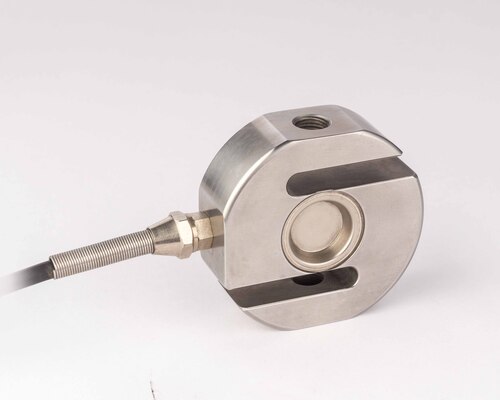

20210-MINI S Beam Load Cell

Name: 20210-MINI S Beam Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 4500.0 INR
Availability: InStock

Price 4500.0 INR/ Number

Get a Price/Quote

MOQ : 1 ,

20210-MINI S Beam Load Cell Specification

Color
Silver

Classification
Strain Gauge Based Load Cell (Tension & Compression)

Usage
Force measurement in light-duty and portable applications

Material
Electroless Nickel Plated Steel Alloy

Product Type
S-Beam Load Cell / Force Sensor

Power
10 VDC Volt (v)

Weight
500(APPROX) Grams (g)

Application
Hand-held force gauges, Medical instrumentation , Controlled feed systems , Test equipment, Thread tension control (textile industry) Hanging scales

Resistance
Input Resistance: 350 Ohms, Output Resistance: 350 Ohms

Operate Method
Strain gauge based force measurement for tension and compression loads

Voltage
10 VDC (Maximum 15 VDC) Volt (v)

Capacity
100 Kg

Output
Analog Sensor

Theory
Resistance Sensor

Type
Miniature S Beam Load Cell

Accuracy
0.5% FSO %

Operating Voltage
10 VDC (Excitation Voltage) Volt (V)

Output Voltage
2.0 mV/V Volt (V)

Compensated Temperature
-10 C to +40 C Celsius (oC)

Storage Temperature
-30 C to +80 C Celsius (oC)

Operating Temperature
-20 C to +70 C Celsius (oC)

Mounting
Through Hole

Safe Overload
150% of Rated Capacity

Material
Alloy Steel

Cable Length
2 meters

Capacity Range
10 kg to 200 kg

Ingress Protection
IP66

Ultimate Overload
200% of Rated Capacity

Application
Hopper Weighing, Suspended Loads, Force Measurement

20210-MINI S Beam Load Cell Trade Information

Minimum Order Quantity
1 ,

FOB Port
VADODARA

Payment Terms
Cash Advance (CA), Cheque, Cash in Advance (CID)

Supply Ability
100 Per Week

Delivery Time
1 Week

Sample Available
No

Main Export Market(s)
Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
OEM TEST REPORT

About 20210-MINI S Beam Load Cell

Description :

20210-MINI is strain gage based force sensor constructed from Steel Alloy.
Its operating temperature is 10 TO 50 C.
It is compact and light weight and easy to install.
This is applied to economy hanging scales, hand held force gages and controlled feed systems.
It is universal load cell with tension and compression measurements.

Features :

Only 100 Kgf. Capacity is offered
Complete environmental protection -meets to IP 65 class for gage area
Light weight and compact

Applications :

Hand held force gages
Medical instrumentation
Controlled feed systems
Test equipment
Thread tension control in textile industry
Hanging scales

Performance Specification :

Standard Capacities	100 Kgf
Excitation Voltage	10 VDC- Maximum 15 VDC
Nominal Output	1.5 to 2.0 m V/ V
Non - Linearity	< + 0.5% FSO (Full Scale Output)
Non Repeatability	< + 0.2% FSO
Creep (30 minutes)	< + 0.05% FSO
Zero Balance	+ 1.0% FSO
Input Resistance	350 Ohms
Output Resistance	350 Ohms
Insulation Resistance (50 VDC)	> 1000 Mega Ohms
Safe Overload of Rated Capacity	150%
Cable Length (4 Core Screened)	300mm
Temp Range-operating	10 50 ^oC
Temperature Effect on Output	< 0.1 % FSO/ ^oC
Temperature Effect on Zero	< 0.15% FSO/ ^oC
Deflection	< 0.5 mm at FSO
Finish & Construction	Alloy Steel
Environmental Protection Class	Meets to IP 65

Electrical Termination :

+Input	Red
+Output	Green
-Input	Black
-Output	White
Shield

Versatile Precision for Industrial Applications

Engineered for versatility, the 20210-MINI S Beam Load Cell excels in hopper weighing, suspended load monitoring, and force measurement. Its miniature design and strain gauge technology allow for seamless integration even in space-constrained locations. The high capacity range and overload protection ensure stable operation in diverse settings, while the IP66 rating guarantees resilience in demanding industrial environments.

Durability and Reliable Performance

The load cells alloy steel construction underpins its durability, supporting safe overloads of up to 150% and enduring ultimate overloads at 200% of its rated capacity. Its wide operational and storage temperature ranges make it suitable for varied climates, while the compensated temperature feature maintains consistent accuracy. With a 2-meter cable and through hole mounting, installation is straightforward and adaptable.

FAQs of 20210-MINI S Beam Load Cell:

Q: How is the 20210-MINI S Beam Load Cell installed for industrial applications?

A: The load cell features a through hole mounting design that ensures secure and straightforward installation. It can be fitted onto hoppers, suspended structures, or force measurement setups, making it adaptable for various industrial uses.

Q: What advantages does the IP66 rating offer for this load cell?

A: An IP66 ingress protection rating guarantees that the load cell is dust-tight and can withstand powerful water jets, enhancing its operational reliability in harsh or wet environments commonly found in industrial settings.

Q: When should I use the 20210-MINI S Beam Load Cell in my process?

A: Deploy this load cell when precise force or weight measurements are essential, particularly in hopper weighing, suspended loads, or other force measurement tasks where accuracy and durability are paramount.

Q: Where can I source the 20210-MINI S Beam Load Cell in India?

A: This load cell is readily available through authorized dealers, distributors, exporters, producers, suppliers, traders, and wholesalers throughout India, ensuring easy access and support.

Q: What is the accuracy range and how does it benefit my measurement tasks?

A: The 20210-MINI S delivers a high accuracy rate of 0.02% to 0.05% of full scale, ensuring dependable and repeatable measurements even in critical applications, thereby reducing errors and improving process control.

Q: How is the device powered and what output does it provide?

A: The unit operates on a 10 VDC excitation voltage and provides an analog output of 2.0 mV/V. This output can be easily interfaced with standard instrumentation or data acquisition systems used in industrial automation.
