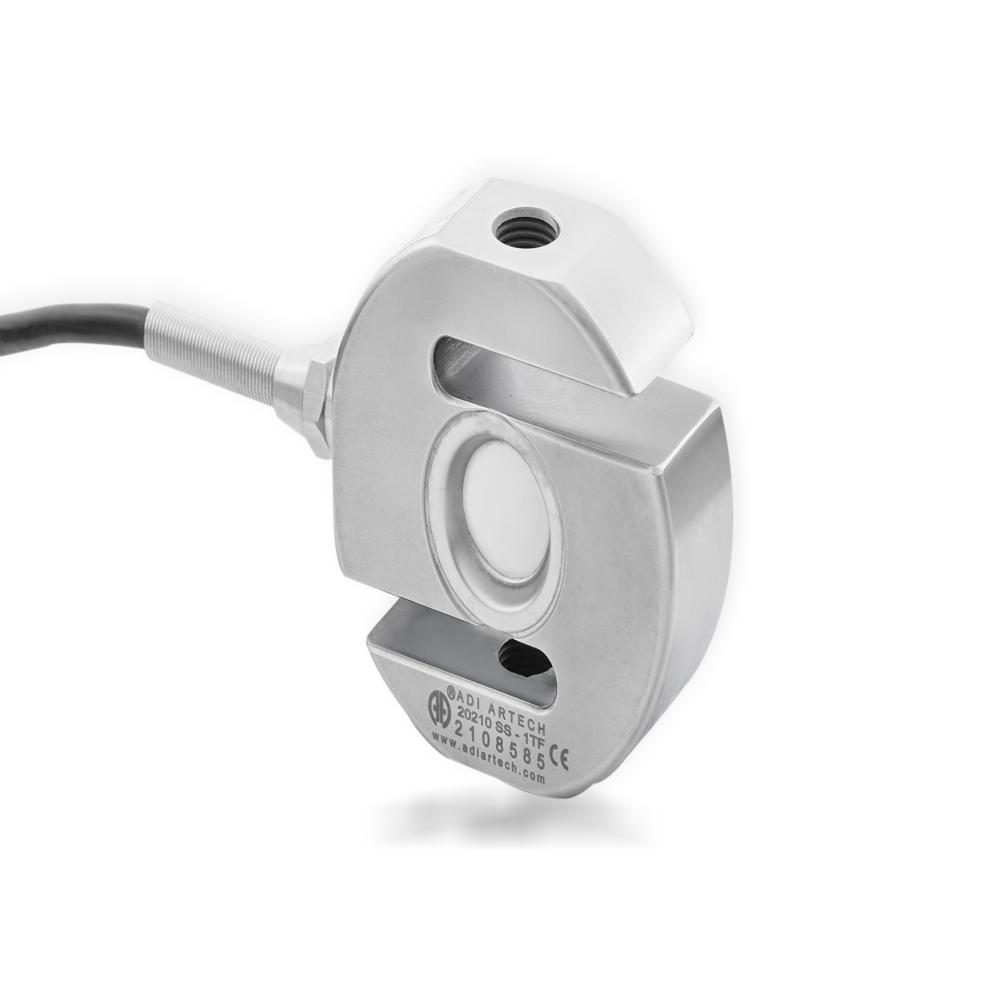

S- Beam Load Cell
Product Details:
- Resistance 350 (Input & Output)
- Output Analog Sensor Signal
- Theory Resistance Strain Gauge
- Type S-Beam Load Cell
- Accuracy 0.03% to 0.05% F.S.
- Operating Voltage 5~12V DC
- Output Voltage 2.0 0.2 mV/V or 3.0 0.2 mV/V
- Click to view more
S- Beam Load Cell Product Specifications
- 5~12V DC
- Resistance Strain Gauge
- -10C to +40C
- 0.03% to 0.05% F.S.
- 350 (Input & Output)
- -10C to +55C
- Analog Sensor Signal
- S-Beam Load Cell
- 2.0 0.2 mV/V or 3.0 0.2 mV/V
- -20C to +70C
- Threaded hole, center through-hole
- 10 kg to 5,000 kg
- IP67
- Tension & Compression
- Weighing, Force Measurement, Industrial Automation
- 3 meters (standard)
- Alloy Steel or Stainless Steel
- Customized as per model
Product Description
20310-HS is precision universal type Load Cell , used in hanging type weighing, universal testing, process & machine automation and line tension measurement. It is hermetically sealed with laser welded gaging cavity. It is constructed from high tensile tools steel for ruggedness and harsh industrial applications. Its design is strain gage based with full temperature compensation over 0 to 60C range
Features :
- 1.5, 2, 3, 5, 7.5, 10, 15, 20 TF. Capacities available.
- High Alloy Tool Steel construction for resistance against shock and overload.
- Complete Environmental Protection -IP68 class- Laser Welded.
- Standardized output (3.0 +/- 0.25%) available on request.
- Can be customized to suit customers requirements.
- High Temperature version can be provided on request.
Applications :
- Conversion of Mechanical Scale to Electronic.
- Tank, Hopper & Bag Weighing.
- Force Measurement, Tension or Compression Dynamometer.
- Hanging Crane Scale.
- Industrial Automation.
- Line tension measurement.
- Process & machine automatons.
- Robotics.
Performance Specification :
Standard Capacities | 1.5, 2, 3, 5, 7.5,10, 15, 20 TF. |
Excitation Voltage | 10 VDC- Maximum 15 VDC |
Nominal Output | 3.0 m V/ V |
Non -Linearity | < +/-0.025% FSO |
Hysteresis | < +/-0.02% FSO |
Non-Repeatability | < +/-0.01% FSO |
Creep (30 minutes) | < +/-0.03% FSO |
Zero Balance | +/-1.0% FSO |
Input Resistance | 392 +/-15 Ohms |
Output Resistance | 350 +/- 3 Ohms |
Insulation Resistance (50 VDC) | > 1000 Mega Ohms |
Cable Length (4 Core Screened) | Please See table |
Safe Overload of Rated Capacity | 150% |
Ultimate Overload of Rated Capacity | 250% |
Allowable Side Load | 50% |
Temp. Compensated Range | 0-60 C |
Temperature Effect on Output | < 0.0015% FSO/ C |
Temperature Effect on Zero | < 0.0020% FSO/ C |
Deflection | < 0.4 mm at FSO |
Finish & Construction | Electroless Nickel Plated Tool Steel |
Environmental Protection Class |
|
CAPACITY - TF. | A | B | C | D | E (Dia) | F | G | H | CABLE- MTR. |
1.5, 2,3 | 75 | 27 | 100 | 27 | 13 | 75 | - | - | 3 |
5,7.5 | 90 | 32 | 140 | 32 | 20 | 100 | - | - | 5 |
10 | 115 | 45 | 200 | 40 | 30 | 140 | 18.5 | 89 | 10 |
15,20 | 150 | 65 | 250 | 60 | 46 | 175 | 25 | 116 | 10 |
Dimension are in mm | |||||||||
Superior Versatility and Durability
Made from high-quality alloy steel or stainless steel, the S-Beam Load Cell offers exceptional durability while accommodating both tension and compression loads with a maximum capacity between 10 kg and 5,000 kg. Its IP67 protection ensures reliable performance even in dusty or wet industrial settings.
Precision Engineering for Accurate Results
Featuring resistance strain gauge technology and an accuracy of 0.03% to 0.05% F.S., this load cell guarantees consistent and repeatable force measurement. The analog sensor signal (2.0 0.2 mV/V or 3.0 0.2 mV/V) ensures seamless integration into various weighing and automation systems.
Flexible Mounting and Application
The S-Beam Load Cell is equipped with threaded holes and a center through-hole, permitting convenient installation in customized configurations. Its standard 3-meter cable facilitates ease of connection in diverse operational environments, supporting applications in force measurement, weighing, and industrial automation.
FAQ's of S- Beam Load Cell:
Q: How is the S-Beam Load Cell typically installed in industrial setups?
A: The S-Beam Load Cell can be mounted using threaded holes or a center through-hole, allowing for secure attachment to machinery, frames, or fixtures. Its installation flexibility makes it suitable for various industrial weighing and automation applications.Q: What benefits does the IP67 ingress protection offer for this load cell?
A: IP67 ingress protection ensures the load cell is dust-tight and resistant to water immersion up to 1 meter, making it highly reliable in harsh industrial and outdoor environments where moisture, dust, or spills might occur.Q: When should I use a tension versus compression configuration with this load cell?
A: Use the tension configuration when measuring forces that pull or stretch, such as suspended weighing. Opt for compression when monitoring forces that push or bear down on structures, such as floor scales or force testers.Q: Where can this S-Beam Load Cell be employed?
A: These load cells are commonly used in weighing systems, force measurement equipment, and industrial automation projects across sectors such as manufacturing, logistics, and process control within India.Q: What are the accuracy and output specifications of the S-Beam Load Cell?
A: This load cell offers high accuracy ranging from 0.03% to 0.05% of Full Scale (F.S.), with an output voltage of either 2.0 0.2 mV/V or 3.0 0.2 mV/V, making it suitable for precise measurement applications.Q: How does the resistance strain gauge technology benefit measurement reliability?
A: Resistance strain gauge technology provides consistent and precise analog output signals, enabling dependable force and weight measurements even in dynamic industrial environments.Q: What is the operating temperature range for the S-Beam Load Cell?
A: The load cell functions reliably in temperatures from -10C to +55C, with compensated temperature ranges between -10C and +40C, and can be safely stored between -20C and +70C.
