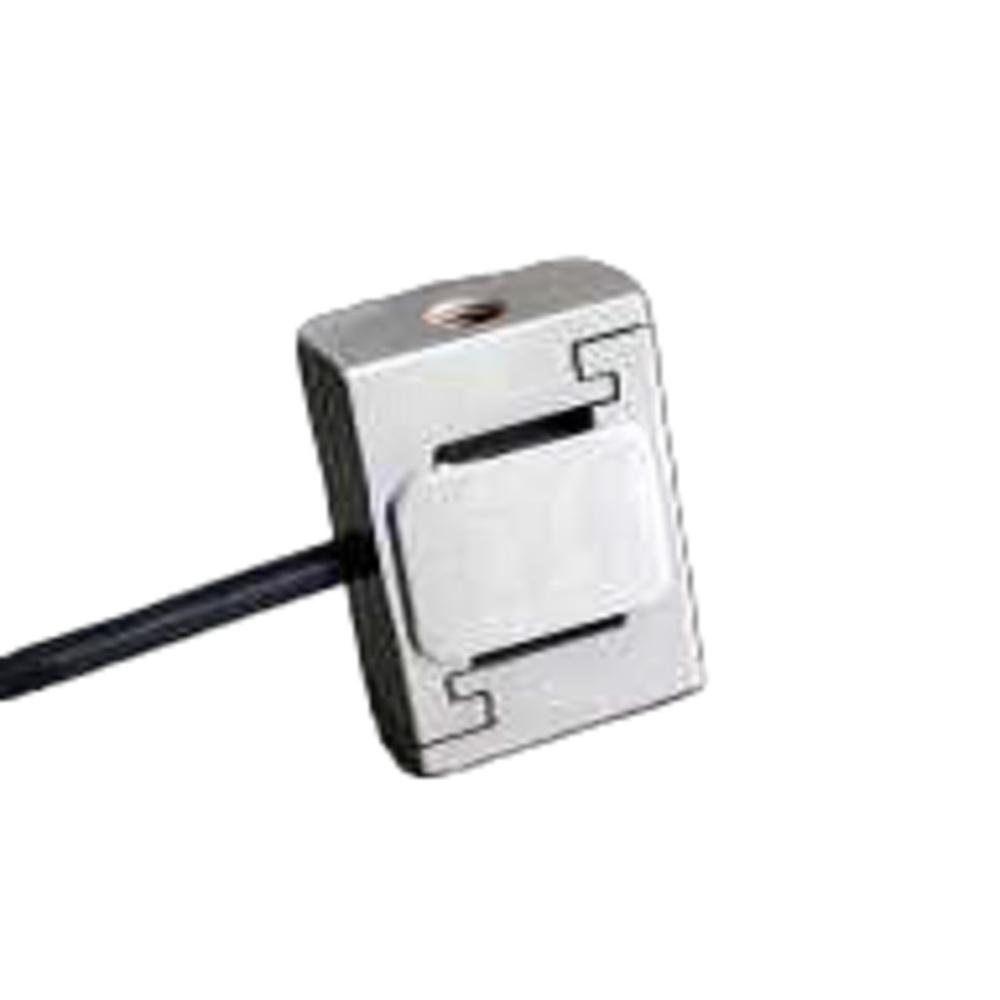

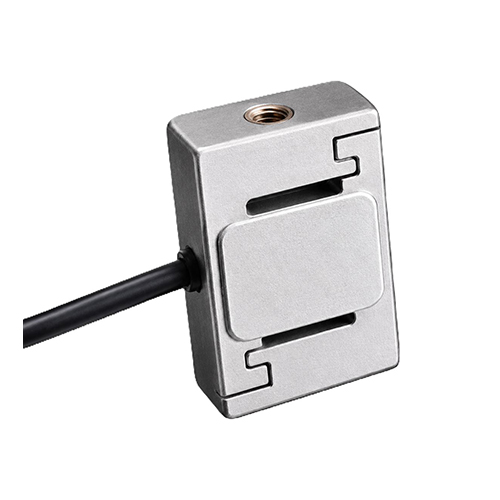

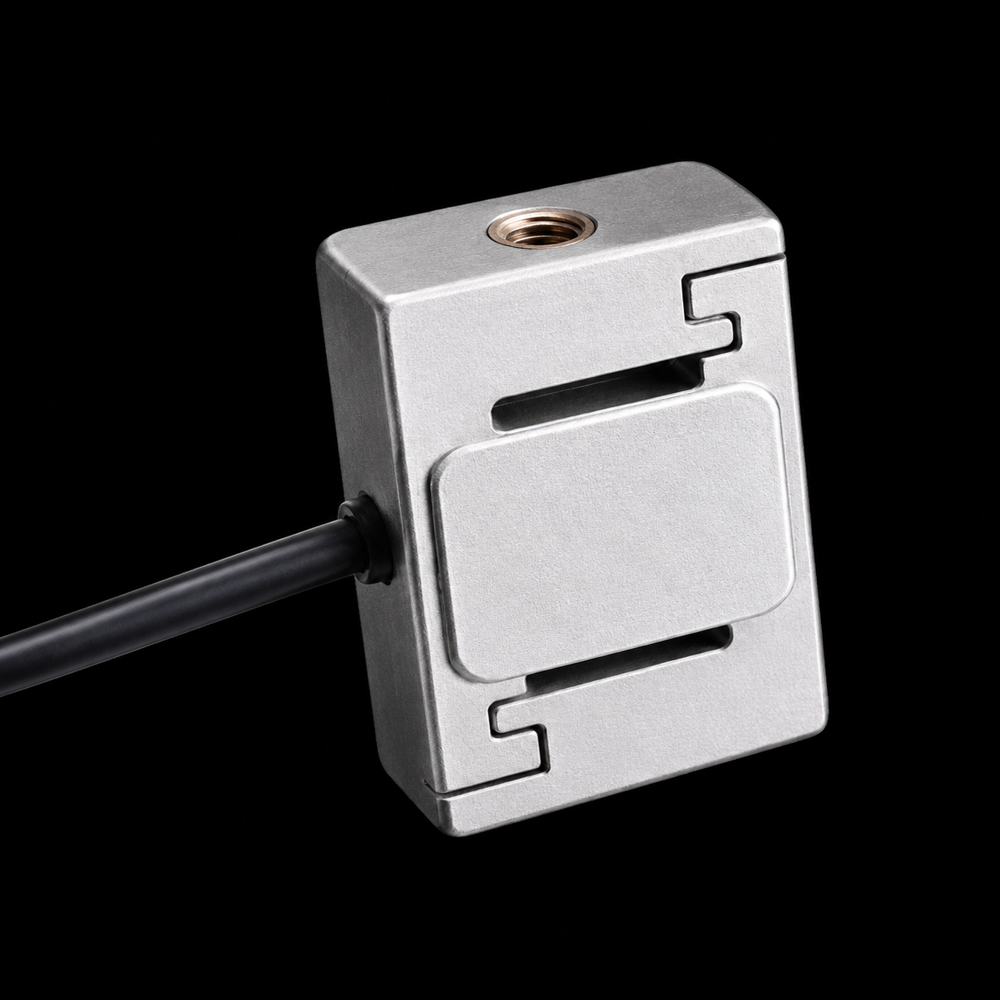

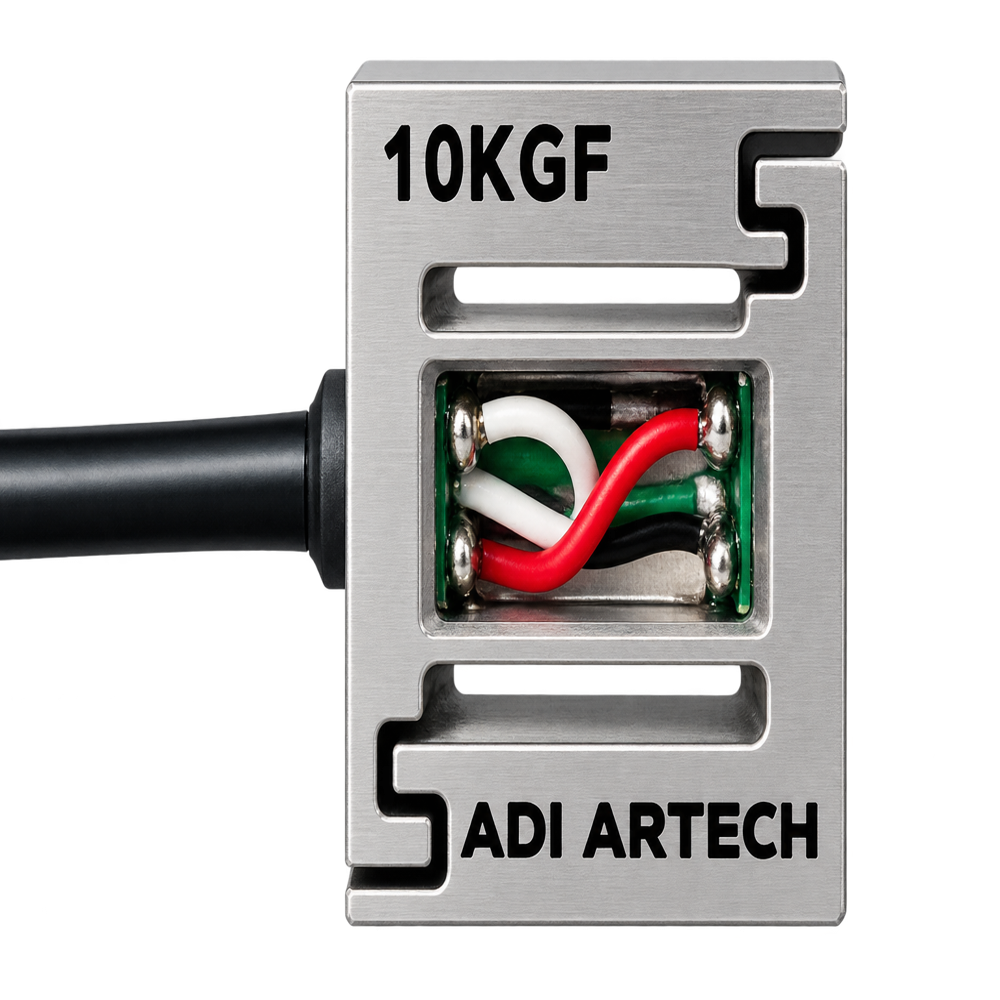

Miniature S Beam Load Cell

7500.0 INR/Number

Get a Price/Quote

Product Details:

Resistance Input resistance: 390 20 ; Output resistance: 350 10
Classification CE Certified, IP65 Protection Class
Application Hanging & Crane Scales Tank, Hopper & Bag Weighing Force Measurement & Dynamometer Line Tension Measurement Process & Machine Automation Food & Pharmaceutical Industries
Material 0.25 2 Kgf: Aluminum Alloy, Above 2 Kgf: Stainless Steel 17-4 PH
Dimension (L*W*H) 150*40*40 Millimeter (mm)
Usage Force and weight measurement (tension & compression)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Miniature S Beam Load Cell Price And Quantity

Price 7500.0 INR/Number
Minimum Order Quantity 1 Number

Non-linearity 0.03% F.S.
Creep (30 min) 0.03% F.S.
Hysteresis 0.03% F.S.
Insulation Resistance >5000 M @ 50 VDC
Maximum Safe Overload 150% of Rated Capacity
Material Stainless Steel
Application Weighbridges, Tank Weighing, Industrial Automation
Ultimate Overload 250% of Rated Capacity
Cable Length 5 m (shielded)
Capacity Range 5 kg to 5000 kg
Protection Class IP68 (hermetically sealed)

Miniature S Beam Load Cell Product Specifications

Output Voltage 2.0 mV/V Volt (V)
Application Hanging & Crane Scales Tank, Hopper & Bag Weighing Force Measurement & Dynamometer Line Tension Measurement Process & Machine Automation Food & Pharmaceutical Industries
Operating Temperature 10 C to 50 C Celsius (oC)
Product Type Miniature S Beam Load Cell
Material 0.25 2 Kgf: Aluminum Alloy, Above 2 Kgf: Stainless Steel 17-4 PH
Theory Resistance Sensor
Operate Method Strain gauge based sensing
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Weight 150 (APPROX.) Grams (g)
Output Analog Sensor
Power 10VDC Volt (v)
Type Universal S-Type Load Cell
Capacity 0.25, 0.5, 1, 2, 5, 10, 20, 50, 100, 200 Kg
Classification CE Certified, IP65 Protection Class
Operating Voltage 10 V DC (max 15 V) Volt (V)
Storage Temperature 0 C to 50 C Celsius (oC)
Resistance Input resistance: 390 20 ; Output resistance: 350 10
Accuracy 0.05% FSO %
Usage Force and weight measurement (tension & compression)
Dimension (L*W*H) 150*40*40 Millimeter (mm)
Compensated Temperature 0 C to 50 C Celsius (oC)

Non-linearity 0.03% F.S.
Creep (30 min) 0.03% F.S.
Hysteresis 0.03% F.S.
Insulation Resistance >5000 M @ 50 VDC
Maximum Safe Overload 150% of Rated Capacity
Material Stainless Steel
Application Weighbridges, Tank Weighing, Industrial Automation
Ultimate Overload 250% of Rated Capacity
Cable Length 5 m (shielded)
Capacity Range 5 kg to 5000 kg
Protection Class IP68 (hermetically sealed)

Miniature S Beam Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 100 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST CERTICATE

Product Description

Product Type: Miniature S Beam Load Cell
Design Type: Universal Tension & Compression
Technology: Strain Gauge Based
Material:
- 0.252 Kgf: Aluminum Alloy
- Above 2 Kgf: Stainless Steel 17-4 PH
Capacity Range: 0.25 Kgf to 200 Kgf
Excitation Voltage: 10 VDC (Max 15 VDC)
Rated Output: 2.0 mV/V (+0.2 / -0.5)
Accuracy:
- Non-Linearity: 0.1% FSO
- Hysteresis: 0.05% FSO
- Repeatability: 0.02% FSO
Temperature Compensated Range: 10C to 50C
Input Resistance: 350 15
Output Resistance: 350 3
Safe Overload: 150%
Ultimate Overload: 200%
Allowable Side Load: 50%
Environmental Protection: IP65
Cable Length: 1 Meter

Key Applications

Hanging Scales
Crane Scales
Tank & Hopper Weighing
Force Measurement
Tension & Compression Testing
Line Tension Measurement
Process Automation
Food & Pharmaceutical Industries
Robotics & Industrial Automation

Frequently Asked Questions (FAQs)

1 What is a Miniature S Beam Load Cell?

It is a compact load cell designed to measure both tension and compression forces using an S-shaped body.

2 Why is it called S Beam?

Because of its S shaped design that allows force measurement in both pulling and pushing directions.

3 Can it measure both tension and compression?

Yes. It is a universal type load cell suitable for both applications.

4 What does 2.0 mV/V mean?

At full rated load, the sensor produces 2 millivolts output per volt of excitation supply.

5 Is it suitable for harsh environments?

Yes. Stainless Steel 17-4 PH construction and IP65 protection make it suitable for industrial use.

6 What industries use this load cell?

Automation & robotics
Food & pharma industries
Material testing machines
Crane & hanging scales
Industrial process control

7 What is the advantage of miniature design?

Compact size
Easy installation
Ideal for limited space applications
Suitable for precision low-capacity measurements

8 What is FSO?

FSO means Full Scale Output the maximum rated output at full load.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'S Beam S Type Load Cell' category

S Type Aluminum Low Capacity Load Cell Price : 3500.0 INR/Number Minimum Order Quantity : 1 Accuracy : 0.2 % FSO % Type : STRAIN GAGE BASED BENDING BEAM S TYPE LOAD CELL Storage Temperature : 0 C to 60 C Celsius (oC) Operating Voltage : 5 10 VDC recommended, 15 VDC maximum Volt (V) Output : Analog Sensor Compensated Temperature : 10 C to 60 C Celsius (oC) Theory : Resistance Sensor Operating Temperature : 0 C to 60 C Celsius (oC) Output Voltage : 1.5 2.0 mV/V Volt (V) Resistance : Input resistance: 375 , Output resistance: 350 Usage : Lowcapacity, precise force measurement in compact systems Capacity : 1 to 10 Kg Power : 10 VDC Volt (v) Operate Method : Tensile and compressive force applied to Sbeam causes strain; strain gauges convert it into electrical signal Voltage : 5 VDC / 10 VDC (recommended), 15 VDC (maximum) Volt (v) Weight : 500 Grams (g) Product Type : SBeam Load Cell Classification : Force sensor (tension & compression) Material : Aluminium Alloy Application : Handheld force gauges , Medical instruments , Controlled feed systems, Test equipment Thread tension control in textile industry Color : Silver

Send Inquiry

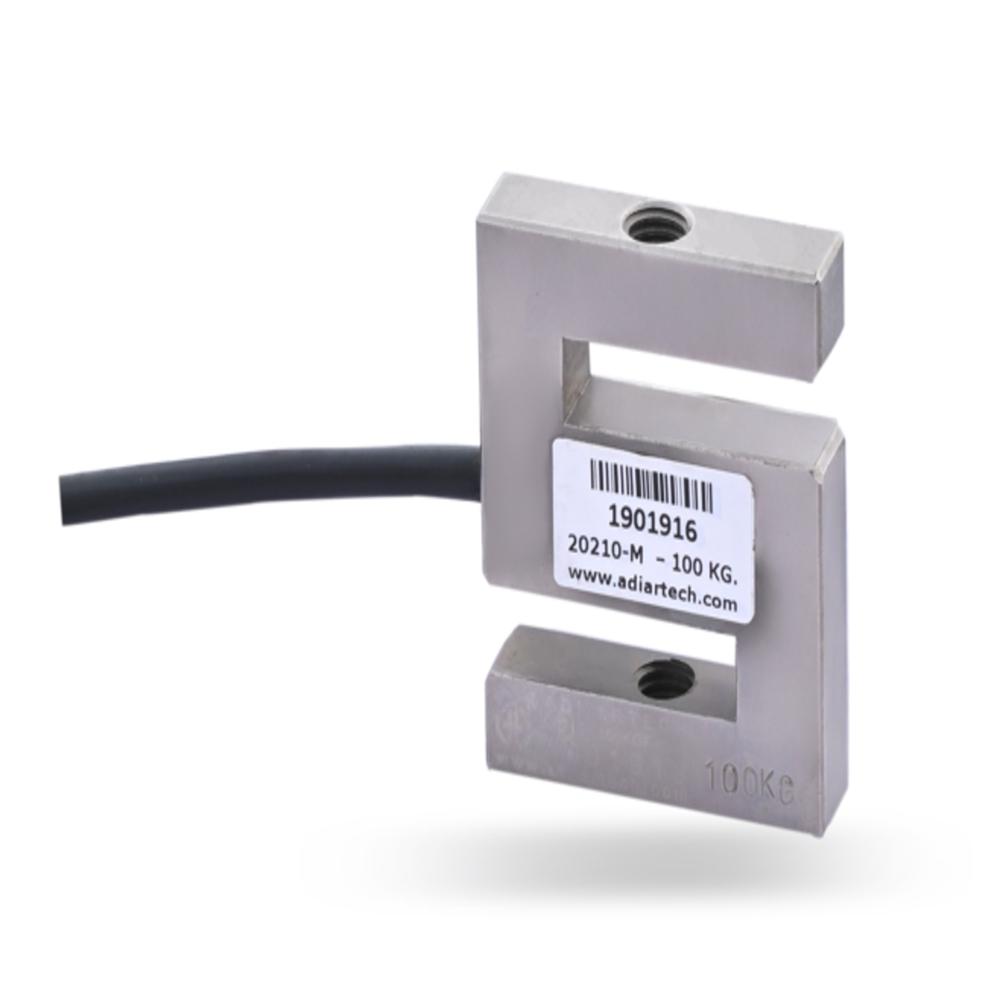

20210-MINI S Beam Load Cell Price : 7500.0 INR/Number Minimum Order Quantity : 1 Accuracy : 0.5% FSO % Type : Miniature S Beam Load Cell Storage Temperature : 30 C to +80 C Celsius (oC) Operating Voltage : 10 VDC (Excitation Voltage) Volt (V) Output : Analog Sensor Compensated Temperature : 10 C to +40 C Celsius (oC) Theory : Resistance Sensor Operating Temperature : 20 C to +70 C Celsius (oC) Output Voltage : 2.0 mV/V Volt (V) Resistance : Input Resistance: 350 Ohms, Output Resistance: 350 Ohms Usage : Force measurement in lightduty and portable applications Capacity : 100 Kg Power : 10 VDC Volt (v) Operate Method : Strain gauge based force measurement for tension and compression loads Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Weight : 500(APPROX) Grams (g) Product Type : SBeam Load Cell / Force Sensor Classification : Strain Gauge Based Load Cell (Tension & Compression) Material : Electroless Nickel Plated Steel Alloy Application : Handheld force gauges, Medical instrumentation , Controlled feed systems , Test equipment, Thread tension control (textile industry) Hanging scales Color : Silver

Send Inquiry

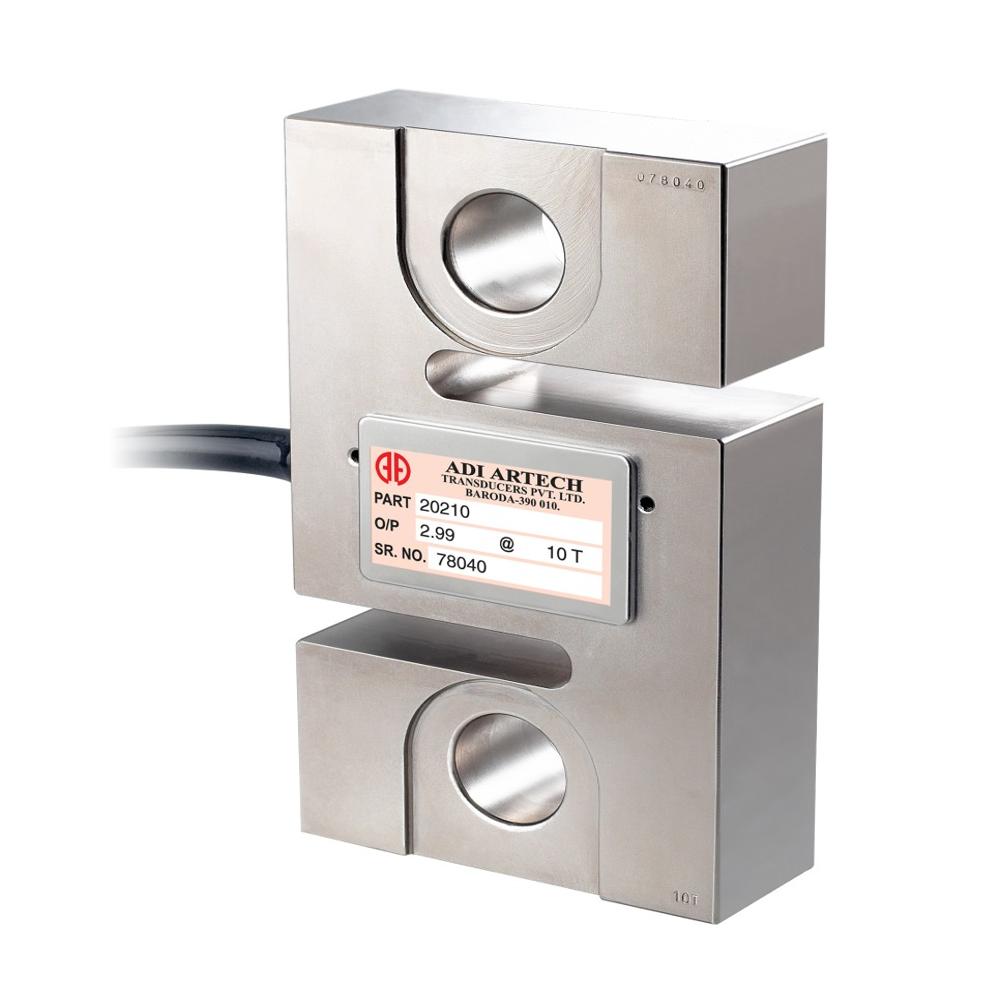

S type Bending Beam Load Cell with Shackle mounting Price : 7500.0 INR/Number Minimum Order Quantity : 1 Accuracy : 0.025% FSO % Type : STRAIN GAGE BASED S SHAPPED BENDING BEAM LOAD CELL Storage Temperature : 060 Celsius (oC) Operating Voltage : 510 Volt (V) Output : Analog Sensor Compensated Temperature : 1050 Celsius (oC) Theory : Resistance Sensor Operating Temperature : 050 Celsius (oC) Output Voltage : 3.0 mV/V Volt (V) Resistance : Input Resistance: 392 15 Ohms, Output Resistance: 350 3 Ohms Usage : Tension Measurement, Force Measurement ,Hanging Type Weighing Capacity : 1.5 Tf to 20 Tf Ton Power : 10 VDC Volt (v) Operate Method : Strain Gauge Based Measurement (Beam Type Tension Loading) Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Weight : 2.5 KG(APPROX) Kilograms (kg) Product Type : S BEAM LOAD CELL Classification : Precision Tension Type Beam Load Cell (Tension / Compression) Material : Electroless Nickel Plated High Alloy Tool Steel Application : Conversion of Mechanical Scale to Electronic, Tank, Hopper & Bag Weighing , Tension & Compression Dynamometer , Hanging & Crane Scale, Industrial Automation, Line Tension Measurement, Process & Machine Automation, Robotics
