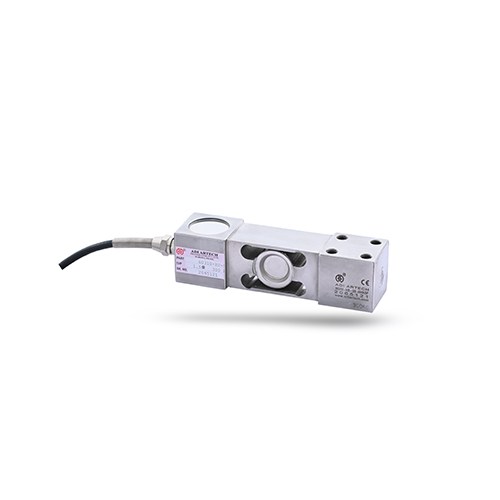

Single Point Bending Beam Load Cells

Get a Price/Quote

Product Details:

Resistance 350 (Input/Output)
Output Analog Sensor
Theory Strain Gauge Principle
Type Single Point Bending Beam Load Cell
Accuracy 0.02% F.S.
Operating Voltage 5V DC (Excitation)
Output Voltage 2.0 0.1mV/V
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Single Point Bending Beam Load Cells Price And Quantity

Minimum Order Quantity 1 Piece

Single Point Bending Beam Load Cells Product Specifications

Storage Temperature -20C to +60C
Operating Voltage 5V DC (Excitation)
Output Analog Sensor
Compensated Temperature -10C to +40C
Accuracy 0.02% F.S.
Output Voltage 2.0 0.1mV/V
Operating Temperature -10C to +40C
Resistance 350 (Input/Output)
Type Single Point Bending Beam Load Cell
Theory Strain Gauge Principle

Single Point Bending Beam Load Cells Trade Information

Supply Ability 100 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Eastern Europe, Western Europe, Middle East, Asia, Africa
Main Domestic Market All India

Product Description

Single Point Bending Beam Load Cells

Empowered by a team of highly skilled professionals, we are engaged in presenting premium quality Single Point Load Cells. These load cells are applicable in various industries such as retail scales, dynamic weighing machinery, industrial bench and floor scales and others. Our offered load cells are manufactured by making use of utmost quality tool steel and modern manufacturing technology at our production unit. These Single Point Load Cells are offered to the clients at reasonable rates.

Features:

Rigid construction
Optimum strength
Durability
Easy operations

SINGLE POINT LOAD CELL

TYPE	CAPACITY	PAN SIZE	MATERIAL	ENVIRONMENT CLASS
60310	75 to 400 KGF.	600 X 600 MM.	TOOL STEEL	IP 65
60410	100 to 1500 KGF.	750 X 750 MM.	TOOL STEEL	IP 65
60510	1.5 to 120 KGF.	400 X 400 MM.	ALUMINUM	IP 65
60710	3 to 60 KGF.	300 X 300 MM.	ALUMINUM	IP 65
60810	500 to 3000 KGF.	1000 X 1000 MM.	TOOL STEEL	IP 65

APPLICATION

TYPE	APPLICATION
60310	SMALL SIZED PLATFORM SCALE, CHECK WEIGHERS, BAG WEIGHING
60410	MEDIUM SIZED PLATFORM SCALE, BAG WEIGHING, HOPPER WEIGHING
60510	CHECK WEIGHER, BAGGING MACHINES, BENCH, COUNTING & POSTAL SCALE.
60710	CHECK WEIGHER BENCH, COUNTING & POSTAL SCALE.
60810	LARGE PLATFORM SCALE, STEEL WEIGHERS.

Broad Capacity and Robust Construction

This load cell covers a wide measurement range from 10kg to 200kg, ensuring flexibility for various industrial and commercial applications. The aluminum alloy body enhances both durability and corrosion resistance, while the 2-meter cable allows adaptable installation. Its IP65 protection class makes it suitable for dusty or moist environments, supporting longevity and consistent performance in challenging conditions.

High Precision and Reliable Output

Engineered for accuracy, the single point bending beam load cell delivers outstanding performance: 0.02% F.S. in accuracy, creep, and hysteresis, with non-linearity at barely 0.017% F.S. The analog output2.0 0.1mV/V at 5V DC excitationdelivers clear signals for digital converters and controllers. This makes the sensor ideal for high-precision applications such as industrial weighing platforms and checkweighers.

Versatility and Local Support in India

Whether you are a dealer, distributor, exporter, manufacturer, producer, supplier, trader, or wholesaler, this load cell fits a diverse range of weighing requirements. Available across India, it comes with strong local support and expert consultation to help with product selection, installation, and maintenance, ensuring maximum operational value in various industrial settings.

FAQs of Single Point Bending Beam Load Cells:

Q: How is the single point bending beam load cell typically installed and used?

A: The load cell should be mounted securely to a rigid platform or structure at one end while the other end bears the load to be measured. It is commonly used in platform scales, checkweighers, and industrial measurement systems, offering straightforward integration due to its single-point design.

Q: What are the main benefits of using aluminum alloy for this load cell?

A: Aluminum alloy provides excellent durability, lightweight construction, and corrosion resistance. This ensures reliable performance in demanding industrial environments while maintaining high measurement accuracy and minimizing long-term degradation.

Q: When should you consider the IP65 protection class for a load cell?

A: IP65 protection is ideal when your application faces exposure to dust, moisture, or low-pressure water jets. This ensures the load cells internal components stay protected, making it suitable for factories, warehouses, and outdoor environments that require robust monitoring equipment.

Q: Where can this load cell be sourced in India?

A: This single point bending beam load cell can be acquired through a network of authorized dealers, distributors, exporters, manufacturers, suppliers, and wholesalers across India. Local sellers offer product consultation, support, and bulk supply options for a variety of industries.

Q: What process does the load cell use to measure force or weight?

A: The load cell operates on the strain gauge principle. When a force or load is applied, the internal strain gauges deform proportionally, changing their electrical resistance and producing a minute voltage change, which is then measured as weight or force by compatible instrumentation.

Q: How does the load cell handle overload conditions?

A: This load cell features a safe overload capacity of 120% of its rated capacity. This means it can tolerate brief overloads without sustaining permanent damage or loss of accuracy, increasing reliability in unpredictable load scenarios.

Q: What accuracy can be expected from this load cell in industrial applications?

A: The load cell delivers high precision, with overall accuracy specified at 0.02% of full scale. This ensures extremely reliable readings for applications where consistency and measurement integrity are critical, such as automated weighing and quality control systems.
