Single Point Off-Center Load Cell

• Accuracy
• 0.025 % FSO %

• Application
• Jewelery Scale

• Capacity
• 0.1-2000 Kg

• Classification
• Miniature Load cell

• Color
• Aluminium

• Compensated Temperature
• 10 C to 60 C Celsius (oC)

• Dimension (L*W*H)
• 109* 12 *40 Millimeter (mm)

• Material
• Aluminium Alloy

• Operate Method
• oad measurement using strain gauges on bending beam principle

• Operating Temperature
• 10 C to 60 C Celsius (oC)

• Operating Voltage
• 5V DC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mV/V Volt (V)

• Power
• 5 VDC Volt (v)

• Product Type
• Single Point

• Resistance
• Input resistance: 420 20 , Output resistance: 350 10

• Storage Temperature
• 10 C to 60 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Load Cell

• Usage
• Bagging Machine

• Voltage
• 1.6 mV/V Milliampere (mA)

• Weight
• 500(APPROX.) Grams (g)

• Accuracy
• 0.025 %

• Application
• Check Weighers, Bagging Machines, Bench Scales ,Counting Scales,, Postal & Retail Scales

• Capacity
• 1.5, 3, 5, 10, 15, 20, 30, 50, 100, 120 Kg

• Classification
• Industrial / Commercial Weighing Load Cell, IP65 Protection

• Compensated Temperature
• 10-50 Celsius (oC)

• Dimension (L*W*H)
• 149*40*25 Millimeter (mm)

• Material
• Anodized Aluminum Alloy

• Operate Method
• Bending beam load measurement with single-point sensing and low eccentric load sensitivity

• Operating Temperature
• 0-50 Celsius (oC)

• Operating Voltage
• 5-10 Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mv Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Single Point Table Top Load Cell

• Resistance
• Input Resistance: 420 15 , Output Resistance: 350 3

• Storage Temperature
• 0-60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• STRAIN GAGE BASED BENDING BEAM LOAD CELL

• Usage
• Accurate weight measurement for small to medium capacity platform and tabletop scales

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 750 Grams (g)

• Accuracy
• 0.025% FSO %

• Application
• Small-size platform scales , Check weighers , Bag weighers

• Capacity
• 15,22.5,45,90 Kg

• Classification
• Strain-gauge based, low-profile single-point load cell

• Color
• Silver

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Dimension (L*W*H)
• 153*25.4*76.2 Millimeter (mm)

• Material
• Electroless nickel plated tool steel

• Operate Method
• Converts applied load into an electrical signal using strain gauges

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC nominal, up to 15 VDC maximum Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V (Nominal output) Volt (V)

• Power
• Electrically excited sensor Volt (v)

• Product Type

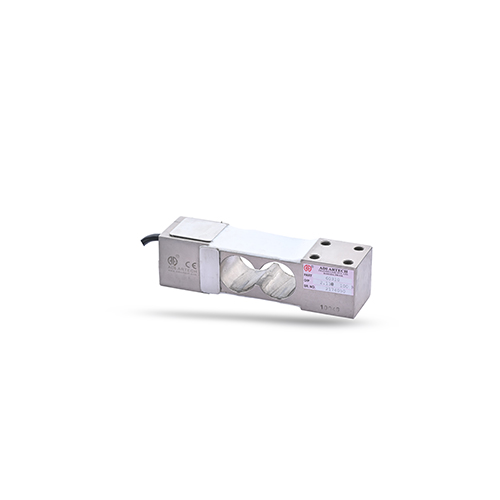

• Single Point Platform Load Cell

• Resistance
• Input resistance: 390 15 Output resistance: 350 5

• Theory
• Resistance Sensor

• Type
• Single-point load cell

• Usage
• accurate weighing in small, economical platform scales with low-profile design

• Voltage
• Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 2 kg (Approx.) Kilograms (kg)

• Accuracy
• 0.025% FSO %

• Application
• Bench scales, Counting scales, Postal scales, Check weighers

• Capacity
• 3, 6, 10, 15, 20, 30, 40, 60 Kg

• Classification
• IP65 Protection Class

• Compensated Temperature
• 0 C to 60 C Celsius (oC)

• Material
• Aluminum Alloy

• Operate Method
• Bending Beam Type (Single Point Technology)

• Operating Temperature
• 0 C to 60 C Celsius (oC)

• Operating Voltage
• 5-12V DC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type

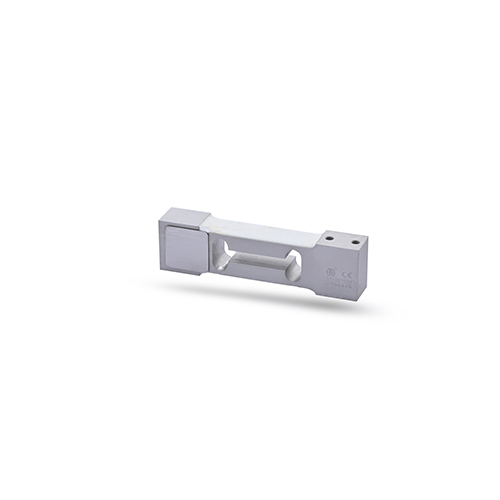

• Single Point Table Top Load Cell

• Resistance
• Input Resistance: 400 20 Ohms , Output Resistance: 350 10 Ohms

• Storage Temperature
• 0 C to 60 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Single Point Load Cell

• Usage
• Precision table top weighing

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 750 Grams (g)

• Accuracy
• 0.025% FSO %

• Application
• Steel Weigher

• Capacity
• 500, 750, 1000, 1500, 2000, 3000 Kg

• Classification
• Single Point

• Color
• Silver

• Compensated Temperature
• 0 to 60 Celsius (oC)

• Dimension (L*W*H)
• 200+75+75 Millimeter (mm)

• Material
• Tool Steel

• Operate Method
• ending Beam Type (Strain Gauge Technology)

• Operating Temperature
• 0 TO 60 Celsius (oC)

• Operating Voltage
• 10 VDC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2mV/v Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Single Point Load Cell

• Resistance
• Input Resistance: 390 15 Ohms, Output Resistance: 350 3 Ohms

• Storage Temperature
• 0 to 60 Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Low Profile Bending Beam Load Cell

• Usage
• Large Size Platform Scales

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 2 Kilograms (kg)

• Accuracy
• 0.025% FSO %

• Application
• Table Top Scales, Fisheries Scales, Check Weighers , Bagging Machines ,Chemical & Pharmaceutical Weighing

• Capacity
• 25,50,75,100,300 Kg

• Classification
• Industrial / Commercial Load Cell, IP65 Environmental Protection

• Color
• Silver

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Dimension (L*W*H)
• 140*40*32 Millimeter (mm)

• Material
• Stainless Steel 17-4 PH

• Operate Method
• Single-point off-center load measurement using strain gauges

• Operating Temperature
• 0 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC (Max 15 VDC) Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type

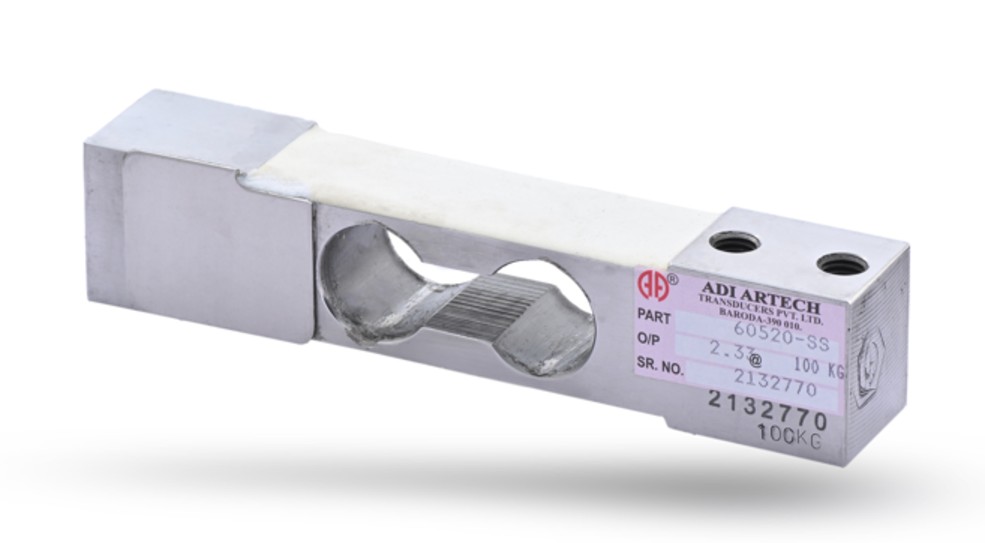

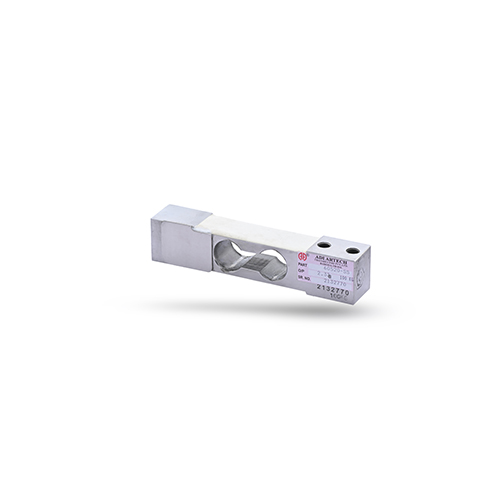

• Table Top Load Cell (Single Point, Off-Center Load Cell)

• Resistance
• Input Resistance: 390 20 , Output Resistance: 350 10

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Single Point Table Top Load Cell

• Usage
• Accurate weight measurement in small-capacity tabletop and precision weighing systems

• Voltage
• 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 1 KG(APPROX) Kilograms (kg)

• Accuracy
• 0.05% FS

• Application
• Chemical Industries

• Cable Length
• 5 Meters Standard

• Capacity
• 30,75,100,150,200,300,400 Kg

• Classification
• Strain Gauge based, low-profile bending beam load cell

• Color
• Silver

• Compensated Temperature
• 0 C to 60 C Celsius (oC)

• Dimension (L*W*H)
• 150*40*40 Millimeter (mm)

• Features
• Low Profile, High Accuracy, Robust Construction

• Function
• Measuring Compression and Tension Forces

• IP Rating
• IP67

• Input
• Rated Excitation: 10V DC

• Interface
• Wired

• Material
• Nickel plated tool steel, stainless steel

• Measurement Range
• Various (1 Ton, 2 Ton, 5 Ton, 10 Ton options available)

• Mounting Type
• Flanged Mount

• Operate Method
• Operates on strain gauge principle, converting applied load/force into an electrical signal (mV/V output) 60310

• Operating Temperature
• -20 C to +70 C

• Operating Voltage
• 10 VDC (Maximum 15 VDC) Volt (V)

• Output
• Analog mV/V

• Output Voltage
• 2.0 mV/V (Nominal Output) Volt (V)

• Power
• 10 VDC Volt (v)

• Power Consumption
• Low

• Product Type
• Single-Point Platform Load Cell

• Resistance
• Input resistance: 390 15 Output resistance: 350 3

• Resolution
• High

• Response Time
• <1 ms

• Sensitivity
• 2.0 mV/V

• Sensor Type
• Strain Gauge Type

• Signal Type
• Other

• Storage Temperature
• 0 C to 60 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Single-point, low-profile bending beam load cell

• Usage
• Check weigher

• Voltage
• Excitatiofrom given pdf filr i need below point; Product type: usage: Application: Classification: Power: Voltage: Mterial: operate method: Accuracy: Type: Theory: Output: operating temperature: compensated temperature: Operating voltage: storage temoerature: output voltage: resistance:n Voltage: 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 1 kg(Approx) Kilograms (kg)

• Wireless
• No

• Accuracy
• 0.05% FS

• Application
• Weighing Systems, Material Testing Machines, Press Machine Monitoring

• Cable Length
• 5 Meters Standard

• Capacity
• 100,150,200,300,500,750,1000,1500 Kg

• Classification
• Strain-gauge based, low-profile bending beam load cell

• Color
• silver

• Compensated Temperature
• 0 C to 60 C Celsius (oC)

• Dimension (L*W*H)
• 200*40*40 Millimeter (mm)

• Features
• Low Profile, High Accuracy, Robust Construction

• Function
• Measuring Compression and Tension Forces

• IP Rating
• IP67

• Input
• Rated Excitation: 10V DC

• Interface
• Wired

• Material
• Electroless nickel-plated tool steel,Stainless steel 17-4 PH

• Measurement Range
• Various (1 Ton, 2 Ton, 5 Ton, 10 Ton options available)

• Mounting Type
• Flanged Mount

• Operate Method
• Converts applied load into an electrical signal using strain gauges

• Operating Temperature
• -20 C to +70 C

• Operating Voltage
• 10 VDC nominal, 15 VDC maximum Volt (V)

• Output
• Analog mV/V

• Output Voltage
• 2.0 mV/V (Nominal output) Volt (V)

• Power
• Electrically excited sensor Volt (v)

• Power Consumption
• Low

• Product Type
• Single-Point Platform Load Cell

• Resistance
• Input resistance: 390 15 Output resistance: 350 3

• Resolution
• High

• Response Time
• <1 ms

• Sensitivity
• 2.0 mV/V

• Sensor Type
• Strain Gauge Type

• Signal Type
• Other

• Storage Temperature
• 0 C to 60 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• Single-point bending beam load cell

• Usage
• accurate weight measurement

• Voltage
• Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 1.5 Kg(Approx.) Kilograms (kg)

• Wireless
• No

• Accuracy
• 0.025% FSO %

• Application
• Process automation Check weighers Bagging machines Dairy, marine, chemical, pharmaceutical, and process weighing systems

• Capacity
• 30,75,100,150,200,300,400 Kg

• Classification
• Strain-gauge based, single-point load cell for platform scales

• Color
• Silver

• Compensated Temperature
• 0 C to 50 C Celsius (oC)

• Dimension (L*W*H)
• 150*40*40 Millimeter (mm)

• Material
• Stainless Steel 17-4 PH

• Operate Method
• Measures load by converting mechanical strain into an electrical signal using strain gauges .

• Operating Temperature
• 10 C to 50 C Celsius (oC)

• Operating Voltage
• 10 VDC nominal, 15 VDC maximum Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V (Nominal output) Volt (V)

• Power
• Electrically excited senso Volt (v)

• Product Type
• Single Point Platform Load Cell

• Resistance
• Input resistance: 390 20 Output resistance: 350 10

• Storage Temperature
• 0 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type

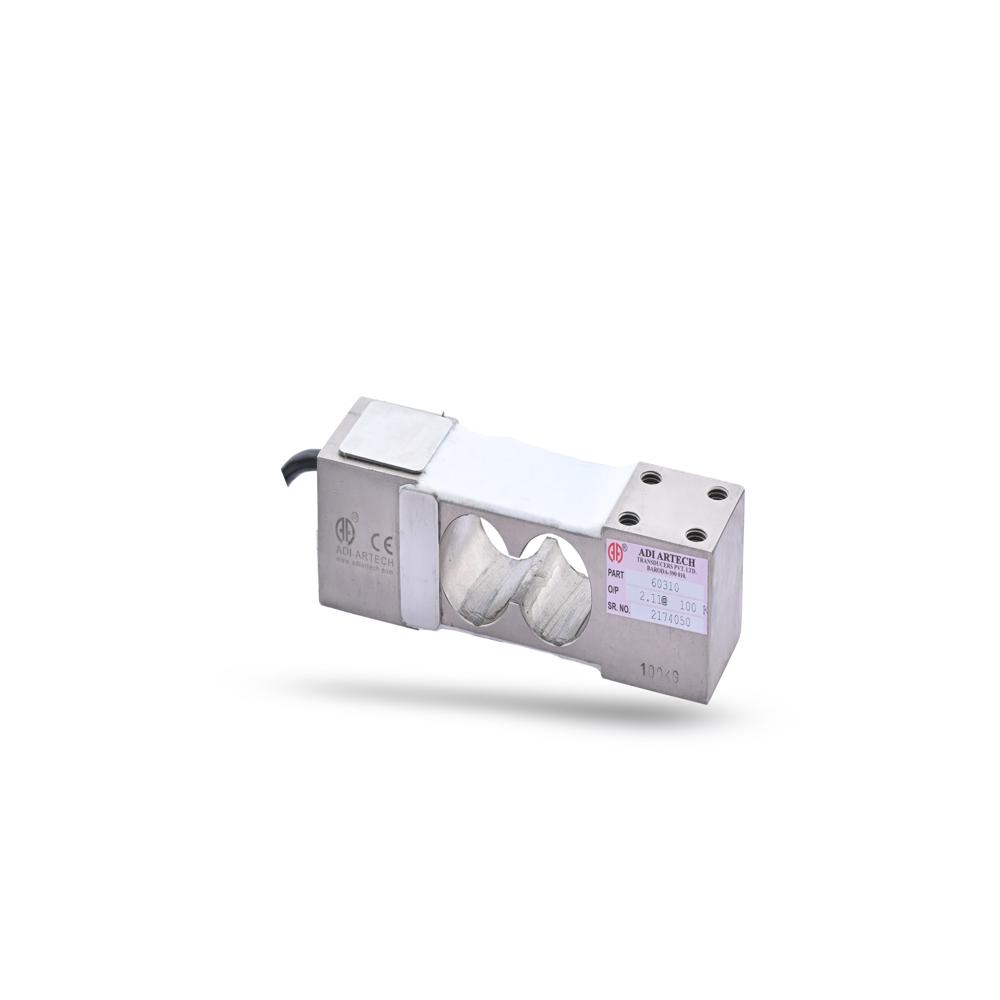

• Small Platform SS Load Cell

• Usage
• accurate weighing of small platform loads,

• Voltage
• Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v)

• Weight
• 1.5 kg(Approx.) Kilograms (kg)

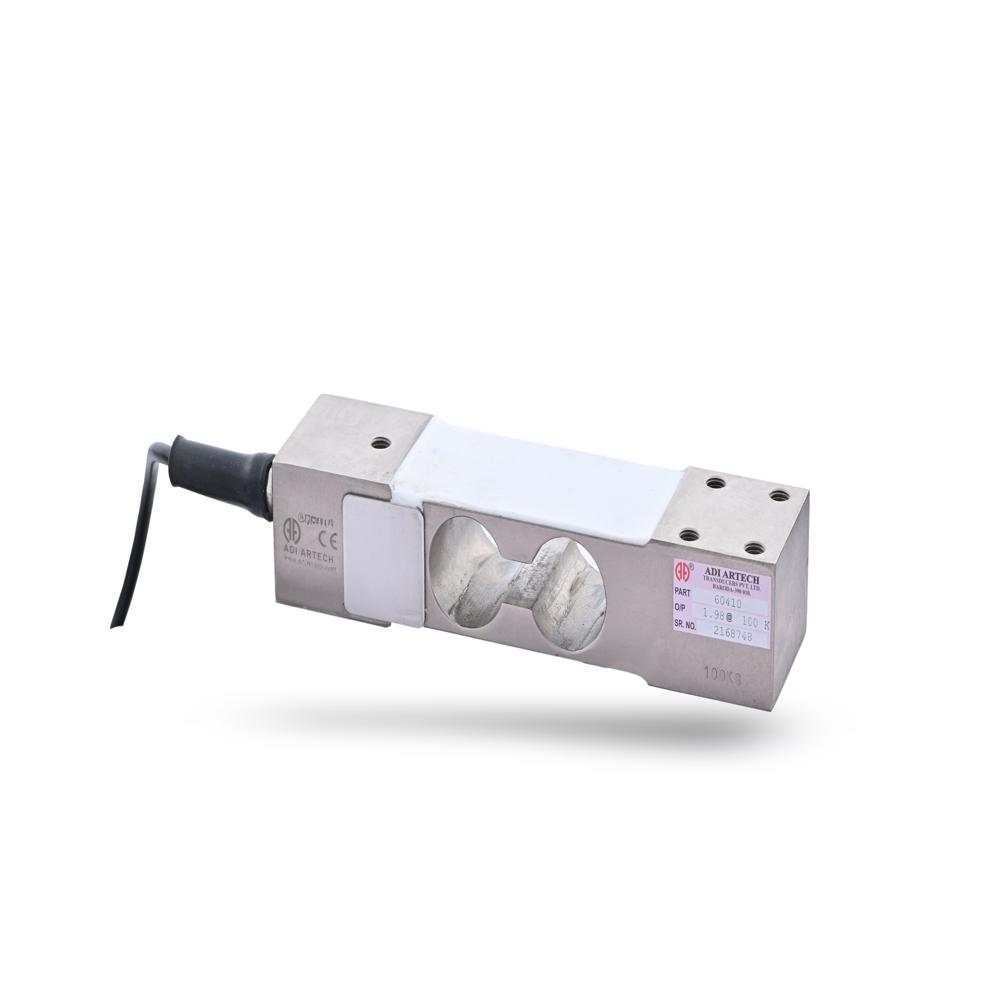

• Accuracy
• 0.025 % FSO %

• Application
• Medium Size Platform Scales, Bag Weighing, Hopper Weighing

• Capacity
• 100,150,200,300,500,750,1000,1500 Kg

• Classification
• Strain gauge based, low profile bending beam load cell

• Color
• Silver

• Compensated Temperature
• 10 C to 50 C Celsius (oC)

• Dimension (L*W*H)
• 200*50*40 Millimeter (mm)

• Material
• Stainless Steel 17-4 PH

• Operate Method
• Strain gauge principle measuring load through bending beam deformation

• Operating Temperature
• 0 C to 60 C Celsius (oC)

• Operating Voltage
• 5-15V DC Volt (V)

• Output
• Analog Sensor

• Output Voltage
• 2.0 mV/V Volt (V)

• Power
• 10 VDC Volt (v)

• Product Type
• Single Point Platform Load Cell

• Resistance
• Input resistance: 390 15 , Output resistance: 350 5

• Storage Temperature
• 10 C to 50 C Celsius (oC)

• Theory
• Resistance Sensor

• Type
• SS Load Cell for Medium Platform Scale

• Usage
• Precision weighing of medium-size loads in industrial environments

• Voltage
• Max. 15 VDC (Suggested 5 VDC / 10 VDC) Volt (v)

• Weight
• 3 KG(Approx.) Kilograms (kg)
