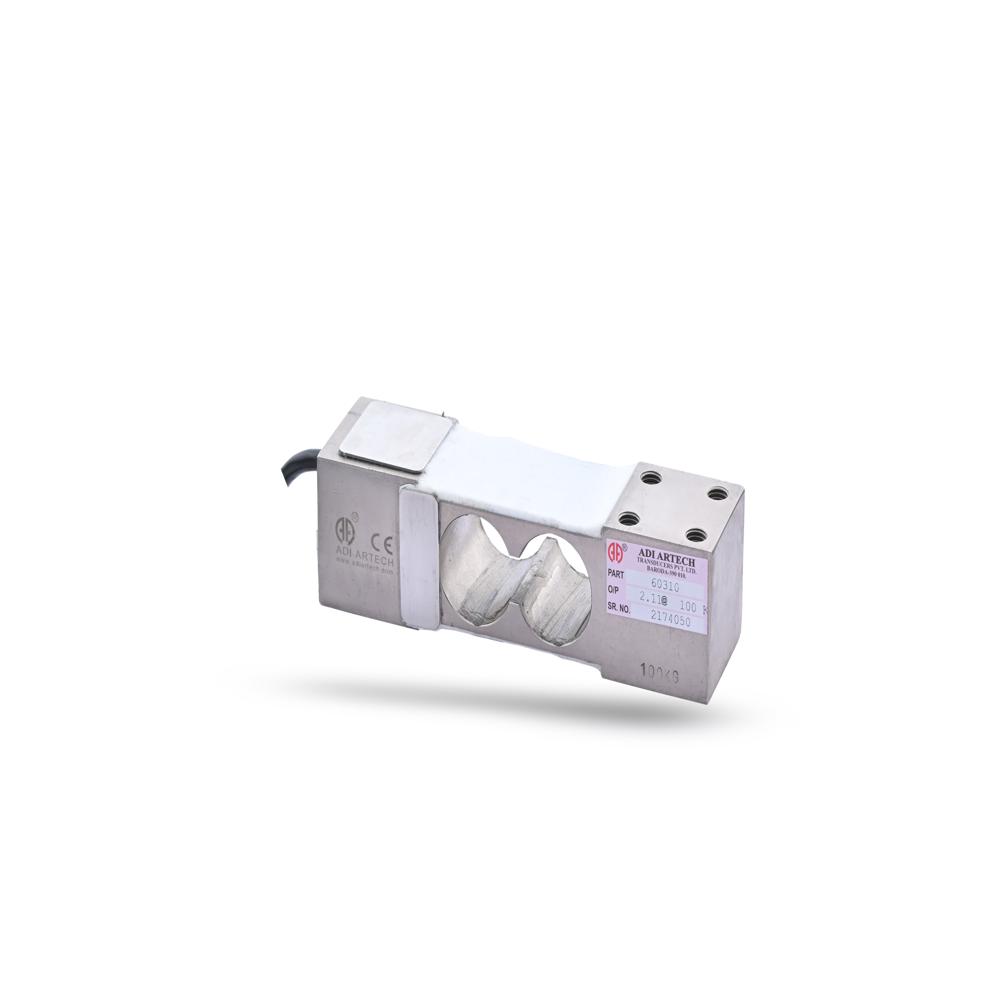

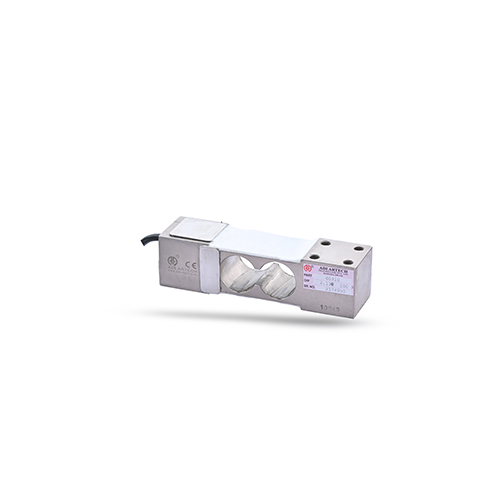

Small Platform SS Load Cell

Name: Small Platform SS Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 6000.0 INR
Availability: InStock

Price 6000.0 INR/ Number

Get a Price/Quote

Small Platform SS Load Cell Specification

Product Type
Single Point Platform Load Cell

Usage
accurate weighing of small platform loads,

Resistance
Input resistance: 390 20 Output resistance: 350 10

Dimension (L*W*H)
150*40*40 Millimeter (mm)

Voltage
Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v)

Color
Silver

Capacity
30,75,100,150,200,300,400 Kg

Power
Electrically excited senso Volt (v)

Classification
Strain-gauge based, single-point load cell for platform scales

Application
Process automation Check weighers Bagging machines Dairy, marine, chemical, pharmaceutical, and process weighing systems

Material
Stainless Steel 17-4 PH

Weight
1.5 kg(Approx.) Kilograms (kg)

Operate Method
Measures load by converting mechanical strain into an electrical signal using strain gauges .

Output
Analog Sensor

Theory
Resistance Sensor

Type
Small Platform SS Load Cell

Accuracy
0.025% FSO %

Operating Voltage
10 VDC nominal, 15 VDC maximum Volt (V)

Output Voltage
2.0 mV/V (Nominal output) Volt (V)

Compensated Temperature
0 C to 50 C Celsius (oC)

Storage Temperature
0 C to 50 C Celsius (oC)

Operating Temperature
10 C to 50 C Celsius (oC)

Non-linearity
0.02% FS

Safe Overload
150% FS

Load Direction
Compression

Protection Class
IP65

Repeatability
0.01% FS

Zero Balance
1% FS

Creep (30min)
0.03% FS

Application
Weighing Scales, Platform Scales, Counting Scales

Seal Type
Hermetically Sealed

Cable Length
2 meters

Capacity
10 kg to 100 kg

Hysteresis
0.02% FS

Ultimate Overload
200% FS

Material
Stainless Steel

Small Platform SS Load Cell Trade Information

Minimum Order Quantity
100 Number

FOB Port
VADODARA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
100 Per Week

Delivery Time
1 Week

Sample Available
No

Main Export Market(s)
Western Europe, Middle East, Africa, Asia, Australia, Eastern Europe

Main Domestic Market
All India

Certifications
OEM TEST CERTIFICATE

Small Platform SS Load Cell About

Champion your weighing tasks with the brilliant Small Platform SS Load Cell, meticulously designed to redeem precision in every measurement. Procure this magnificent solution in capacities from 10 kg to 100 kg, crafted from stainless steel and sealed hermetically to ensure robust IP65 protection. Safe overload is championed at 150% FS and ultimate overload at 200% FS, guaranteeing reliable performance in compression load direction. Suitable for platform, counting, and weighing scales, this new load cell delivers exceptional accuracy, repeatability, and linearity, making it the supreme choice for dealers, distributors, exporters, manufacturers, producers, suppliers, traders, and wholesalers across India.

Application Sites and Areas for Small Platform SS Load Cell

The Small Platform SS Load Cell excels in sites where precise weight measurement is critical, including commercial platform scales, industrial weighing machinery, and counting scales. With its robust stainless steel body and compression load direction, it operates efficiently in environments ranging from factories to warehouses. Its application media extends across solid goods, packaged materials, and batch processing, offering magnificent performance in quality control, inventory tracking, and logistics operations.

Certifications, Payment Terms, and Sample Policy

Transport services facilitate seamless delivery of the Small Platform SS Load Cell, ensuring products are handed over securely and efficiently to clients. Delivered with certifications confirming compliance and quality, it meets necessary standards for industrial weighing solutions. Payment terms are flexible, supporting various procurement needs. Sample policy options allow dealers and distributors to evaluate the unit prior to large-scale orders, supporting confident decisions and championing trust in the product.

FAQ's of Small Platform SS Load Cell:

Q: How do I install the Small Platform SS Load Cell on a weighing scale?

A: You can install the load cell by securely mounting it onto the platform, connecting the analog sensor cable, and configuring your indicator according to the manufacturer's specifications. A 2-meter cable simplifies integration.

Q: What applications benefit most from this load cell?

A: Magnificent for platform scales, counting scales, and industrial weighing systems, this load cell is ideal where high accuracy, repeatability, and robustness are required, especially in commercial and industrial environments.

Q: Where can I procure this Small Platform SS Load Cell in India?

A: It is available through a network of dealers, distributors, exporters, manufacturers, producers, suppliers, traders, and wholesalers across India.

Q: What is the process for redeeming a product sample?

A: You may contact your preferred supplier or distributor to request a sample. Sample policies vary, but most allow a unit for evaluation prior to bulk purchase.

Q: What protection features does the load cell have for harsh environments?

A: The load cell is hermetically sealed and rated IP65, offering reliable protection against dust and water ingress-making it champion for demanding working areas.

Q: When will my order be delivered after procurement?

A: Delivery timelines depend on stock availability and transport services, but orders are typically handed over within agreed schedules to ensure timely fulfillment.
