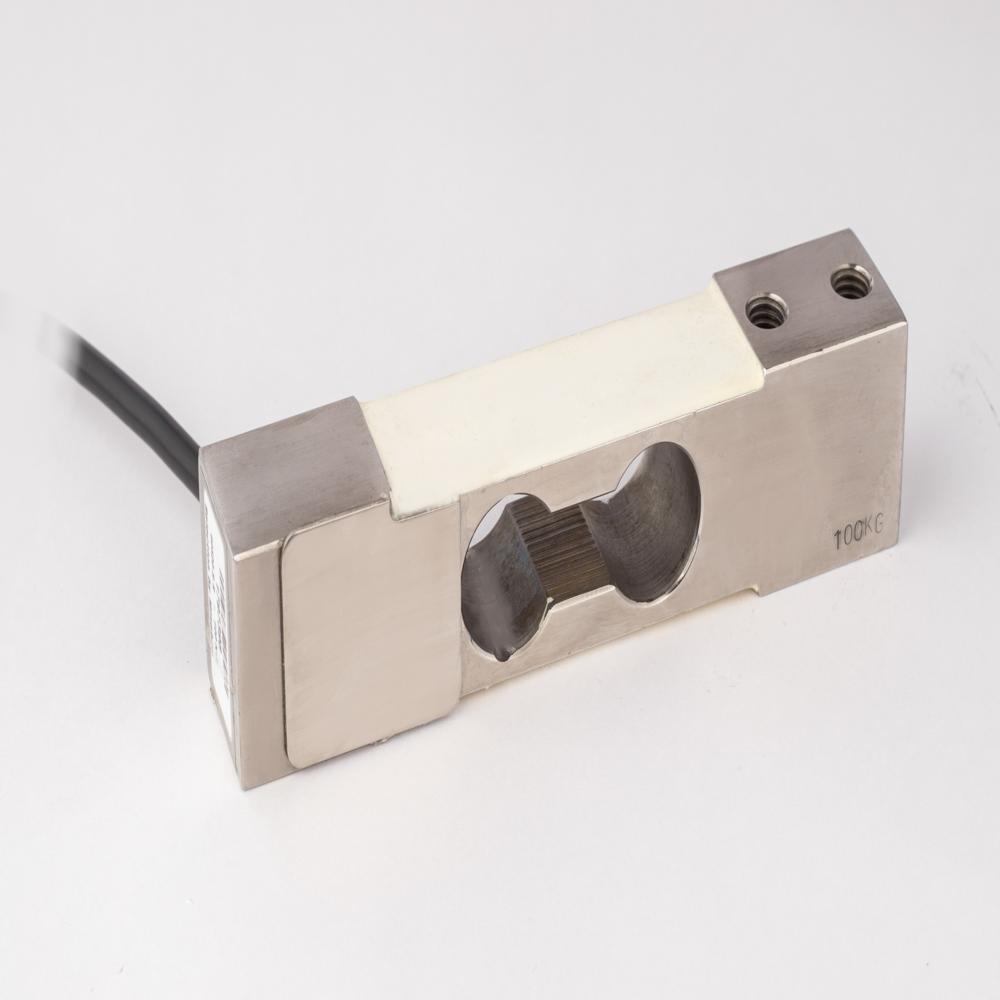

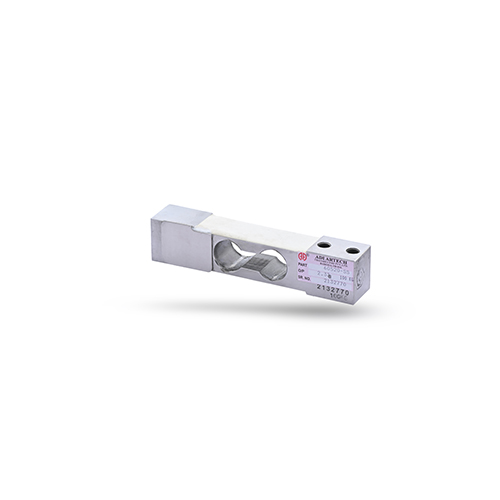

Table Top Load Cell

Name: Table Top Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.

6000.0 INR/Number

Get a Price/Quote

Product Details:

Dimension (L*W*H) 140*40*32 Millimeter (mm)
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Material Stainless Steel 17-4 PH
Weight 1 KG(APPROX) Kilograms (kg)
Resistance Input Resistance: 390 20 , Output Resistance: 350 10
Color Silver
Power 10 VDC Volt (v)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Table Top Load Cell Price And Quantity

Price 6000.0 INR/Number
Minimum Order Quantity 1 Number

Table Top Load Cell Product Specifications

Capacity 25,50,75,100,300 Kg
Operate Method Single-point off-center load measurement using strain gauges
Product Type Table Top Load Cell (Single Point, Off-Center Load Cell)
Type Single Point Table Top Load Cell
Classification Industrial / Commercial Load Cell, IP65 Environmental Protection
Application Table Top Scales, Fisheries Scales, Check Weighers , Bagging Machines ,Chemical & Pharmaceutical Weighing
Storage Temperature 10 C to 50 C Celsius (oC)
Usage Accurate weight measurement in small-capacity tabletop and precision weighing systems
Output Voltage 2.0 mV/V Volt (V)
Material Stainless Steel 17-4 PH
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Dimension (L*W*H) 140*40*32 Millimeter (mm)
Compensated Temperature 0 C to 50 C Celsius (oC)
Operating Voltage 10 VDC (Max 15 VDC) Volt (V)
Theory Resistance Sensor
Resistance Input Resistance: 390 20 , Output Resistance: 350 10
Accuracy 0.025% FSO %
Weight 1 KG(APPROX) Kilograms (kg)
Power 10 VDC Volt (v)
Operating Temperature 0 C to 50 C Celsius (oC)
Color Silver
Output Analog Sensor

Table Top Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 100 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia
Main Domestic Market All India
Certifications OEM TEST REPORT

Product Description

Table Top Load Cell

Model	:	60520-SS
Capacity	:	0-25Kgf. to 0-300Kgf.
Load Direction	:	Tension & Compression - Universal
Type	:	Table Top Load Cell

Industries

Weighing
Food & Dairy Industries
Bagging Machineries

Application

Bag Weighing Machine
Check Weighing
Counting Scale
Food Packaging
Table Top Weigh Scale

Description

This is single point table top load cell constructed from SS 17-4 ph stainless steel.
It is suitable for platter of 400 X 400 mm.

Features

60520 is supplied with top and bottom vover plates for gage area protection.
Can be used in corrossive and hygenic applications in chemical , food , pharmaseutical industries.

For further information , please contact us.
