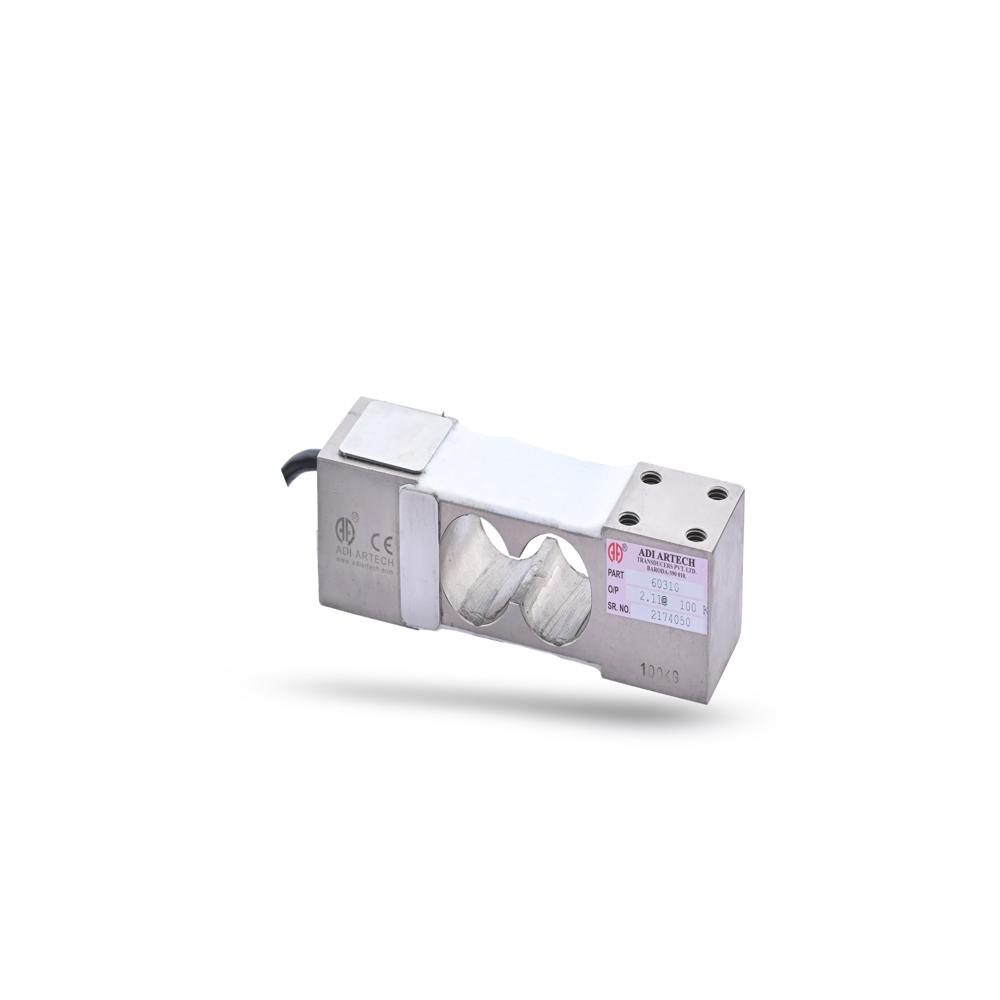

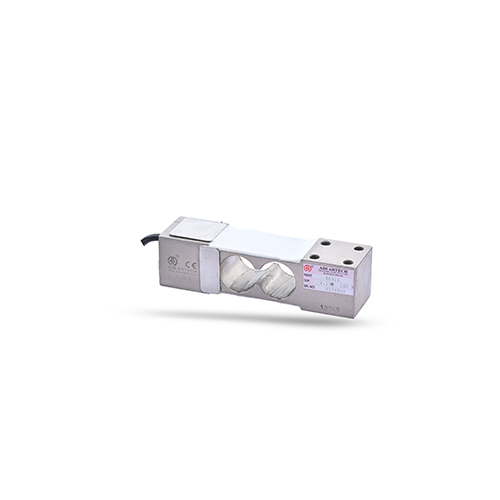

Small Platform Load Cell

Name: Small Platform Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.

2500.0 INR/Number

Get a Price/Quote

Product Details:

Material Nickel plated tool steel, stainless steel
Classification Strain Gauge based, low-profile bending beam load cell
Product Type Single-Point Platform Load Cell
Usage Check weigher
Voltage Excitatiofrom given pdf filr i need below point; Product type: usage: Application: Classification: Power: Voltage: Mterial: operate method: Accuracy: Type: Theory: Output: operating temperature: compensated temperature: Operating voltage: storage temoerature: output voltage: resistance:n Voltage: 10 VDC (Maximum 15 VDC) Volt (v)
Operate Method Operates on strain gauge principle, converting applied load/force into an electrical signal (mV/V output) 60310
Weight 1 kg(Approx) Kilograms (kg)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Small Platform Load Cell Price And Quantity

Price 2500.0 INR/Number
Minimum Order Quantity 1 Number

Small Platform Load Cell Product Specifications

Theory Resistance Sensor
Operating Temperature 10 C to 50 C Celsius (oC)
Output Analog Sensor
Application Chemical Industries
Capacity 30,75,100,150,200,300,400 Kg
Storage Temperature 0 C to 60 C Celsius (oC)
Accuracy 0.025% FSO %
Product Type Single-Point Platform Load Cell
Classification Strain Gauge based, low-profile bending beam load cell
Output Voltage 2.0 mV/V (Nominal Output) Volt (V)
Usage Check weigher
Compensated Temperature 0 C to 60 C Celsius (oC)
Material Nickel plated tool steel, stainless steel
Type Single-point, low-profile bending beam load cell
Resistance Input resistance: 390 15 Output resistance: 350 3
Power 10 VDC Volt (v)
Color Silver
Dimension (L*W*H) 150*40*40 Millimeter (mm)
Operating Voltage 10 VDC (Maximum 15 VDC) Volt (V)
Voltage Excitatiofrom given pdf filr i need below point; Product type: usage: Application: Classification: Power: Voltage: Mterial: operate method: Accuracy: Type: Theory: Output: operating temperature: compensated temperature: Operating voltage: storage temoerature: output voltage: resistance:n Voltage: 10 VDC (Maximum 15 VDC) Volt (v)
Operate Method Operates on strain gauge principle, converting applied load/force into an electrical signal (mV/V output) 60310
Weight 1 kg(Approx) Kilograms (kg)

Small Platform Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 100 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

Small Platform Load Cell

Capacity	:	0-30Kgf to 0-400Kgf
Load Direction	:	Tension & Compression - Universal
Type	:	Single Point Platform Load Cell ,Off Center Platform Load Cell ,Bending Beam Platform Load Cell

Industries

Weighing
Pharmaceutical
Food & Dairy Industries
Batch Weigh
Bagging Machineries

Application

Bag Weighing Machine
Bench Scale
Check Weighing
Conveyor Belt Weighing
Counting Scale
Platform Scale
Small Bagging Machines
Table Top Weigh Scale

Description

Strain Gage based low profile single point load cell.
Off center load compensated for 600x600 mm platter.
It is rugged and low profile

Features

Tool Steel construction for harsh application.
It is compact,light weight and economical.
IP 65 degree of protection class for environmental protection.

For further details , please contact us.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Single Point Off-Center Load Cell' category

Medium size Platform Load Cell Price : 3000.0 INR/Number Minimum Order Quantity : 1 Theory : Resistance Sensor Operating Temperature : 20 C to +70 C Output : Analog mV/V Application : Mediumsize platform scales, Bag weighing systems , Hopper weighing systems Capacity : 100,150,200,300,500,750,1000,1500 Kg Storage Temperature : 0 C to 60 C Celsius (oC) Product Type : SinglePoint Platform Load Cell Accuracy : 0.05% FS Classification : Straingauge based, lowprofile bending beam load cell Output Voltage : 2.0 mV/V (Nominal output) Volt (V) Usage : accurate weight measurement Compensated Temperature : 0 C to 60 C Celsius (oC) Material : Electroless nickelplated tool steel,Stainless steel 174 PH Type : Singlepoint bending beam load cell Power : Electrically excited sensor Volt (v) Resistance : Input resistance: 390 15 Output resistance: 350 3 Dimension (L*W*H) : 200*40*40 Millimeter (mm) Operating Voltage : 10 VDC nominal, 15 VDC maximum Volt (V) Voltage : Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v) Weight : 1.5 Kg(Approx.) Kilograms (kg) Operate Method : Converts applied load into an electrical signal using strain gauges Color : silver

Send Inquiry

SS LOAD CELL FOR MEDIUM PLATFORM SCALE Price : 6000.0 INR/Number Minimum Order Quantity : 1 Theory : Resistance Sensor Operating Temperature : 0 C to 60 C Celsius (oC) Output : Analog Sensor Application : Medium Size Platform Scales, Bag Weighing, Hopper Weighing Capacity : 100,150,200,300,500,750,1000,1500 Kg Storage Temperature : 10 C to 50 C Celsius (oC) Product Type : Single Point Platform Load Cell Accuracy : 0.025 % FSO % Classification : Strain gauge based, low profile bending beam load cell Output Voltage : 2.0 mV/V Volt (V) Usage : Precision weighing of mediumsize loads in industrial environments Compensated Temperature : 10 C to 50 C Celsius (oC) Material : Stainless Steel 174 PH Type : SS Load Cell for Medium Platform Scale Power : 10 VDC Volt (v) Resistance : Input resistance: 390 15 , Output resistance: 350 5 Dimension (L*W*H) : 200*50*40 Millimeter (mm) Operating Voltage : 515V DC Volt (V) Voltage : Max. 15 VDC (Suggested 5 VDC / 10 VDC) Volt (v) Weight : 3 KG(Approx.) Kilograms (kg) Operate Method : Strain gauge principle measuring load through bending beam deformation Color : Silver

Send Inquiry

Jewelry Scale Load Cell Price : 2500.0 INR/Number Minimum Order Quantity : 1 Theory : Resistance Sensor Operating Temperature : 10 C to 60 C Celsius (oC) Output : Analog Sensor Application : Jewelery Scale Capacity : 0.12000 Kg Storage Temperature : 10 C to 60 C Celsius (oC) Product Type : Single Point Accuracy : 0.025 % FSO % Classification : Miniature Load cell Output Voltage : 2mV/V Volt (V) Usage : Bagging Machine Compensated Temperature : 10 C to 60 C Celsius (oC) Material : Aluminium Alloy Type : Load Cell Power : 5 VDC Volt (v) Resistance : Input resistance: 420 20 , Output resistance: 350 10 Dimension (L*W*H) : 109* 12 *40 Millimeter (mm) Operating Voltage : 5V DC Volt (V) Voltage : 1.6 mV/V Milliampere (mA) Weight : 500(APPROX.) Grams (g) Operate Method : oad measurement using strain gauges on bending beam principle Color : Aluminium

Send Inquiry

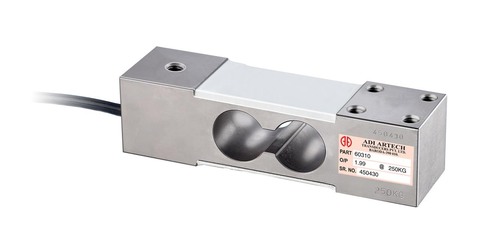

Small Platform SS Load Cell Price : 6000.0 INR/Number Minimum Order Quantity : 1 Theory : Resistance Sensor Operating Temperature : 10 C to 50 C Celsius (oC) Output : Analog Sensor Application : Process automation Check weighers Bagging machines Dairy, marine, chemical, pharmaceutical, and process weighing systems Capacity : 30,75,100,150,200,300,400 Kg Storage Temperature : 0 C to 50 C Celsius (oC) Product Type : Single Point Platform Load Cell Accuracy : 0.025% FSO % Classification : Straingauge based, singlepoint load cell for platform scales Output Voltage : 2.0 mV/V (Nominal output) Volt (V) Usage : accurate weighing of small platform loads, Compensated Temperature : 0 C to 50 C Celsius (oC) Material : Stainless Steel 174 PH Type : Small Platform SS Load Cell Power : Electrically excited senso Volt (v) Resistance : Input resistance: 390 20 Output resistance: 350 10 Dimension (L*W*H) : 150*40*40 Millimeter (mm) Operating Voltage : 10 VDC nominal, 15 VDC maximum Volt (V) Voltage : Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v) Weight : 1.5 kg(Approx.) Kilograms (kg) Operate Method : Measures load by converting mechanical strain into an electrical signal using strain gauges . Color : Silver
