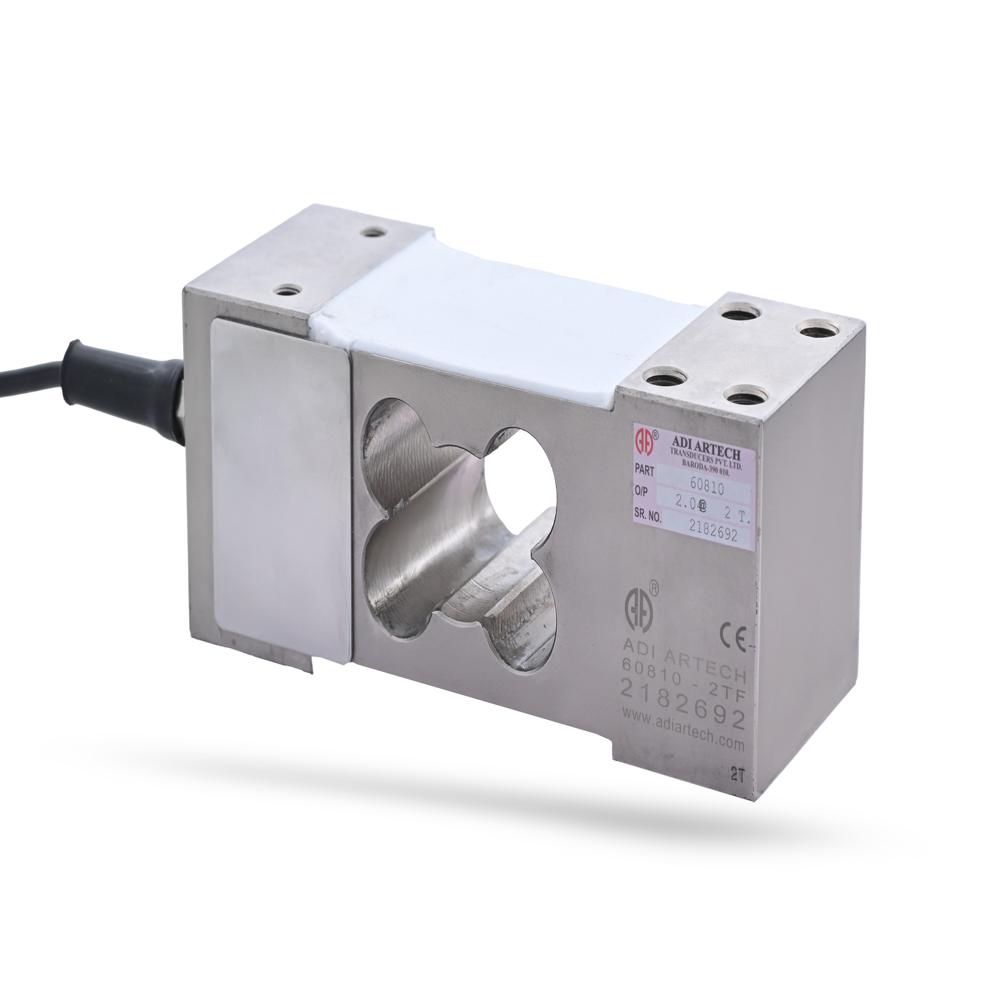

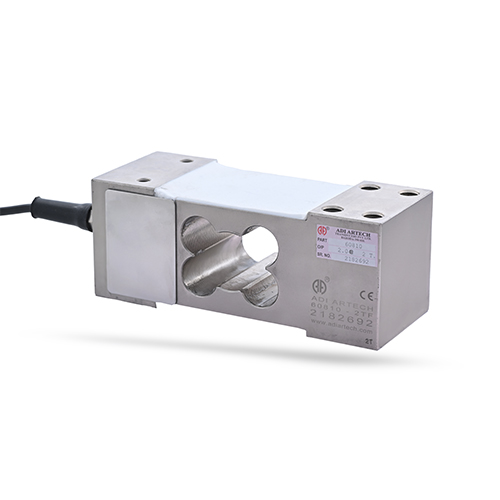

Large Platform Load Cell

4500.0 INR/Number

Get a Price/Quote

Product Details:

Classification Single Point
Color Silver
Power 10 VDC Volt (v)
Usage Large Size Platform Scales
Weight 2 Kilograms (kg)
Resistance Input Resistance: 390 15 Ohms, Output Resistance: 350 3 Ohms
Capacity 500, 750, 1000, 1500, 2000, 3000 Kg
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Large Platform Load Cell Price And Quantity

Price 4500.0 INR/Number
Minimum Order Quantity 1 Number

Large Platform Load Cell Product Specifications

Product Type Single Point Load Cell
Application Steel Weigher
Storage Temperature 0 to 60 Celsius (oC)
Compensated Temperature 0 to 60 Celsius (oC)
Theory Resistance Sensor
Operate Method ending Beam Type (Strain Gauge Technology)
Accuracy 0.025% FSO %
Dimension (L*W*H) 200+75+75 Millimeter (mm)
Color Silver
Classification Single Point
Output Analog Sensor
Operating Temperature 0 TO 60 Celsius (oC)
Power 10 VDC Volt (v)
Usage Large Size Platform Scales
Resistance Input Resistance: 390 15 Ohms, Output Resistance: 350 3 Ohms
Weight 2 Kilograms (kg)
Type Low Profile Bending Beam Load Cell
Material Tool Steel
Operating Voltage 10 VDC Volt (V)
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Capacity 500, 750, 1000, 1500, 2000, 3000 Kg
Output Voltage 2mV/v Volt (V)

Large Platform Load Cell

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 100 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Packaging Details Standard
Main Export Market(s) Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

Specifications of Large Platform Load Cell

The 60810 Single-Point Platform Load Cell is a strain-gaugebased, low-profile bending beam load cell designed for large and heavy platform scale applications. Made from rugged tool steel, it can withstand high shock loads while maintaining high accuracy with low eccentric (off-center) load sensitivity. It supports platform sizes up to 1000 1000 mm and capacities from 500 kg to 3000 kg, making it ideal for industrial weighing, bag weighing, hopper weighing, and steel weighers. The load cell provides a standard 2.0 mV/V output, operates with 1015 VDC excitation, and offers IP67 environmental protection for reliable performance in harsh conditions.

Applications:

Large platform weighing scales (up to 1000 1000 mm)
Bag weighing systems
Hopper weighing
Steel and heavy material weighers
Industrial and warehouse weighing systems

Usage:

Accurate weight measurement on large, heavy-duty platform scales
Designed to handle off-center loading with minimal error
Suitable for continuous industrial weighing operations
