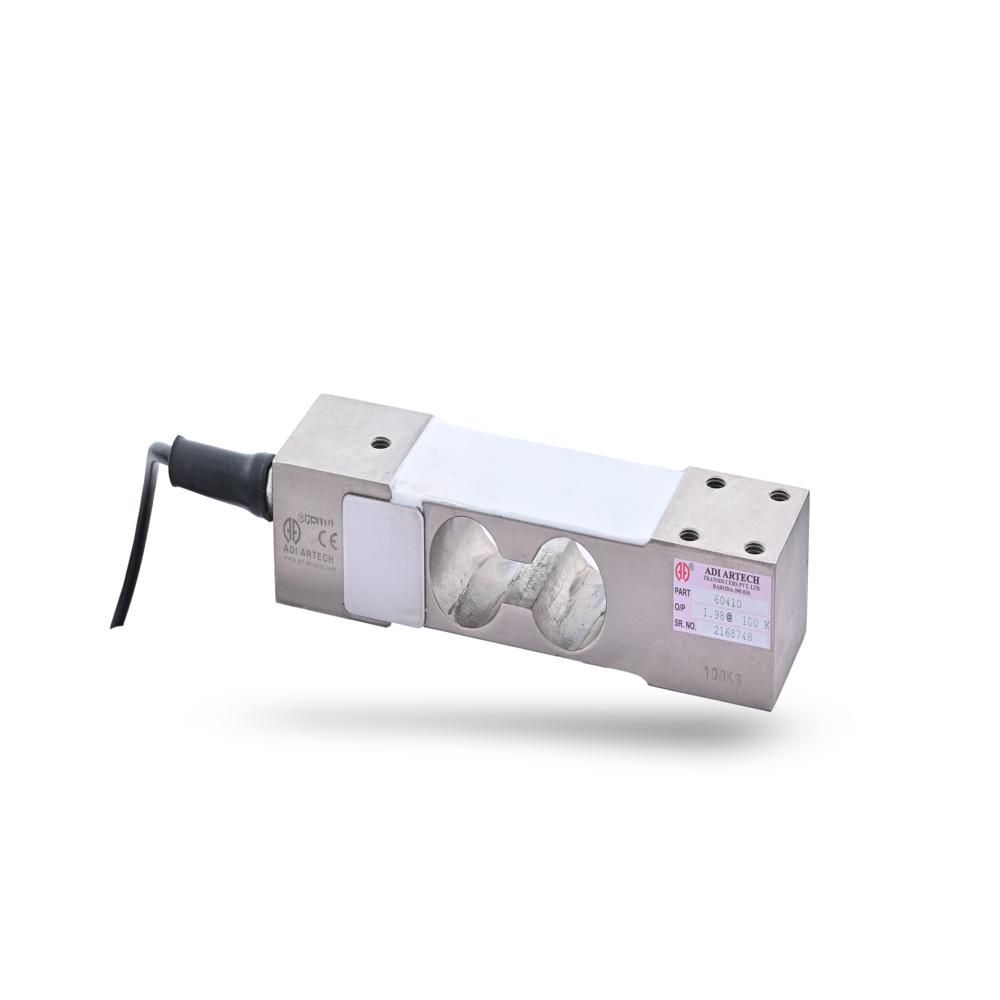

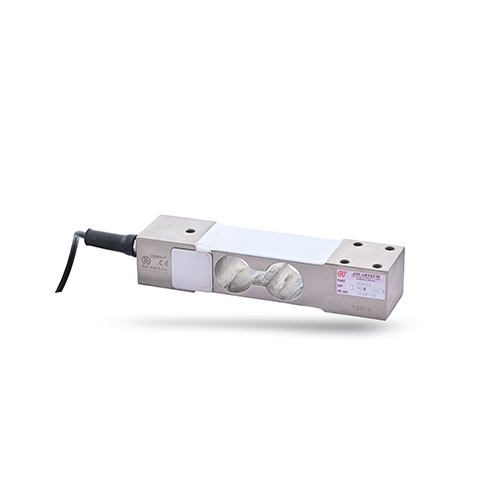

SS Load Cell for Medium Platform Scale

About SS Load Cell for Medium Platform Scale

The Model 60410 / 60410-SS Single Point Platform Load Cell is a low-profile, strain gauge-based bending beam load cell designed for precision platform weighing applications. Engineered with low eccentric load sensitivity, it delivers accurate weight measurement even when loads are placed off-center. The standard model is manufactured from electroless nickel-plated tool steel, while the 60410-SS version is made from 17-4 PH stainless steel for hygienic and corrosive environments. It is ideal for medium-sized platform scales, bag weighing, and hopper weighing systems.

Key Features

• Single-point load cell for platform scales
• Low eccentric loading error
• Supports platform size up to 750 750 mm
• Low-profile, compact, and lightweight design
• Capacities from 100 kgf to 1500 kgf
• Tool steel or stainless steel (17-4 PH) construction
• High accuracy and long-term stability
• IP67 environmental protection

FAQs

1. What is the Model 60410 load cell used for?

It is designed for:

• Medium-sized platform scales
• Bag weighing systems
• Hopper weighing applications
•


2. What capacities are available?

Standard capacities are:
100, 200, 300, 500, 750, 1000, and 1500 kgf.

3. What is the difference between 60410 and 60410-SS?

• 60410: Electroless nickel-plated tool steel construction.
• 60410-SS: Stainless steel 17-4 PH construction for hygienic and corrosive environments.
•


4. What is the output sensitivity?

The load cell provides a nominal output of 2.0 mV/V.

5. What excitation voltage is required?

• Recommended: 10 VDC
• Maximum: 15 VDC
•


6. How accurate is the load cell?

Performance specifications include:

• Non-linearity: < 0.025% FSO
• Hysteresis: < 0.02% FSO
• Non-repeatability: < 0.01% FSO

7. What platform size can it support?

The load cell is designed for platforms up to 750 mm 750 mm.

8. What is eccentric load sensitivity?

The load cell is specially designed for minimum error under off-center loading, making it ideal for platform scales where loads may not always be centered.

9. What overload protection is provided?

• Safe Overload: 150% of rated capacity
• Ultimate Overload: 250% of rated capacity

10. What is the temperature compensated range?

The load cell is compensated for temperatures between 0C and 60C.

11. What are the input and output resistances?

• Input Resistance: 390 15
• Output Resistance: 350 3

12. What environmental protection does it provide?

The load cell meets IP67 protection standards, providing protection against dust and temporary water immersion.

13. What cable is supplied?

A 3-meter, 4-core screened cable is provided as standard.

14. Why is the stainless steel version preferred for certain applications?

The 60410-SS offers excellent corrosion resistance and is suitable for food processing, pharmaceutical, chemical, and other hygienic applications.

15. Why choose Model 60410 / 60410-SS?

The Model 60410 series offers high accuracy, low eccentric loading error, rugged construction, IP67 protection, and capacities up to 1500 kgf, making it an excellent choice for industrial platform and hopper weighing systems.
