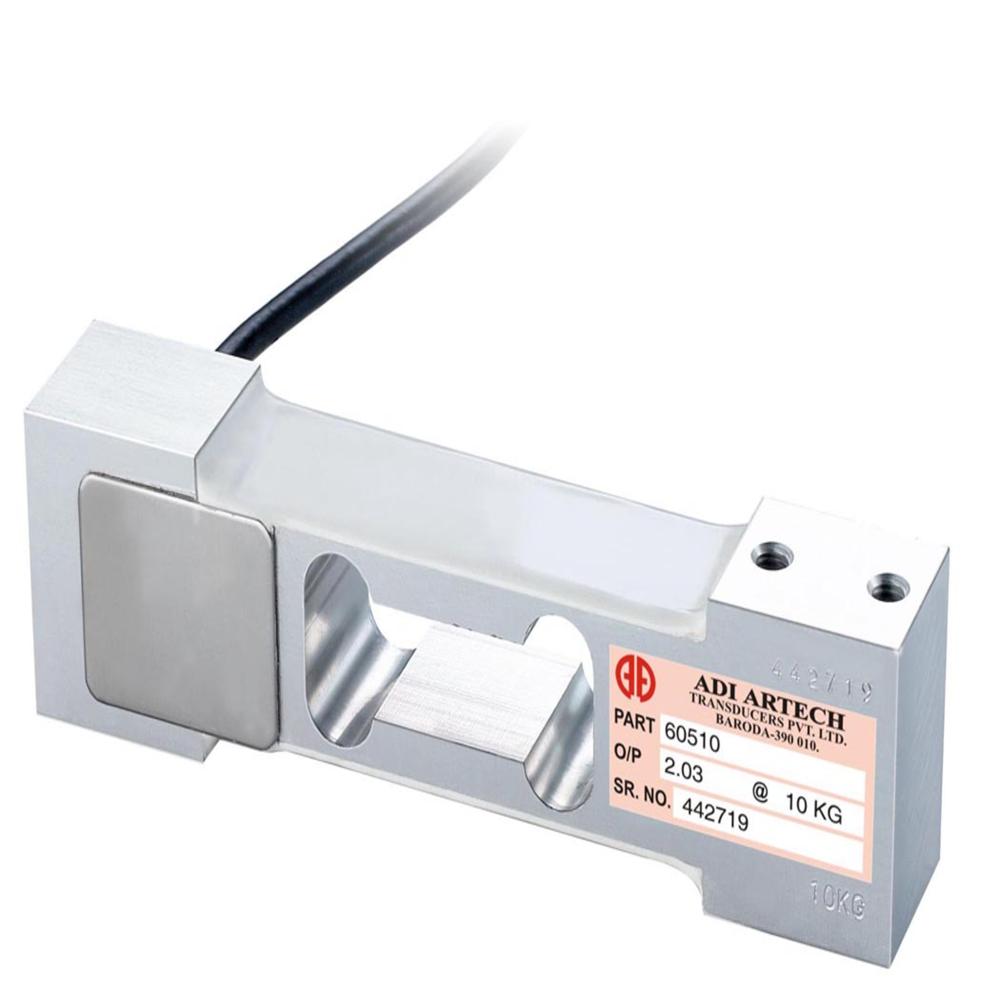

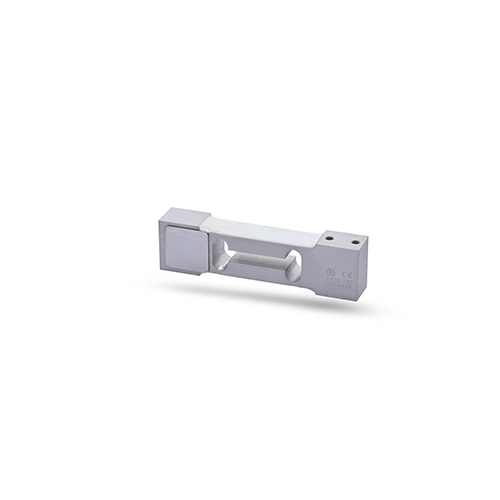

Table Point Top Load Cell

2500.0 INR/Number

Get a Price/Quote

Product Details:

Weight 750 Grams (g)
Resistance Input Resistance: 420 15 , Output Resistance: 350 3
Product Type Single Point Table Top Load Cell
Classification Industrial / Commercial Weighing Load Cell, IP65 Protection
Application Check Weighers, Bagging Machines, Bench Scales ,Counting Scales,, Postal & Retail Scales
Dimension (L*W*H) 149*40*25 Millimeter (mm)
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Table Point Top Load Cell Price And Quantity

Price 2500.0 INR/Number
Minimum Order Quantity 1 Number

Table Point Top Load Cell Product Specifications

Material Anodized Aluminum Alloy
Compensated Temperature 10-50 Celsius (oC)
Operating Temperature 0-50 Celsius (oC)
Weight 750 Grams (g)
Usage Accurate weight measurement for small to medium capacity platform and tabletop scales
Theory Resistance Sensor
Output Voltage 2mv Volt (V)
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Type STRAIN GAGE BASED BENDING BEAM LOAD CELL
Dimension (L*W*H) 149*40*25 Millimeter (mm)
Accuracy 0.025 %
Output Analog Sensor
Operate Method Bending beam load measurement with single-point sensing and low eccentric load sensitivity
Operating Voltage 5-10 Volt (V)
Capacity 1.5, 3, 5, 10, 15, 20, 30, 50, 100, 120 Kg
Classification Industrial / Commercial Weighing Load Cell, IP65 Protection
Application Check Weighers, Bagging Machines, Bench Scales ,Counting Scales,, Postal & Retail Scales
Product Type Single Point Table Top Load Cell
Storage Temperature 0-60 Celsius (oC)
Resistance Input Resistance: 420 15 , Output Resistance: 350 3
Power 10 VDC Volt (v)

Table Point Top Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 1000 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Asia, Australia, Eastern Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST REPORT

Product Description

Table Top Load Cell

Model	:	60510
Capacity	:	0-1.5Kgf to 0-120Kgf
Load Direction	:	Compression only
Type	:	Single Point Table Top Load Cell,Off Center Table Top Load Cell ,Bending Beam Table Top Load Cell

Industries

Weighing
Batch Weigh
Bagging Machineries

Application

Bag Weighing Machine
Bench Scale
Check Weighing
Counting Scale
Postal Scale
Small Bagging Machines
Table Top Weigh Scale

Description

Model 60510 is strain gage based bending beam table top load cell.
It is ideal for bench,counting,floor,postal and retail scales.
It is designed for low accentrical load sensitivity for 400 x 400 mm platter size.

Features

Low profile design for compact and slik scale manufacturing.
Aluminum alloy construction with light weight for easy portability.
Moisture proof sealing is provided for humid environmental applications.

For more details , contact us.

High-Precision Performance

Engineered for demanding measurement tasks, this strain gage bending beam load cell delivers outstanding accuracy down to 0.025. Its analog output ensures reliable data for weight-based processes, supporting enhanced operational control in manufacturing, laboratory, or industrial settings.

Robust Operating Conditions

Designed for resilience, the load cell performs consistently within an operating temperature range of 050C and can be safely stored between 060C. Its robust build ensures dependable performance in diverse Indian industrial environments, providing long-term reliability.

Versatile Industrial Integration

The cell is easy to implement in both existing and new setups, compatible with various platforms thanks to its standard output and configuration. Whether for dealers, suppliers, or manufacturers, it enhances weighing system functionality and simplifies process optimization.

FAQs of Table Point Top Load Cell:

Q: How is the Table Point Top Load Cell typically used in industrial settings?

A: This load cell is commonly employed for precise weight measurement in applications such as checkweighers, packaging scales, and process control systems. Its accuracy makes it ideal for quality-sensitive operations in manufacturing and laboratories.

Q: What benefits does the strain gage-based bending beam design provide?

A: The bending beam design utilizing strain gages offers high sensitivity and stability, ensuring accurate weight measurements even under dynamic loads. This results in consistent performance with minimal deviation across repeated measurements.

Q: When is the optimal temperature range for operating the load cell?

A: For best performance, the Table Point Top Load Cell should be operated within 050C, with compensation between 1050C. Storing the unit at temperatures up to 60C is also safe.

Q: Where can this load cell be sourced in India?

A: It can be obtained through various channels in India, including dealers, distributors, exporters, manufacturers, producers, suppliers, traders, and wholesalers specializing in electronic measurement solutions.

Q: What is the output type and voltage specification for integration purposes?

A: The load cell provides an analog output with a voltage of 2mV, operating within a supply voltage range of 510V. This standard interface allows for easy integration with electronic instrumentation.

Q: How does the load cell contribute to process optimization?

A: By providing accurate and reliable data, the load cell helps optimize automated processes, improve product quality, and reduce errors, making it a valuable asset for any production environment.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Single Point Off-Center Load Cell' category

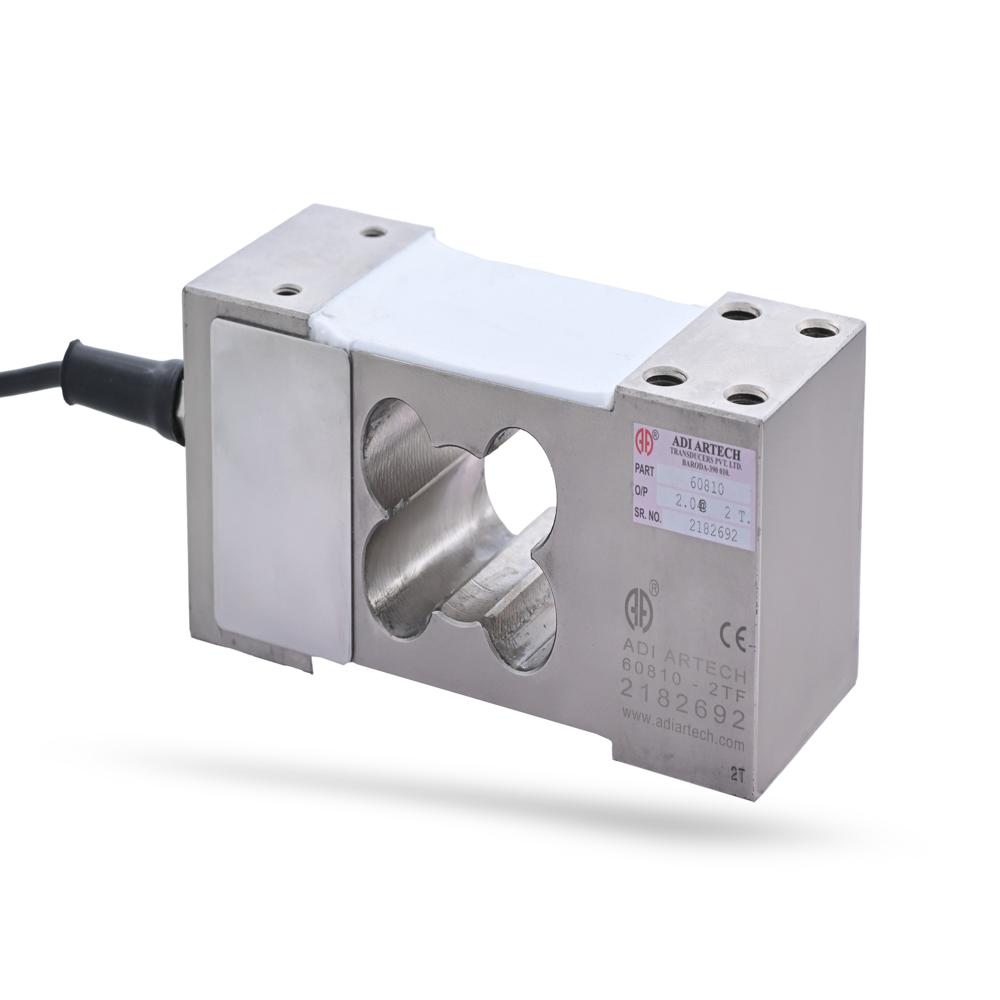

Large Platform Load Cell Price : 4500.0 INR/Number Minimum Order Quantity : 1 Operating Voltage : 10 VDC Volt (V) Compensated Temperature : 0 to 60 Celsius (oC) Output : Analog Sensor Resistance : Input Resistance: 390 15 Ohms, Output Resistance: 350 3 Ohms Operating Temperature : 0 TO 60 Celsius (oC) Theory : Resistance Sensor Output Voltage : 2mV/v Volt (V) Type : Low Profile Bending Beam Load Cell Accuracy : 0.025% FSO % Capacity : 500, 750, 1000, 1500, 2000, 3000 Kg Storage Temperature : 0 to 60 Celsius (oC) Power : 10 VDC Volt (v) Material : Tool Steel Usage : Large Size Platform Scales Voltage : 10 VDC (Maximum 15 VDC) Volt (v) Operate Method : ending Beam Type (Strain Gauge Technology) Classification : Single Point Application : Steel Weigher Product Type : Single Point Load Cell Weight : 2 Kilograms (kg) Color : Silver Dimension (L*W*H) : 200+75+75 Millimeter (mm)

Send Inquiry

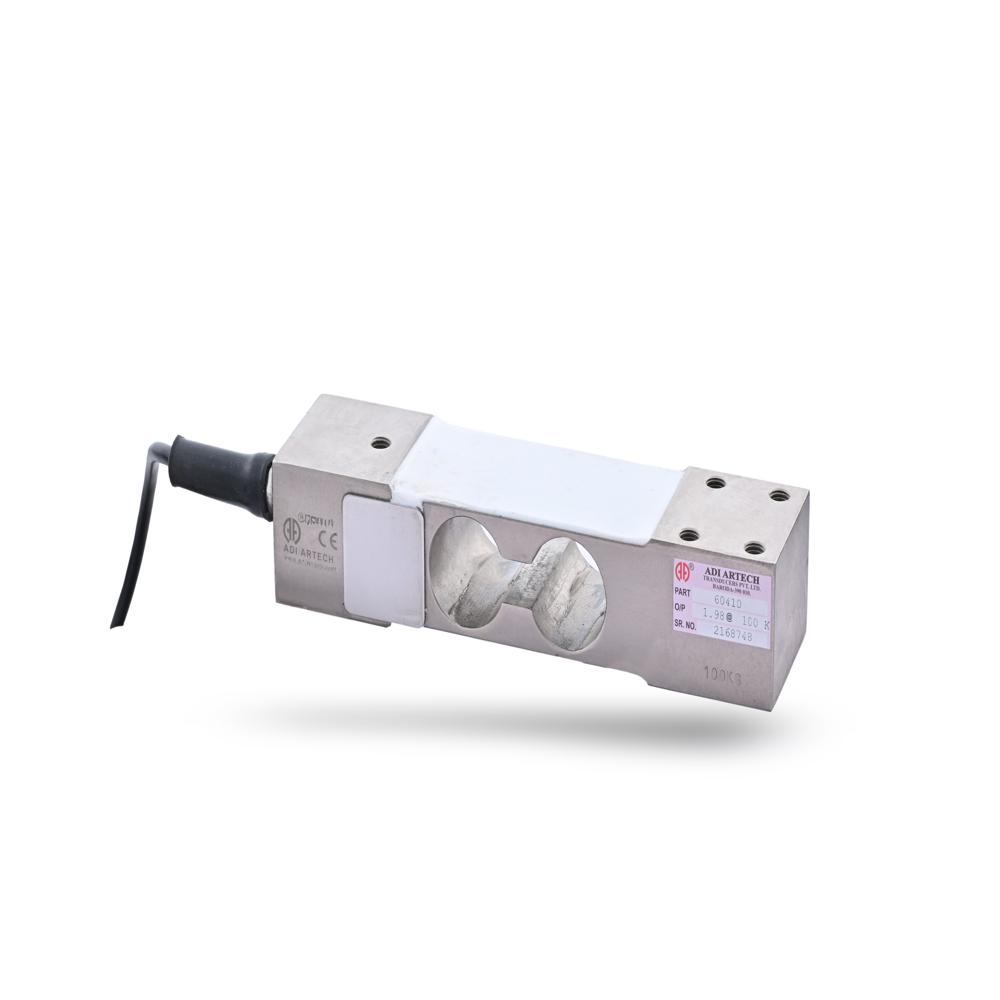

SS LOAD CELL FOR MEDIUM PLATFORM SCALE Price : 6000.0 INR/Number Minimum Order Quantity : 1 Operating Voltage : 515V DC Volt (V) Compensated Temperature : 10 C to 50 C Celsius (oC) Output : Analog Sensor Resistance : Input resistance: 390 15 , Output resistance: 350 5 Operating Temperature : 0 C to 60 C Celsius (oC) Theory : Resistance Sensor Output Voltage : 2.0 mV/V Volt (V) Type : SS Load Cell for Medium Platform Scale Accuracy : 0.025 % FSO % Capacity : 100,150,200,300,500,750,1000,1500 Kg Storage Temperature : 10 C to 50 C Celsius (oC) Power : 10 VDC Volt (v) Material : Stainless Steel 174 PH Usage : Precision weighing of mediumsize loads in industrial environments Voltage : Max. 15 VDC (Suggested 5 VDC / 10 VDC) Volt (v) Operate Method : Strain gauge principle measuring load through bending beam deformation Classification : Strain gauge based, low profile bending beam load cell Application : Medium Size Platform Scales, Bag Weighing, Hopper Weighing Product Type : Single Point Platform Load Cell Weight : 3 KG(Approx.) Kilograms (kg) Color : Silver Dimension (L*W*H) : 200*50*40 Millimeter (mm)
