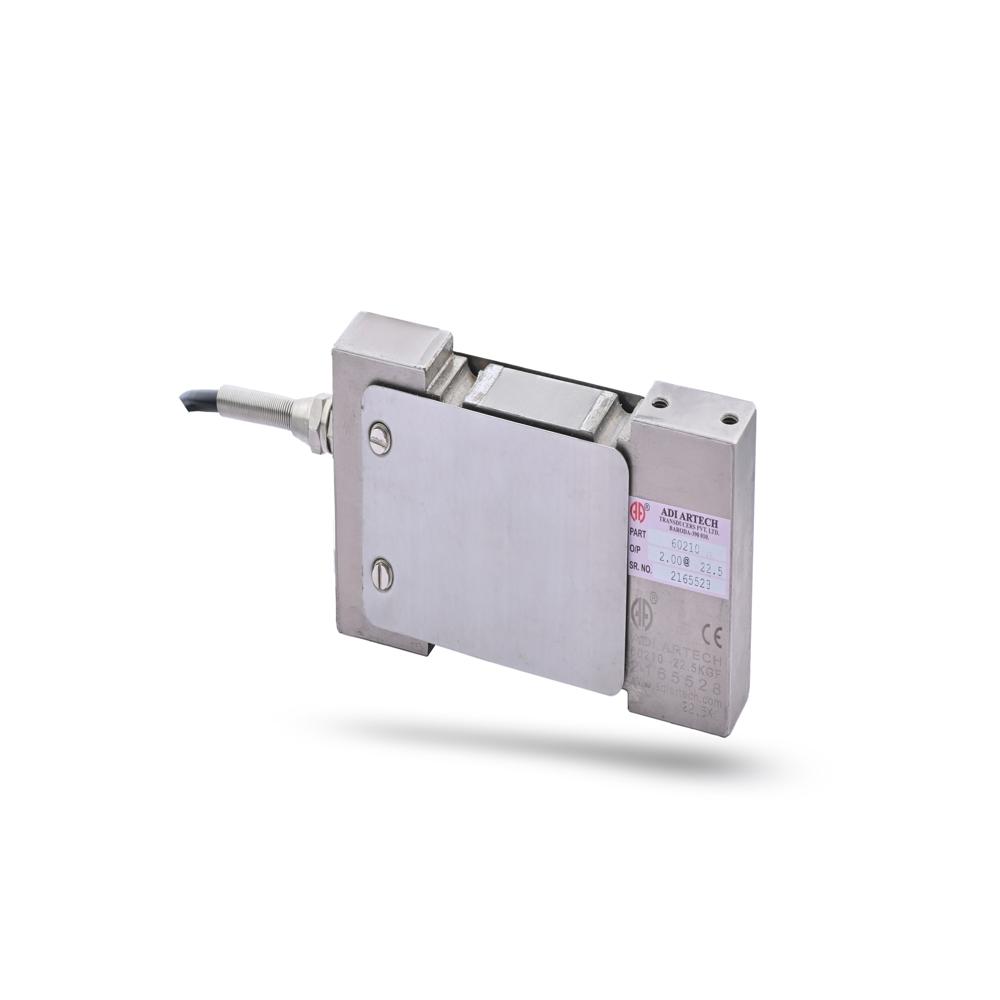

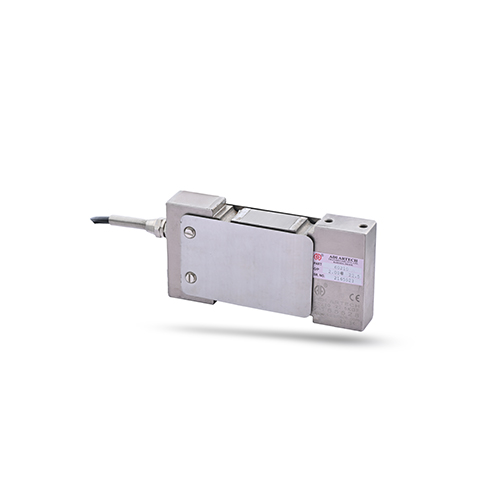

Single Point Bending Beam Load Cell

8500.0 INR/Number

Get a Price/Quote

Product Details:

Power Electrically excited sensor Volt (v)
Operate Method Converts applied load into an electrical signal using strain gauges
Usage accurate weighing in small, economical platform scales with low-profile design
Capacity 15,22.5,45,90 Kg
Material Electroless nickel plated tool steel
Application Small-size platform scales , Check weighers , Bag weighers
Classification Strain-gauge based, low-profile single-point load cell
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Single Point Bending Beam Load Cell Price And Quantity

Price 8500.0 INR/Number
Minimum Order Quantity 1 Number

Single Point Bending Beam Load Cell Product Specifications

Product Type Single Point Platform Load Cell
Output Voltage 2.0 mV/V (Nominal output) Volt (V)
Material Electroless nickel plated tool steel
Operating Voltage 10 VDC nominal, up to 15 VDC maximum Volt (V)
Output Analog Sensor
Voltage Excitation voltage: 10 VDC (Maximum 15 VDC) Volt (v)
Color Silver
Weight 2 kg (Approx.) Kilograms (kg)
Capacity 15,22.5,45,90 Kg
Usage accurate weighing in small, economical platform scales with low-profile design
Operate Method Converts applied load into an electrical signal using strain gauges
Dimension (L*W*H) 153*25.4*76.2 Millimeter (mm)
Resistance Input resistance: 390 15 Output resistance: 350 5
Power Electrically excited sensor Volt (v)
Classification Strain-gauge based, low-profile single-point load cell
Compensated Temperature 0 C to 50 C Celsius (oC)
Operating Temperature 10 C to 50 C Celsius (oC)
Theory Resistance Sensor
Application Small-size platform scales , Check weighers , Bag weighers
Accuracy 0.025% FSO %
Type Single-point load cell

Single Point Bending Beam Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 100 Number Per Week
Delivery Time 1 Week
Sample Available Yes
Main Export Market(s) Australia, Eastern Europe, Middle East, Africa, Asia, Western Europe
Main Domestic Market All India

Product Description

Single Point Bending Beam Load Cell

Model	:	60210
Capacity	:	0-22.5Kgf , 0-50Kgf. , 0-75Kgf. , 0-100Kgf
Load Direction	:	Tension & Compression - Universal
Type	:	Single Point Platform Load Cell ,Off Center Platform Load Cell ,Bending Beam Platform Load Cell

Industries

Weighing
Batch Weigh
Bagging Machineries

Application

Bag Weighing Machine
Bench Scale
Check Weighing
Counting Scale
Platform Scale
Small Bagging Machines

Description

60210 is precission low profile single point load cell suitable for scale and bagging machines.
This is suitable for high speed weighing in bagging machines.
This is constructed from tool steel material for sevear industrial impact loads.

Features

60210 load cell exibits excellent linearity and low hysteresis.
Low creep and fast return to zero are its best performance characteristics.
Available in capacities from 22.5 to 200 Kgf load.

For more details , please contact us.
