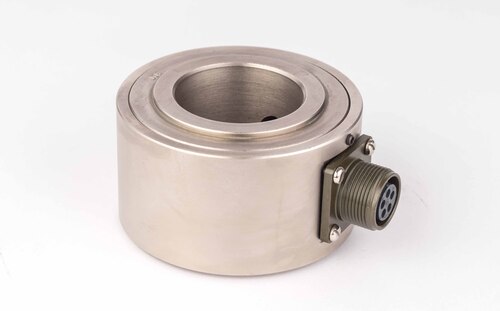

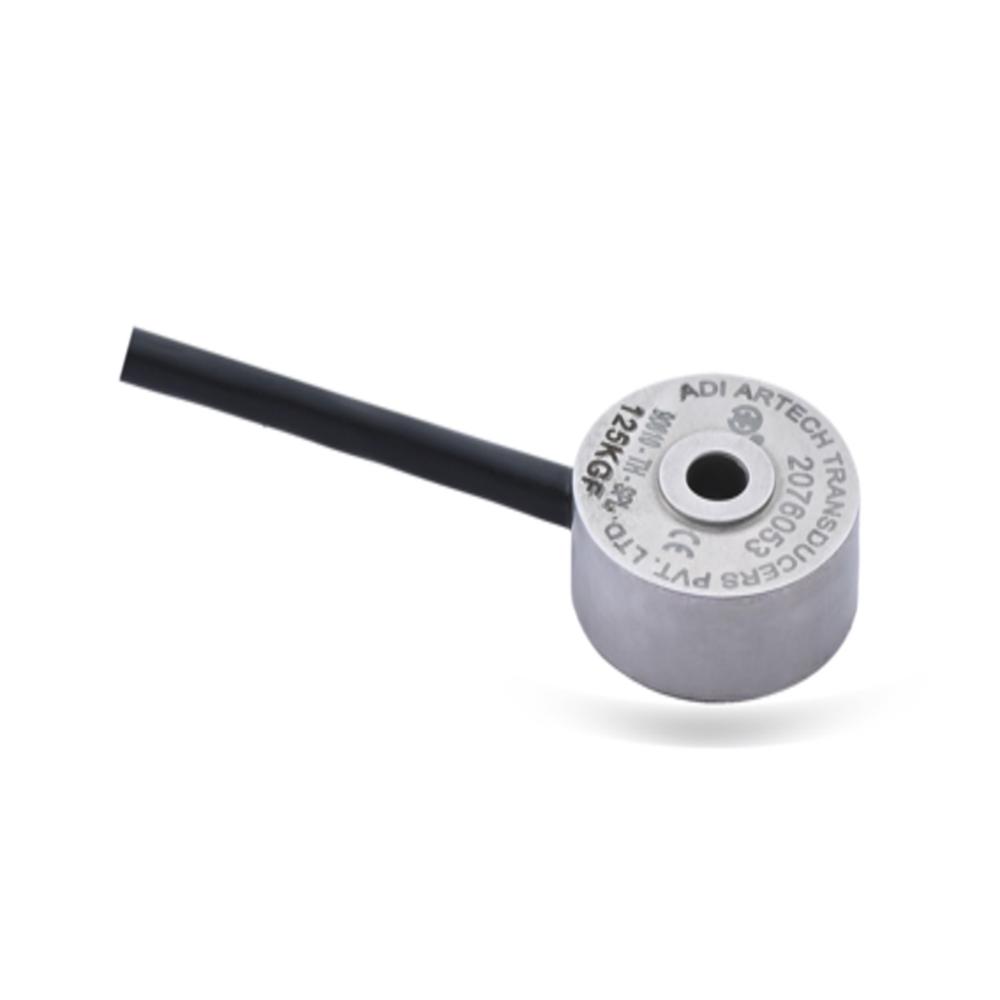

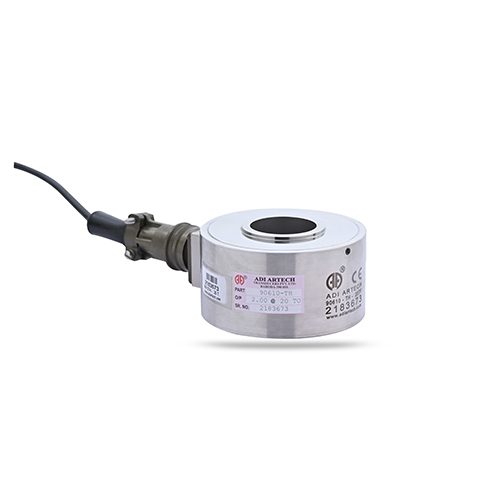

90610-TH Through Hole Compression Load Cell

Name: 90610-TH Through Hole Compression Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 29500.0 INR
Availability: InStock

Price 29500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number, Number, Number

90610-TH Through Hole Compression Load Cell Specification

Color
Silver

Product Type
Through Hole Load Cell

Resistance
Input resistance: 770 20 ; Output resistance: 700 3

Dimension (L*W*H)
84*50 Millimeter (mm)

Weight
5 Kilograms (kg)

Voltage
10 VDC nominal, Maximum 15 VDC Volt (v)

Material
Electroless nickel plated tool steel (Optional: Stainless Steel 17-4 PH)

Classification
Compression load cell (through-hole type)

Capacity
5-500 Ton

Usage
Measurement of compression, tensile, bolt, and suspended loads

Operate Method
Compression load induced by tensile force through fastener passing via the central hole

Power
Electrical Volt (v)

Application
Fastener & bolt force testing , Civil engineering testing, Press calibration, Injection molding machines , Material & tablet testing machines, Robotics & industrial automation , Suspended and hanging load measurement

Output
Analog Sensor

Theory
Resistance Sensor

Type
Through hole compression load cell

Accuracy
0.5% FSO %

Operating Voltage
10 VDC nominal, Maximum 15 VDC Volt (V)

Output Voltage
2mv Volt (V)

Compensated Temperature
0 C to 60 C Celsius (oC)

Storage Temperature
0 C to 60 C Celsius (oC)

Operating Temperature
0 C to 60 C Celsius (oC)

90610-TH Through Hole Compression Load Cell Trade Information

Minimum Order Quantity
1 Number, Number, Number

FOB Port
vadodara

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
100 Per Week

Delivery Time
1 Week

Sample Available
No

Main Export Market(s)
Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About 90610-TH Through Hole Compression Load Cell

Introducing the new 90610-TH Through Hole Compression Load Cellan ineffable addition to the distinguished line of strain gage based sensors in India. This first-class device boasts a compensated temperature range of 10-50C and an analog output of 2mV, ensuring optimal performance. Designed for versatility, you can personalise your purchase to suit diverse requirements, from industrial monitoring to precision instrumentation. Whether you are a dealer, supplier, or manufacturer, this load cell is engineered for reliability by renowned exporters and wholesalers. Elevate your measurement solutions today.

Versatile Usage and Applications

The 90610-TH Through Hole Compression Load Cell excels as a primary solution in compression force measurement. Its widely used in industries for press force monitoring, structural testing, and automation systems. The sensor also serves distinct applications in machinery health assessment and process control. Its advanced resistance sensor theory enables precise performance, making it suitable for critical, high-reliability environments where first-class accuracy matters most.

Packaging, Certifications, and Shipping Details

All 90610-TH load cells are carefully packed to ensure safe transit of shipped goods. Each unit is dispatched with detailed documentation and compliance certificates verifying its authenticity and quality standards. FOB port options across key Indian cities provide clients with flexible freight solutions. The dispatching procedure is streamlined, guaranteeing that your order reaches you promptly and in pristine condition, ready for seamless integration into your processes.

FAQs of 90610-TH Through Hole Compression Load Cell:

Q: How is the 90610-TH Through Hole Compression Load Cell typically used?

A: The 90610-TH Load Cell is used for measuring compression forces in various applications such as industrial automation, press force monitoring, and structural health assessments.

Q: What are the primary benefits of choosing a strain gage based through hole load cell?

A: Strain gage based load cells offer high sensitivity, reliability, and efficient transduction of force into readable analog signals, ensuring precise measurements for demanding environments.

Q: When can I expect the shipment to be dispatched after placing my order?

A: Once your purchase is confirmed, the product is typically dispatched promptlyshipping timelines may vary based on quantity and destination but are structured for quick delivery.

Q: Where can the load cell be exported from in India?

A: The 90610-TH Through Hole Compression Load Cell can be exported from key Indian ports, with FOB options provided at the time of order to suit your freight preferences.

Q: What certifications are provided with the 90610-TH Load Cell shipment?

A: Each shipment includes comprehensive documentation and certificates ensuring conformity with international quality standards and performance specifications.
