Fatigue Rated Through Hole Load Cell

Name: Fatigue Rated Through Hole Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 29500.0 INR
Availability: InStock

29500.0 INR/Number

Get a Price/Quote

Product Details:

Application Fastener Testing, Bolt Force Measurement , Civil Engineering Testing, Material Testing, Injection Molding Machines , Tablet Manufacturing Machines, Press Calibration, Robotics & Industrial Automation, Suspended Load / Hanging Load Weighing , Rock Bolt Pulling Force Measurement
Material Electroless Nickel Plated Tool Steel
Classification Strain Gauge Based Load Cell
Power Powered through excitation voltage Volt (v)
Color Metallic / Nickel plated finish
Usage Used for measuring compressive force through bolts or fasteners and suspended loads.
Resistance 350 OhmsInput Resistance: 770 20 ,Output Resistance: 700 3
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Fatigue Rated Through Hole Load Cell Price And Quantity

Price 29500.0 INR/Number
Minimum Order Quantity 1 Number

Hysteresis <0.1% of Rated Output
Cable Length 6 meters
Safe Overload 150% of Rated Capacity
Creep <0.03% of Rated Output
Fatigue Life Exceeds 100 million full cycles
Nonlinearity <0.1% of Rated Output
Zero Balance 1% of Rated Output
Material High Strength Stainless Steel
Protection Class IP67
Electrical Termination Shielded cable
Mounting Through Hole with Bolt Circle
Capacity Range 11 kN to 889 kN
Connector Type 4-Pin

Fatigue Rated Through Hole Load Cell Product Specifications

Type Fatigue Rated Through Hole Load Cell
Output Voltage 2mV/V nominal Volt (V)
Accuracy 0.5% FSO %
Capacity 5 TF to 500 TF Ton
Power Powered through excitation voltage Volt (v)
Operate Method Compression type measurement through a hollow center. The fastener or bolt passes through the hole and force is applied by tightening the nut, generating compression on the load cell.
Product Type Through Hole Compression Load Cell
Usage Used for measuring compressive force through bolts or fasteners and suspended loads.
Voltage 10 VDC (Maximum 15 VDC) Volt (v)
Operating Temperature 0 C to 60 C Celsius (oC)
Compensated Temperature 10 C to 60 C Celsius (oC)
Color Metallic / Nickel plated finish
Theory Resistance Sensor
Output Analog Sensor
Material Electroless Nickel Plated Tool Steel
Application Fastener Testing, Bolt Force Measurement , Civil Engineering Testing, Material Testing, Injection Molding Machines , Tablet Manufacturing Machines, Press Calibration, Robotics & Industrial Automation, Suspended Load / Hanging Load Weighing , Rock Bolt Pulling Force Measurement
Classification Strain Gauge Based Load Cell
Storage Temperature 0 C to 60 C Celsius (oC)
Operating Voltage 10V DC recommended Volt (V)
Resistance 350 OhmsInput Resistance: 770 20 ,Output Resistance: 700 3

Hysteresis <0.1% of Rated Output
Cable Length 6 meters
Safe Overload 150% of Rated Capacity
Creep <0.03% of Rated Output
Fatigue Life Exceeds 100 million full cycles
Nonlinearity <0.1% of Rated Output
Zero Balance 1% of Rated Output
Material High Strength Stainless Steel
Protection Class IP67
Electrical Termination Shielded cable
Mounting Through Hole with Bolt Circle
Capacity Range 11 kN to 889 kN
Connector Type 4-Pin

Fatigue Rated Through Hole Load Cell Trade Information

FOB Port VADODARA
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available No
Main Export Market(s) Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications OEM TEST CERTIFICATE

Product Description

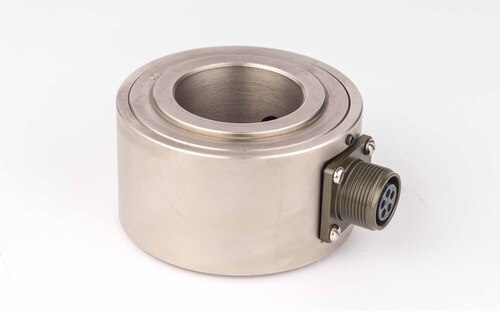

Fatigue Rated Through Hole Load Cell

90610-TH-Fatigue rated load cell is heavy duty for fatigue rated application.
It is through hole , doughnut type load cell used for compressive force testing applications.
It is used to test the anchor force , hanging load , pulling force etc.

For more details , please contact us.

Precision and Durability in Every Load Measurement

Engineered using robust stainless steel, this fatigue rated through hole load cell withstands extreme working conditions and delivers precise results. Its through hole mounting with bolt circle facilitates secure and straightforward installation. With a fatigue life surpassing 100 million cycles, it is an optimal solution for repetitive and high-frequency load measurement tasks across laboratories, production lines, and structural monitoring in India.

Advanced Sensing with Strain Gauge Technology

Utilizing strain gauge technology, the load cell provides analog output (2mV/V nominal) ensuring high resolution and repeatability. Accuracy is maintained with minimal nonlinearity and hysteresis, while temperature compensation guarantees stable readings from -10C to +40C. Its IP67 rating offers dependable performance in challenging environments, protecting against dust and water ingress for reliable use indoors or outdoors.

FAQs of Fatigue Rated Through Hole Load Cell:

Q: How is the Fatigue Rated Through Hole Load Cell installed for best results?

A: This load cell is typically mounted using a bolt circle through its central hole, allowing it to be securely fastened to the structure being monitored. Ensure the surface is clean and flat, and follow manufacturer guidelines for torque settings to achieve optimal alignment and measurement accuracy.

Q: What applications benefit most from this load cells capabilities?

A: The load cell is ideal for fatigue testing, cyclic loading monitoring, structural health assessment, and high-frequency measurement in industrial, research, and civil engineering projects, where sustained accuracy and durability over millions of cycles are crucial.

Q: When should the safe overload limit be considered during operation?

A: The safe overload of 150% of rated capacity provides a safety margin. Continuous or repeated loads should not exceed the rated capacity to maintain accuracy and extend operational life, while momentary overloads up to 150% will not cause damage but should be avoided as a standard practice.

Q: Where can this load cell be used considering its protection class?

A: With an IP67 protection rating, this load cell is suitable for outdoor and harsh industrial environments where exposure to dust, moisture, and occasional water immersion might occur, such as construction sites, laboratories, or production areas.

Q: What is the process for electrical termination and integration?

A: The load cell comes with a 6-meter shielded cable and a 4-pin connector for secure electrical integration. Simply connect the output to the compatible measurement or control system (usually a signal conditioner or data acquisition unit), ensuring the recommended supply voltage of 10V DC and 350-ohm bridge resistance are met.

Q: How does using this load cell benefit industrial measurement systems?

A: End-users gain consistent, accurate load measurements with minimal maintenance due to the high fatigue life and precise output. The robust construction and advanced protection reduce downtime and provide dependable data for critical decision-making in dynamic and static applications.
