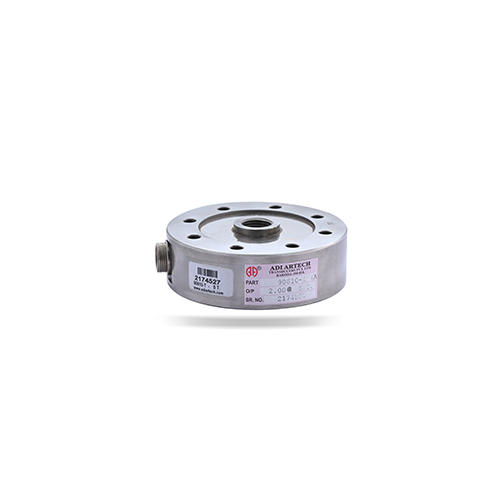

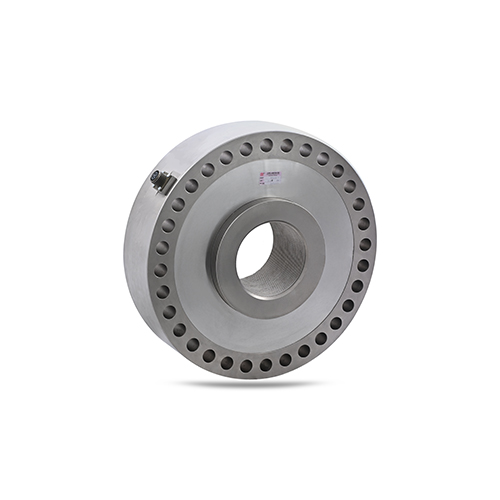

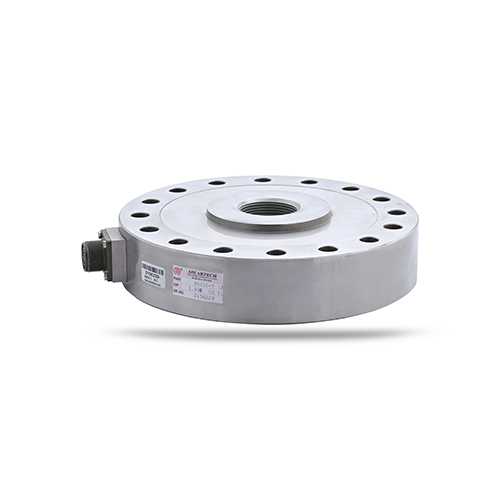

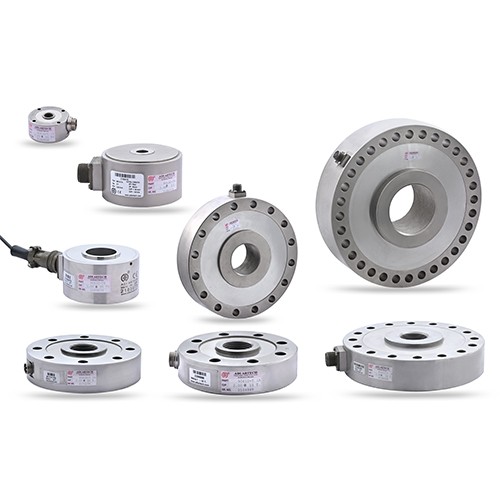

Low Profile Load Cell

Name: Low Profile Load Cell
Brand: ADI ARTECH TRANSDUCERS PVT. LTD.
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Low Profile Load Cell Specification

Material
Electroless Nickel-plated Tool Steel / Stainless Steel (SS 17-4 PH)

Resistance
Input Resistance: 770 20 , Output Resistance: 700 7

Product Type
Pancake Universal Load Cell (Fatigue Rated)

Power
External excitation required Volt (v)

Operate Method
Strain gauge based measurement where mechanical force causes deformation in the load cell and generates proportional electrical signal.

Classification
Force / Load Measurement Sensor (Strain Gauge Based Load Cell)

Color
metallic / nickel plated finish

Usage
Used for precise force measurement in repeated load and fatigue testing environments.

Capacity
1 to 250 Ton

Voltage
Maximum 15 VDC Volt (v)

Application
Fatigue Testing, Industrial Automation, Static & Dynamic Force Measurement, Material Testing, Research Laboratories, Robotics

Output
Analog Sensor

Theory
Resistance Sensor

Type
Low Profile Load Cell

Accuracy
0.15 % FSO %

Operating Voltage
5-15 VDC Volt (V)

Output Voltage
2.0 mV/V Volt (V)

Compensated Temperature
10 C to 50 Celsius (oC)

Storage Temperature
10 C to 50 Celsius (oC)

Operating Temperature
0 C to 60 C Celsius (oC)

Creep (30 min)
0.03% F.S.

Mounting
Through holes, low profile

Ultimate Overload
200% of Rated Capacity

Application
Industrial Weighing, Tank, Hopper, Platform Scales

Insulation Resistance
>5000 M (50VDC)

Capacity Range
5 kg to 1000 kg

Non-Linearity
0.02% F.S.

Hysteresis
0.02% F.S.

Safe Overload
150% of Rated Capacity

IP Rating
IP67

Material
Alloy Steel or Stainless Steel

Cable Length
5 meters

Low Profile Load Cell Trade Information

Minimum Order Quantity
1 Number

FOB Port
VADODARA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
20 Per Week

Delivery Time
4 Week

Sample Available
No

Main Export Market(s)
Asia, Australia, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
OEM TEST REPORT

About Low Profile Load Cell

Order the commanding Low Profile Load Cell, a true masterpiece engineered for industrial weighing with redoubtable durability. Designed for loads from 5 kg to 1000 kg, choose between high-strength alloy steel or stainless steel. Its low profile, robust IP67 ingress protection, and 5-meter cable assure reliability in challenging environments. Achieve accurate, consistent results-non-linearity and hysteresis are each 0.02% F.S., with impressive accuracy of 0.05% F.S. Safe overload reaches 150%, ultimate overload 200%. Pick yours now from India's trusted dealers, exporters, and suppliers!

Engineered for Versatility: Industrial, Commercial, and General Use

The low profile load cell is ideal for industrial weighing, designed to serve commercial applications from tank and hopper measurement to platform scales and general-purpose weighing. Capable of handling a wide capacity range between 5 kg and 1000 kg, it supports accurate, reliable operation in diverse media such as solids, liquids, and powders. Built for durability, this load cell is suitable for both specific industrial needs and versatile general use in multiple weighing environments.

Secure Packaging, Reliable Transport, and Domestic Market Focus

Each low profile load cell is packaged safely for transport services, ensuring damage-free delivery. Our list price includes secure packaging for both domestic and international shipping. We supply through main domestic markets across India, with FOB port facilities available for exports. Dealers, distributors, and wholesalers can trust our logistics to ensure their orders arrive promptly and securely, enhancing trust and service in the growing Indian domestic mar.

FAQ's of Low Profile Load Cell:

Q: How does the low profile load cell ensure accurate measurements in industrial applications?

A: The load cell incorporates advanced strain gauge technology, providing high precision with non-linearity and hysteresis both 0.02% F.S. and an overall accuracy of 0.05% F.S., making it ideal for demanding industrial weighing tasks.

Q: What types of mounting are available for this load cell?

A: This load cell features a low profile design with through-hole mounting, making it versatile and easy to install in tank, hopper, or platform scale setups.

Q: Where can this load cell be used most effectively?

A: It's best utilized in industrial and commercial environments such as tank weighing, hopper weighing, platform scales, and process weighing tasks, offering reliability across varied media and challenging surroundings.

Q: What is the safe and ultimate overload rating for this load cell?

A: This model handles safe overloads up to 150% of its rated capacity, and ultimate overloads up to 200%, ensuring reliable performance under heavy loading conditions.

Q: When should a stainless steel variant be preferred over alloy steel?

A: Choose stainless steel for environments where corrosion resistance and extra durability are necessary, such as in marine settings or food processing, while alloy steel suits standard industrial conditions.

Q: What benefits do dealers and distributors in India receive from sourcing this load cell?

A: Dealers and distributors enjoy reliable transport services, secure packaging, competitive list pricing, and swift delivery throughout main domestic markets, supporting consistent business operations.
