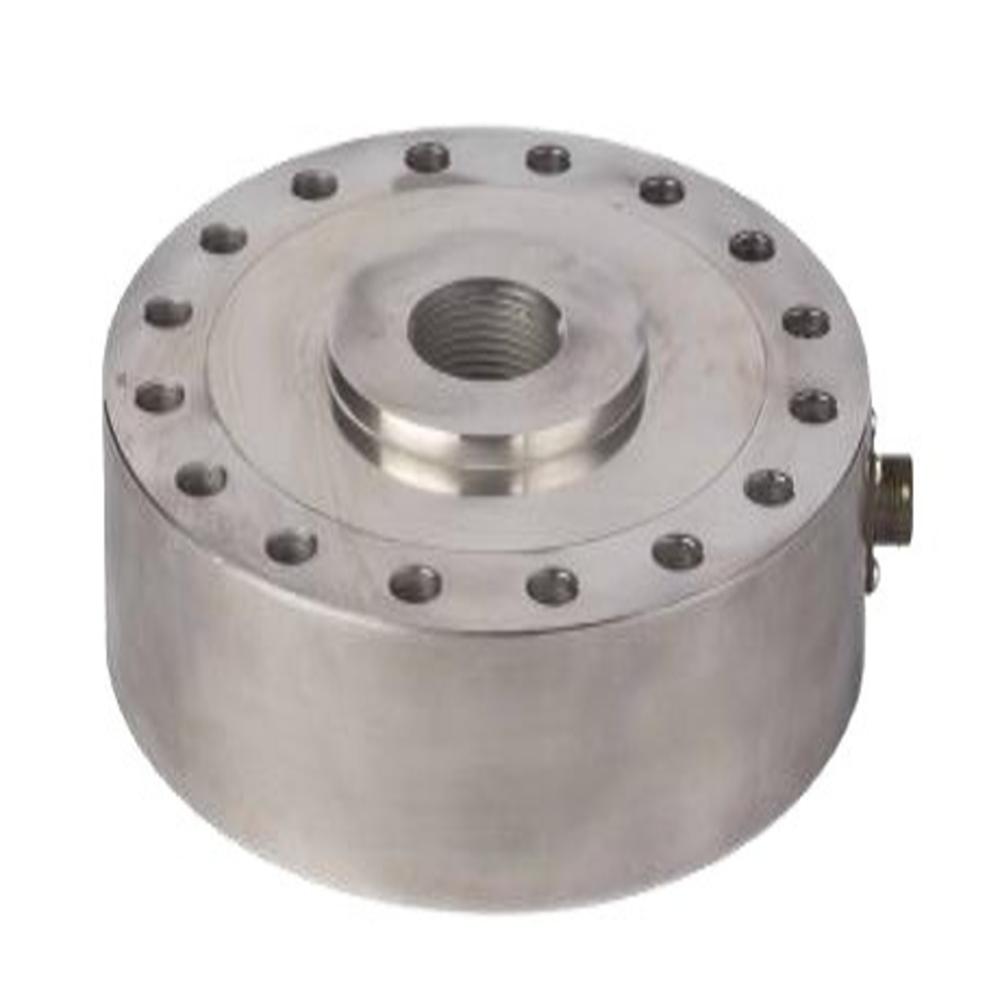

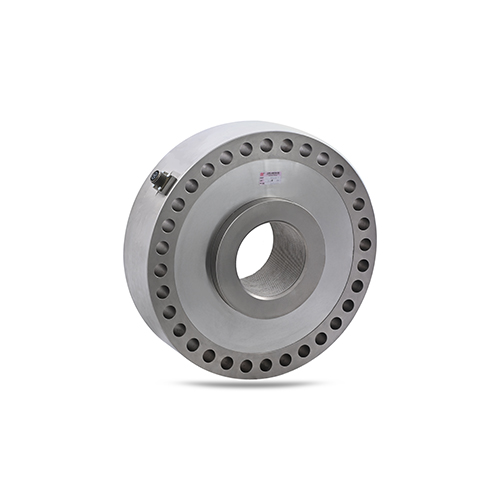

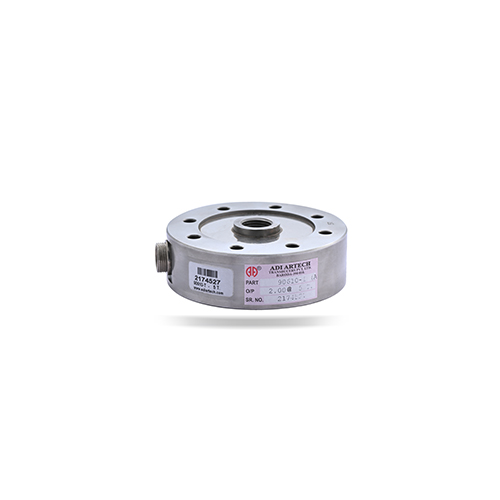

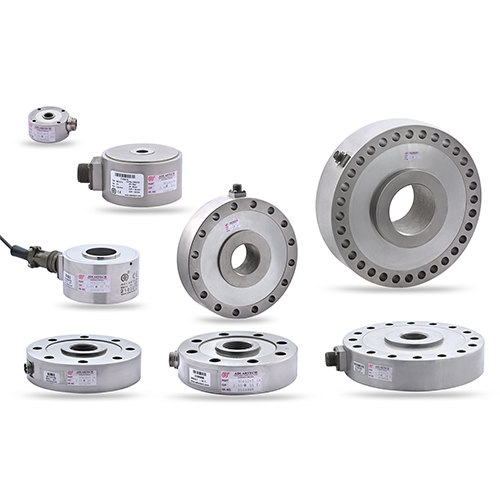

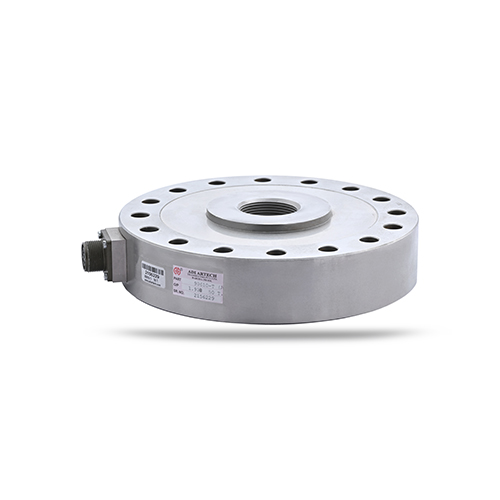

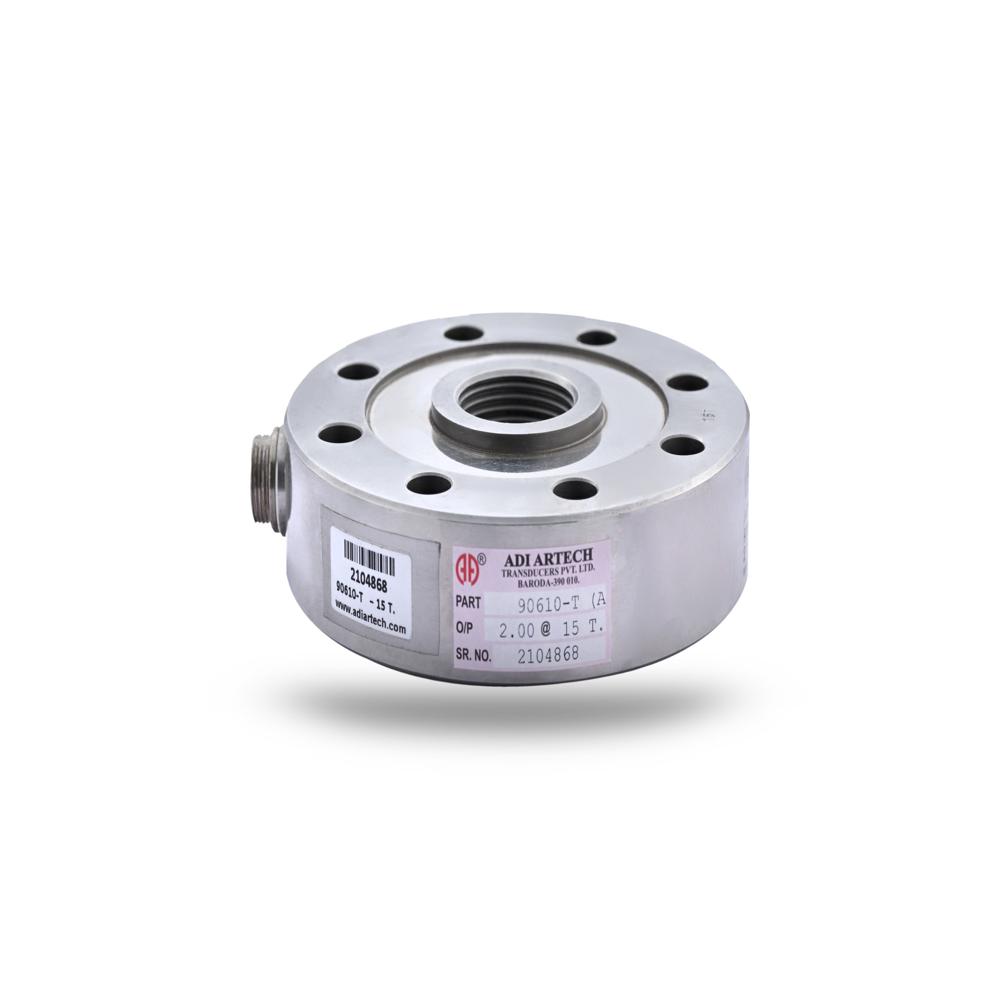

Fatigue Rated Universal Pancake Load Cell

The 90610-T Fatigue Rated Universal Pancake Load Cell is specially designed for repeated and dynamic load applications where impact and endurance testing are involved. Built from high tensile grade tool steel or SS 17-4 PH, it offers excellent durability and long service life.

This load cell is suitable for both tension and compression force measurement and is engineered for 10 million loading cycles, making it ideal for fatigue and endurance testing machines. With IP65 environmental protection, standardized 2 mV/V output, and capacities ranging from 1 TF to 250 TF, it ensures reliable performance in demanding industrial environments.

Optional features such as high-temperature versions, dual bridge construction, 6-core precision cable, ATEX certification, and matched threaded base plates make it adaptable for specialized applications.

Key Highlights

• Capacity Range: 1 TF to 250 TF

• Accuracy: As per ISO 376:2011

• Output: 2.0 mV/V 0.2

• Excitation Voltage: Up to 15 VDC (Recommended 5V/10V)

• IP Protection: IP65

• Safe Overload: 150%

• Ultimate Overload: 300%

• Cycle Life: 10 Million Operations

• Operating Temperature: 0C to 60C (Optional up to 150C)

 FAQs

1 What is this load cell mainly used for?

It is primarily used for fatigue testing, endurance testing, static & dynamic force measurement, robotics, industrial automation, and material testing.

2 Can it measure both tension and compression?

Yes. It is designed for universal use (tension & compression).

3 What makes it Fatigue Rated?

It is engineered to withstand 10 million load cycles, suitable for repeated impact and endurance applications.

4 What is the output signal?

Standard output is 2 mV/V 0.2, compatible with most strain gauge amplifiers and controllers.

5 What protection class does it have?

It meets IP65, protecting against dust and water jets.

6 Is a high-temperature version available?

Yes. Optional versions are available up to 90C, 120C, and 150C.

7 Can it be customized?

Yes. Options include:

• Dual bridge construction

• 6-core cable

• ATEX certification

• Loading button & base plate

• Customized output

8 What industries use this load cell?

• Testing laboratories

• Research institutes

• Automation industries

• Heavy equipment manufacturers

• Robotics & dynamic system manufacturers
